Notes - Session 1244 (2024-09-15)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (4),  Small Defects (0),  Continuous Improvement (6)
Bullet Images from 2024-09-15 >>

Bullet Current/Latest Session >>


Session Aims & Highlights (2024-09-15)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
  2. ImageLink/TheSky6.  Monitor session for any further incidents of the issue where the ImageLink process freezes for 5 minutes leading to Target Abort & Session Suspension.

 Equipment & Software

Highlights-

Notes:

Summary Plots & Logs

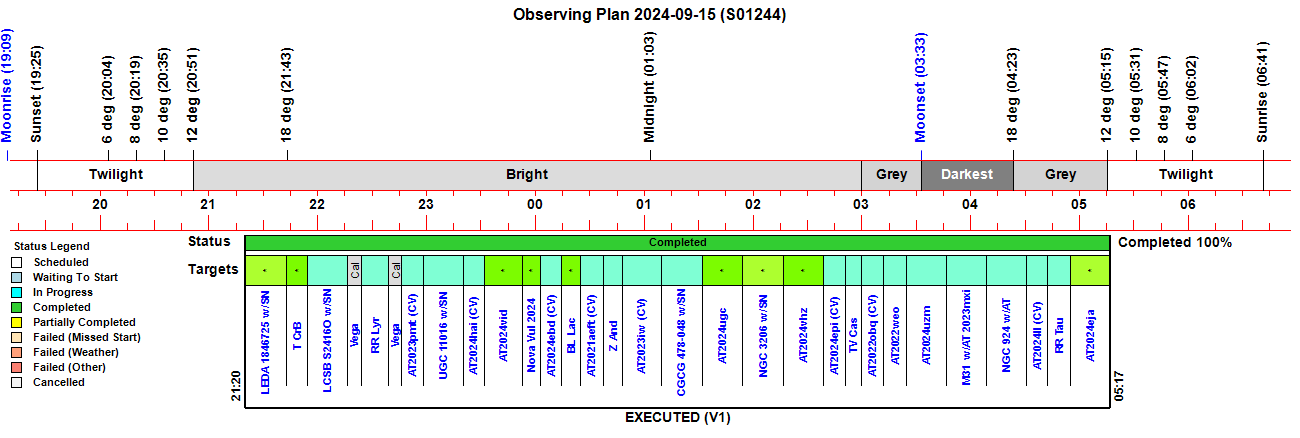

Observing Plan

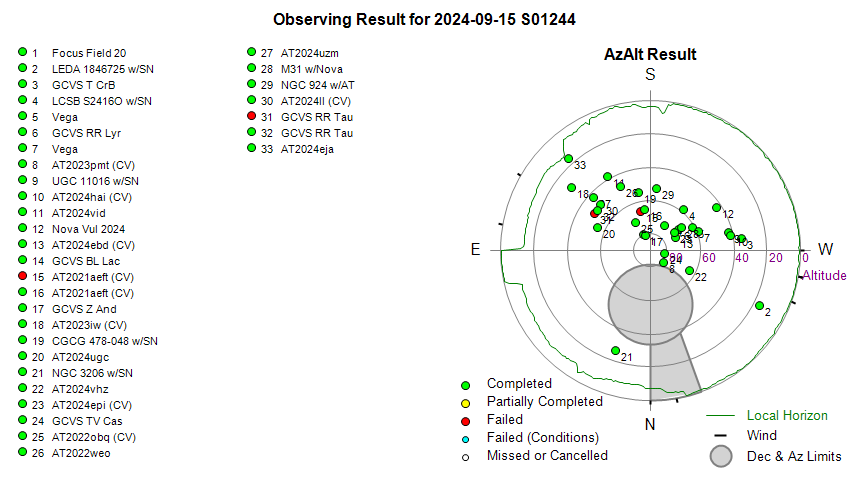

Observing Result


Dome & Scope Slewing Performance

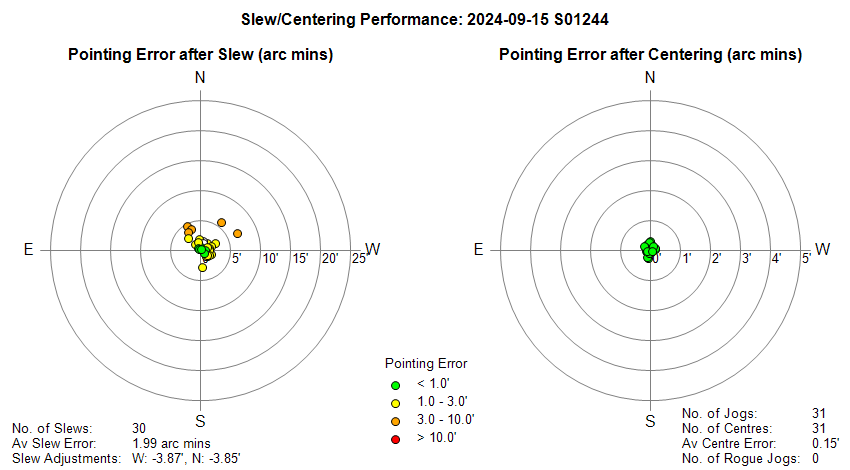

Slew/Centering Performance

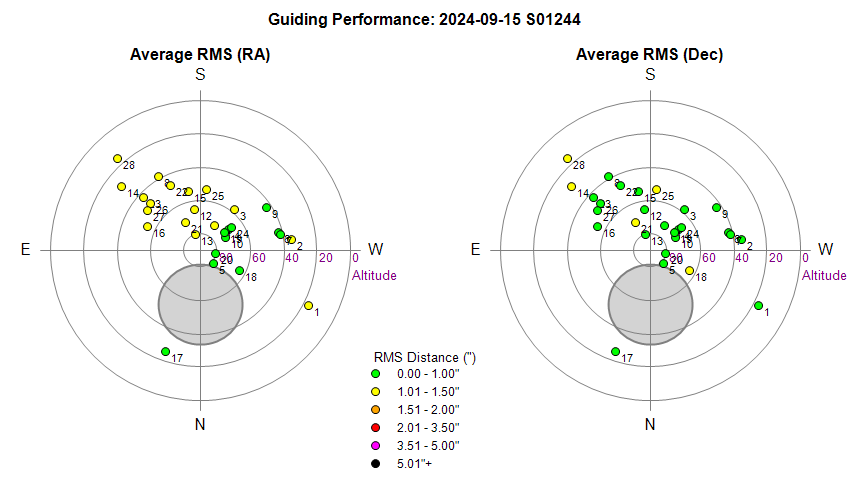

Guiding Performance

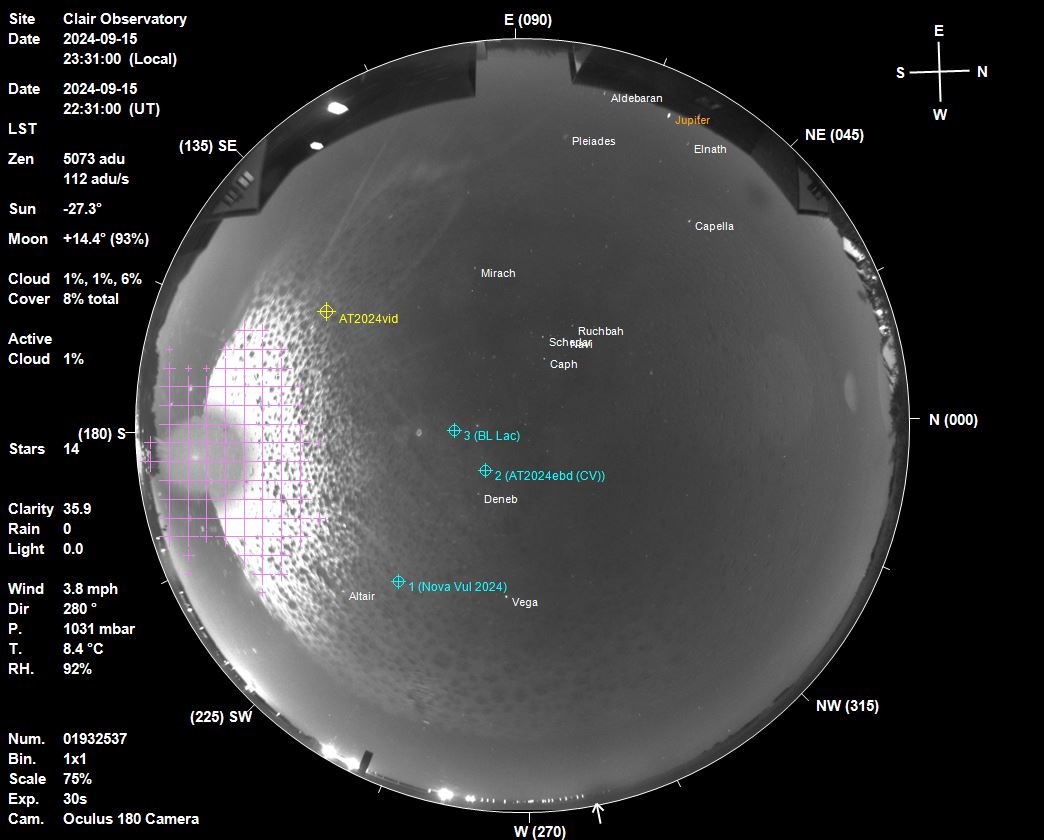

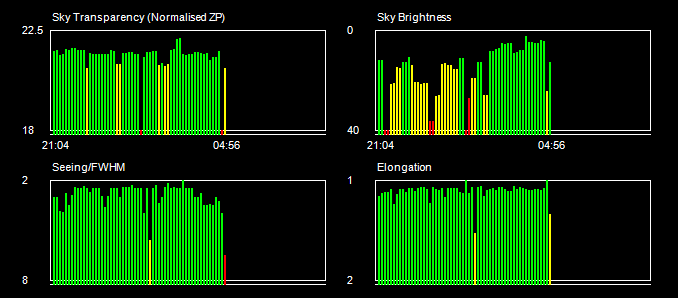

Sky Conditions (Locate Frames)

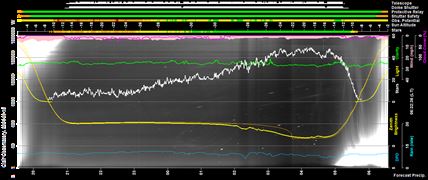

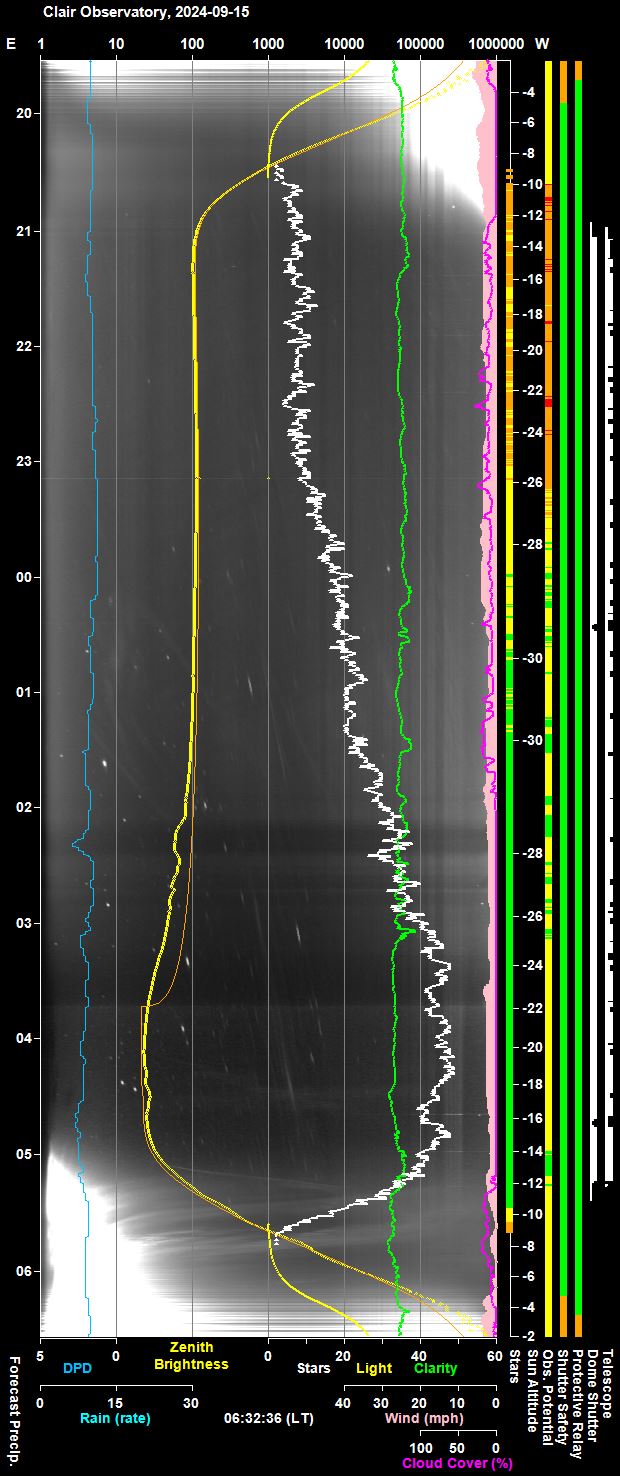

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

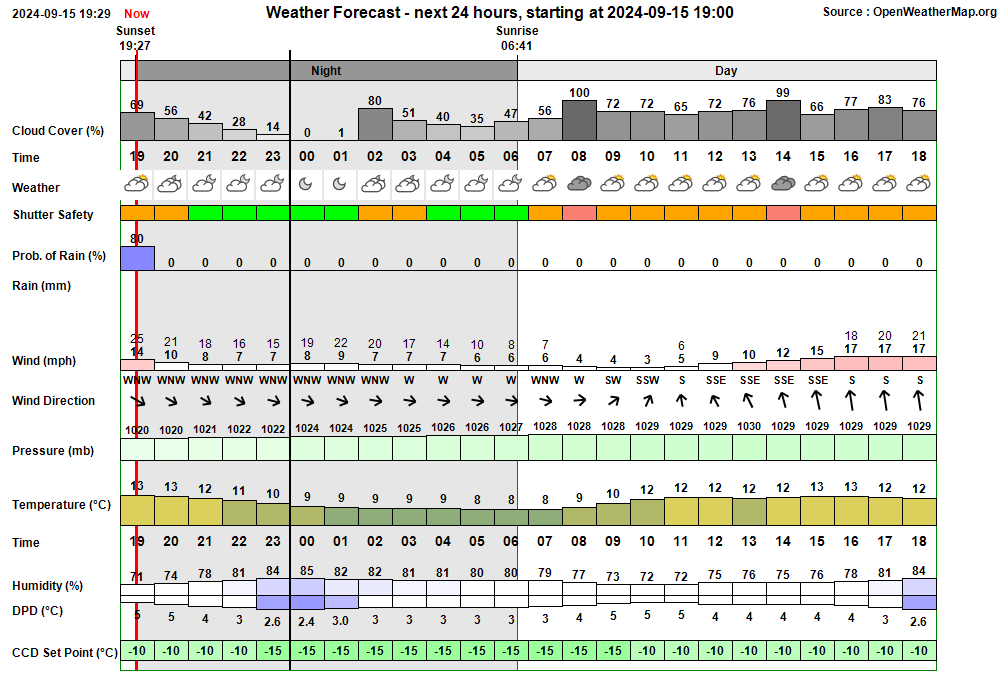

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
19:59:22 Session Monitoring AutoStart monitoring for Live Session opportunity between 20:09 & 04:47
19:59:22   AutoStart Waiting AutoStart waiting till earliest start time at 20:09
20:09:38   AutoStart Delayed Session delayed due to too few stars
20:55:28 Session AutoStarting Session autostarting (20:55)
20:55:50   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
20:56:18   Camera1 Connected SBIG Camera connected (Set point -10°C)
20:56:21 Session Created Session Created (Live, 2024-09-15 S01244, ImageSaveNum: 1244001)
20:56:25   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
20:58:27   Services Started Observatory Services started
20:58:34 Observatory (Auto) Observatory placed in Fully-Automated Mode
20:58:36   AutoStart Delayed Session delayed due to too few stars
20:58:38 Session Pending Session pending (2024-09-15)
20:58:40 Session Initiating Session initiating (2024-09-15)
20:58:49   Camera1 Connected SBIG Camera connected (Set point -15°C)
20:58:56   Plan Requested Observing Plan requested from AstroPlan (1.40.9)
20:59:48   Plan Loaded Observing Plan loaded to queue (Plan ID: 1019)
21:00:28   Telescope Connected Telescope connected (TheSky6)
21:00:52 Session Equilibration Session ready to Open Dome
21:01:37   Dome Opened Dome opened (Opening time 45s, Zigbee 40s)
21:01:57 Session Running Session running
21:01:59   Queue Started Observing Queue started (30 targets selected)
21:02:03     Target Started (NrZen) Target started (Focus Field 20, HIP 98535)
21:02:17       Dome Unparked Dome unparked
21:05:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:08:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
21:10:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
21:10:48       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
21:12:56       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
21:14:38       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
21:14:55     Target Completed (NrZen) Target completed (Focus Field 20, HIP 98535)
21:15:24     Target Started (1/30) Target started (1/30, LEDA 1846725 w/SN2024iss)
21:19:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:22:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
21:38:56     Target Completed Target completed (1/30, LEDA 1846725 w/SN2024iss)
21:39:00     Target Started (2/30) Target started (2/30, GCVS T CrB)
21:42:12       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
21:48:17     Target Completed Target completed (2/30, GCVS T CrB)
21:49:40     Target Started (3/30) Target started (3/30, LCSB S2416O w/SN2023mtc)
21:52:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:55:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
22:10:55     Target Completed Target completed (3/30, LCSB S2416O w/SN2023mtc)
22:11:40     Target Started (4/30) Target started (4/30, Vega)
22:16:31     Target Completed Target completed (4/30, Vega)
22:19:06     Target Started (5/30) Target started (5/30, GCVS RR Lyr)
22:22:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:24:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
22:32:58     Target Completed Target completed (5/30, GCVS RR Lyr)
22:33:49     Target Started (6/30) Target started (6/30, Vega)
22:38:41     Target Completed Target completed (6/30, Vega)
22:41:16     Target Started (7/30) Target started (7/30, AT2023pmt (CV))
22:42:44   SBIG Camera Take Image failed (Command timed-out)
22:42:48   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
22:46:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:48:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
22:54:34     Target Completed Target completed (7/30, AT2023pmt (CV))
22:54:38     Target Started (8/30) Target started (8/30, UGC 11016 w/SN2024hcj)
22:57:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:00:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
23:16:37     Target Completed Target completed (8/30, UGC 11016 w/SN2024hcj)
23:16:41     Target Started (9/30) Target started (9/30, AT2024hai (CV))
23:20:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:23:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
23:28:59     Target Completed Target completed (9/30, AT2024hai (CV))
23:29:03     Target Started (10/30) Target started (10/30, AT2024vid)
23:32:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:35:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
23:49:42     Target Completed Target completed (10/30, AT2024vid)
23:49:46     Target Started (11/30) Target started (11/30, Nova Vul 2024)
23:53:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:55:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
23:58:45     Target Completed Target completed (11/30, Nova Vul 2024)
23:58:49     Target Started (12/30) Target started (12/30, AT2024ebd (CV))
00:01:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:04:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
00:10:17     Target Completed Target completed (12/30, AT2024ebd (CV))
00:10:21     Target Started (13/30) Target started (13/30, GCVS BL Lac)
00:13:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:15:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
00:19:28     Target Completed Target completed (13/30, GCVS BL Lac)
00:20:01     Target Started (14/30) Target started (14/30, AT2021aeft (CV))
00:21:02   ScopeMonitor Frozen ScopeMonitor appears to be frozen at around 00:21
00:22:50   HardSuspend Called Hard Suspend called due to un-responsive TheSky6 program
00:24:50 Session Suspending Session suspending
00:25:40   Dome Closed Dome closed (Closing time 50s, Zigbee 43s)
00:25:42 Session Suspended Session suspended
00:25:58     Target Aborted (14/30) Target aborted (14/30, AT2021aeft (CV)) due to Obs.Manager Request
00:26:00   Queue Paused Queue paused for Session Suspension
00:27:45 Session Resuming Session resuming
00:28:31   Dome Opened Dome opened (Opening time 45s, Zigbee 40s)
00:28:33 Session Running Session running
00:28:35   Queue Resumed Observing Queue resumed
00:28:37     Target Started (14/30) Target started (14/30, AT2021aeft (CV))
00:36:23     Target Completed Target completed (14/30, AT2021aeft (CV))
00:36:27     Target Started (15/30) Target started (15/30, GCVS Z And)
00:39:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:41:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
00:46:28     Target Completed Target completed (15/30, GCVS Z And)
00:46:32     Target Started (16/30) Target started (16/30, AT2023iw (CV))
00:49:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:52:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
01:08:49     Target Completed Target completed (16/30, AT2023iw (CV))
01:08:53     Target Started (17/30) Target started (17/30, CGCG 478-048 w/SN2022xzm)
01:11:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:14:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
01:30:13     Target Completed Target completed (17/30, CGCG 478-048 w/SN2022xzm)
01:30:17     Target Started (18/30) Target started (18/30, AT2024ugc)
01:52:30     Target Completed Target completed (18/30, AT2024ugc)
01:52:34     Target Started (19/30) Target started (19/30, NGC 3206 w/SN2024bch)
01:56:08       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:12:03     Target Completed Target completed (19/30, NGC 3206 w/SN2024bch)
02:12:07     Target Started (20/30) Target started (20/30, AT2024vhz)
02:15:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:18:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
02:34:55     Target Completed Target completed (20/30, AT2024vhz)
02:34:59     Target Started (21/30) Target started (21/30, AT2024epi (CV))
02:37:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:40:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
02:46:24     Target Completed Target completed (21/30, AT2024epi (CV))
02:46:28     Target Started (22/30) Target started (22/30, GCVS TV Cas)
02:49:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:51:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
02:54:17     Target Completed Target completed (22/30, GCVS TV Cas)
02:54:57     Target Started (23/30) Target started (23/30, AT2022obq (CV))
02:58:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:01:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
03:07:07     Target Completed Target completed (23/30, AT2022obq (CV))
03:07:11     Target Started (24/30) Target started (24/30, AT2022weo)
03:10:20       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
03:16:22     Target Completed Target completed (24/30, AT2022weo)
03:19:38     Target Started (25/30) Target started (25/30, AT2024uzm)
03:22:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:25:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
03:41:04     Target Completed Target completed (25/30, AT2024uzm)
03:41:37     Target Started (26/30) Target started (26/30, M31 w/Nova M31 AT2023mxi)
03:44:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:46:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
04:02:47     Target Completed Target completed (26/30, M31 w/Nova M31 AT2023mxi)
04:03:37     Target Started (27/30) Target started (27/30, NGC 924 w/AT2023vss)
04:06:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:09:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
04:25:50     Target Completed Target completed (27/30, NGC 924 w/AT2023vss)
04:25:54     Target Started (28/30) Target started (28/30, AT2024ll (CV))
04:28:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:31:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
04:37:38     Target Completed Target completed (28/30, AT2024ll (CV))
04:37:42     Target Started (29/30) Target started (29/30, GCVS RR Tau)
04:38:57   ScopeMonitor Frozen ScopeMonitor appears to be frozen at around 04:38
04:40:44   HardSuspend Called Hard Suspend called due to un-responsive TheSky6 program
04:42:44 Session Suspending Session suspending
04:43:34   Dome Closed Dome closed (Closing time 50s, Zigbee 43s)
04:43:37 Session Suspended Session suspended
04:43:48     Target Aborted (29/30) Target aborted (29/30, GCVS RR Tau) due to Obs.Manager Request
04:43:50   Queue Paused Queue paused for Session Suspension
04:45:39 Session Resuming Session resuming
04:46:24   Dome Opened Dome opened (Opening time 45s, Zigbee 40s)
04:46:27 Session Running Session running
04:46:29   Queue Resumed Observing Queue resumed
04:46:31     Target Started (29/30) Target started (29/30, GCVS RR Tau)
04:55:07     Target Completed Target completed (29/30, GCVS RR Tau)
04:55:12     Target Started (30/30) Target started (30/30, AT2024eja)
05:14:40     Target Completed Target completed (30/30, AT2024eja)
05:14:42   Queue Completed Job Queue completed
05:14:44 Session Closing Session closing
05:15:37   Dome Closed Dome closed (Closing time 50s, Zigbee 43s)
05:16:11   Dome Parked Dome parked (parking time 27s), Az: 90.1 deg
05:17:24   Telescope Parked Telescope parked (parking time 70s total)
05:17:39   Telescope State Handbox reads 'Scope parked Turn scope off.'
05:18:01   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
05:19:25   Services Stopped Night Services stopped
05:19:27 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files)
05:20:05     Dome (Find Park) Find Park started (Search Az 80.0 to 100.0°, Step 1.0°, Wide)
05:21:12     Dome Find Park found (Best Park Az 92.0°)
05:21:18     Dome (Find Park) Find Park started (Search Az 90.0 to 94.0°, Step 0.2°, Narrow)
05:22:16     Dome Find Park found (Best Park Az 91.8°)
05:22:22     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -1.9°)
05:22:24   Dome Parked Dome parked
05:24:58   Dome Charging Dome is parked and re-charging Ok (35mA)
05:25:00 Session Finished Session Finished


Session Alerts & Alarms

Time     Type       Name Detail
22:42:44 Red Alert SBIG Camera Alert Take Image failed (Command timed-out)
22:42:48 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
00:22:46 Red Alert ScopeMonitor ScopeMonitor appears to be frozen (last cycle at 00:21:02)
00:22:50 Red Alert TheSky6 Alert TheSky6 program isn't responding
00:26:02 Green Clear ScopeMonitor ScopeMonitor has resumed again (00:26) after 5.0 mins
02:13:20 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (AT2024vhz)
04:40:39 Red Alert ScopeMonitor ScopeMonitor appears to be frozen (last cycle at 04:38:57)
04:40:44 Red Alert TheSky6 Alert TheSky6 program isn't responding
04:43:50 Green Clear ScopeMonitor ScopeMonitor has resumed again (04:43) after 4.9 mins
05:24:58 Green Clear Dome Charging Dome is parked and re-charging Ok (35mA)


Back to Top


Operational Issues (2024-09-15 S1244)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]


Fig 1.   AllSky Image showing low Star Count

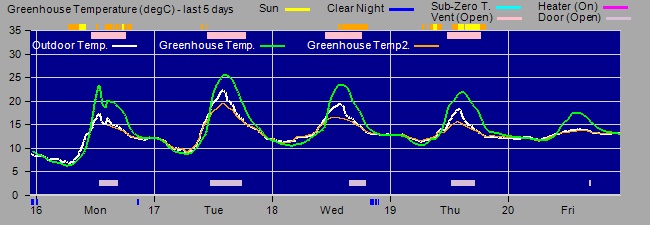

Fig 2.   5 days chart comparing Weather Station's Outdoor Temperature (white line) & Zigbee Outdoor Temperature (orange line)

Data confirms that Weather Station's Outdoor Temperature and Zigbee's Outdoor Temperature are in generally good agreement at night and on cloudy days.  The Weather Station sensor reads higher during warmer/sunny daytime periods. The difference is believed to be due to subtle difference in sensor position.

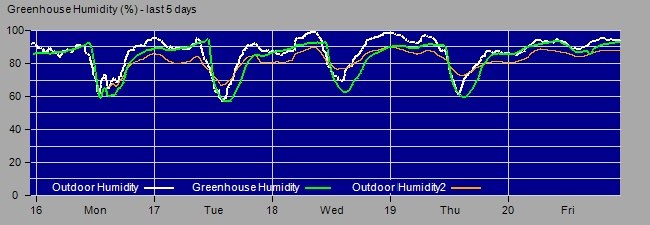

Fig 3.   5 days chart comparing Weather Station's Outdoor Humidity (white line) & Zigbee Outdoor Humidity (orange line)

Data confirms that Weather Station's Outdoor Humidity and Zigbee's Outdoor Humidity generally track each other.  The Weather Station sensor reads higher humidity during nighttime & on cloudy days, but reads lower humidity during warmer/sunny daytime periods (when temperature is warmer).


[ Prev | Next ]

Back to Top
