Notes - Session 1256 (2024-10-17)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (0),  Small Defects (1),  Continuous Improvement (0)
Bullet Images from 2024-10-17 >>
2024-10-18
Bullet Observatory - Wired Ethernet Cable Connection



Session Aims & Highlights (2024-10-17)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
  2. AstroMain.  Check new 3.71.8 version of AstroMain following introduction of ResolveScopePortIssue handling which includes noteworthy changes to ObsManager MainLoop code for progressing Auostart, Starting, Suspended and Closing States
  3. CCDCamera.  Monitor operation of CCDSoft / SBIG Camera, & CCD Camera following issues in the last 2 sessions (S1254-55).

 Equipment & Software

Highlights-

Notes

Summary Plots & Logs

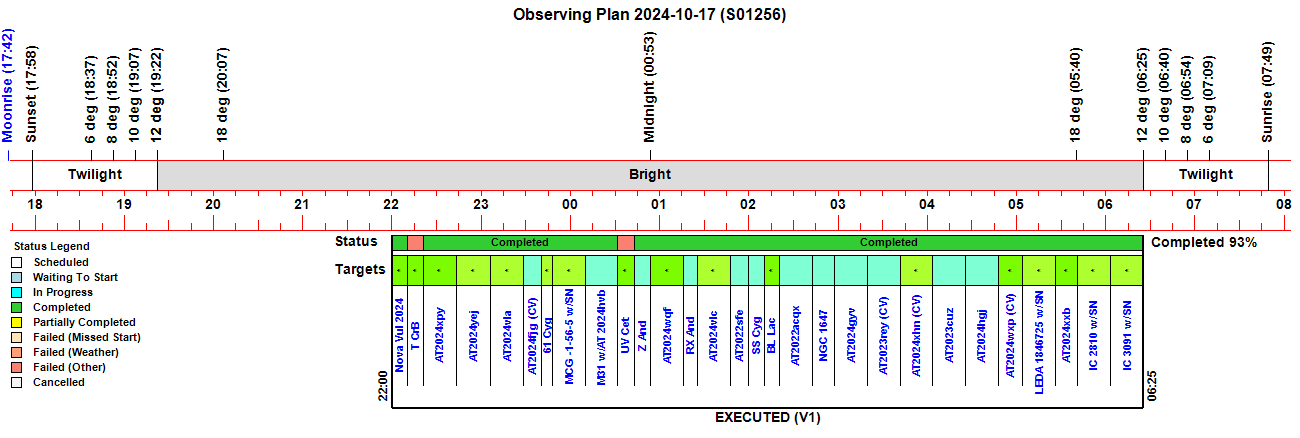

Observing Plan

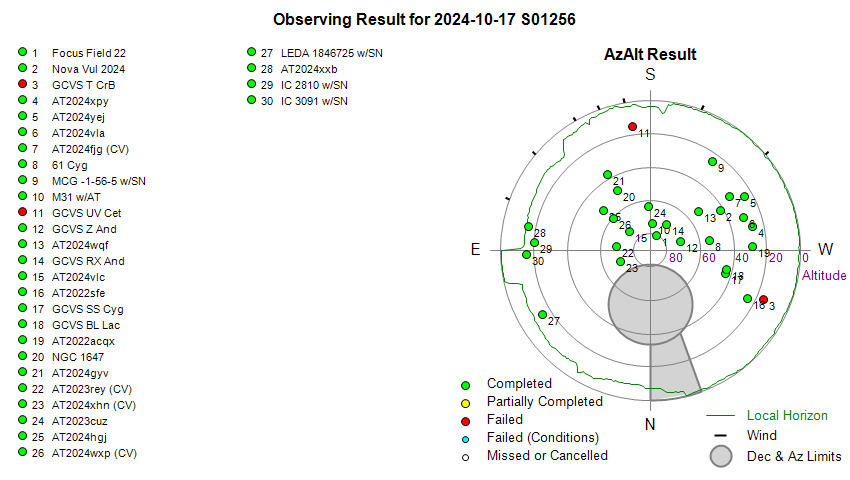

Observing Result

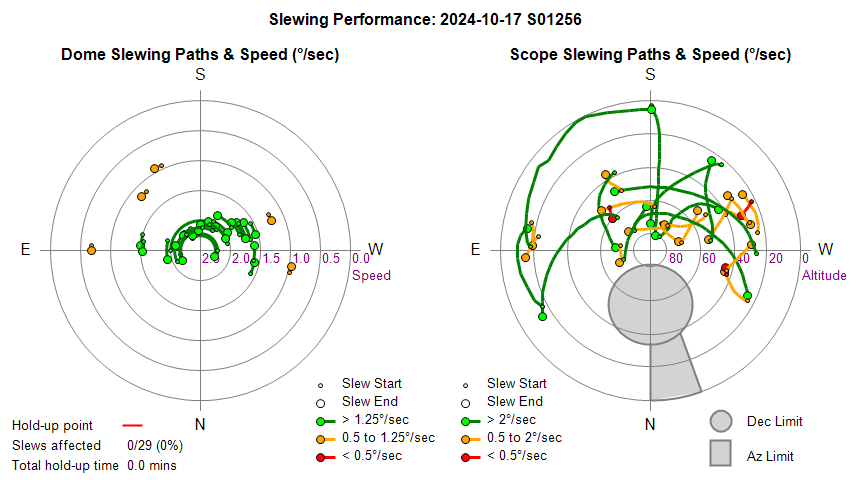

Dome & Scope Slewing Performance

Slew/Centering Performance

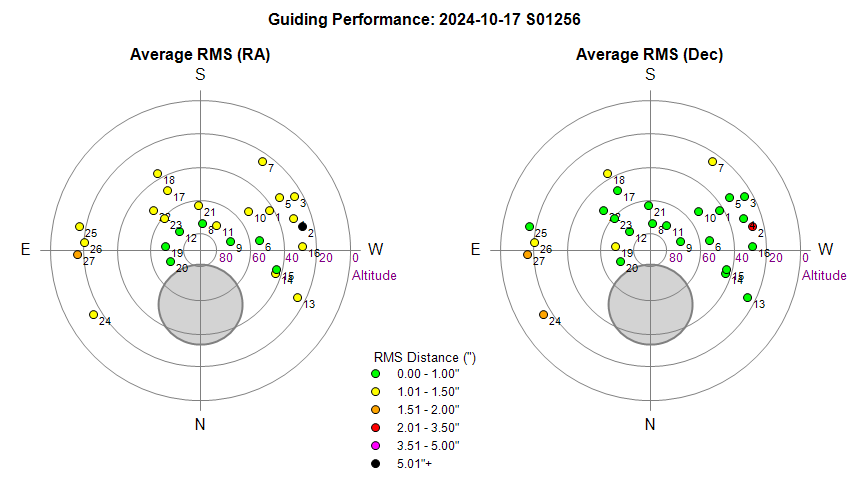

Guiding Performance

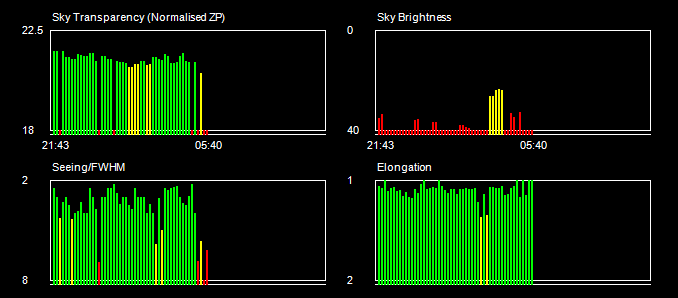

Sky Conditions (Locate Frames)

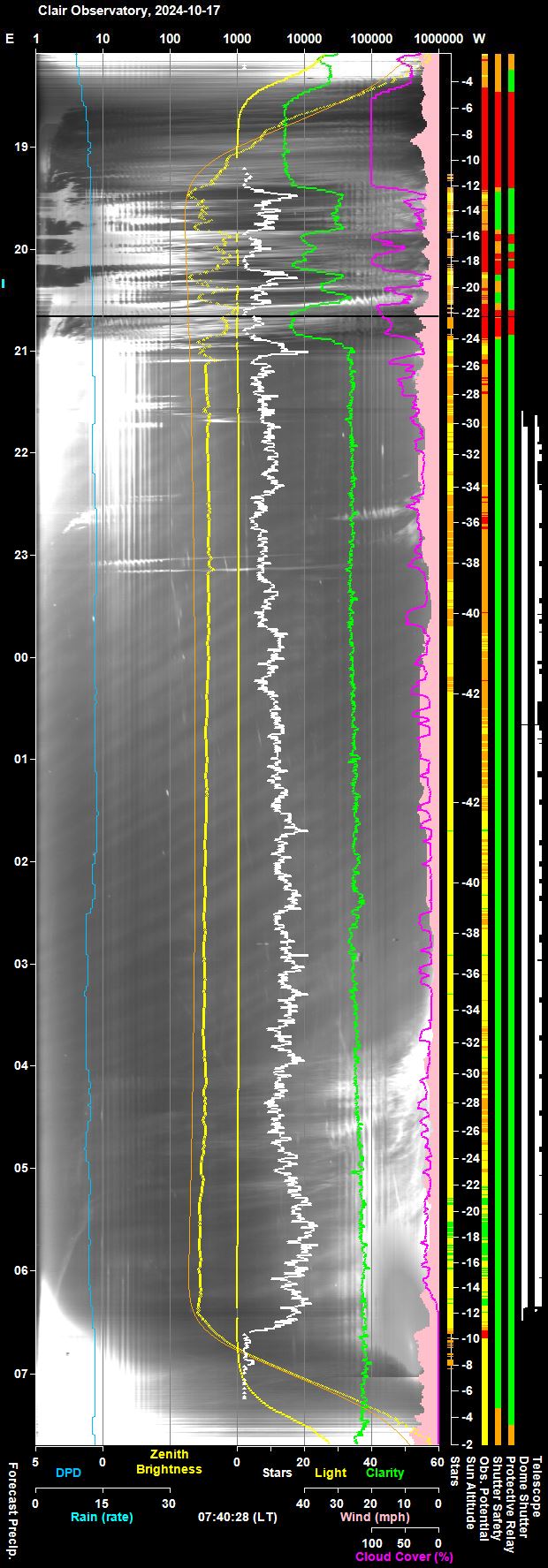

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

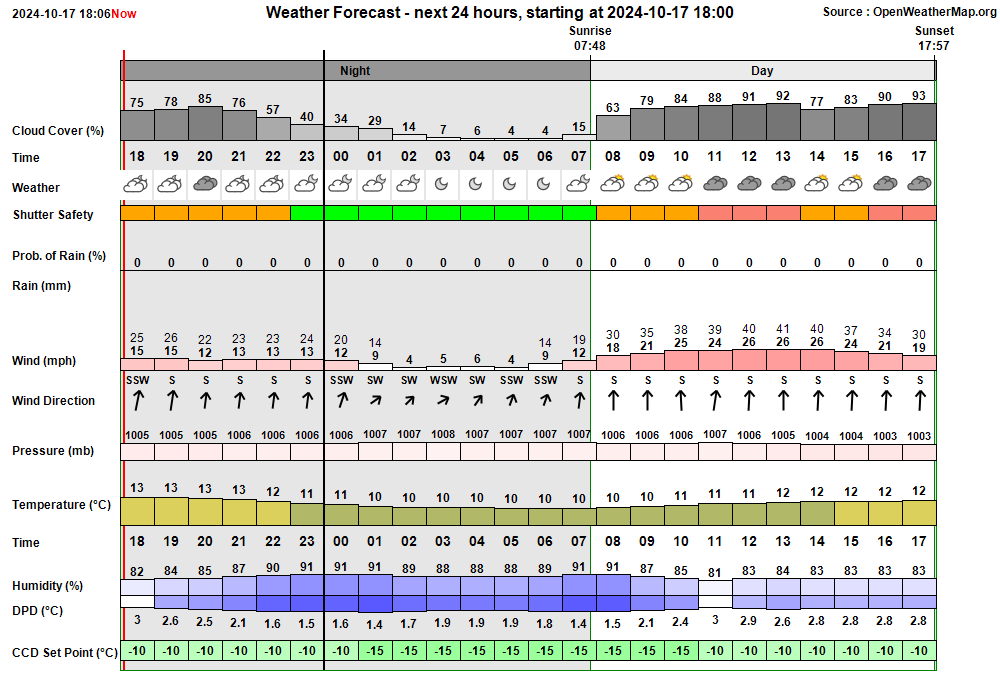

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
21:35:43 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:35 & 05:45
21:35:44 Session AutoStarting Session autostarting (21:35)
21:36:07   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
21:36:35   Camera1 Connected SBIG Camera connected (Set point -20°C)
21:36:37 Session Created Session Created (Live, 2024-10-17 S01256, ImageSaveNum: 1256001)
21:36:42   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
21:38:43   Services Started Observatory Services started
21:38:50 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:38:55 Session Pending Session pending (2024-10-17)
21:38:57 Session Initiating Session initiating (2024-10-17)
21:39:06   Camera1 Connected SBIG Camera connected (Set point -10°C)
21:39:13   Plan Requested Observing Plan requested from AstroPlan (1.42.4)
21:40:04   Plan Loaded Observing Plan loaded to queue (Plan ID: 1035)
21:40:45   Telescope Connected Telescope connected (TheSky6)
21:41:09 Session Equilibration Session ready to Open Dome
21:41:54   Dome Opened Dome opened (Opening time 45s, Zigbee 39s)
21:42:14 Session Running Session running
21:42:16   Queue Started Observing Queue started (29 targets selected)
21:42:20     Target Started (NrZen) Target started (Focus Field 22, HIP 108888)
21:42:31       Dome Unparked Dome unparked
21:45:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:47:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
21:49:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
21:49:57       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
21:52:05       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
21:53:47       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
21:54:04     Target Completed (NrZen) Target completed (Focus Field 22, HIP 108888)
21:55:41     Target Started (1/29) Target started (1/29, Nova Vul 2024)
21:58:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:01:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
22:05:15     Target Completed Target completed (1/29, Nova Vul 2024)
22:05:31     Target Started (2/29) Target started (2/29, GCVS T CrB)
22:05:36     Target Failed (2/29) Target failed due to airmass limit (2/29, GCVS T CrB)
22:16:27     Target Started (3/29) Target started (3/29, AT2024xpy)
22:19:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:22:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
22:38:40     Target Completed Target completed (3/29, AT2024xpy)
22:38:44     Target Started (4/29) Target started (4/29, AT2024yej)
22:42:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:45:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
23:01:22     Target Completed Target completed (4/29, AT2024yej)
23:01:26     Target Started (5/29) Target started (5/29, AT2024vla)
23:04:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:07:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
23:23:21     Target Completed Target completed (5/29, AT2024vla)
23:23:25     Target Started (6/29) Target started (6/29, AT2024fjg (CV))
23:26:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:29:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
23:35:00     Target Completed Target completed (6/29, AT2024fjg (CV))
23:35:27     Target Started (7/29) Target started (7/29, 61 Cyg)
23:38:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:40:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
23:42:35     Target Completed Target completed (7/29, 61 Cyg)
23:42:39     Target Started (8/29) Target started (8/29, MCG -1-56-5 w/SN2022acxe)
23:46:01       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:02:42     Target Completed Target completed (8/29, MCG -1-56-5 w/SN2022acxe)
00:05:03     Target Started (9/29) Target started (9/29, M31 w/AT2024hvb)
00:08:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:10:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
00:26:44     Target Completed Target completed (9/29, M31 w/AT2024hvb)
00:27:03     Target Started (10/29) Target started (10/29, GCVS UV Cet)
00:27:08     Target Failed (10/29) Target failed due to airmass limit (10/29, GCVS UV Cet)
00:38:17     Target Started (11/29) Target started (11/29, GCVS Z And)
00:41:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:43:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
00:48:20     Target Completed Target completed (11/29, GCVS Z And)
00:48:45     Target Started (12/29) Target started (12/29, AT2024wqf)
00:51:27       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
01:07:33     Target Completed Target completed (12/29, AT2024wqf)
01:11:05     Target Started (13/29) Target started (13/29, GCVS RX And)
01:12:03   ScopeMonitor Frozen ScopeMonitor appears to be frozen at around 01:12
01:21:32     Target Completed Target completed (13/29, GCVS RX And)
01:21:36     Target Started (14/29) Target started (14/29, AT2024vlc)
01:24:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:27:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
01:43:08     Target Completed Target completed (14/29, AT2024vlc)
01:43:12     Target Started (15/29) Target started (15/29, AT2022sfe)
01:48:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:51:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
01:57:54     Target Completed Target completed (15/29, AT2022sfe)
01:57:58     Target Started (16/29) Target started (16/29, GCVS SS Cyg)
02:01:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:03:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
02:08:10     Target Completed Target completed (16/29, GCVS SS Cyg)
02:08:14     Target Started (17/29) Target started (17/29, GCVS BL Lac)
02:11:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:13:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
02:17:40     Target Completed Target completed (17/29, GCVS BL Lac)
02:17:44     Target Started (18/29) Target started (18/29, AT2022acqx)
02:21:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:23:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
02:40:40     Target Completed Target completed (18/29, AT2022acqx)
02:40:44     Target Started (19/29) Target started (19/29, NGC 1647). Using SharpCap
02:43:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:45:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
02:56:06   Camera1 Connected SBIG Camera connected (Set point -15°C)
02:56:08     Target Completed Target completed (19/29, NGC 1647)
02:56:11     Target Started (20/29) Target started (20/29, AT2024gyv)
03:17:45     Target Completed Target completed (20/29, AT2024gyv)
03:17:49     Target Started (21/29) Target started (21/29, AT2023rey (CV))
03:20:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:23:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
03:39:47     Target Completed Target completed (21/29, AT2023rey (CV))
03:39:51     Target Started (22/29) Target started (22/29, AT2024xhn (CV))
03:43:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:45:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
04:01:52     Target Completed Target completed (22/29, AT2024xhn (CV))
04:01:57     Target Started (23/29) Target started (23/29, AT2023cuz)
04:05:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:08:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
04:24:06     Target Completed Target completed (23/29, AT2023cuz)
04:24:10     Target Started (24/29) Target started (24/29, AT2024hgj)
04:27:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:29:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
04:45:43     Target Completed Target completed (24/29, AT2024hgj)
04:45:47     Target Started (25/29) Target started (25/29, AT2024wxp (CV))
04:48:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:51:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
05:01:09     Target Completed Target completed (25/29, AT2024wxp (CV))
05:01:14     Target Started (26/29) Target started (26/29, LEDA 1846725 w/SN2024iss)
05:05:22       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
05:22:05     Target Completed Target completed (26/29, LEDA 1846725 w/SN2024iss)
05:22:09     Target Started (27/29) Target started (27/29, AT2024xxb)
05:27:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
05:36:49     Target Completed Target completed (27/29, AT2024xxb)
05:36:53     Target Started (28/29) Target started (28/29, IC 2810 w/SN2024jhm)
05:43:07       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
05:59:16     Target Completed Target completed (28/29, IC 2810 w/SN2024jhm)
05:59:20     Target Started (29/29) Target started (29/29, IC 3091 w/SN2024jdi)
06:05:19       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
06:22:08     Target Completed Target completed (29/29, IC 3091 w/SN2024jdi)
06:22:10   Queue Completed Job Queue completed
06:22:13 Session Closing Session closing
06:23:03   Dome Closed Dome closed (Closing time 45s, Zigbee 43s)
06:23:21   Dome Parked Dome parked (parking time 10s), Az: 90.0 deg
06:24:37   Telescope Parked Telescope parked (parking time 71s total)
06:24:52   Telescope State Handbox reads 'Scope parked Turn scope off.'
06:25:14   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:26:41   Services Stopped Night Services stopped
06:26:44 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files)
06:27:16     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow)
06:28:18     Dome Find Park found (Best Park Az 90.0°)
06:30:09   Dome Charging Dome is parked and re-charging Ok (53mA)
06:30:11 Session Finished Session Finished



Session Alerts & Alarms
Time     Type       Name Detail
01:13:47 Red Alert ScopeMonitor ScopeMonitor appears to be frozen (last cycle at 01:12:03)
01:13:48 Red Alert TheSky6 Alert TheSky6 program isn't responding
01:16:57 Green Clear ScopeMonitor ScopeMonitor has resumed again (01:16) after 4.9 mins
06:30:09 Green Clear Dome Charging Dome is parked and re-charging Ok (53mA)



Back to Top


Operational Issues (2024-10-17 S1256)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


2024-10-18


Observatory - Wired Ethernet Cable Connection

Existing LAN Communications & problems
LAN communication to/from the Observatory has up to now used 'Ethernet Over Powerline'. Whilst it is more reliable/faster than WIFI to the Observatory, it does suffer from occasional outage of 2 - 12 hours duration, during which time important tasks can't be achieved :

Whilst the LAN Connection can remain stable for a number of weeks at a time, there are then occassions when several outage occur over the course of just a few days.

Solution to LAN communication problems
The solution is to retro-install an Ethernet Cable between the router in the house and the Observatory's Ethernet Switch, but due to the somewhat complicated route for the cable it's remained a nice-to-have idea up to now.

However with the problem not going away and even increasing in frequency, its finally come to a head, and decision taken to install a CAT6 Ethernet Cable.

A route for the new cable has been identified which has length estimated at 31.8m and will need to drill 5 new holes.

It has been decided to go with a patch cable (a cable with a male ethernet adapter already attached at each end), as this saves the effort of cutting & crimping cable wire into plugs etc.  A patch cable of 30m is too short, but a patch cable of 40m is readily available.

New Cable
A VOIETLOT Outdoor Cat 6  Cable 40m has been ordered from Amazon (product page) which should arrive today (2024-10-18).

Cable Routing
- pass cable from Router into new hole in computer room stud wall
- thread cable behind wall and along roof eaves
- thread cable up into loft above
- take cable through loft to the end of the house
- pass cable down through new hole into Bedroom Cupboard below
- pass cable down through new hole into the Garage below
- take cable down to floor of Garage
- pass cable through new hole in block wall to emerge on exterior side
- take cable across chipings and past greenhouse and then bury
- pass cable around side garden wall , and lay under fence line
- take cable along fence line through garden border and bury /cover
- pass cable through new hole in the bottom of Observatory's AllSky/Weather Bay
- connect cable to Observatory's Ethernet Switch

Updates:

Interior cable installation (2024-10-18)
- Cable was tested beforehand by plugging one end to router and the other to a computer, and checking that it could browse internet pages k
- Cable was laid along identified interior cable route, beginning in the computer/router room and going as far as the garage
- As the cable become accidentally bent when loops of cable with inadventally pulled into the drilled holes, the cable was again tested after laying interior round by the same method used initial test
- cable ties will  be added later on, once the cable has been run all the way to the Observatory,  plugged in and tested.

Exterior cable installation (2024-10-19)
- Cable laid along identified exterior cable route, beginning in the garage and going to the Observatory AllSky/Weather Computing Bay , containing the Observatory's Ethernet Switch.
- Cable plugged into Observatory's Ethernet Switch and speed tests conducted from Development Laptop in the house.:

Speed Tests

To/From Observatory Computer

Speed Test - 2024-10-19 14:28:29

Times to upload/download 'LAN Test File.txt' (12.29 MB) to LAPTOP9
Upload :   61.49 Mbps, 7.69 MB/s
Download : 50.20 Mbps, 6.27 MB/s

Average :  55.85 Mbps, 6.98 MB/s

To/From AllSky/Weather Computer

Speed Test - 2024-10-19 14:26:20

Times to upload/download 'LAN Test File.txt' (12.29 MB) to LAPTOP7
Upload :   63.76 Mbps, 7.97 MB/s
Download : 71.06 Mbps, 8.88 MB/s

Average :  67.41 Mbps, 8.43 MB/s

Previous speed tests using Ethernet Over Powerline connection showed an average speed of 1.73 - 1.93 MB/s in May 2024 (S1221 Fig 1), and 1.52-1.67 MB/s in Feb/Mar 2024 (S1194, Fig 1)



Back to Top
