Notes - Session 1255 (2024-10-14)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (3),  Small Defects (0),  Continuous Improvement (5)
Bullet Images from 2024-10-14 >>
Bullet Investigation - Failures taking SBIG Camera Images (CcdCamera & CCDSoft Freezing)

2024-10-16

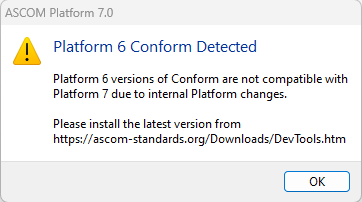

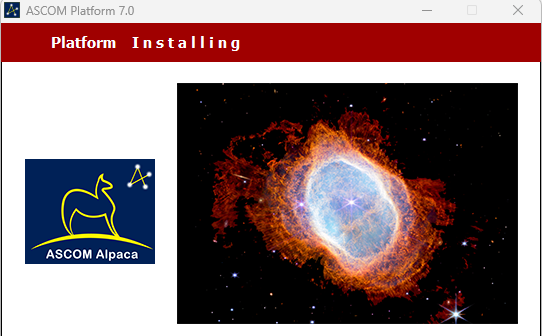

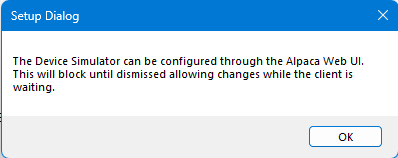

Bullet ASCOM - Upgrade to Platform 7

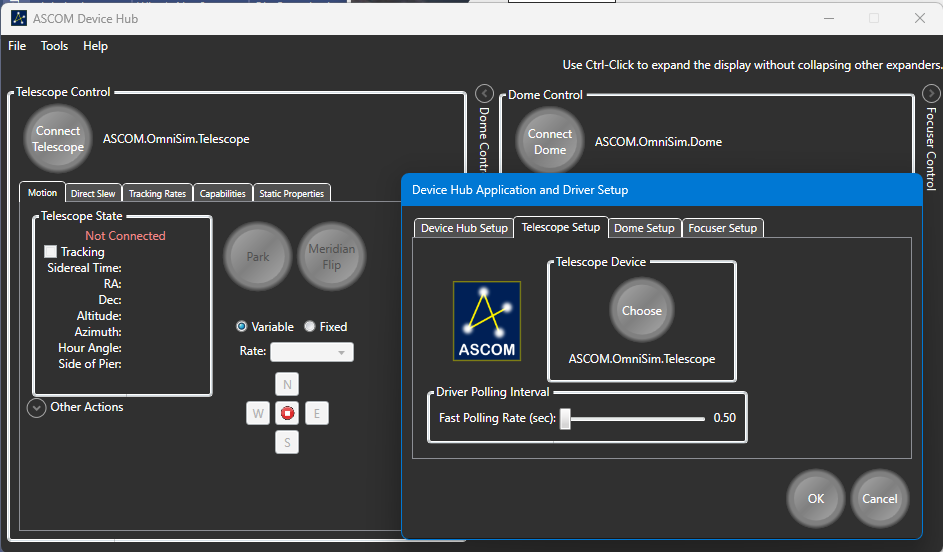

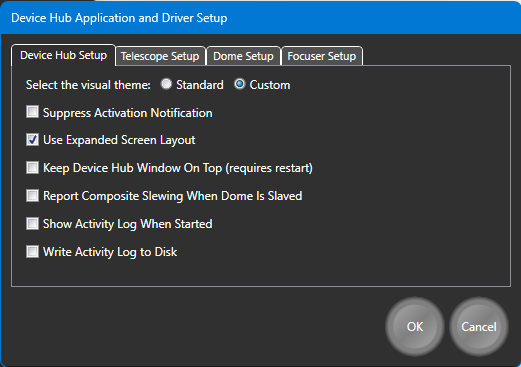

Bullet DeviceHub 7.0.0



Session Aims & Highlights (2024-10-14)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
  2. UPB / Telescope.  Check UPB Power Box switches & Telescope COM Port following issues in the last session (S1243)

 Equipment & Software

Highlights-

Notes

Summary Plots & Logs

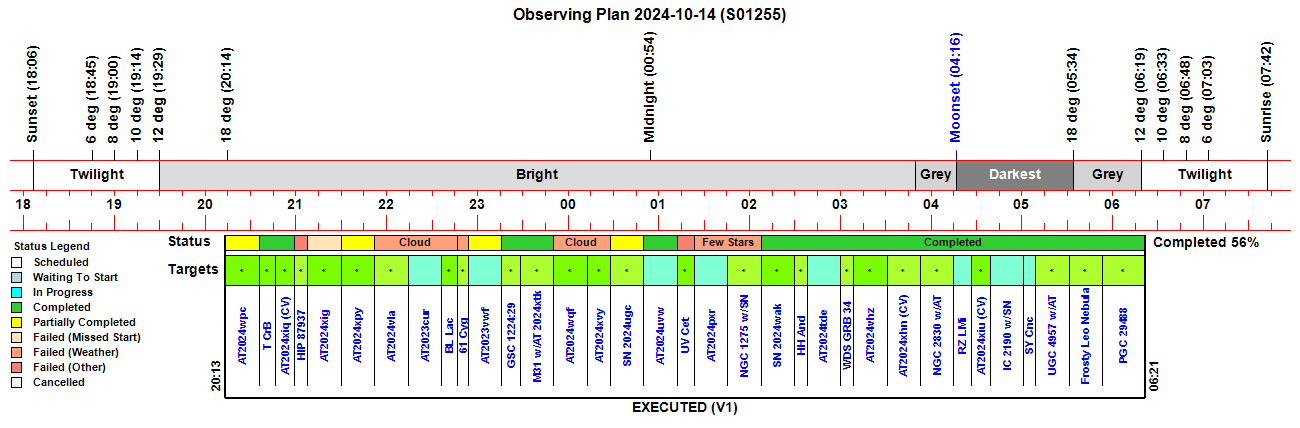

Observing Plan

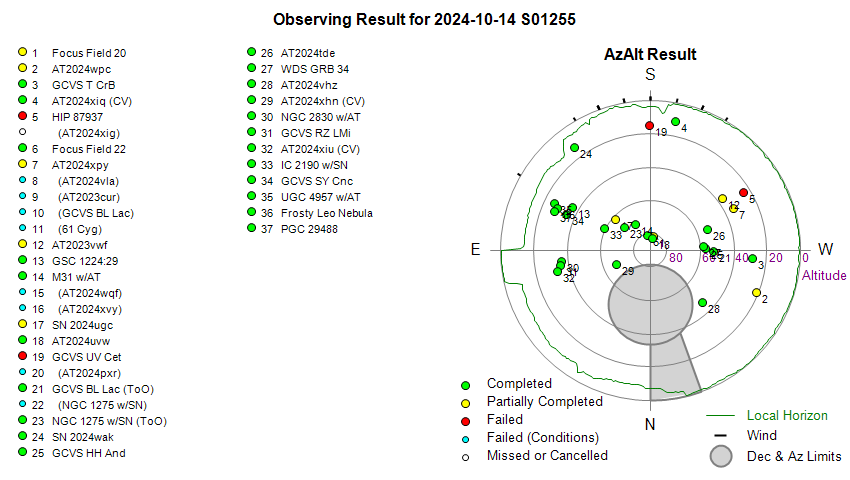

Observing Result

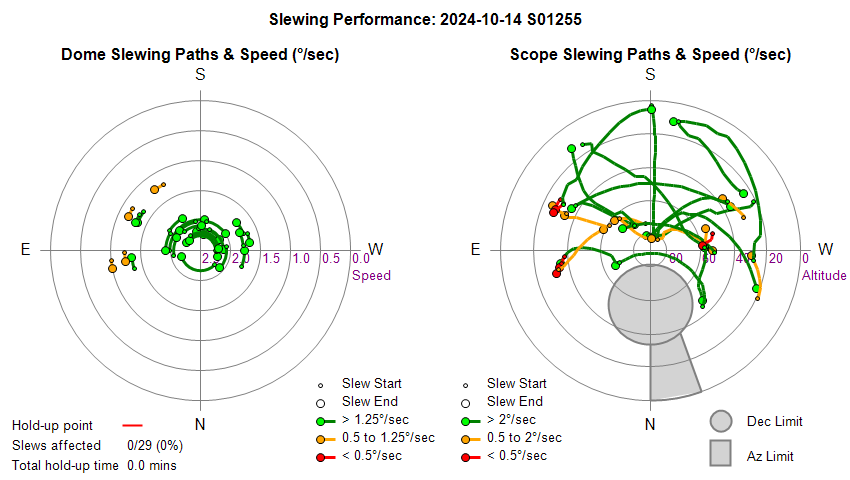

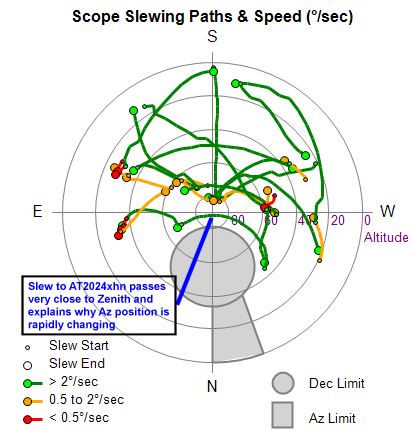

Dome & Scope Slewing Performance

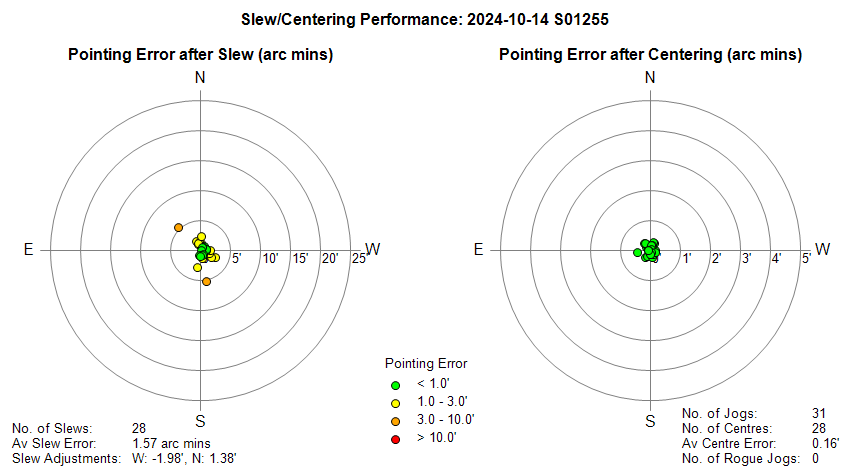

Slew/Centering Performance

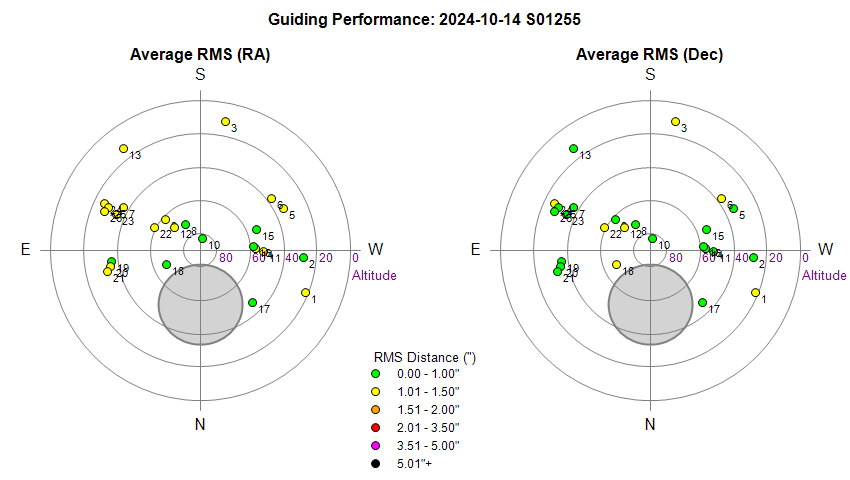

Guiding Performance

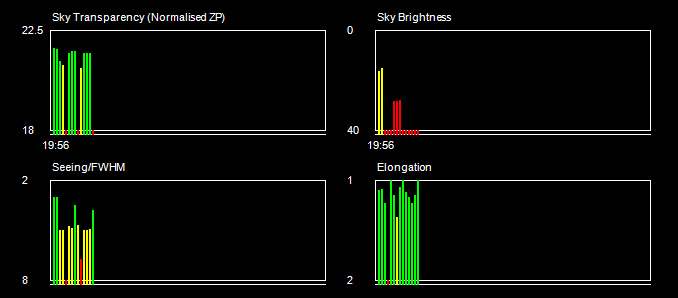

Sky Conditions (Locate Frames)

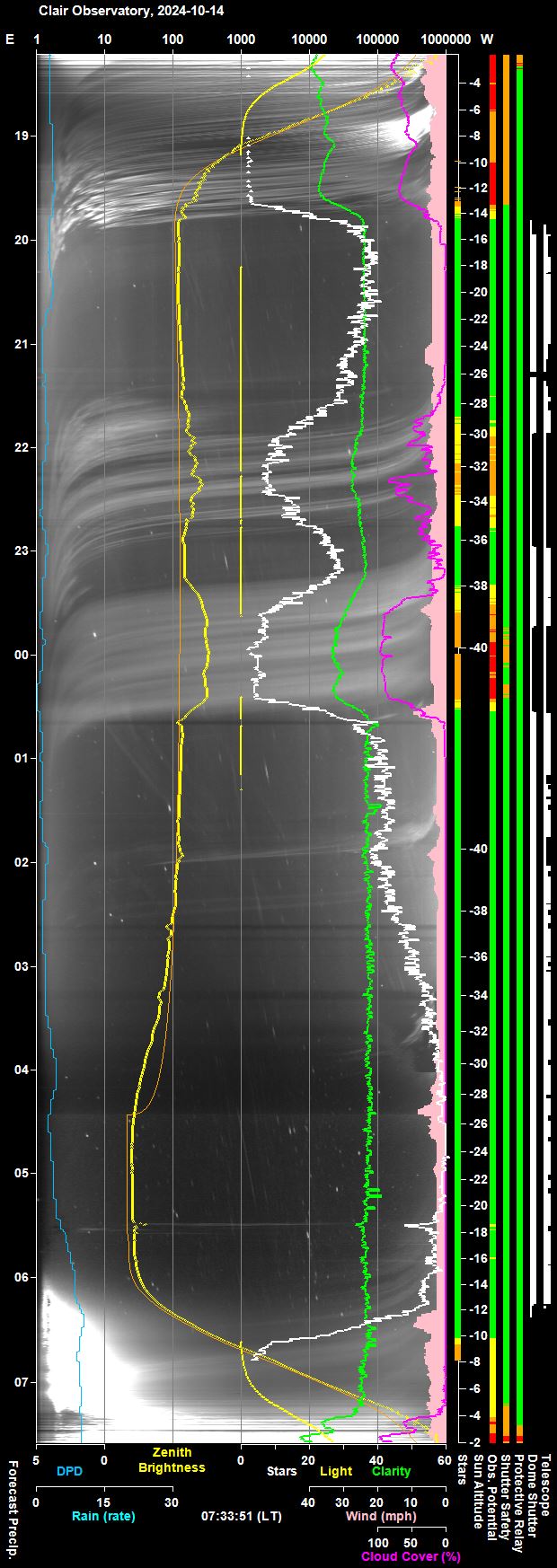

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

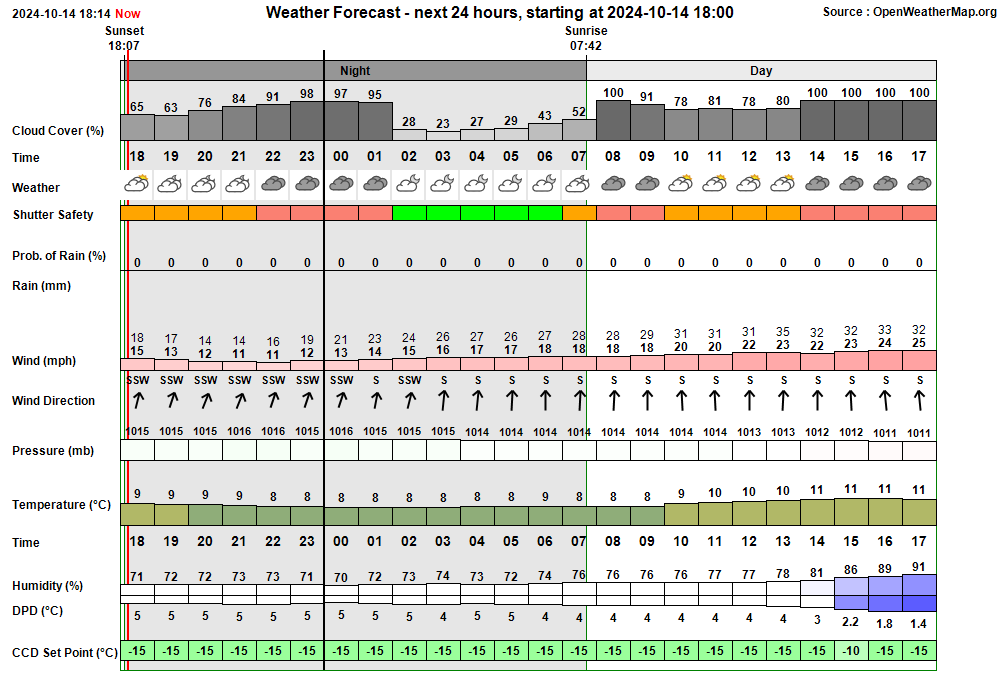

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
18:59:25 Session Monitoring AutoStart monitoring for Live Session opportunity between 18:59 & 05:39
18:59:25   AutoStart Waiting AutoStart waiting till earliest start time at 18:59
18:59:50   AutoStart Delayed Session delayed due to cloud
19:48:45 Session AutoStarting Session autostarting (19:48)
19:49:07   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
19:49:35   Camera1 Connected SBIG Camera connected (Set point -20°C)
19:49:38 Session Created Session Created (Live, 2024-10-14 S01255, ImageSaveNum: 1255001)
19:49:43   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
19:51:41   Services Started Observatory Services started
19:51:48 Observatory (Auto) Observatory placed in Fully-Automated Mode
19:51:50   AutoStart Delayed Session delayed due to cloud
19:51:53 Session Pending Session pending (2024-10-14)
19:51:55 Session Initiating Session initiating (2024-10-14)
19:52:02   Camera1 Connected SBIG Camera connected (Set point -15°C)
19:52:09   Plan Requested Observing Plan requested from AstroPlan (1.42.3)
19:53:21   Plan Loaded Observing Plan loaded to queue (Plan ID: 1034)
19:54:01   Telescope Connected Telescope connected (TheSky6)
19:54:25 Session Equilibration Session ready to Open Dome
19:55:10   Dome Opened Dome opened (Opening time 45s, Zigbee 40s)
19:55:12 Session Running Session running
19:55:14   Queue Started Observing Queue started (34 targets selected)
19:55:16     Target Started (NrZen) Target started (Focus Field 20, HIP 99625)
19:55:30       Dome Unparked Dome unparked
19:57:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:58:09   CcdCamera Frozen CcdCamera appears to be frozen at around 19:58 in section 'GetCameraProperties / State'
19:58:43   CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera)
19:58:50   SBIG Camera Reset SBIG Camera being power-cycled
20:05:42       Focusing Failed Foc1 focusing failed - star lost
20:05:45       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
20:07:51       Focusing Completed Foc2 AutoFocus Completed (Profile No 1, wide)
20:09:34       Focusing Completed Foc2 AutoFocus Completed (Profile No 1)
20:09:51     Target Completed (NrZen) Target completed (Focus Field 20, HIP 99625)
20:09:56     Target Started (1/34) Target started (1/34, AT2024wpc)
20:12:05   CCDSoft Issue CCDSoft has encountered an image save issue [0000]
20:12:07   CCDSoft Restarting CCDSoft being restarted (attempt to fix unsaved file issue)
20:12:14   SBIG Camera Reset SBIG Camera being power-cycled
20:13:09   Camera1 Connected SBIG Camera connected (Set point -15°C)
20:14:56   CcdCamera Frozen CcdCamera appears to be frozen at around 20:14 in section 'GetCameraProperties / Temperature'
20:14:58   SBIG Camera Take Image failed (Command timed-out)
20:15:30   CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera)
20:15:37   SBIG Camera Reset SBIG Camera being power-cycled
20:16:32   Camera1 Connected SBIG Camera connected (Set point -15°C)
20:16:35   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
20:19:34       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
20:33:12     Target Completed Target partially completed (1/34, AT2024wpc)
20:33:16     Target Started (2/34) Target started (2/34, GCVS T CrB)
20:35:41   ScopeMonitor Frozen ScopeMonitor appears to be frozen at around 20:35
20:46:24     Target Completed Target completed (2/34, GCVS T CrB)
20:46:29     Target Started (3/34) Target started (3/34, AT2024xiq (CV))
20:56:13     Target Completed Target completed (3/34, AT2024xiq (CV))
20:56:17     Target Started (4/34) Target started (4/34, HIP 87937)
21:00:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:00:57   CcdCamera Frozen CcdCamera appears to be frozen at around 21:00 in section 'GetCameraProperties / FilterIndexZeroBased'
21:01:31   CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera)
21:01:38   SBIG Camera Reset SBIG Camera being power-cycled
21:02:32   Camera1 Connected SBIG Camera connected (Set point -15°C)
21:02:34   CcdCamera Frozen CcdCamera appears to be frozen at around 21:02 in section 'GetCameraProperties / Status'
21:03:11   CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera)
21:03:14   SBIG Camera Take Image failed (Command timed-out)
21:03:18   SBIG Camera Reset SBIG Camera being power-cycled
21:04:12   Camera1 Connected SBIG Camera connected (Set point -15°C)
21:04:16   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:04:28   CcdCamera Frozen CcdCamera appears to be frozen at around 21:04 in section 'GetCameraProperties / Status'
21:04:52   SBIG Camera Take Image failed (Command timed-out)
21:05:01   CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera)
21:05:08   SBIG Camera Reset SBIG Camera being power-cycled
21:06:02   CcdCamera Frozen CcdCamera appears to be frozen at around 21:06 in section 'SetCameraProperties / SbigFanOn'
21:06:10   Camera1 Connected SBIG Camera connected (Set point -15°C)
21:06:36   CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera)
21:06:43   SBIG Camera Reset SBIG Camera being power-cycled
21:07:38   Camera1 Connected SBIG Camera connected (Set point -15°C)
21:07:39   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:08:14   SBIG Camera Take Image failed (Command timed-out)
21:08:15   CcdCamera Frozen CcdCamera appears to be frozen at around 21:08 in section 'SetCameraProperties / Asynchronous'
21:08:19 User Intervention User Intervention to abort job queue & switch back to Manual Mode
21:08:46   CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera)
21:08:53   SBIG Camera Reset SBIG Camera being power-cycled
21:09:02       Focusing Aborted Foc1 Focusing Aborted
21:09:04     Target Failed (4/34) Target failed due to aborted (4/34, HIP 87937)
21:09:06   Queue Aborted Job Queue aborted
21:09:48   Camera1 Connected SBIG Camera connected (Set point -15°C)
21:10:09   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:11:21   SBIG Camera Take Image failed (Command timed-out)
21:12:03   Services Stopped Observatory Services stopped
21:13:18 Session Closed Session closed by User
21:13:21 Program Closed Program closed by User
21:19:04 Program Opened Program Opened (AstroMain 3.71.7)
21:19:06   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
21:19:20 Session Resumed Session Resumed (Live, 2024-10-14 S01255, ImageSaveNum: 1255030)
21:19:26   Obs.Overseer Started Obs.Overseer started
21:19:46   Obs.Manager Started Obs.Manager started
21:19:54   Services Started Observatory Services started
21:20:41   Camera1 Connected SBIG Camera connected (Set point -15°C)
21:21:22 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:21 & 05:39
21:21:24 Observatory (AutoStart) Observatory placed in Auto-Start Mode
21:21:26 Session AutoStarting Session autostarting (21:21)
21:22:14   Services Started Observatory Services started
21:22:20 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:22:23 Session Pending Session pending (2024-10-14)
21:22:25 Session Initiating Session initiating (2024-10-14)
21:22:32   Camera1 Connected SBIG Camera connected (Set point -15°C)
21:22:41   Plan Loaded Observing Plan loaded to queue (Plan ID: 1034)
21:22:50   Telescope Connected Telescope connected (TheSky6)
21:23:11 Session Running Session running
21:23:13   Queue Started Observing Queue started (29 targets selected)
21:23:17     Target Started (NrZen) Target started (Focus Field 22, HIP 108888)
21:25:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:28:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 6, wide)
21:31:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
21:31:06     Target Completed (NrZen) Target completed (Focus Field 22, HIP 108888)
21:31:08     Target Started (6/34) Target started (6/34, AT2024xpy)
21:34:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:36:21   SBIG Camera Take Image failed (Command timed-out)
21:37:11   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:37:42   SBIG Camera Take Image failed (Command timed-out)
21:38:31   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:39:03   SBIG Camera Take Image failed (Command timed-out)
21:39:05       Focusing Failed Foc1 focusing failed - star lost
21:39:34   CCDSoft Restarting CCDSoft being restarted (attempt to fix locked thread)
21:39:41   SBIG Camera Reset SBIG Camera being power-cycled
21:40:36   Camera1 Connected SBIG Camera connected (Set point -15°C)
21:40:38   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:41:34   CcdCamera Frozen CcdCamera appears to be frozen at around 21:41 in section 'GetCameraProperties / Status'
21:42:11   CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera)
21:42:18   SBIG Camera Reset SBIG Camera being power-cycled
21:43:13   Camera1 Connected SBIG Camera connected (Set point -15°C)
21:43:41   CcdCamera Frozen CcdCamera appears to be frozen at around 21:43 in section 'GetCameraProperties / CoolerPower'
21:44:16   CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera)
21:44:23   SBIG Camera Reset SBIG Camera being power-cycled
21:44:43       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars)
21:45:18   Camera1 Connected SBIG Camera connected (Set point -15°C)
21:51:53     Target Completed Target partially completed (6/34, AT2024xpy)
21:51:55   Queue Paused Queue paused for Session Suspension
21:51:57 Session Suspending Session suspending
21:52:44   Dome Closed Dome closed (Closing time 50s, Zigbee 43s)
21:52:46 Session Suspended Session suspended
22:06:31     Target Cancelled Target cancelled (7/34, AT2024vla) due to cloud
22:28:31     Target Cancelled Target cancelled (8/34, AT2023cur) due to cloud
22:40:49     Target Cancelled Target cancelled (9/34, GCVS BL Lac) due to cloud
22:49:04     Target Cancelled Target cancelled (10/34, 61 Cyg) due to too few stars
22:57:37 Session Resuming Session resuming
22:58:22   Dome Opened Dome opened (Opening time 45s, Zigbee 40s)
22:58:24 Session Running Session running
22:58:26   Queue Resumed Observing Queue resumed
22:58:29     Target Started (11/34) Target started (11/34, AT2023vwf)
23:13:44     Target Completed Target partially completed (11/34, AT2023vwf)
23:13:48     Target Started (12/34) Target started (12/34, GSC 1224:29)
23:17:33       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:24:52     Target Completed Target completed (12/34, GSC 1224:29)
23:24:57     Target Started (13/34) Target started (13/34, M31 w/AT2024xtk)
23:27:00       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars)
23:27:39       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:43:44     Target Completed Target completed (13/34, M31 w/AT2024xtk)
23:43:46   Queue Paused Queue paused for Session Suspension
23:43:48 Session Suspending Session suspending
23:44:38   Dome Closed Dome closed (Closing time 50s, Zigbee 43s)
23:44:40 Session Suspended Session suspended
00:04:53     Target Cancelled Target cancelled (14/34, AT2024wqf) due to cloud
00:21:13     Target Cancelled Target cancelled (15/34, AT2024xvy) due to cloud
00:33:13 Session Resuming Session resuming
00:33:58   Dome Opened Dome opened (Opening time 45s, Zigbee 40s)
00:34:01 Session Running Session running
00:34:03   Queue Resumed Observing Queue resumed
00:34:05     Target Started (16/34) Target started (16/34, SN 2024ugc)
00:49:33     Target Completed Target partially completed (16/34, SN 2024ugc)
00:49:37     Target Started (17/34) Target started (17/34, AT2024uvw)
01:09:55     Target Completed Target completed (17/34, AT2024uvw)
01:09:59     Target Started (18/34) Target started (18/34, GCVS UV Cet)
01:10:04     Target Failed (18/34) Target failed due to airmass limit (18/34, GCVS UV Cet)
01:12:49     Target Aborted (19/34) Target aborted (19/34, AT2024pxr) due to Priority 1 ToO Target
01:12:53     Target Started (20/35) Target started (20/35, GCVS BL Lac, ToO)
01:16:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:18:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
01:22:25     Target Completed Target completed (20/35, GCVS BL Lac, ToO)
01:23:40     Target Aborted (21/35) Target aborted (21/35, NGC 1275 w/SN2024xav) due to Priority 1 ToO Target
01:23:44     Target Started (22/36) Target started (22/36, NGC 1275 w/SN2024xav, ToO)
01:27:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:29:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
01:46:21     Target Completed Target completed (22/36, NGC 1275 w/SN2024xav, ToO)
02:02:40     Target Started (23/36) Target started (23/36, SN 2024wak)
02:06:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:08:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
02:24:39     Target Completed Target completed (23/36, SN 2024wak)
02:25:00     Target Started (24/36) Target started (24/36, GCVS HH And)
02:28:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:31:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
02:33:02     Target Completed Target completed (24/36, GCVS HH And)
02:33:18     Target Started (25/36) Target started (25/36, AT2024tde)
02:36:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:38:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
02:54:59     Target Completed Target completed (25/36, AT2024tde)
02:55:17     Target Started (26/36) Target started (26/36, WDS GRB 34)
02:58:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:00:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
03:02:52     Target Completed Target completed (26/36, WDS GRB 34)
03:03:44     Target Started (27/36) Target started (27/36, AT2024vhz)
03:05:59   ScopeMonitor Frozen ScopeMonitor appears to be frozen at around 03:05
03:28:31     Target Completed Target completed (27/36, AT2024vhz)
03:28:35     Target Started (28/36) Target started (28/36, AT2024xhn (CV))
03:32:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:35:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
03:51:39     Target Completed Target completed (28/36, AT2024xhn (CV))
03:51:43     Target Started (29/36) Target started (29/36, NGC 2830 w/AT2024vsu)
03:54:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:57:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
04:13:54     Target Completed Target completed (29/36, NGC 2830 w/AT2024vsu)
04:13:59     Target Started (30/36) Target started (30/36, GCVS RZ LMi)
04:24:16     Target Completed Target completed (30/36, GCVS RZ LMi)
04:24:20     Target Started (31/36) Target started (31/36, AT2024xiu (CV))
04:27:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:30:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
04:36:50     Target Completed Target completed (31/36, AT2024xiu (CV))
04:36:54     Target Started (32/36) Target started (32/36, IC 2190 w/SN2024dhp)
04:39:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:42:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
04:58:30     Target Completed Target completed (32/36, IC 2190 w/SN2024dhp)
04:58:34     Target Started (33/36) Target started (33/36, GCVS SY Cnc)
05:01:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:04:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
05:05:46     Target Completed Target completed (33/36, GCVS SY Cnc)
05:05:50     Target Started (34/36) Target started (34/36, UGC 4957 w/AT2024vrq)
05:09:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:12:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
05:28:18     Target Completed Target completed (34/36, UGC 4957 w/AT2024vrq)
05:28:22     Target Started (35/36) Target started (35/36, Frosty Leo Nebula)
05:31:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:34:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
05:50:34     Target Completed Target completed (35/36, Frosty Leo Nebula)
05:50:38     Target Started (36/36) Target started (36/36, PGC 29488)
05:53:37       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
06:16:10     Target Completed Target completed (36/36, PGC 29488)
06:16:12   Queue Completed Job Queue completed
06:16:16 Session Closing Session closing
06:17:06   Dome Closed Dome closed (Closing time 45s, Zigbee 43s)
06:17:30   Dome Parked Dome parked (parking time 17s), Az: 90.0 deg
06:18:39   Telescope Parked Telescope parked (parking time 65s total)
06:18:54   Telescope State Handbox reads 'Scope parked Turn scope off.'
06:19:16   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:20:39   Services Stopped Night Services stopped
06:20:41 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files)
06:21:09     Dome (Find Park) Find Park started (Search Az 80.0 to 100.0°, Step 1.0°, Wide)
06:22:04     Dome Find Park found (Best Park Az 89.0°)
06:22:10     Dome (Find Park) Find Park started (Search Az 87.0 to 91.0°, Step 0.2°, Narrow)
06:23:06     Dome Find Park found (Best Park Az 88.8°)
06:23:12     Dome Dome has been synced at park position (Az 90.0°, Adjustment: +1.2°)
06:23:14   Dome Parked Dome parked
06:24:12   Dome Charging Dome is parked and re-charging Ok (31mA)
06:24:14 Session Finished Session Finished



Session Alerts & Alarms
Time     Type       Name Detail
19:58:41 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 19:58:09) in section 'GetCameraProperties / State'
19:58:46 Green Clear CcdCamera CcdCamera has resumed again (19:58) after 38s
20:12:05 Red Alert CCDSoft Image file [0000] hasn't been saved to disk, possible CCDSoft issue
20:14:58 Red Alert SBIG Camera Alert Take Image failed (Command timed-out)
20:15:06 Green Clear CCDSoft Image file has been saved to disk following CCDSoft Restart
20:15:28 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 20:14:56) in section 'GetCameraProperties / Temperature'
20:15:33 Green Clear CcdCamera CcdCamera has resumed again (20:15) after 38s
20:16:33 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
20:37:26 Red Alert ScopeMonitor ScopeMonitor appears to be frozen (last cycle at 20:35:41)
20:37:30 Red Alert TheSky6 Alert TheSky6 program isn't responding
20:40:46 Green Clear ScopeMonitor ScopeMonitor has resumed again (20:40) after 5.1 mins
21:01:28 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 21:00:57) in section 'GetCameraProperties / FilterIndexZeroBased'
21:01:33 Green Clear CcdCamera CcdCamera has resumed again (21:01) after 36s
21:03:09 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 21:02:34) in section 'GetCameraProperties / Status'
21:03:14 Green Clear CcdCamera CcdCamera has resumed again (21:03) after 40s
21:03:16 Red Alert SBIG Camera Alert Take Image failed (Command timed-out)
21:04:16 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:04:52 Red Alert SBIG Camera Alert Take Image failed (Command timed-out)
21:04:59 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 21:04:28) in section 'GetCameraProperties / Status'
21:05:04 Green Clear CcdCamera CcdCamera has resumed again (21:05) after 36s
21:06:34 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 21:06:02) in section 'SetCameraProperties / SbigFanOn'
21:06:39 Green Clear CcdCamera CcdCamera has resumed again (21:06) after 37s
21:07:39 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:08:14 Red Alert SBIG Camera Alert Take Image failed (Command timed-out)
21:08:44 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 21:08:14) in section 'SetCameraProperties / Asynchronous'
21:08:49 Green Clear CcdCamera CcdCamera has resumed again (21:08) after 36s
21:10:09 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:11:21 Red Alert SBIG Camera Alert Take Image failed (Command timed-out)
21:36:21 Red Alert SBIG Camera Alert Take Image failed (Command timed-out)
21:37:11 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:37:42 Red Alert SBIG Camera Alert Take Image failed (Command timed-out)
21:38:32 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:39:03 Red Alert SBIG Camera Alert Take Image failed (Command timed-out)
21:40:38 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
21:42:09 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 21:41:34) in section 'GetCameraProperties / Status'
21:42:14 Green Clear CcdCamera CcdCamera has resumed again (21:42) after 40s
21:44:14 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 21:43:41) in section 'GetCameraProperties / CoolerPower'
21:44:19 Green Clear CcdCamera CcdCamera has resumed again (21:44) after 38s
03:07:42 Red Alert ScopeMonitor ScopeMonitor appears to be frozen (last cycle at 03:05:59)
03:07:45 Red Alert TheSky6 Alert TheSky6 program isn't responding
03:10:53 Green Clear ScopeMonitor ScopeMonitor has resumed again (03:10) after 4.9 mins
06:24:12 Green Clear Dome Charging Dome is parked and re-charging Ok (31mA)



Back to Top


Operational Issues (2024-10-14 S1255)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]


Fig 1.   Slew Path Table for Target 28/36 (AT2024xhn)
Highlighted in red is an apparent anomaly where the Telescope moves from Az 306.88 to Az 6.72 in only 0.8s

 Time:  0.0, Slewing: 0, Slew:   0.000, Az: 316.65, Alt: 44.11, Angle: 0.000, Ra: 21.4581, Dec: 60.19
Time:  3.3, Slewing: 1, Slew:   2.075, Az: 316.66, Alt: 44.11, Angle: 2.075, Ra: 21.1806, Dec: 60.08
Time:  4.4, Slewing: 1, Slew:   5.889, Az: 315.31, Alt: 45.04, Angle: 3.814, Ra: 20.6783, Dec: 59.60
Time:  5.4, Slewing: 1, Slew:   9.730, Az: 312.12, Alt: 46.40, Angle: 3.841, Ra: 20.1772, Dec: 59.23
Time:  6.5, Slewing: 1, Slew:  13.730, Az: 309.69, Alt: 48.27, Angle: 4.000, Ra: 19.6575, Dec: 59.05
Time:  7.6, Slewing: 1, Slew:  17.752, Az: 307.35, Alt: 50.37, Angle: 4.021, Ra: 19.1358, Dec: 59.06
Time:  9.1, Slewing: 1, Slew:  21.773, Az: 302.94, Alt: 52.57, Angle: 4.021, Ra: 18.6142, Dec: 59.05
Time:  9.9, Slewing: 1, Slew:  25.994, Az: 300.74, Alt: 57.27, Angle: 4.221, Ra: 18.0667, Dec: 59.04
Time: 10.9, Slewing: 1, Slew:  29.943, Az: 298.75, Alt: 59.60, Angle: 3.948, Ra: 17.5547, Dec: 59.04
Time: 11.8, Slewing: 1, Slew:  33.949, Az: 298.75, Alt: 59.60, Angle: 4.006, Ra: 17.0353, Dec: 59.04
Time: 12.9, Slewing: 1, Slew:  37.934, Az: 296.78, Alt: 62.00, Angle: 3.985, Ra: 16.5186, Dec: 59.04
Time: 13.7, Slewing: 1, Slew:  41.859, Az: 294.90, Alt: 64.43, Angle: 3.925, Ra: 16.0097, Dec: 59.04
Time: 14.6, Slewing: 1, Slew:  45.733, Az: 293.14, Alt: 66.87, Angle: 3.874, Ra: 15.5075, Dec: 59.04
Time: 15.6, Slewing: 1, Slew:  49.718, Az: 291.53, Alt: 69.30, Angle: 3.985, Ra: 14.9908, Dec: 59.04
Time: 16.5, Slewing: 1, Slew:  53.593, Az: 290.03, Alt: 71.82, Angle: 3.876, Ra: 14.4883, Dec: 59.04
Time: 17.5, Slewing: 1, Slew:  57.580, Az: 288.80, Alt: 74.30, Angle: 3.987, Ra: 13.9714, Dec: 59.04
Time: 18.4, Slewing: 1, Slew:  61.454, Az: 287.89, Alt: 76.87, Angle: 3.874, Ra: 13.4692, Dec: 59.04
Time: 19.2, Slewing: 1, Slew:  65.621, Az: 287.61, Alt: 79.38, Angle: 4.167, Ra: 12.9289, Dec: 59.04
Time: 21.1, Slewing: 1, Slew:  69.728, Az: 292.69, Alt: 84.68, Angle: 4.107, Ra: 12.3964, Dec: 59.04
Time: 22.0, Slewing: 1, Slew:  73.665, Az: 306.88, Alt: 87.03, Angle: 3.938, Ra: 11.8858, Dec: 59.04
Time: 22.8, Slewing: 1, Slew:  77.661, Az:   6.72, Alt: 88.29, Angle: 3.996, Ra: 11.3678, Dec: 59.04
Time: 23.9, Slewing: 1, Slew:  81.607, Az:  56.60, Alt: 86.71, Angle: 3.946, Ra: 10.8561, Dec: 59.04
Time: 25.6, Slewing: 1, Slew:  89.569, Az:  68.32, Alt: 84.28, Angle: 3.972, Ra:  9.8239, Dec: 59.04
Time: 26.6, Slewing: 1, Slew:  93.440, Az:  71.65, Alt: 81.75, Angle: 3.871, Ra:  9.3219, Dec: 59.04
Time: 27.5, Slewing: 1, Slew:  97.367, Az:  72.40, Alt: 79.25, Angle: 3.927, Ra:  8.8128, Dec: 59.04
Time: 28.5, Slewing: 1, Slew: 101.314, Az:  72.06, Alt: 76.71, Angle: 3.946, Ra:  8.3011, Dec: 59.04
Time: 29.3, Slewing: 1, Slew: 105.236, Az:  71.14, Alt: 74.17, Angle: 3.923, Ra:  7.7925, Dec: 59.04
Time: 30.4, Slewing: 1, Slew: 108.697, Az:  69.88, Alt: 71.66, Angle: 3.460, Ra:  7.3439, Dec: 59.04
Time: 31.4, Slewing: 1, Slew: 110.928, Az:  68.58, Alt: 69.47, Angle: 2.231, Ra:  7.0547, Dec: 59.04
Time: 32.3, Slewing: 1, Slew: 111.890, Az:  67.67, Alt: 68.06, Angle: 0.962, Ra:  6.9300, Dec: 59.04
Time: 33.3, Slewing: 1, Slew: 112.193, Az:  67.27, Alt: 67.46, Angle: 0.302, Ra:  6.8908, Dec: 59.04
Time: 34.4, Slewing: 1, Slew: 112.272, Az:  67.14, Alt: 67.27, Angle: 0.079, Ra:  6.8806, Dec: 59.04
Time: 35.5, Slewing: 1, Slew: 112.296, Az:  67.11, Alt: 67.22, Angle: 0.024, Ra:  6.8775, Dec: 59.04
Time: 37.4, Slewing: 1, Slew: 112.351, Az:  67.09, Alt: 67.21, Angle: 0.056, Ra:  6.8844, Dec: 59.02
Time: 38.5, Slewing: 1, Slew: 112.379, Az:  67.10, Alt: 67.24, Angle: 0.028, Ra:  6.8808, Dec: 59.03
Time: 39.4, Slewing: 1, Slew: 112.394, Az:  67.12, Alt: 67.27, Angle: 0.015, Ra:  6.8789, Dec: 59.03
Time: 40.6, Slewing: 1, Slew: 112.403, Az:  67.13, Alt: 67.29, Angle: 0.009, Ra:  6.8778, Dec: 59.03
Time: 41.3, Slewing: 1, Slew: 112.405, Az:  67.14, Alt: 67.30, Angle: 0.002, Ra:  6.8775, Dec: 59.03
Time: 42.1, Slewing: 1, Slew: 112.414, Az:  67.14, Alt: 67.30, Angle: 0.009, Ra:  6.8764, Dec: 59.03
Time: 44.3, Slewing: 1, Slew: 112.420, Az:  67.14, Alt: 67.30, Angle: 0.006, Ra:  6.8772, Dec: 59.03
Time: 44.9, Slewing: 0, Slew: 112.421, Az:  67.14, Alt: 67.31, Angle: 0.000, Ra:  6.8772, Dec: 59.03

Fig 2. Telescope Slew Path from S1255, with path to Target 28/36 (AT2024xhn) highlighted
Slew path to Target 28/36 (AT2024xhn) is completely valid, but is a relatively rare one that happens to pass very close to Zenith and thus through a region where Az changes very quickly.  The apparent scope path analomy where Telescope Az changes by 59 in only 0.8s  thereby explained.

[ Prev | Next ]

Back to Top


Investigation - Failures taking SBIG Camera Images (CcdCamera & CCDSoft Freezing)

Issue

1)  CCDCamera froze on a number of occasions likely related to CCDSoft.Camera/SBIG Camera issues (2024-10-12 , S1254
 - 1a [20:16]
 - 1b [23:55]
 - 1c [00:34 & 00:38]

2) CCDCamera & CCDSoft froze on a multiple of occasions likely related to CCDSoft.Camera/SBIG Camera issues (2024-10-14, S1255)

- 2a  [19:58]
 - 2b  [20:12,  20:15]
 - 2c  [20:37]
 - 2d  [21:01, 21:03, 21:04, 21:06, 21:08, 21:11]
 - 2e  [21:36, 21:37, 21:39, 21:42, 21:44]

Description

1) S1254  2024-10-12  Red alerts raised with messages like "CcdCamera appears to be frozen (last cycle at 20:14:30) in section 'GetCameraProperties / State' ).  .

2) S1255  2024-10-14 Red alerts raised with messages like "Take Image failed (Command timed-out)", "CcdCamera appears to be frozen (last cycle at 19:58:09 ) in section 'GetCameraProperties / State' ).  Whilst issue occured  it was noticed that when watching CCDSoft it's Camera Status field will show progress like "Exposing Light (165.25s left)" but then suddenly freeze and not progress any further, with CCDCamera seemingly freezing at the same time.

Analysis

1)

2a)  19:58.

2b) 20:12

Ideas

Conclusion

Actions:

Back to Top




2024-10-16


ASCOM - Upgrade to Platform 7.0

ASCOM Platform upgraded on Development Computer today (2024-10-16) from version 6.6 SP1 to the new 7.0 version.

The following installations were made:
 - AscomPlatform700.4619.exe


Installation Notes:

New Features:

Additional features and applications in Platform 7:

Problems

Actions
Image  Add button to AstroMain Observatory Tab to all access to Omni Setup.   Done

Update - 2024-10-22
ASCOM 7 Platform was subsequently updated to 7.0.1 on Developement Computer on 2024-10-22 (see ASCOM 7.0.1 notes, 2024-10-22)

Update - 2024-10-22
ASCOM Platform on the Observatory Computer was upgraded from 6.6 SP1 to 7.0.1 on  2024-10-24, including the updated 7.0.1 version of DeviceHub, which fixes an issue seen in 7.0.0.

The new ASCOM 7 platform was used during live session the same night (S1259 2024-10-29.  However problems were encountered with DeviceHub 7.0.1 and after a frustrating couple of hours, DeviceHub program was downgraded to the former 6.6.1.1 version in order to achieve a stable working system and deliever at least some of the aims of the sessions.  Unfortunately due to the issue caused by introduction of DeviceHub 7.0.1  two important targets (T CrB and C/2023 A3  (Tsuchinshan-ATLAS)  ) couldn't be acquired.

A note on the problems has been sent to Peter Simpson (ASCOM).



Back to Top


DeviceHub 7.0.0

Upgrade to DeviceHub 7.0.0
DeviceHub was automatically upgraded on Development Computer today (2024-10-16) as a consequence of installing the new ASCOM Platform 7.

DeviceHub noted to have changed from  6.6.1.1  to the new 7.0.0 version.

It is assumed that the 7.0.0 version is fundamentally the same as 6.6.1.4 version (released 2023-12-08) which is the most recent version shown on github
https://github.com/ASCOMInitiative/ASCOMDeviceHub/releases

Changes since last installed version
Changes between 6.6.1.4 and the 6.6.1.1 version are described as following

First Experience with new 7.0.0 version
Trying the new DeviceHub version revealed a significant problem that preventing changing the Telescope and Dome Drivers to the new Omni Simulators and caused DeviceHub to crash.  . This is described below and has also been reported on the ASCOM Talk Forum (https://ascomtalk.groups.io/g/Help/message/47540).

I eventually managed to get DeviceHub to work for Telescope & Dome (so it still works) but there is an issue with 'Device Hub Application and Device Setup' that prevents making/saving any changes.

If I try to make any setup change, whether to change the Telescope Device or the Dome Device or a Polling Rate, or indeed no change at all, and then click the Ok button the Telescope and Dome Control Tabs on the Main Window go blank, and I'm kept on the Setup Window.  If I click on Cancel button, then after a few moments,  DeviceHub crashes.

To make any changes, for example to change DeviceHub's Telescope Device from say ASCOM.Simulator.Telescope to ASCOM.OmniSim.Telescope, I eventually found that I had to resort to using ASCOM Profile Explorer.  Changing values in the Profile Explorer and then reopening DeviceHub then allow DeviceHub to pick up the changes I want.

Steps to repeat issue:
  Open DeviceHub
  Go to Tools/Setup/Telescope Setup  (I get Fig 1.  on my computer).
  Make a change on Telescope Setup, e.g. changing  Polling Rate from 0.50 to 1.00
  Click Ok        (I get Fig 2. on my computer)
  Click Cancel  (I get a DeviceHub crash)

 - If I don't press ok, but directly press Cancel it closes the Setup window and returns to the main window.

 - If I don't make any change at all,  and click Ok, the Control Tabs still go blank and clicking Cancel still crashes the program

 - The issue is still present after restarting the computer.

Fig 1.

Fig 2.

Fig 3. For Info my DeviceHub Setup Tab shows

Updates:
None to date (awaiting response/replies from ASCOM Talk Forum).



Back to Top
