	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (1),  Small Defects (0),  Continuous Improvement (0)
	Images from 2024-10-21 >>
	2024-10-22
	ASCOM - Platform 7 Update 1 (7.0.1) including DH 7.0.1

Session Aims & Highlights (2024-10-21)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. AstroMain.  Continue to check new 3.71.8 version of AstroMain following introduction of ResolveScopePortIssue handling which includes noteworthy changes to ObsManager MainLoop code for progressing Auostart, Starting, Suspended and Closing States
3. CCDCamera.  Monitor operation of CCDSoft / SBIG Camera, & CCD Camera following issues in two recent sessions (S1254-55) but not in last session (S1256)
4. C/2023 A3 (Tsuchinshan-ATLAS). Acquire images of comet C/2023 A3 (Tsuchinshan-ATLAS)

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.9, UPB 1.5, ASCOM 6.6,   Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.71.8,  AstroPlan 1.42.4  AstroShCap 1.3.15, AstroGuard 1.10.5   (any new items or versions in bold)
  AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.7,  AstroMove 1.13
  AstroWeather 1.25, AstroAllSky 3.20.6,  AstroObsCam 1.11.4 (not 1.11.5), AstroLaunch 1.11.3

Highlights

• Targets. 14/17  planned targets observations were completed. Other targets failed due to cloud or replacement by a ToO  (NGC 410, Ast.Now Deep Sky Challenge Object for Nov 2024)
•  C/2023 A3 (Tsuchinshan-ATLAS). Images of comet C/2023 A3 (Tsuchinshan-ATLAS) couldn't be acquired due to cloud
• AstroMain.  The new AstroMain version 3.71.8 continued to work as per design with no problems
• CCDCamera.  No problems/issues with CCDCamera / SBIG Camera
• Dome. No issues opening/closing shutter during session. Dome closed and parked ok at end of session.

Notes

Summary Plots & Logs

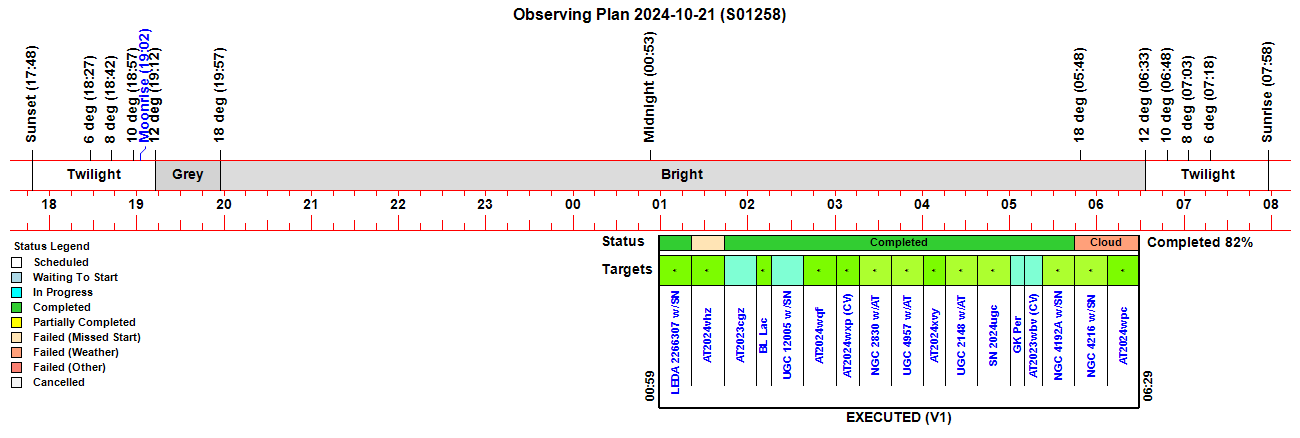

Observing Plan

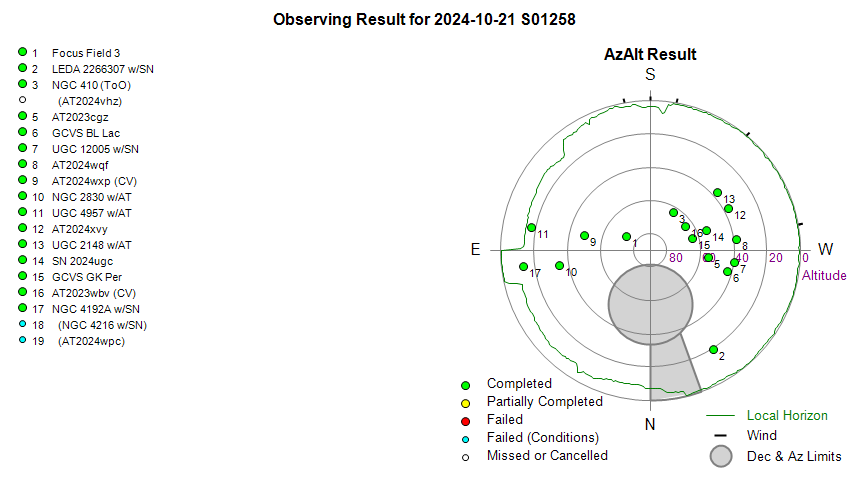

Observing Result

Dome & Scope Slewing Performance

Slew/Centering Performance

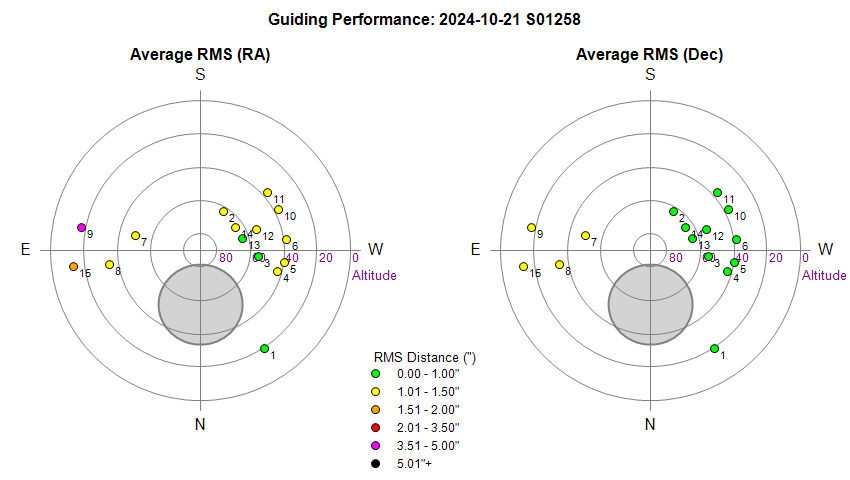

Guiding Performance

Sky Conditions (Locate Frames)

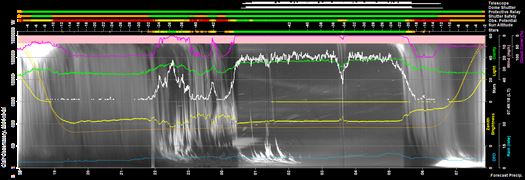

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 00:34:15 Session Monitoring AutoStart monitoring for Live Session opportunity between 00:34 & 05:53 00:34:16 Session AutoStarting Session autostarting (00:34) 00:34:37   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 00:35:05   Camera1 Connected SBIG Camera connected (Set point -20°C) 00:35:07 Session Created Session Created (Live, 2024-10-21 S01258, ImageSaveNum: 1258001) 00:35:12   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 00:37:10   Services Started Observatory Services started 00:37:17 Observatory (Auto) Observatory placed in Fully-Automated Mode 00:37:21 Session Pending Session pending (2024-10-21) 00:37:23 Session Initiating Session initiating (2024-10-21) 00:37:32   Camera1 Connected SBIG Camera connected (Set point -15°C) 00:37:39   Plan Requested Observing Plan requested from AstroPlan (1.42.4) 00:38:30   Plan Loaded Observing Plan loaded to queue (Plan ID: 1037) 00:39:11   Telescope Connected Telescope connected (TheSky6) 00:39:35 Session Equilibration Session ready to Open Dome 00:40:20   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 00:40:40 Session Running Session running 00:40:43   Queue Started Observing Queue started (17 targets selected) 00:40:45     Target Started (NrZen) Target started (Focus Field 3, HIP 14181) 00:41:00       Dome Unparked Dome unparked 00:44:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:46:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 00:48:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 00:48:55       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 00:51:04       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 00:52:47       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 00:53:04     Target Completed (NrZen) Target completed (Focus Field 3, HIP 14181) 00:54:08     Target Started (1/17) Target started (1/17, LEDA 2266307 w/SN2024xjk) 00:58:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:15:31     Target Completed Target completed (1/17, LEDA 2266307 w/SN2024xjk) 01:15:35     Target Started (2/18) Target started (2/18, NGC 410, ToO) 01:19:49       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:35:44     Target Completed Target completed (2/18, NGC 410, ToO) 01:35:46     Target Missed (3/18) Target's time slot was missed (3/18, AT2024vhz) 01:38:47     Target Started (4/18) Target started (4/18, AT2023cgz) 01:41:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:44:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 02:00:40     Target Completed Target completed (4/18, AT2023cgz) 02:00:44     Target Started (5/18) Target started (5/18, GCVS BL Lac) 02:03:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:05:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 02:09:51     Target Completed Target completed (5/18, GCVS BL Lac) 02:11:05     Target Started (6/18) Target started (6/18, UGC 12005 w/SN2022ovb) 02:14:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:16:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 02:32:49     Target Completed Target completed (6/18, UGC 12005 w/SN2022ovb) 02:33:25     Target Started (7/18) Target started (7/18, AT2024wqf) 02:36:28       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:52:54     Target Completed Target completed (7/18, AT2024wqf) 02:55:45     Target Started (8/18) Target started (8/18, AT2024wxp (CV)) 02:59:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:02:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 03:12:49     Target Completed Target completed (8/18, AT2024wxp (CV)) 03:12:53     Target Started (9/18) Target started (9/18, NGC 2830 w/AT2024vsu) 03:16:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:19:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 03:35:36     Target Completed Target completed (9/18, NGC 2830 w/AT2024vsu) 03:35:40     Target Started (10/18) Target started (10/18, UGC 4957 w/AT2024vrq) 03:39:00       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:55:16     Target Completed Target completed (10/18, UGC 4957 w/AT2024vrq) 03:56:13     Target Started (11/18) Target started (11/18, AT2024xvy) 04:00:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:02:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 04:11:28     Target Completed Target completed (11/18, AT2024xvy) 04:11:32     Target Started (12/18) Target started (12/18, UGC 2148 w/AT2024yeu) 04:14:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:17:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 04:33:36     Target Completed Target completed (12/18, UGC 2148 w/AT2024yeu) 04:33:40     Target Started (13/18) Target started (13/18, SN 2024ugc) 04:36:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:39:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 04:55:29     Target Completed Target completed (13/18, SN 2024ugc) 04:55:33     Target Started (14/18) Target started (14/18, GCVS GK Per) 04:57:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:00:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 05:03:47     Target Completed Target completed (14/18, GCVS GK Per) 05:05:05     Target Started (15/18) Target started (15/18, AT2023wbv (CV)) 05:07:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:09:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 05:15:51     Target Completed Target completed (15/18, AT2023wbv (CV)) 05:17:24     Target Started (16/18) Target started (16/18, NGC 4192A w/SN2024exw) 05:23:39       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 05:36:56       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 05:40:42     Target Completed Target completed (16/18, NGC 4192A w/SN2024exw) 05:40:44   Queue Paused Queue paused for Session Suspension 05:40:47 Session Suspending Session suspending 05:41:37   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 05:41:38 Session Suspended Session suspended 05:59:00     Target Cancelled Target cancelled (17/18, NGC 4216 w/SN2024gy) due to cloud 06:31:20     Target Cancelled Target cancelled (18/18, AT2024wpc) due to cloud 06:31:24   Queue Completed Job Queue completed 06:31:27 Session Closing Session closing 06:31:32   Dome Closed Dome already closed (closed at 05:41, closing time 50s, zigbee 43s) 06:31:52   Dome Parked Dome parked (parking time 10s), Az: 90.0 deg 06:33:18   Telescope Parked Telescope parked (parking time 78s total) 06:33:33   Telescope State Handbox reads 'Scope parked Turn scope off.' 06:33:55   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 06:35:20   Services Stopped Night Services stopped 06:35:23 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 06:35:40     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow) 06:36:42     Dome Find Park found (Best Park Az 90.2°) 06:36:48     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.2°) 06:36:50   Dome Parked Dome parked 06:36:58   Dome Charging Dome is parked and re-charging Ok (25mA) 06:37:00 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 06:36:58 Green Clear Dome Charging Dome is parked and re-charging Ok (25mA)

Back to Top

Operational Issues (2024-10-21 S1258)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (0)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• AstroAllSky seems to have stopped working just after starting Daytime Mode (2023-10-23 08:00). AllSky Images noted to be note updating during evening, last image was final image (07:20) from the previous night. AllSky/Weather computer responds to Pings and Windows Explorer connection, but no weather charts are being uploaded to observatory website, and no VNC Remote Connection is possible.  Observatory was visited in order to check the status of the AllSky/Weather Computer. This showed that the computer screen was black and the computer was unresponsive to mouse actions.  Computer was rebooted using its Off/On buttton, and AllSky/Weather programs restarted.   Unclear why the computer behaved as it did but the problem doesn't seem to due to AstroAllSky.
  Resolved 2024-10-23 pm (AllSky/Weather Computer)

Small Defects

• None

Continuous Improvement

• None
