David's Astronomy Pages Notes - Session 1265 (2024-11-10)

Notes (S1264B)

Notes Main

Home Page

Notes (S1266)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (1),  Minor Issues (1),  Small Defects (2),  Continuous Improvement (0)
	Images from 2024-11-10 >>

Session Aims & Highlights (2024-11-10)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. Crab Nebula.  Acquire 1x1 binned, 60s exposures of M1 / CM Tau to assess the needs/limitations for the Crab Nebula Pulser Project.
3. IK Peg. Acquire images of IK Peg, a white dwarf / binary system in Pegasus and around 154 ly from earth.
4. C/2023 A3 (Tsuchinshan-ATLAS). Acquire images of comet C/2023 A3 (Tsuchinshan-ATLAS)

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 7.0.2 RC4, MeadeGeneric 1.3.9, UPB 1.5, ASCOM 7.0.2 RC4,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.0.2 RC4
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.72.3,  AstroPlan 1.42.4  AstroShCap 1.3.15, AstroGuard 1.10.5   (any new items or versions in bold)
  AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.7,  AstroMove 1.13
  AstroWeather 1.25, AstroAllSky 3.20.6,  AstroObsCam 1.11.4 (not 1.11.5), AstroLaunch 1.11.5

Highlights

• Targets. 18/33 planned targets observations were completed with 5 targets partially completed. 5 ToO targets added to the Observing Plan (IK Peg, T CrB, C/2023 A3 (Tsuchinshan-ATLAS), CM Tau & Jupiter) were all successfully completed. Images from other targets failed as they were abort / or missed starts due to insertion of ToO targets or due to obscured sky view due to software/driver issue associated with the Dome not moving.  Images from some of the partially completed targets will likely be rejected due to obscured sky view issue.
• Crab Nebula. 60s exposures of Crab Nebula / CM Tau were taken at planned 1x1 binning at C, Xo (BB) and Dual-Band FIlter
  IK Peg. Images of IK Peg were acquired
• Dome Slews.  There were no dome slew anomalies during session, but DeviceHub.Dome ran into issue that prevented the dome from being able to be moved to the telescope position.
  Dome. There was no issues opening/closing shutter during session. Dome closed and parked ok at end of session.

Notes

• Session Stats :  Post-midnight session attempt (5.3 hours) Temperature 7.5 deg (min),  CCD Temp  -15°C,  75% av cooling, 14.4 min imaging time, 32 images

Summary Plots & Logs

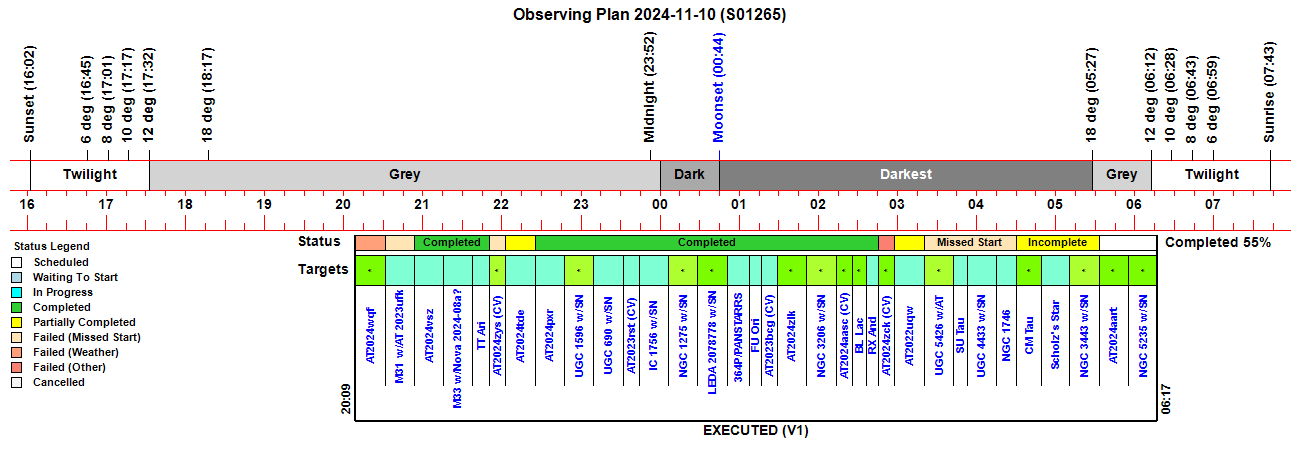

Observing Plan

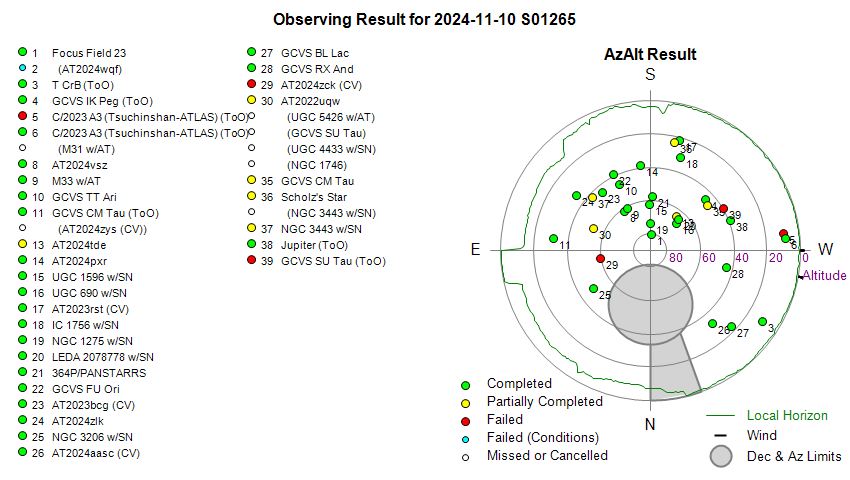

Observing Result

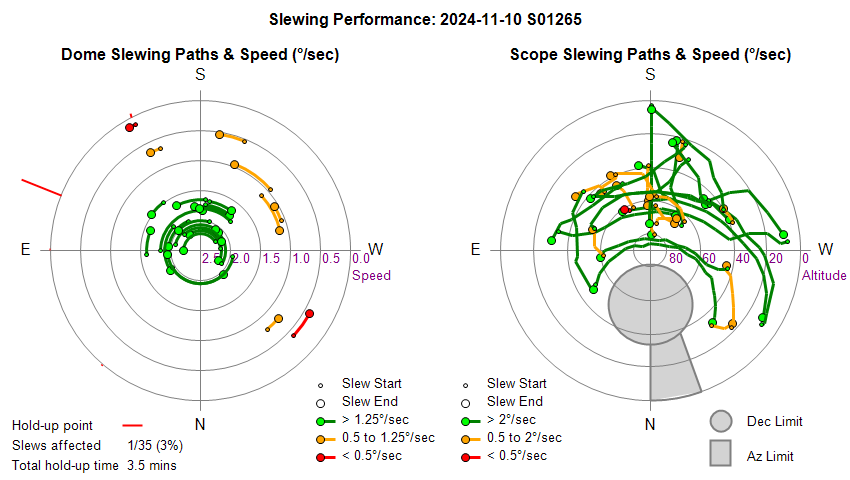

Dome & Scope Slewing Performance

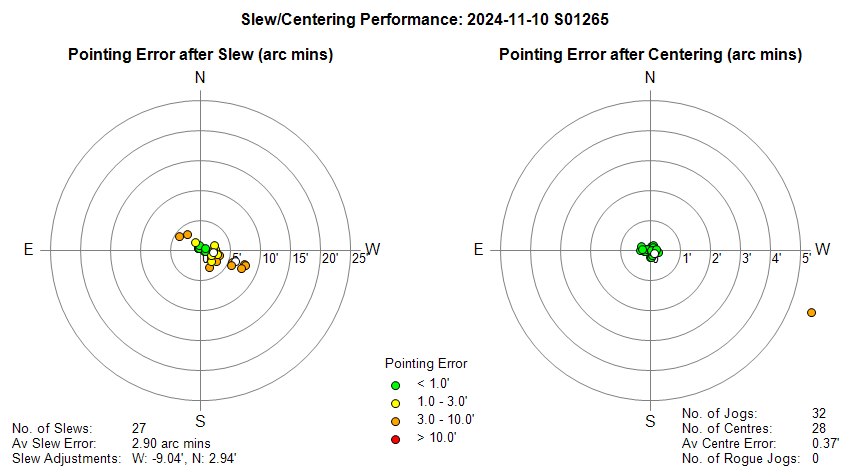

Slew/Centering Performance

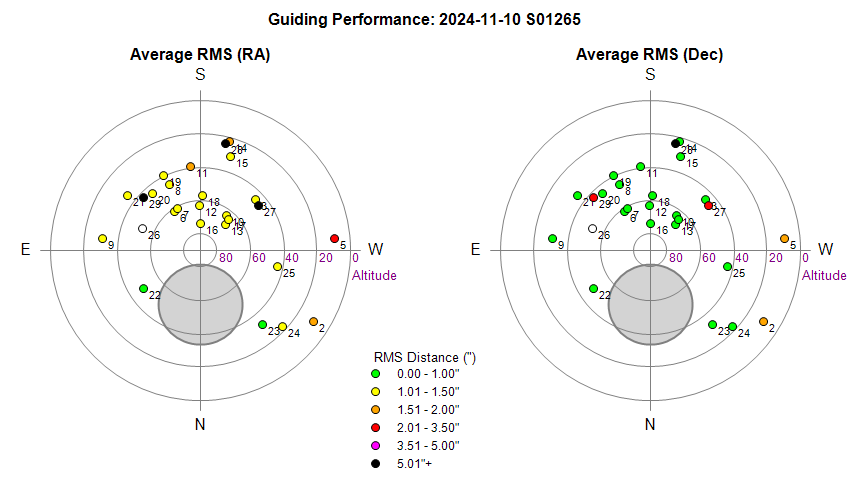

Guiding Performance

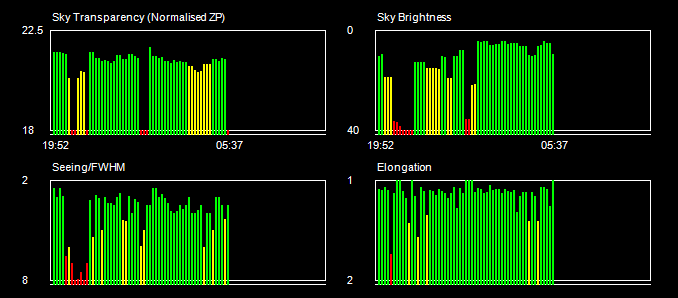

Sky Conditions (Locate Frames)

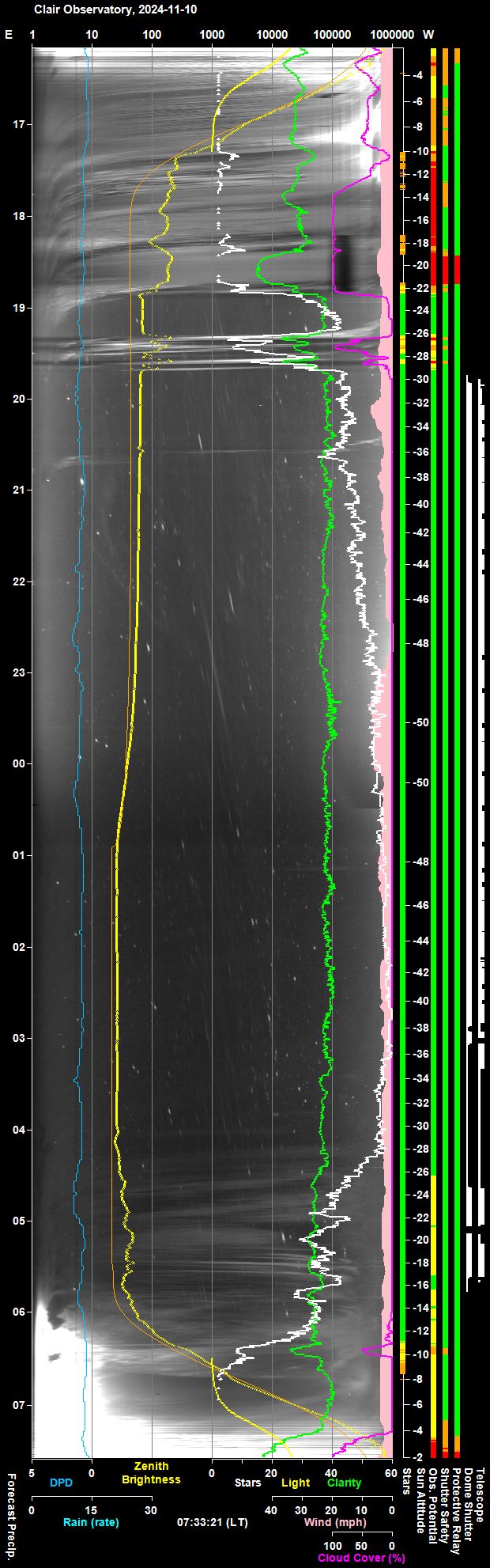

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs) The black 'spots on the keogram image are created by baby spiders which hatched earlier in the day (see Fig 2 & Fig 3)

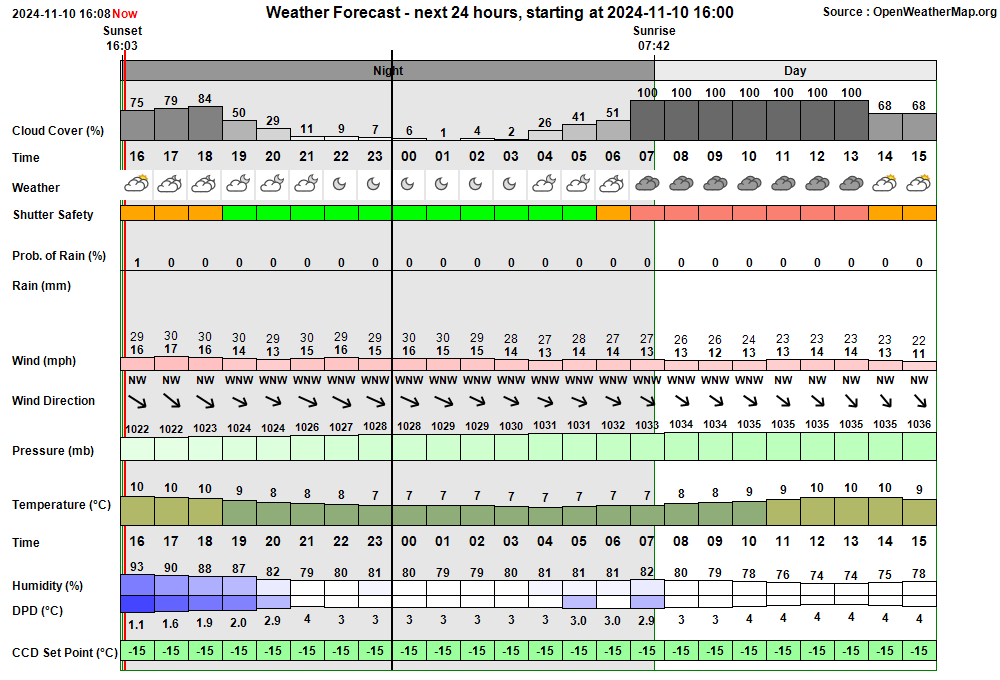

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 19:44:34 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:44 & 05:32 19:44:35 Session AutoStarting Session autostarting (19:44) 19:44:55   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 19:45:22   Camera1 Connected SBIG Camera connected (Set point -15°C) 19:45:25 Session Created Session Created (Live, 2024-11-10 S01265, ImageSaveNum: 1265001) 19:45:29   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 19:47:24   Services Started Observatory Services started 19:47:32 Observatory (Auto) Observatory placed in Fully-Automated Mode 19:47:35 Session Pending Session pending (2024-11-10) 19:47:37 Session Initiating Session initiating (2024-11-10) 19:47:46   Camera1 Connected SBIG Camera connected (Set point -15°C) 19:47:49   Plan Requested Observing Plan requested from AstroPlan (1.42.4) 19:48:30   Plan Loaded Observing Plan loaded to queue (Plan ID: 1047) 19:49:10   Telescope Connected Telescope connected (TheSky6) 19:49:34 Session Equilibration Session ready to Open Dome 19:50:19   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 19:50:50 Session Running Session running 19:50:53   Queue Started Observing Queue started (33 targets selected) 19:50:55     Target Started (NrZen) Target started (Focus Field 23, HIP 113729) 19:51:11       Dome Unparked Dome unparked 19:54:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:57:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 19:59:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 19:59:41       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 20:01:53       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 20:03:45       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 20:04:04     Target Completed (NrZen) Target completed (Focus Field 23, HIP 113729) 20:04:17     Target Started (1/33) Target started (1/33, AT2024wqf) 20:08:00     Target Aborted (1/33) Target aborted (1/33, AT2024wqf) due to Priority 1 ToO Target 20:08:05     Target Started (2/34) Target started (2/34, T CrB, ToO) 20:14:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:17:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 20:22:22     Target Completed Target completed (2/34, T CrB, ToO) 20:22:26     Target Started (3/35) Target started (3/35, GCVS IK Peg, ToO) 20:26:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:28:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 20:34:52     Target Completed Target completed (3/35, GCVS IK Peg, ToO) 20:34:56     Target Started (4/36) Target started (4/36, C/2023 A3 (Tsuchinshan-ATLAS), ToO) 20:39:28     Target Aborted (4/36) Target aborted (4/36, C/2023 A3 (Tsuchinshan-ATLAS), ToO) due to User Intervention 20:39:32     Target Started (5/37) Target started (5/37, C/2023 A3 (Tsuchinshan-ATLAS), ToO) 20:43:57       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 20:51:29     Target Completed Target completed (5/37, C/2023 A3 (Tsuchinshan-ATLAS), ToO) 20:51:31     Target Missed (6/37) Target's time slot was missed (6/37, M31 w/AT2023ufk) 20:51:34     Target Started (7/37) Target started (7/37, AT2024vsz) 20:55:51       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 21:11:55     Target Completed Target completed (7/37, AT2024vsz) 21:12:00     Target Started (8/37) Target started (8/37, M33 w/Nova M33 2024-08a?) 21:16:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:19:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 21:35:50     Target Completed Target completed (8/37, M33 w/Nova M33 2024-08a?) 21:35:55     Target Started (9/37) Target started (9/37, GCVS TT Ari) 21:39:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:42:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 21:49:42     Target Completed Target completed (9/37, GCVS TT Ari) 21:49:46     Target Started (10/38) Target started (10/38, GCVS CM Tau, ToO) 21:53:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:55:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 22:15:08     Target Completed Target completed (10/38, GCVS CM Tau, ToO) 22:15:10     Target Missed (11/38) Target's time slot was missed (11/38, AT2024zys (CV)) 22:15:12     Target Started (12/38) Target started (12/38, AT2024tde) 22:25:04     Target Completed Target partially completed (12/38, AT2024tde) 22:25:08     Target Started (13/38) Target started (13/38, AT2024pxr) 22:45:39     Target Completed Target completed (13/38, AT2024pxr) 22:45:43     Target Started (14/38) Target started (14/38, UGC 1596 w/SN2024yhg) 22:49:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:51:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 23:07:59     Target Completed Target completed (14/38, UGC 1596 w/SN2024yhg) 23:08:03     Target Started (15/38) Target started (15/38, UGC 690 w/SN2024vfo) 23:11:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:13:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 23:30:00     Target Completed Target completed (15/38, UGC 690 w/SN2024vfo) 23:30:04     Target Started (16/38) Target started (16/38, AT2023rst (CV)) 23:33:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:36:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 23:42:30     Target Completed Target completed (16/38, AT2023rst (CV)) 23:42:34     Target Started (17/38) Target started (17/38, IC 1756 w/SN2023Q) 23:46:06       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 00:02:23     Target Completed Target completed (17/38, IC 1756 w/SN2023Q) 00:02:27     Target Started (18/38) Target started (18/38, NGC 1275 w/SN2024xav) 00:05:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:08:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 00:24:46     Target Completed Target completed (18/38, NGC 1275 w/SN2024xav) 00:24:51     Target Started (19/38) Target started (19/38, LEDA 2078778 w/SN2024xqe) 00:28:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:31:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 00:47:39     Target Completed Target completed (19/38, LEDA 2078778 w/SN2024xqe) 00:47:43     Target Started (20/38) Target started (20/38, 364P/PANSTARRS) 00:51:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:54:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 01:04:59     Target Completed Target completed (20/38, 364P/PANSTARRS) 01:05:03     Target Started (21/38) Target started (21/38, GCVS FU Ori) 01:09:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:11:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 01:15:12     Target Completed Target completed (21/38, GCVS FU Ori) 01:15:16     Target Started (22/38) Target started (22/38, AT2023bcg (CV)) 01:18:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:21:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 01:27:15     Target Completed Target completed (22/38, AT2023bcg (CV)) 01:27:20     Target Started (23/38) Target started (23/38, AT2024zlk) 01:30:28       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:46:58     Target Completed Target completed (23/38, AT2024zlk) 01:47:02     Target Started (24/38) Target started (24/38, NGC 3206 w/SN2024bch) 01:50:57       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:07:25     Target Completed Target completed (24/38, NGC 3206 w/SN2024bch) 02:08:37     Target Started (25/38) Target started (25/38, AT2024aasc (CV)) 02:13:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:14:46       Focusing Failed Foc1 focusing failed - star lost 02:21:15     Target Completed Target completed (25/38, AT2024aasc (CV)) 02:21:19     Target Started (26/38) Target started (26/38, GCVS BL Lac) 02:25:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:28:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 02:32:14     Target Completed Target completed (26/38, GCVS BL Lac) 02:32:19     Target Started (27/38) Target started (27/38, GCVS RX And) 02:35:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:38:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 02:41:41     Target Completed Target completed (27/38, GCVS RX And) 02:41:45     Target Started (28/38) Target started (28/38, AT2024zck (CV)) 02:44:42   ScopeMonitor Frozen ScopeMonitor appears to be frozen at around 02:44 02:50:45   HardSuspend Called Hard Suspend called due to un-responsive TheSky6 program 02:52:45 Session Suspending Session suspending 02:53:17   TheSky6 Restarting TheSky6 being restarted (resolve unresponsive TheSky6) 02:53:20     Target Aborted (28/38) Target aborted (28/38, AT2024zck (CV)) due to Obs.Manager Request 02:53:22   Queue Paused Queue paused for Session Suspension 02:53:35   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 02:53:38 Session Suspended Session suspended 02:53:41   Telescope Connected Telescope connected (TheSky6) 02:55:40 Session Resuming Session resuming 02:56:25   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 02:56:27 Session Running Session running 02:56:29   Queue Resumed Observing Queue resumed 02:56:32     Target Started (29/38) Target started (29/38, AT2022uqw) 03:00:09 Obs.Monitor Frozen Obs.Monitor appears to be frozen at around 03:00 in section 'Monitor Dome Azimuth' 03:04:12 Obs.Manager Obs.Manager is frozen in 'Check for Parked Scope' (last cycle was at 03:04:12) 03:04:12   Make Observatory Safe Obs.Overseer intervened to Make Observatory Safe 03:04:16 Obs.Manager Obs.Manager has resumed again after 4.8 min 03:05:08   Dome Closed Dome closed (Closing time 55s, Zigbee 43s) 03:08:06     Dome Slew Dome slew held up at Az. 111.6° (Delay 180s) 03:20:29     Target Completed Target partially completed (29/38, AT2022uqw) 03:34:31     Target Missed (30/38) Target's time slot was missed (30/38, UGC 5426 w/AT2024aanq) 03:47:58     Target Missed (31/38) Target's time slot was missed (31/38, GCVS SU Tau) 04:07:27     Target Missed (32/38) Target's time slot was missed (32/38, UGC 4433 w/SN2024uhc) 04:25:07     Target Missed (33/38) Target's time slot was missed (33/38, NGC 1746) 04:36:05   TheSky6 Restarting TheSky6 being restarted (resolve unresponsive TheSky6) 04:36:08   HardSuspend Called Hard Suspend called due to TheSky6 failure 04:36:10   Queue Paused Observing Queue pausing for Session Suspension 04:36:13 Session Suspending Session suspending 04:36:15   Dome Closed Dome already closed (closed at 03:05, Closing time 55s, Zigbee 43s 04:36:17 Session Suspended Session suspended 04:36:28   Telescope Connected Telescope connected (TheSky6) 04:38:18 Session Resuming Session resuming 04:39:04   Dome Opened Dome opened (Opening time 46s, Zigbee 41s) 04:39:05 Session Running Session running 04:39:08   Queue Resumed Observing Queue resumed 04:39:11     Target Started (34/38) Target started (34/38, GCVS CM Tau) 04:48:11     Target Completed Target partially completed (34/38, GCVS CM Tau) 04:48:15     Target Started (35/38) Target started (35/38, Scholz's Star) 04:57:10   Pulsar Dome Restarting Dome Controller 04:57:50       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (low battery) 04:57:53   Pulsar Dome Dome Controller has been restarted 04:57:55   Pulsar Dome Dome Service has been restarted 04:58:15       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 05:03:01 User Intervention User Intervention to abort job queue & switch back to Manual Mode 05:03:06     Target Completed Target partially completed (35/38, Scholz's Star) 05:03:08   Queue Aborted Job Queue aborted 05:10:34   Telescope Connected Telescope connected (TheSky6) 05:14:12 Session Monitoring AutoStart monitoring for Live Session opportunity between 05:14 & 05:32 05:14:14 Observatory (AutoStart) Observatory placed in Auto-Start Mode 05:14:17 Session AutoStarting Session autostarting (05:14) 05:14:28   Services Started Observatory Services started 05:14:34 Observatory (Auto) Observatory placed in Fully-Automated Mode 05:14:36 Session Pending Session pending (2024-11-10) 05:14:38 Session Initiating Session initiating (2024-11-10) 05:14:48   Camera1 Connected SBIG Camera connected (Set point -20°C) 05:14:57   Plan Loaded Observing Plan loaded to queue (Plan ID: 1047) 05:15:05   Telescope Connected Telescope connected (TheSky6) 05:15:32 Session Running Session running 05:15:35   Queue Started Observing Queue started (3 targets selected) 05:15:41     Target Started (31/33) Target started (31/33, NGC 3443 w/SN2024ehs) 05:24:36     Target Aborted (31/33) Target aborted (31/33, NGC 3443 w/SN2024ehs) due to Priority 1 ToO Target 05:24:40     Target Started (32/34) Target started (32/34, Jupiter, ToO) 05:35:42     Target Completed Target completed (32/34, Jupiter, ToO) 05:35:46     Target Started (33/35) Target started (33/35, GCVS SU Tau, ToO) 05:37:29 User Intervention User request to close and finish session 05:37:35     Target Failed (33/35) Target failed due to aborted (33/35, GCVS SU Tau, ToO) 05:37:37   Queue Aborted Job Queue aborted 05:37:39 Session Closing Session closing 05:38:34   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 05:39:50   Dome Parked Dome parked (parking time 69s), Az: 90.0 deg 05:40:34   Telescope Parked Telescope parked (parking time 38s total) 05:41:04   Telescope State Handbox reads 'Scope parked Turn scope off.' 05:41:26   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:42:51   Services Stopped Night Services stopped 05:42:54 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 05:43:36     Dome (Find Park) Find Park started (Search Az 80.0 to 100.0°, Step 1.0°, Wide) 05:44:37     Dome Find Park found (Best Park Az 92.0°) 05:44:43     Dome (Find Park) Find Park started (Search Az 90.0 to 94.0°, Step 0.2°, Narrow) 05:45:28     Dome Find Park found (Best Park Az 92.2°) 05:45:34     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -2.2°) 05:45:36   Dome Parked Dome parked 05:47:34   Dome Charging Dome is parked and re-charging Ok (33mA) 05:47:36 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 02:33:02 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (GCVS RX And) 02:46:26 Red Alert ScopeMonitor ScopeMonitor appears to be frozen (last cycle at 02:44:42) 02:46:29 Red Alert TheSky6 Alert TheSky6 program isn't responding 02:53:22 Green Clear ScopeMonitor ScopeMonitor has resumed again (02:53) after 8.7 mins 03:04:11 Red Alert Obs.Monitor Obs.Monitor appears to be frozen in section 'Monitor Dome Azimuth' (last cycle at 03:00:09) 03:04:12 Red Alert Obs.Manager Obs.Manager is frozen in 'PHD2 Data Stream Monitoring' (last cycle at 02:59:25) 03:04:16 Green Clear Obs.Manager Obs.Manager has resumed again after 4.8 min 03:04:18 Green Clear Obs.Monitor Obs.Monitor has resumed again (03:04) after 4.1 mins 03:08:06 Red Alert Dome Slew Dome slew held up at Az. 111.6° (Delay 180s) 04:36:08 Red Alert TheSky6 Alert TheSky6 program isn't running 04:39:53 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (GCVS CM Tau) 04:48:56 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (Scholz's Star) 05:47:34 Green Clear Dome Charging Dome is parked and re-charging Ok (33mA)

Back to Top

Operational Issues (2024-11-10 S1265)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (1)
• Small Defects (2)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• There were a major event at which held up the session, lost contact with the dome and led to imaging with Dome at the wrong Azimuth (02:59 - 03:08+).   Multiple red alerts raised, ObsMonitor alert at 03:04:11 with message "Obs.Monitor appears to be frozen in section 'Monitor Dome Azimuth' (last cycle at 03:00:09)", ObsManager alert at 03:04:12 with the message "Obs.Manager is frozen in 'PHD2 Data Stream Monitoring' (last cycle at 02:59:25)", a green Obs.Manager all-clear at 03:04:16 with message "Obs.Manager has resumed again after 4.8 min",   a Dome Slew' alert at 03:08:06 with the message "Dome slew held up at Az. 111.6° (Delay 180s)".   Problem was noticed at around 04:30 or so and a 'lockdown' was instigated to collect data on the situation from various programs running. TheSky6 was displaying a mscorlib error dialog with the message "Object synchronization method was called from an unsychronized block of code" . CCDSoft was showing image  "01265219.AT2022uqw.FIT" containing no visible stars. ObsViewer was showing Telescope at Az 233°/Alt 46°, but the Dome was opened and sitting at Az 112° (121° difference from the scope) The issue was resolved at 04:38 to 04:45 or so, which saw DeviceHub being restarted, to pick up a new Dome Connection. Report File shows following
  > Obs.Overseer               Warning   Obs.Manager is frozen in 'Telescope Monitoring' (last cycle at 02:59:25)
> Obs.Overseer               Warning   Obs.Monitor is frozen (03:04) in section 'Monitor Dome Azimuth'
> Obs.Overseer               Warning   Task in StartTargetGuiding/StartGuider is taking a long time? (03:04)
> Obs.Overseer               Alert     Obs.Manager is frozen in 'PHD2 Data Stream Monitoring' (last cycle at 02:59:25)
  Making Observatory Safe              2024-11-11 03:04  (Local, GMT)

  Close Dome                            2024-11-11 03:04  (Local, GMT)
> Obs.Overseer               Info      Obs.Manager has resumed again at 03:04:12 after 4.8 min > Obs.Overseer               Info      Obs.Monitor has resumed again (03:04) after 4.1 min   Close Dome...              Ok        Dome is closing   (Clarity: 37.5, Stars: 58, Rain: -1.3, Wind: 3.0) > Observatory Shutter        Info      Shutter is closing(03:04:21, open time 8.0 min)

  Park Dome
  Turn off Dome Slaving...   Ok        Slaving is Off
  Slew Dome to Az 90°        Info      Slewing dome to 90° (Park Position)
  Close Dome...              Ok        Dome is closed    (Closing time 55s, Zigbee 43s)
  Dome slew                  Warning   Slew held up      (Az. 111.6° for 180s)   Slew Dome to 90 Az         Abort     Slew aborted after 180s (Dome at Az 111.6°)
  DeviceHubDome shows a SlewToAzimuth command at 03:05:06.076   ( SlewToAzimuth: Azimuth = 90.00000 (done) )
  but this isn't logged by the Pulsar Dome. Its last SlewToAzimuth command was the one at  02:56:38.452 (SlewToAzimuth  Start 111.64)
  There was a Close Shutter commands  at 02:52:45.950 ( CloseShutter: (done) ) and 03:04:19.920 (CloseShutter: (done) ) with intervening Open Shutter command at 02:55:40.971 OpenShutter: (done). No specific cause to the problem could be found. Issue closed after review 2024-12-10.
  Closed after review  2024-12-12 (Pulsar Dome/DeviceHub, AstroMain)

Minor Issues

• AstroMain's ScopeMonitor froze for 8.7 minutes (02:44). A ScopeMonitor red alert was raised at 02:46:26 with the message "ScopeMonitor appears to be frozen (last cycle at 02:44:42)" , followed by a red 'TheSky6 Alert' at 02:46:29 with the message "TheSky6 program isn't responding". Eventually the issue resolved itself and a green all-clear alert at 02:53:22 with the message "ScopeMonitor has resumed again (02:53) after 8.7 mins".  Unclear what the exact cause of the problem was in this case.   It is proposed to monitor future session to see if this is a more general issue or was a very rare or one-off event.
  To monitor 2024-11-02 (AstroMain ScopeMonitor, TheSky6)

Small Defects

• There were 3 cases where a yellow 'Dome Discrepency' alert was raised with message "Difference between Dome Az and Telescope Az is > 8 deg" (02:33, 04:39, 04:48). Yellow alerts were raised for 3 slews (RX And at 02:33, CM Tau at 04:39, Scholz's Star at 04:48) with the message "Difference between Dome Az and Telescope Az is > 8 deg". Are these alerts unexpected / significant and are rightly raised  or are they entirely expected or feasible based on the target Alt/Az. & Dome Geometry and shouldn't be raised. Examining the slew ato RX And at 02:33 its appears that the alert was raised because the SlewMonitor had determined that slew was completed (both telescope & dome had Slewing=False) and that there was a large discrepency between Dome & Telescope Az.  But shortly after the Dome slewed to the correct final slaved location so that for main part the Dome/Telescope Az Delta was small (~1 deg).   These yellow alerts are simply a Dome Slew Anomalies with a different expression. Issue eventually fixed on 2024-11-15 by enabling DeviceHub's Composite Slewing and making adjustments to how AstroMain's Slew Monitor operates.
  Resolved 2024-11-15  (DeviceHub Composite Slewing, AstroMain 3.72.5)

• "TheSky6"  Alert" was unnecessarily raised whilst TheSky6 was being restarted (04:36).  A red alert with message "TheSky6 program isn't running" was raised at 04:36:06.   The alert and associated report message were unnecessary and shouldn't have been given as the TheSky6 was in the process of being restarted. A bRestartingTheSky flag should have been used to temporarily disable this alert.  Fixed in AstroMain 3.72.6, the "TheSky6 check when session runnning" management section is modifed so that raising of the 'TheSky6' alert is skipped when bRestartingTheSky=True.
  Fixed 2024-11-16 (AstroMain 3.72.6)


Continuous Improvement

• None
