Notes - Session 1264 Attempt 2 (2024-11-09)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (0),  Small Defects (0),  Continuous Improvement (0)
Bullet No Image from Session >>


Session Aims & Highlights (2024-11-09)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
  2. Dome Slews. Collect DeviceHub activity data to understand why dome slewing anomalies are occuring whilst dome is slaved.
  3. Crab Nebula.  Acquire 1x1 binned, 60s exposures of M1 / CM Tau to assess the needs/limitations for the Crab Nebula Pulser Project.
  4. IK Peg. Acquire images of IK Peg, a white dwarf / binary system in Pegasus and around 154 ly from earth.

 Equipment & Software

Highlights

Notes

Summary Plots & Logs

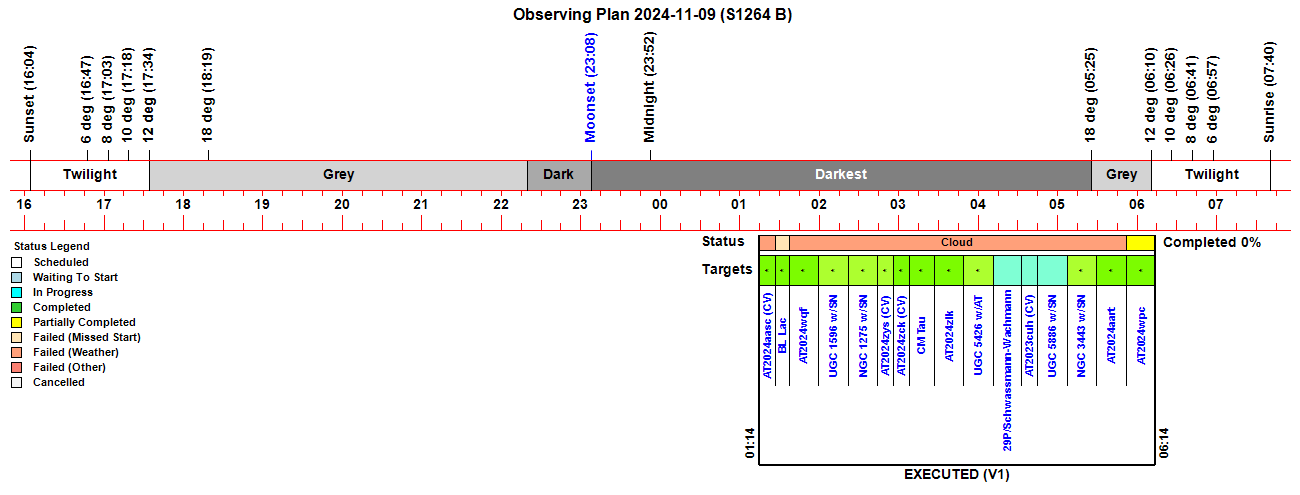

Observing Plan

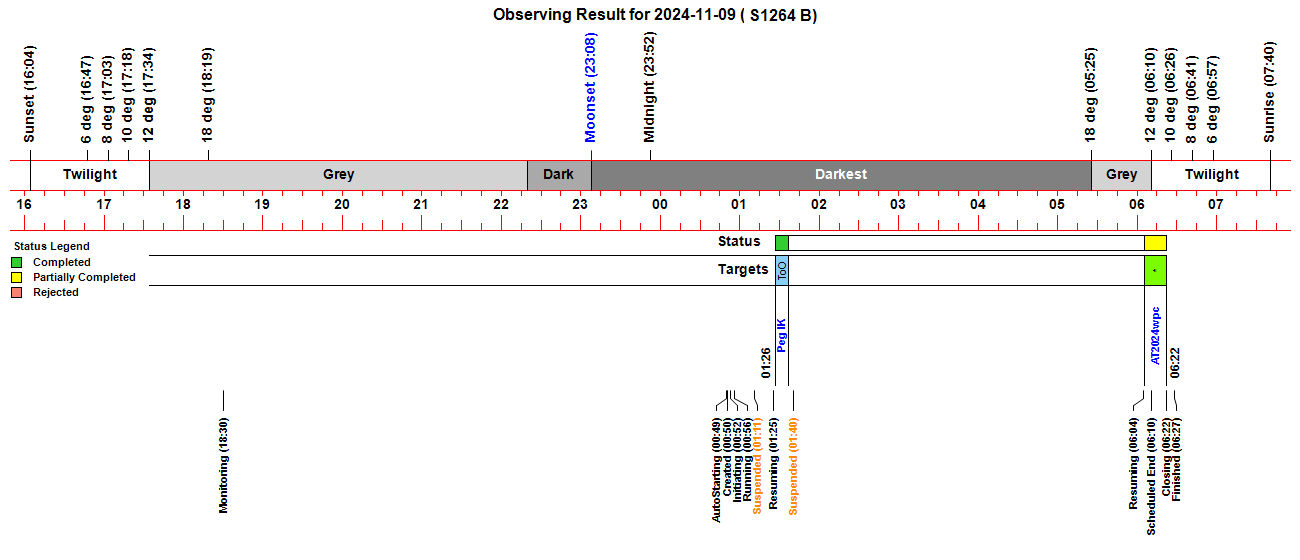

Observing Result

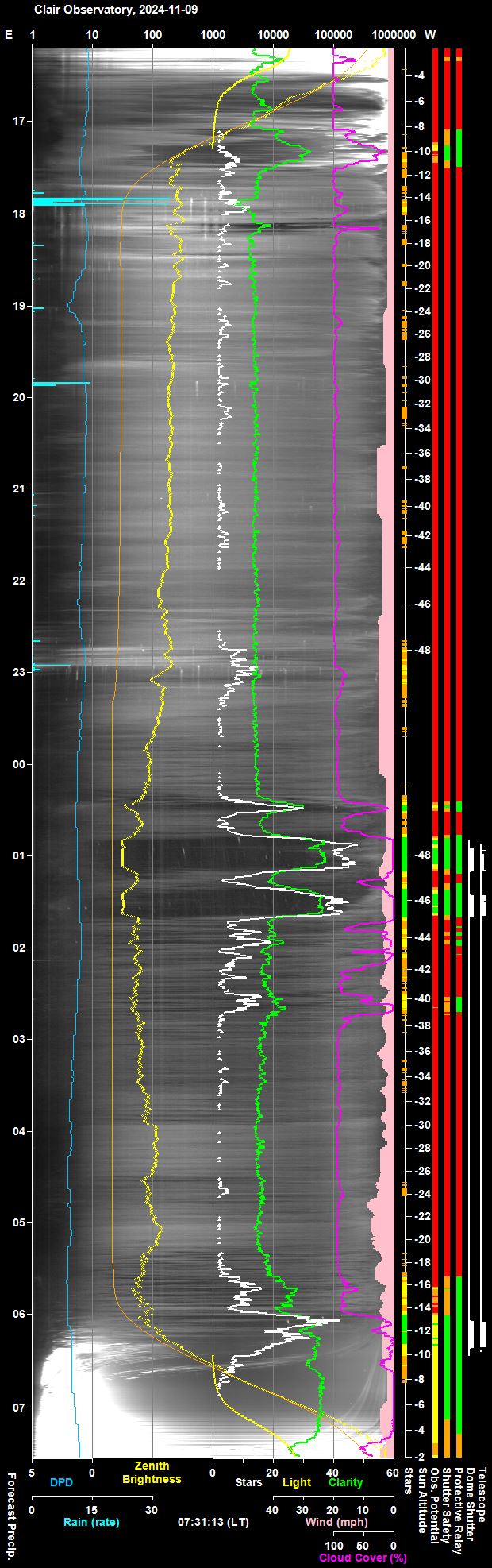

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)
The black 'spots on the keogram image are created by baby spiders which hatched earlier in the day (see Fig 2 & Fig 3)

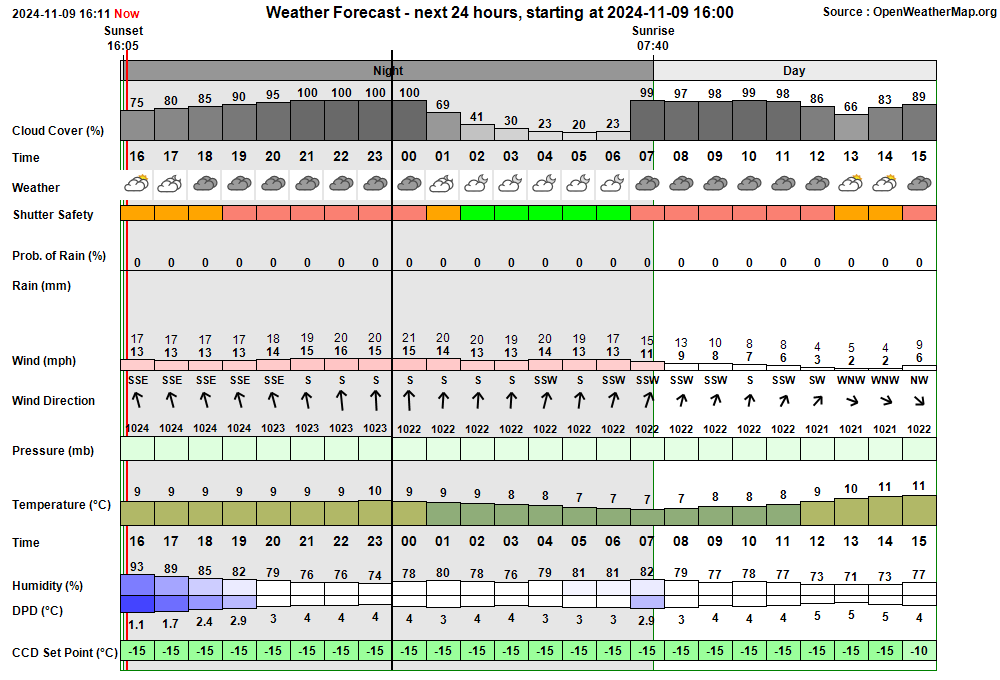

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
18:30:33 Session Monitoring AutoStart monitoring for Live Session opportunity between 18:30 & 05:30
18:30:36   AutoStart Delayed Session delayed due to rain
00:49:47 Session AutoStarting Session autostarting (00:49)
00:50:08   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
00:50:35   Camera1 Connected SBIG Camera connected (Set point -10°C)
00:50:37 Session Created Session Created (Live, 2024-11-09 S01264, ImageSaveNum: 1264001)
00:50:42   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
00:52:41   Services Started Observatory Services started
00:52:49 Observatory (Auto) Observatory placed in Fully-Automated Mode
00:52:51   AutoStart Delayed Session delayed due to rain
00:52:52 Session Pending Session pending (2024-11-09)
00:52:54 Session Initiating Session initiating (2024-11-09)
00:53:04   Camera1 Connected SBIG Camera connected (Set point -15°C)
00:53:10   Plan Requested Observing Plan requested from AstroPlan (1.42.4)
00:53:41   Plan Loaded Observing Plan loaded to queue (Plan ID: 1046)
00:54:22   Telescope Connected Telescope connected (TheSky6)
00:54:47 Session Equilibration Session ready to Open Dome
00:55:33   Dome Opened Dome opened (Opening time 45s, Zigbee 40s)
00:56:13 Session Running Session running
00:56:16   Queue Started Observing Queue started (16 targets selected)
00:56:18     Target Started (NrZen) Target started (Focus Field 4, HIP 18637)
00:56:34       Dome Unparked Dome unparked
00:59:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:02:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
01:05:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
01:05:16       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
01:07:32       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
01:09:21       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
01:09:39     Target Completed (NrZen) Target completed (Focus Field 4, HIP 18637)
01:09:43     Target Started (1/16) Target started (1/16, AT2024aasc (CV))
01:10:15   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
01:10:17   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud)
01:10:25     Target Aborted (1/16) Target aborted (1/16, AT2024aasc (CV)) due to cloud
01:10:27   Queue Paused Queue paused for Session Suspension
01:10:29 Session Suspending Session suspending
01:11:15   Dome Closed Dome closed (Closing time 49s, Zigbee 43s)
01:11:18 Session Suspended Session suspended
01:20:54     Target Cancelled Target cancelled (1/17, AT2024aasc (CV)) due to cloud
01:25:47 Session Resuming Session resuming
01:26:32   Dome Opened Dome opened (Opening time 45s, Zigbee 40s)
01:26:34 Session Running Session running
01:26:36   Queue Resumed Observing Queue resumed
01:26:39     Target Started (2/17) Target started (2/17, Peg IK, ToO)
01:30:36       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
01:37:07     Target Completed Target completed (2/17, Peg IK, ToO)
01:37:09     Target Missed (3/17) Target's time slot was missed (3/17, GCVS BL Lac)
01:37:11     Target Started (4/17) Target started (4/17, AT2024wqf)
01:40:03   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
01:40:05   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud)
01:40:07     Target Aborted (4/17) Target aborted (4/17, AT2024wqf) due to cloud
01:40:09   Queue Paused Queue paused for Session Suspension
01:40:11 Session Suspending Session suspending
01:40:53   Dome Closed Dome closed (Closing time 45s, Zigbee 43s)
01:40:56 Session Suspended Session suspended
01:51:32     Target Cancelled Target cancelled (4/17, AT2024wqf) due to cloud
02:13:52     Target Cancelled Target cancelled (5/17, UGC 1596 w/SN2024yhg) due to cloud
02:35:52     Target Cancelled Target cancelled (6/17, NGC 1275 w/SN2024xav) due to cloud
02:49:52     Target Cancelled Target cancelled (7/17, AT2024zys (CV)) due to cloud
03:02:12     Target Cancelled Target cancelled (8/17, AT2024zck (CV)) due to cloud
03:20:57     Target Cancelled Target cancelled (9/17, GCVS CM Tau) due to cloud
03:41:17     Target Cancelled Target cancelled (10/17, AT2024zlk) due to cloud
04:03:37     Target Cancelled Target cancelled (11/17, UGC 5426 w/AT2024aanq) due to cloud
04:26:21     Target Cancelled Target cancelled (12/17, 29P/Schwassmann-Wachmann) due to cloud
04:38:51     Target Cancelled Target cancelled (13/17, AT2023cuh (CV)) due to cloud
04:59:11     Target Cancelled Target cancelled (14/17, UGC 5886 w/SN2024hw) due to cloud
05:21:31     Target Cancelled Target cancelled (15/17, NGC 3443 w/SN2024ehs) due to cloud
05:43:51     Target Cancelled Target cancelled (16/17, AT2024aart) due to cloud
06:04:34 Session Resuming Session resuming
06:05:18   Dome Opened Dome opened (Opening time 45s, Zigbee 40s)
06:05:21 Session Running Session running
06:05:23   Queue Resumed Observing Queue resumed
06:05:26     Target Started (17/17) Target started (17/17, AT2024wpc)
06:22:17     Target Completed Target partially completed (17/17, AT2024wpc)
06:22:19   Queue Completed Job Queue completed
06:22:22 Session Closing Session closing
06:23:15   Dome Closed Dome closed (Closing time 50s, Zigbee 43s)
06:23:33   Dome Parked Dome parked (parking time 10s), Az: 90.0 deg
06:24:21   Telescope Parked Telescope parked (parking time 43s total)
06:24:51   Telescope State Handbox reads 'Scope parked Turn scope off.'
06:25:13   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:26:38   Services Stopped Night Services stopped
06:26:41 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files)
06:26:48     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow)
06:27:33     Dome Find Park found (Best Park Az 89.6°)
06:27:39     Dome Dome has been synced at park position (Az 90.0°, Adjustment: +0.4°)
06:27:41   Dome Parked Dome parked
06:27:56   Dome Charging Dome is parked and re-charging Ok (62mA)
06:27:58 Session Finished Session Finished


Session Alerts & Alarms
Time     Type       Name Detail
06:27:56 Green Clear Dome Charging Dome is parked and re-charging Ok (62mA)
