David's Astronomy Pages
|
Notes (S1263) |
Notes Main |
Home Page |
Notes (S1264B) |
 |
Session Aims & Highlights |
| - Observing Result - Night Summary Plot - Session Event Log |
|
|
|
Operational Issues |
| - Critical Issues (0),
Major Issues (0),
Minor Issues (2),
Small Defects (3), Continuous Improvement
(3) |
|
|
No Images from Session >> |
|
Investigation - Dome Slewing Anomalies |
Main aims
Equipment & Software
Highlights
Targets. 0/33 planned targets observations were completed.
Targets failed due to cloud or session suspension, or was waiting for
AutoStart to commence again, which didn't because of continued cloud.
Crab Nebula. There was no opportunity to acquire the intended 10 x
60s, 1x1 binned images of M1/CM Tau due to cloud
Dome Slews. Number of dome slew anomalies
was less with TeleScope Fast Polling Rate reduced from 1s to
0.5s. DH Activity log was collected on the one anomalous slew that occurred
which will be studied in order to understand why the issue is occuring, and
what fixes or mitigations could be employed to resolve it.
AstroMain. No notable issues with new AstroMain 3.72.2 version
DeviceHub. There were no issues associated
wth running DH 7.0.2 RC4, though there were issues with some Dome Slaving
Dome. There was no issues opening/closing shutter during session. Dome closed and
parked ok at end of session. Summary Plots & Logs

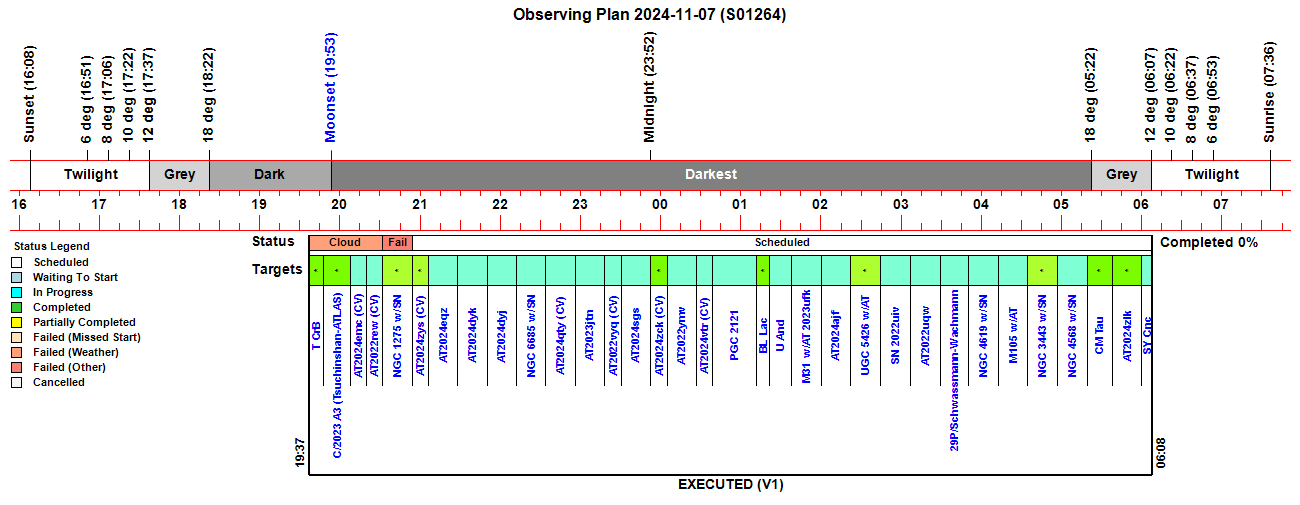

Observing Plan |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

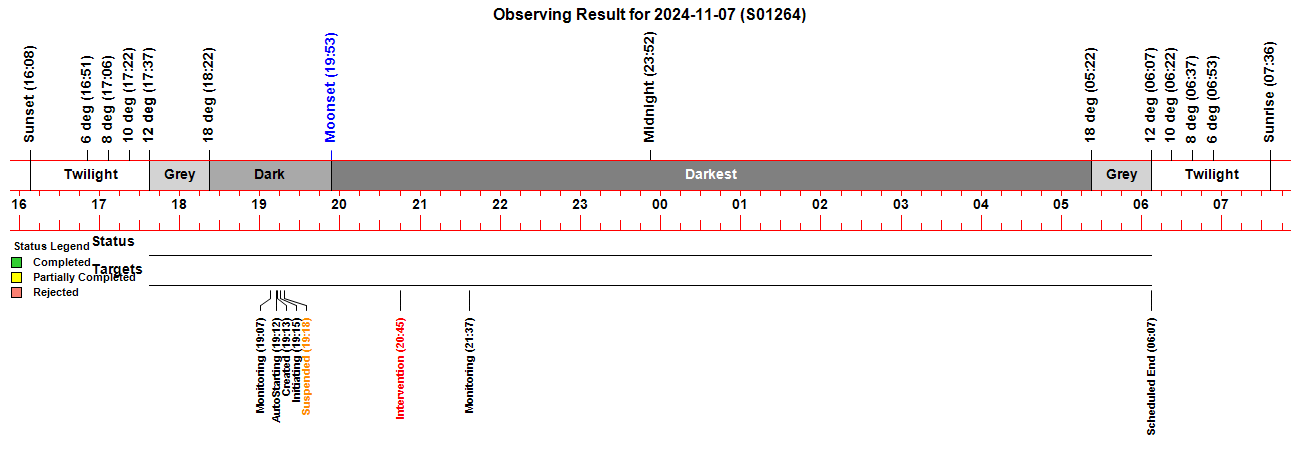

Observing Result |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

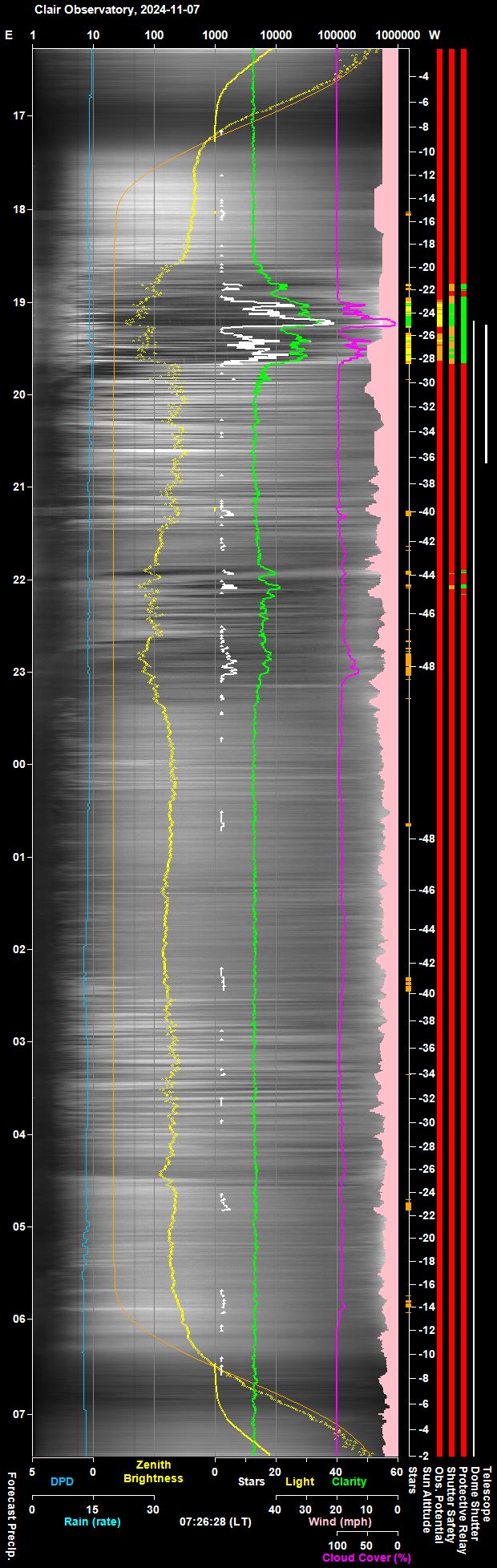

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs) The black 'spots on the keogram image are created by baby spiders which hatched earlier in the day (see Fig 2 & Fig 3) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

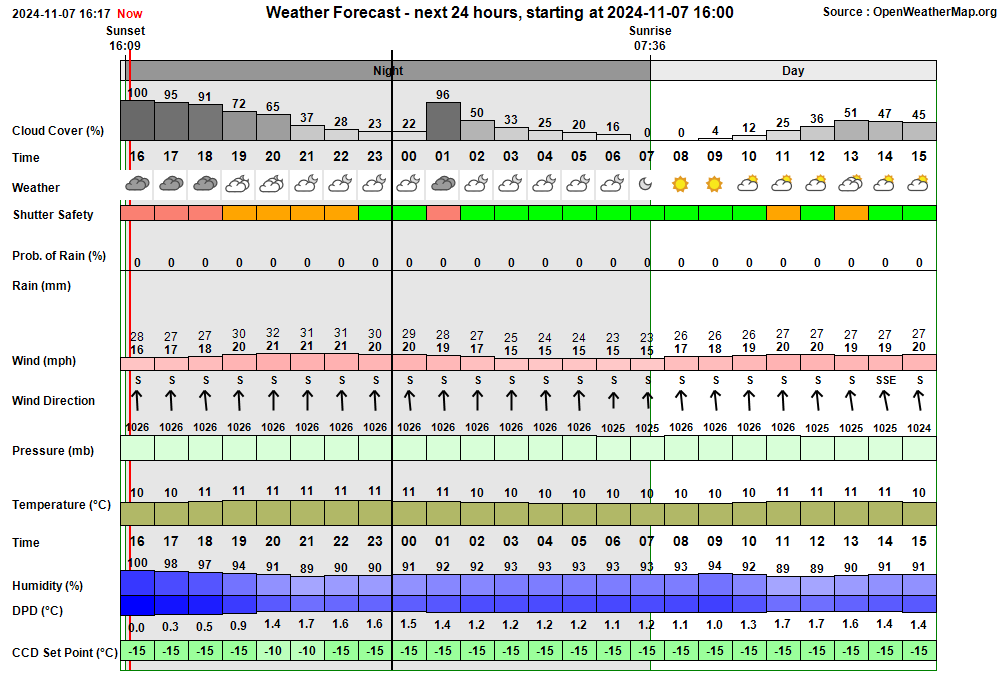

| Actual Weather vs Pre-Session Weather Forecast | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Session Event Log | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Session Alerts & Alarms | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Back to Top
Resolved 2024-11-15 (DeviceHub Composite Slewing, AstroMain
3.72.5)
Fixed 2024-11-08 (AstroMain
3.72.3)' Set Scope Waiting when Mode is manual and Tracking is Off '
added 2023-02-01 (MI S1092)
'
---------------------------------------------------------
If
gObservatoryMode = omManual AndAlso Scope.Connected AndAlso
Scope.TrackingIsOn = False Then
If TP.bFollowScope = False
Or ScopeUse.ScopeMode <> ScopeMode.Waiting Then
WriteLogFileRecord(szTargetName + " (ObsManger)", "Info", "Set",
"ScopeMode(Waiting)",
"ObsManager setting ScopeMode=Waiting and bFollowScope=True")
SetScopeMode(ScopeMode.Waiting)
TP.FollowScope("Scope Waiting")
End If
End If Fixed 2024-11-08 (AstroMain
3.72.3 ) Turn off Dome Slaving... Ok Slaving is Off (User)
Stop Tracking...
> ObsMonitor (Scope) Alert Scope appears to be tracking even though Tracking=False
21:32:21.88 | M74 (UserAction) Request Dome.Slaving(Off)
Info | User Request to turn off dome slaving
21:32:21.88 |
M74
Set Dome.Slaving(Off) Info | Set Dome
Slaving OFF (User)
21:32:25.23 |
--------------------------------------------------------------------
21:32:25.23 | M74 (UserAction) TurnOff Tracking
Info | User request to stop telescope tracking
21:32:26.57 |
M74 (Monitor) Check
ScopeTrackingIsOff Alert| Scope appears to be tracking even though
Tracking=False Fixed 2024-11-08 (AstroMain
3.72.3 ) Done 2024-11-08 (AstroMain
3.72.3 ) To do 2024-11-08 (AstroMain
3.72.3) To do 2024-11-08 (AstroMain
3.72.3)Back to Top
Issue
1) Dome Slewing Anomalies during 4
slewing operations, , dome slewing paused (S1162, 00:14, 01:33, 01:55,
03:52).
2) Dome Slewing Anomaly during 2 slewing operations, difference between Dome Az and Slave Az >1 deg (S1162 00:49, 05:52).
3) Two Anomalous Dome Slews recorded (S1264A, 21:17, 21:25)
Description
3) During Slew Testing (with Dome
Shutter Closed) two yellow alerts were raised. A 'Dome Slew' alert at
21:17:33 with the message "Dome slew held up at Az. 89.1° (Delay 31s)"
and 'Anomalous Dome Slew' alert at 21:25:18 with the message "Dome slew resumed at Az 305.9° (T+28.1s)".
DH Activity logging was active during both slews.
Analysis
21:24:50.35 | Scope.SlewToRaDec Ok | Calling Telescope.SlewToRaDec
21:24:50.45 | ScopePath Info | Time: 0.4, Slewing: 0, Slew: 0.000,
Az: 310.60, Alt: 17.86, Angle: 0.000
21:24:52.07 | ScopePath
Info | Time: 2.0, Slewing: 1, Slew: 0.048, Az: 310.61,
Alt: 17.85, Angle: 0.048
21:24:53.46 | ScopePath Info | Time: 3.4, Slewing:
1, Slew: 0.054, Az: 310.61, Alt: 17.85, Angle: 0.006
21:24:55.15 |
ScopePath Info | Time: 5.1, Slewing: 1, Slew: 2.550, Az: 310.62,
Alt: 20.35, Angle: 2.496
21:24:56.79 | ScopePath Info | Time:
6.7, Slewing: 1, Slew: 10.772, Az: 308.64, Alt: 28.37, Angle: 8.222
21:24:58.35 | ScopePath Info | Time: 8.3, Slewing: 1, Slew:
20.511, Az: 308.91, Alt: 38.10, Angle: 9.738
21:25:01.60 | ScopePath
Info | Time: 11.5, Slewing: 1, Slew: 30.971, Az: 311.92, Alt: 48.33,
Angle: 10.460
21:25:02.59 | ScopePath Info |
Time: 12.5, Slewing: 1, Slew: 33.649, Az: 310.92, Alt: 50.93, Angle:
2.678
21:25:04.05 | ScopePath Info | Time: 14.0, Slewing: 1, Slew:
38.015, Az: 308.89, Alt: 55.09, Angle: 4.367
21:25:05.87 | ScopePath
Info | Time: 15.8, Slewing: 1, Slew: 42.924, Az: 305.13, Alt: 59.57,
Angle: 4.908
21:25:07.23 | ScopePath Info | Time: 17.2, Slewing: 1,
Slew: 45.765, Az: 301.59, Alt: 61.82, Angle: 2.841
21:25:08.35 |
ScopePath Info | Time: 18.3, Slewing: 1, Slew: 48.220, Az: 300.07, Alt:
64.17, Angle: 2.455
21:25:10.82 | ScopePath Info | Time: 20.7,
Slewing: 1, Slew: 55.353, Az: 297.71, Alt: 71.25, Angle: 7.133
21:25:12.30 | ScopePath Info | Time: 22.2, Slewing: 1, Slew: 57.802, Az:
296.50, Alt: 73.67, Angle: 2.449
21:25:14.16 | ScopePath Info | Time:
24.1, Slewing: 1, Slew: 62.529, Az: 296.79, Alt: 78.40, Angle: 4.727
21:25:17.34 | ScopePath Info | Time: 27.3, Slewing: 1, Slew: 65.266, Az:
301.53, Alt: 81.01, Angle: 2.738
21:25:18.14 | MonitorDomePath Info |
Resetting bDomeSlewStopped as dome slew resumed at Az 305.9° (T+28.1s)
21:25:19.63 | ScopePath Info | Time: 29.6, Slewing: 1, Slew: 65.709, Az:
302.38, Alt: 81.39, Angle: 0.443
21:25:21.89 | ScopePath Info | Time:
31.8, Slewing: 1, Slew: 65.799, Az: 302.18, Alt: 81.31, Angle: 0.090
21:25:23.20 | ScopePath Info | Time: 33.1, Slewing: 1, Slew: 65.815, Az:
302.14, Alt: 81.30, Angle: 0.016
21:25:25.57 | ScopePath Info | Time:
35.5, Slewing: 1, Slew: 65.867, Az: 302.04, Alt: 81.25, Angle: 0.052
21:25:26.83 | ScopePath Info | Time: 36.8, Slewing: 1, Slew: 65.887, Az:
302.00, Alt: 81.23, Angle: 0.020
21:25:27.20 | ScopePath Info | Time:
37.1, Slewing: 1, Slew: 65.902, Az: 301.97, Alt: 81.21, Angle: 0.015
21:25:28.88 | ScopePath Info | Time: 38.8, Slewing: 1, Slew: 65.904, Az:
301.98, Alt: 81.21, Angle: 0.002
21:25:32.38 | ScopePath Info | Time:
42.3, Slewing: 0, Slew: 65.906, Az: 301.96, Alt: 81.21, Angle: 0.003
21:24:50.98 | DomePath Info | Time: 0.9, Slewing: 1, Slew: 0.1, Az:
309.2
21:24:52.31 | DomePath Info | Time: 2.2, Slewing: 1, Slew: 2.4,
Az: 306.9
21:24:53.65 | DomePath Info | Time: 3.6, Slewing: 1, Slew:
7.0, Az: 302.3
21:24:55.87 | DomePath Info | Time: 5.8, Slewing: 1,
Slew: 11.6, Az: 297.7
21:24:56.79 | DomePath Info | Time: 6.7,
Slewing: 1, Slew: 12.9, Az: 296.4
21:25:01.79 | DomePath Info | Time:
11.7, Slewing: 1, Slew: 6.8, Az: 302.5
21:25:03.33 | DomePath Info |
Time: 13.2, Slewing: 1, Slew: 4.5, Az: 304.8
21:25:04.23 | DomePath
Info | Time: 14.1, Slewing: 1, Slew: 2.2, Az: 307.1
21:25:06.53 |
DomePath Info | Time: 16.5, Slewing: 1, Slew: 0.6, Az: 309.9
21:25:07.55 | DomePath Info | Time: 17.5, Slewing: 0, Slew: 0.7, Az:
310.0
21:25:18.16 | DomePath Info | Time: 28.1, Slewing: 1,
Slew: 3.4, Az: 305.9
21:25:20.65 | DomePath Info | Time: 30.6, Slewing: 1,
Slew: 10.2, Az: 299.1
21:25:22.38 | DomePath Info | Time: 32.3,
Slewing: 1, Slew: 10.8, Az: 298.5
21:25:23.97 | DomePath Info
| Time: 33.9, Slewing: 0, Slew: 11.0, Az: 298.3
21:25:32.11
| DomePath Info | Time: 42.0, Slewing: 1, Slew: 12.6, Az: 296.7
21:25:34.34 | DomePath
Info | Time: 44.3, Slewing: 0, Slew: 13.3, Az: 296.0
21:25:36.44 |
DomeSlew Holdups Alert | 3 holdups > 5s. Dome slew held up at
Az. 299.3, 309.3, 298.0° (Total delay 24s)
DeviceHub
21:24:20.179: Dome - Commands: Dome position recalculation
due to periodic timer expiration.
21:24:20.179: Dome - Commands: Dome
Slaving calculated pier side as pierEast
21:24:20.179: Dome -
Commands: Slaving the dome to telescope Az: 310.51, Alt: 17.91, HA:
7.74230, SOP: pierEast.
21:24:20.179: Dome - Commands: The calculated
dome position is Az: 309.77, Alt: 27.50.
21:24:20.179: Dome -
Commands: The dome azimuth is close to the target azimuth...no slew is
needed.
21:24:35.184: Dome - Commands: Dome position recalculation
due to periodic timer expiration.
21:24:35.184: Dome - Commands: Dome
Slaving calculated pier side as pierEast
21:24:35.184: Dome -
Commands: Slaving the dome to telescope Az: 310.55, Alt: 17.89, HA:
7.74570, SOP: pierEast.
21:24:35.184: Dome - Commands: The calculated
dome position is Az: 309.81, Alt: 27.48.
21:24:35.184: Dome -
Commands: The dome azimuth is close to the target azimuth...no slew is
needed.
21:24:43.158: Telescope - Statuses: Get Altitude:
17.8669444444444
21:24:43.223: Telescope - Statuses: Get Azimuth: 310.583888888889
21:24:43.558: Telescope - Statuses: Get Slewing: False
21:24:45.177: Dome -
Statuses: Get Azimuth: 309.3
21:24:45.177: Dome - Statuses: Get
Slewing: False
21:24:46.150: Telescope - Statuses: Get Altitude:
17.8625
21:24:46.246:
Telescope - Statuses: Get Azimuth: 310.592222222222
21:24:46.421: Telescope - Statuses: Get Slewing: False
21:24:49.285: Telescope - Statuses: Get Altitude:
17.8580555555556
21:24:49.414: Telescope - Statuses: Get Azimuth: 310.6
21:24:50.180: Dome - Statuses: Get
Azimuth: 309.3
21:24:50.180: Dome - Statuses: Get Slewing: False
21:24:50.325: Telescope - Statuses: Get Slewing: False
21:24:50.35 | Scope.SlewToRaDec Ok |
Calling Telescope.SlewToRaDec << AstroMain Calls
TheSky6.Telescope to Slew
21:24:50.380
SlewToCoordinatesAsync: Method entered
21:24:50.380
SlewToCoordinatesAsync: Execution checks completed, starting slew
21:24:50.380: Dome - Commands: Started fast polling every
1000 ms.
21:24:50.380: Dome - Statuses: Get
Azimuth: 309.3
21:24:50.381: Dome - Statuses: Get Slewing: False
21:24:50.381: Dome - Commands: Dome position recalculation
due to telescope slew-in-progress.
21:24:50.405: Dome - Commands: Dome Slaving calculated pier side as
pierEast
21:24:50.405: Dome - Commands: Slaving the dome to telescope
Az: 302.11, Alt: 81.28, HA: 1.02558, SOP: pierEast.
21:24:50.405:
Dome - Commands: The calculated dome position is Az: 295.96, Alt: 83.19.
21:24:50.405: Dome - Commands: Slaving dome to target azimuth of 295.96
degrees.
21:24:50.415: Dome - Commands: SlewToAzimuth
(295.96168°): (slew started)
21:24:50.415: Dome - Statuses: Get Azimuth: 309.3
21:24:50.415: Dome
- Statuses: Get Slewing: True
21:24:50.416: Dome - Statuses: Get Azimuth: 309.3
21:24:50.416: Dome
- Statuses: Get Slewing: True
21:24:50.416: Dome - Commands: Started
fast polling every 1000 ms.
21:24:50.416: Dome - Statuses: Get Azimuth: 309.3
21:24:50.416: Dome - Statuses: Get Azimuth: 309.3
21:24:50.416: Dome
- Statuses: Get Slewing: True
21:24:51.418: Dome -
Statuses: Get Azimuth: 309.2
21:24:51.418: Dome - Statuses: Get
Slewing: True
21:24:51.445: Telescope - Commands:
SlewToCoordinatesAsync - RA = +23:25:28, Dec 061° 06' 02": (slew
started)
21:24:51.957: Telescope - Statuses: Get UTCDate:
2024-11-07 21:24:50
21:24:51.958: Dome - Commands: SetFastPolling
called when already fast polling.
21:24:51.990: Telescope - Statuses:
Get Altitude: 17.8519444444444
21:24:52.213: Telescope - Statuses: Get Altitude:
17.8519444444444
21:24:52.277: Telescope - Statuses: Get Azimuth: 310.611111111111
21:24:52.436: Dome - Statuses: Get
Azimuth: 306.9
21:24:52.436: Dome - Statuses: Get Slewing: True
21:24:52.678: Telescope - Statuses: Get Azimuth: 310.613888888889
21:24:53.435: Dome - Statuses: Get Azimuth: 304.6
21:24:53.435: Dome
- Statuses: Get Slewing: True
21:24:54.245: Telescope -
Statuses: Get Slewing: True
21:24:54.341: Telescope - Statuses: Get Slewing: True
21:24:54.421: Dome - Statuses: Get
Azimuth: 302.3
21:24:54.421: Dome - Statuses: Get Slewing: True
21:24:55.421: Dome - Statuses: Get Azimuth: 300
21:24:55.421: Dome - Statuses: Get Slewing: True
21:24:56.693 SlewToCoordinatesAsync: Slew initiated OK
21:24:56.693
SlewToCoordinatesAsync: RightAscension = 23.42456, Declination =
61.10055
21:24:56.693 SlewToCoordinatesAsync: Method exited
21:24:56.437: Dome - Statuses: Get ShutterStatus: shutterClosed
21:24:56.437: Dome -
Statuses: Get AtHome: False
21:24:56.437: Dome - Statuses: Get
AtPark: False
21:24:56.437: Dome - Statuses: Get Azimuth: 297.7
21:24:56.438: Dome - Statuses: Get Slewing: True
21:24:56.693:
Telescope - Statuses: Get UTCDate: 2024-11-07 21:24:55
21:24:56.693: Telescope - Commands: Started fast polling every 500 ms.
21:24:56.773: Telescope - Statuses: Get UTCDate: 2024-11-07 21:24:55
21:24:57.221: Telescope - Statuses: Get Altitude: 34.4291666666667
21:24:57.437: Dome - Statuses: Get Azimuth: 296.4
21:24:57.437: Dome - Statuses: Get Slewing: True
21:24:57.477:
Telescope - Statuses: Get Azimuth: 308.9075
21:24:58.425: Dome - Statuses: Get
Azimuth: 296.1
21:24:58.425: Dome - Statuses: Get Slewing: False
21:24:58.425: Dome - Commands: Dome position recalculation
due to periodic timer expiration.
21:24:58.425: Dome -
Commands: Dome Slaving calculated pier side as pierEast
21:24:58.425: Dome -
Commands: Slaving the dome to telescope Az: 310.61, Alt: 17.85, HA:
7.75214, SOP: pierEast.
21:24:58.425: Dome - Commands: The calculated
dome position is Az: 309.88, Alt: 27.45.
21:24:58.425: Dome -
Commands: Slaving dome to target azimuth of 309.88 degrees.
21:24:58.522: Dome - Commands: SlewToAzimuth (309.87870°): (slew
started)
21:24:58.522: Dome -
Statuses: Get Azimuth: 296.1
21:24:58.522: Dome - Statuses: Get
Slewing: True
21:24:58.523: Dome -
Statuses: Get Azimuth: 296.1
21:24:58.523: Dome - Statuses: Get
Slewing: True
21:24:58.523: Dome - Commands: Started fast polling
every 1000 ms.
21:24:58.523: Dome -
Statuses: Get Azimuth: 296.1
21:24:58.524: Dome - Statuses: Get
Slewing: True
21:24:58.524: Dome -
Statuses: Get Azimuth: 296.1
21:24:58.524: Dome - Statuses: Get
Slewing: True
21:24:59.540: Dome -
Statuses: Get Azimuth: 297.8
21:24:59.541: Dome - Statuses: Get
Slewing: True
21:24:59.924: Telescope - Statuses: Get Slewing: True
21:25:00.526: Dome - Statuses: Get Azimuth: 297.8
21:25:00.526: Dome
- Statuses: Get Slewing: True
21:25:01.532: Dome -
Statuses: Get Azimuth: 300.2
21:25:01.532: Dome - Statuses: Get
Slewing: True
21:25:02.528: Dome -
Statuses: Get Azimuth: 302.5
21:25:02.528: Dome - Statuses: Get
Slewing: True
21:25:03.220: Telescope - Statuses: Get Altitude:
53.0066666666667
21:25:03.284: Telescope - Statuses: Get Azimuth: 308.886388888889
21:25:03.533: Dome - Statuses: Get
Azimuth: 304.8
21:25:03.533: Dome - Statuses: Get Slewing: True
21:25:04.534: Dome - Statuses: Get
Azimuth: 307.1
21:25:04.534: Dome - Statuses: Get Slewing: True
21:25:05.524: Telescope - Statuses: Get Slewing: True
21:25:05.548: Dome -
Statuses: Get Azimuth: 309.3
21:25:05.548: Dome - Statuses: Get
Slewing: True
21:25:06.532: Dome - Statuses: Get
Azimuth: 309.9
21:25:06.533: Dome - Statuses: Get Slewing: True
21:25:07.476: Telescope - Statuses: Get Altitude: 61.8169444444444
21:25:07.532: Dome - Statuses: Get Azimuth: 310
21:25:07.532: Dome - Statuses: Get Slewing: False
21:25:08.085:
Telescope - Statuses: Get Azimuth: 300.070277777778
21:25:08.532: Dome - Statuses: Get
Azimuth: 310
21:25:08.532: Dome - Statuses: Get Slewing: False
21:25:09.535: Dome - Statuses: Get
Azimuth: 310
21:25:09.535: Dome - Statuses: Get Slewing: False
21:25:09.923: Telescope - Statuses: Get Slewing: True
21:25:10.536: Dome -
Statuses: Get Azimuth: 310
21:25:10.537: Dome - Statuses: Get
Slewing: False
21:25:10.537: Dome - Commands: Returning to normal
polling every 5000 ms.
21:25:12.563: Telescope - Statuses: Get Altitude:
73.6733333333333
21:25:13.235: Telescope - Statuses: Get Azimuth: 296.7925
21:25:15.539: Dome - Statuses: Get Azimuth: 310
21:25:15.539: Dome -
Statuses: Get Slewing: False
21:25:15.539: Dome -
Commands: Dome position recalculation due to periodic timer expiration.
21:25:15.539: Dome - Commands: Dome Slaving calculated pier side as
pierEast
21:25:15.539: Dome - Commands: Slaving the dome to telescope
Az: 300.07, Alt: 61.82, HA: 3.10730, SOP: pierEast.
21:25:15.540:
Dome - Commands: The calculated dome position is Az: 298.18, Alt: 66.85.
21:25:15.540: Dome - Commands: Slaving dome to target azimuth of 298.18
degrees.
21:25:15.671: Dome - Commands: SlewToAzimuth
(298.17834°): (slew started)
21:25:15.671: Dome -
Statuses: Get ShutterStatus: shutterClosed
21:25:15.671: Dome - Statuses: Get AtHome: False
21:25:15.671: Dome - Statuses: Get AtPark: False
21:25:15.671: Dome -
Statuses: Get Azimuth: 310
21:25:15.671: Dome - Statuses: Get
Slewing: True
21:25:15.671: Dome -
Statuses: Get Azimuth: 310
21:25:15.671: Dome - Statuses: Get
Slewing: True
21:25:15.671: Dome - Commands: Started fast polling
every 1000 ms.
21:25:15.672: Dome -
Statuses: Get Azimuth: 310
21:25:15.672: Dome - Statuses: Get
Slewing: True
21:25:15.672: Dome -
Statuses: Get Azimuth: 310
21:25:15.672: Dome - Statuses: Get
Slewing: True
21:25:15.699: Telescope - Statuses: Get Slewing: True
21:25:16.683: Dome - Statuses: Get Azimuth: 308.3
21:25:16.683: Dome
- Statuses: Get Slewing: True
21:25:17.684: Dome - Statuses: Get Azimuth: 305.9
21:25:17.684: Dome
- Statuses: Get Slewing: True
21:25:18.678: Dome - Statuses: Get Azimuth: 303.6
21:25:18.678: Dome
- Statuses: Get Slewing: True
21:25:18.994: Telescope - Statuses: Get
Altitude: 81.3947222222222
21:25:19.475: Telescope - Statuses: Get Azimuth: 302.253055555556
21:25:19.678: Dome - Statuses: Get
Azimuth: 301.3
21:25:19.678: Dome - Statuses: Get Slewing: True
21:25:20.692: Dome - Statuses: Get
Azimuth: 299.1
21:25:20.692: Dome - Statuses: Get Slewing: True
21:25:21.685: Dome - Statuses: Get
Azimuth: 298.5
21:25:21.685: Dome - Statuses: Get Slewing: True
21:25:21.794: Telescope - Statuses: Get Slewing: True
21:25:22.684: Dome -
Statuses: Get Azimuth: 298.3
21:25:22.684: Dome - Statuses: Get
Slewing: False
21:25:23.682: Dome -
Statuses: Get Azimuth: 298.3
21:25:23.682: Dome - Statuses: Get
Slewing: False
21:25:23.858: Telescope - Statuses: Get Altitude:
81.2758333333333
21:25:24.418: Telescope - Statuses: Get Azimuth: 302.041944444444
21:25:24.692: Dome - Statuses: Get
Azimuth: 298.3
21:25:24.692: Dome - Statuses: Get Slewing: False
21:25:25.687: Dome - Statuses: Get Azimuth: 298.3
21:25:25.687: Dome
- Statuses: Get Slewing: False
21:25:25.687: Dome - Commands:
Returning to normal polling every 5000 ms.
21:25:26.210: Telescope
- Statuses: Get Slewing: True
21:25:27.139: Telescope -
Statuses: Get Altitude: 81.2119444444444
21:25:27.234: Telescope - Statuses: Get Azimuth:
301.973611111111
21:25:28.034: Telescope - Statuses: Get Slewing: True
21:25:28.530: Telescope - Statuses: Get Altitude:
81.2097222222222
21:25:28.594: Telescope - Statuses: Get Azimuth: 301.978055555556
21:25:28.818: Telescope - Statuses:
Get Slewing: True
21:25:30.514: Telescope -
Statuses: Get Altitude: 81.2097222222222
21:25:30.690: Dome -
Statuses: Get Azimuth: 298.3
21:25:30.690: Dome - Statuses: Get
Slewing: False
21:25:30.690: Dome - Commands: Dome
position recalculation due to periodic timer expiration.
21:25:30.690: Dome - Commands: Dome Slaving calculated pier side as
pierEast
21:25:30.690:
Dome - Commands: Slaving the dome to telescope Az: 301.98, Alt: 81.21,
HA: 1.03889, SOP: pierEast.
21:25:30.690: Dome - Commands: The
calculated dome position is Az: 295.87, Alt: 83.13.
21:25:30.690:
Dome - Commands: Slaving dome to target azimuth of 295.87 degrees.
21:25:30.769: Telescope - Statuses: Get Azimuth: 301.978055555556
21:25:30.914: Dome - Commands: SlewToAzimuth (295.87414°): (slew
started)
21:25:30.914: Dome -
Statuses: Get Azimuth: 298.3
21:25:30.914: Dome - Statuses: Get
Slewing: True
21:25:30.914: Dome - Statuses: Get ShutterStatus:
shutterClosed
21:25:30.914: Dome - Statuses: Get AtHome: False
21:25:30.914: Dome - Statuses: Get AtPark: False
21:25:30.914: Dome - Statuses: Get
Slewing: True
21:25:30.914: Dome - Commands: Started fast polling
every 1000 ms.
21:25:30.914: Dome -
Statuses: Get Azimuth: 298.3
21:25:30.914: Dome - Statuses: Get
Slewing: True
21:25:30.915: Dome -
Statuses: Get Azimuth: 298.3
21:25:30.915: Dome - Statuses: Get
Slewing: True
21:25:31.920: Dome - Statuses: Get Azimuth: 296.7
21:25:31.920: Dome - Statuses: Get Slewing: True
21:25:32.353: Telescope - Statuses: Get Slewing: False
21:25:32.919: Dome - Statuses: Get
Azimuth: 296.1
21:25:32.919: Dome - Statuses: Get Slewing: True
21:25:33.745: Telescope -
Statuses: Get Azimuth: 301.966666666667
21:25:33.921: Dome - Statuses: Get Azimuth: 296
21:25:33.921: Dome - Statuses: Get Slewing: False
21:25:34.049: Telescope - Statuses: Get Slewing: False
21:25:34.641: Telescope - Statuses: Get Altitude:
81.2025
21:25:34.833:
Telescope - Statuses: Get Azimuth: 301.952777777778
21:25:34.931: Dome - Statuses: Get Azimuth: 296
21:25:34.931: Dome - Statuses: Get Slewing: False
21:25:35.929: Dome - Statuses: Get
Azimuth: 296
21:25:35.929: Dome - Statuses: Get Slewing: False
21:25:36.609: Telescope - Statuses: Get Slewing: False
21:25:36.929: Dome -
Statuses: Get Azimuth: 296
21:25:36.929: Dome - Statuses: Get
Slewing: False
21:25:36.929: Dome - Commands: Returning to normal
polling every 5000 ms.
21:25:37.617: Telescope - Commands: Returning to
normal polling every 3000 ms.
21:25:37.986: Telescope - Statuses: Get
Altitude: 81.1966666666667
21:25:38.017: Telescope - Statuses: Get Azimuth: 301.936944444444
21:25:38.209: Telescope - Statuses:
Get Slewing: False
21:25:40.896: Telescope -
Statuses: Get Altitude: 81.1919444444444
21:25:40.993: Telescope - Statuses: Get Azimuth:
301.935555555556
21:25:41.169: Telescope - Statuses: Get Slewing: False
21:25:41.923: Dome -
Statuses: Get Azimuth: 296
21:25:41.923: Dome - Statuses: Get
Slewing: False
Ideas
Conclusion
Actions:
Update
Update
Back to Top
| This Web Page: | Notes - Session 1264 Attempt 1 (2024-11-07) |
| Last Updated : | 2024-11-30 |
| Site Owner : | David Richards |
| Home Page : | David's Astronomy Web Site |
