Session Aims & Highlights (2024-11-17)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. ReSync Telescope.  Resync Telescope atstart of session and perform short mapping before parking and restarting telescope.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 7.0.2 RC4 (2), MeadeGeneric 1.3.9, UPB 1.5, ASCOM 7.0.2 RC4,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.0.2 RC4
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.72.6,  AstroPlan 1.42.4  AstroShCap 1.3.15, AstroGuard 1.10.5   (any new items or versions in bold)
  AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.7,  AstroMove 1.13.2
  AstroWeather 1.25.1, AstroAllSky 3.20.6,  AstroObsCam 1.11.4 (not 1.11.5), AstroLaunch 1.11.5

Highlights

• Targets. 10/33 planned targets observations were completed with 9 other target partially completed.  Other target failed due to cloud or snow showers, threat of  rain or snow or session suspension  I target failed due to Hardware (Dome / Dome Driver)
• Resynce Telescope. Operation to resync telescope and carry out a short mapping job was successfully achieved.
• Dome. There was an issue opening/closing shutter at around 05:54 - 06:04.  Dome closed and parked at end of session Ok

Notes

Summary Plots & Logs

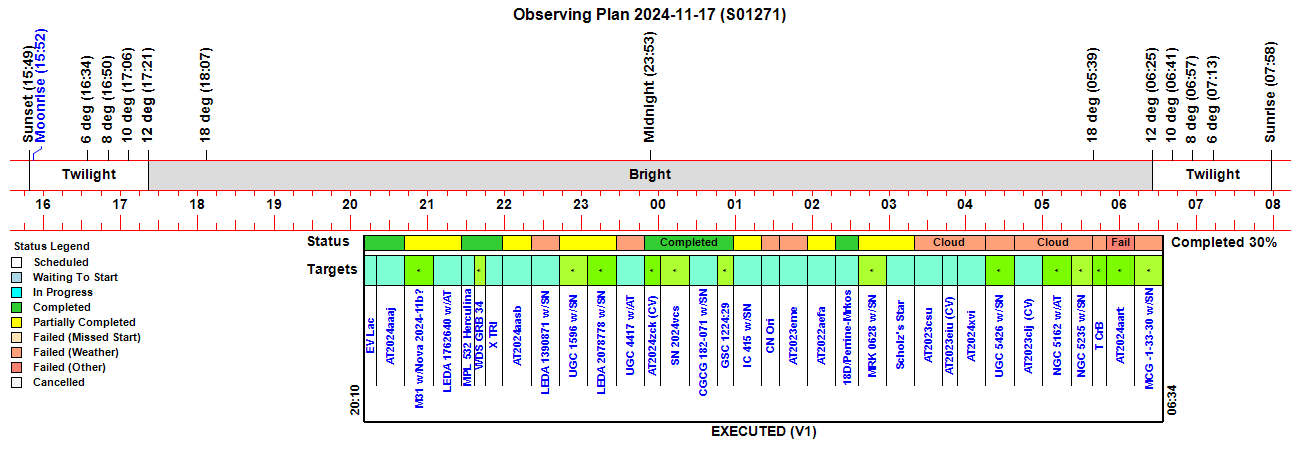

Observing Plan

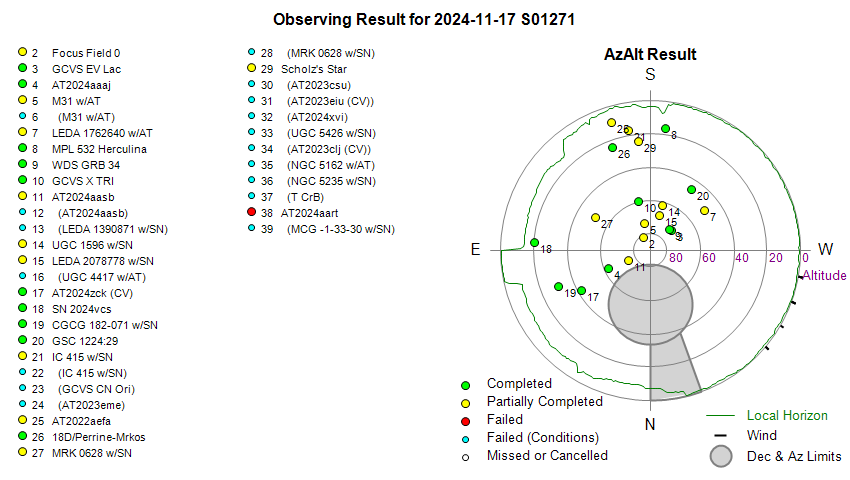

Observing Result

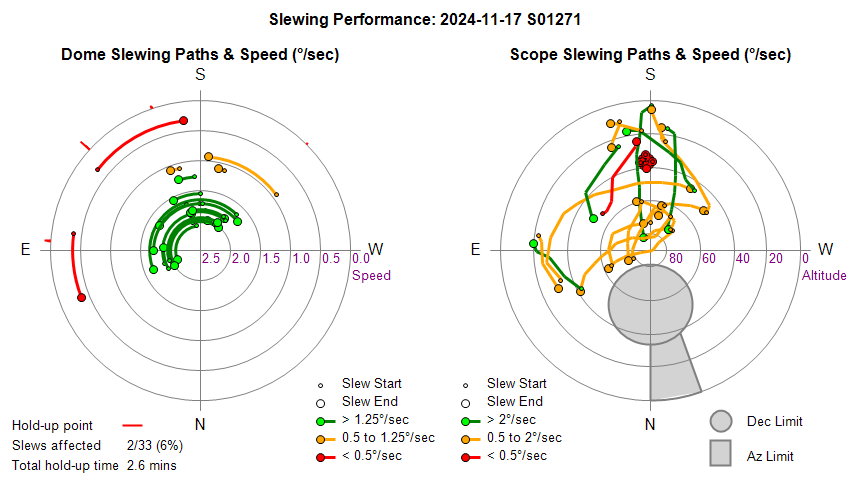

Dome & Scope Slewing Performance

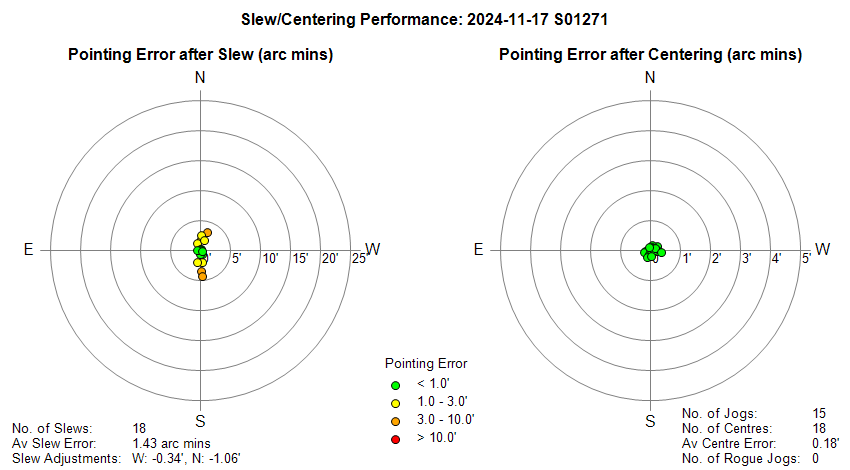

Slew/Centering Performance

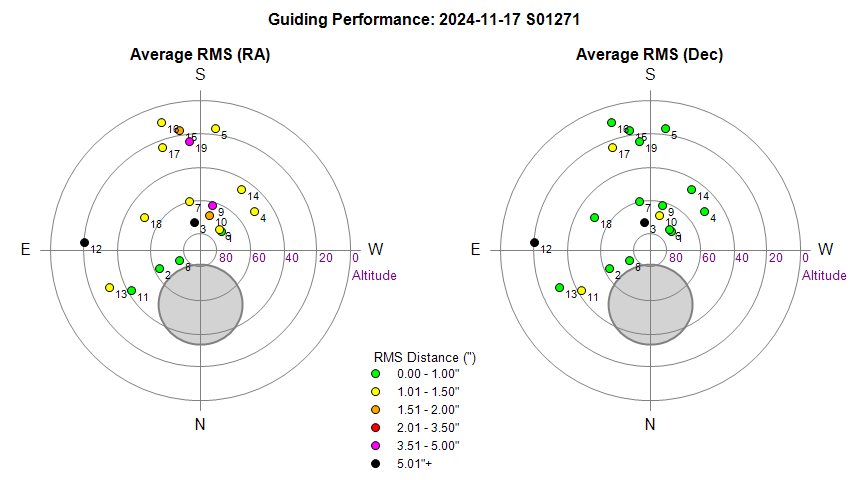

Guiding Performance

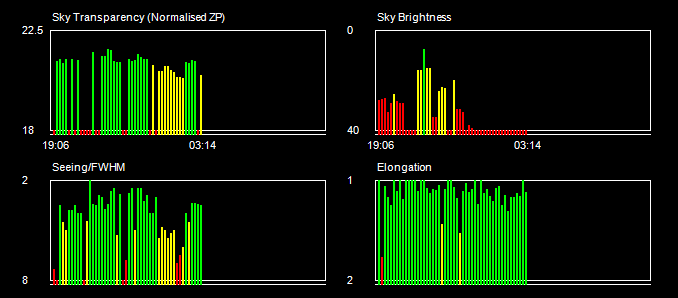

Sky Conditions (Locate Frames)

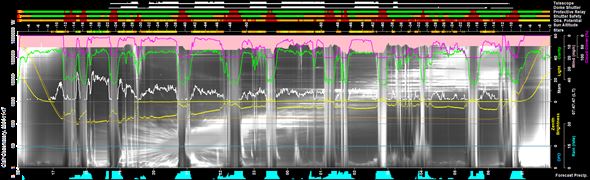

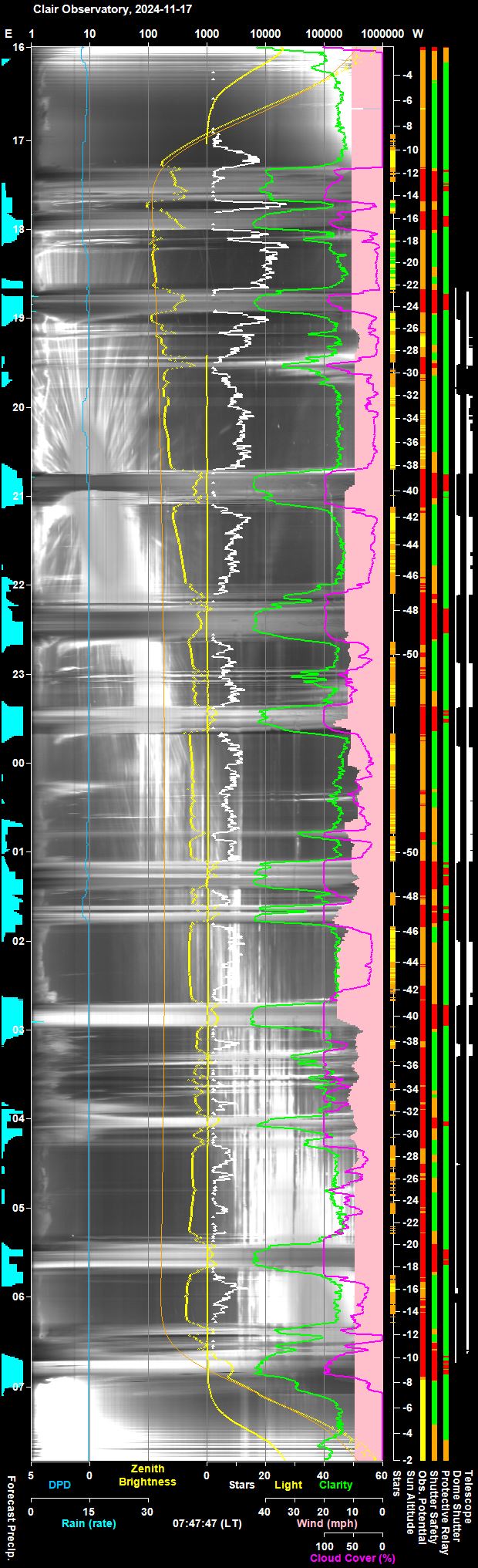

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

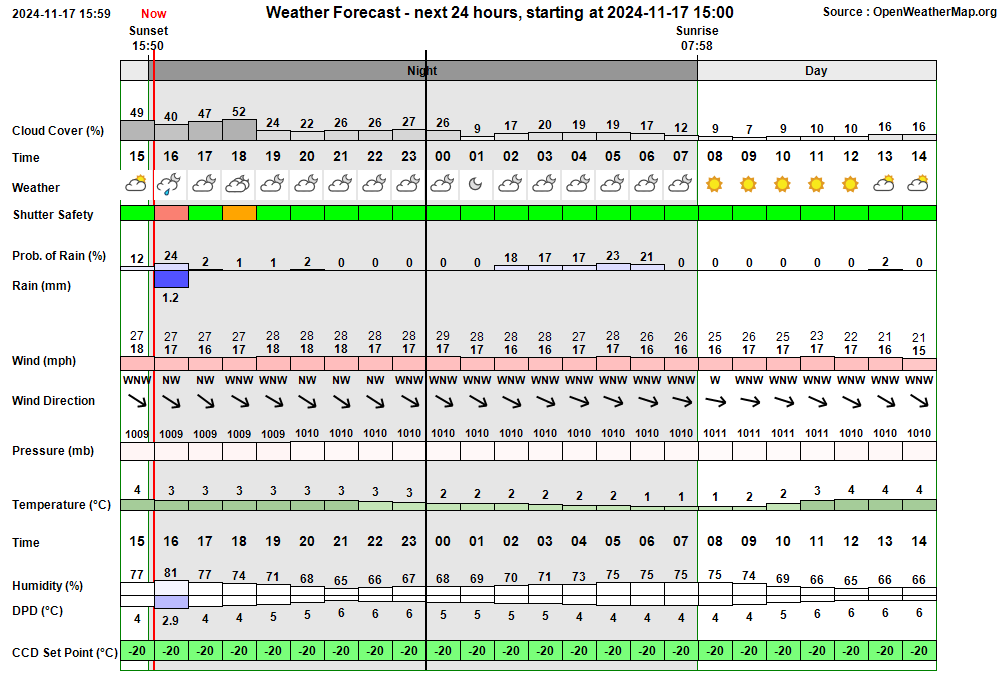

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 18:39:38   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 18:39:51 Session Created Session Created (Live, 2024-11-17 S01271, ImageSaveNum: 1271001) 18:40:15   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 18:42:15   Services Started Observatory Services started 18:44:17   Telescope Connected Telescope connected (TheSky6) 18:44:49       Dome Unparked Dome unparked 19:02:00   Dome Opened Dome opened (Opening time 44s, Zigbee 40s) 19:05:35   Camera1 Connected SBIG Camera connected (Set point -25°C) 19:13:16   Automapping Started Automapping started (12 points planned) 19:31:27   Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome) 19:31:30   Automapping Completed Automapping completed (8 points mapped out of 12 points) 19:32:17   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 19:32:54   Telescope Parked Telescope parked (parking time 9s total) 19:33:24   Telescope State Handbox reads 'Scope parked Turn scope off.' 19:34:20   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 19:46:55 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:46 & 05:45 19:46:57 Observatory (AutoStart) Observatory placed in Auto-Start Mode 19:46:59 Session AutoStarting Session autostarting (19:46) 19:47:06   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 19:48:52   Services Started Observatory Services started 19:49:00 Observatory (Auto) Observatory placed in Fully-Automated Mode 19:49:03 Session Pending Session pending (2024-11-17) 19:49:05 Session Initiating Session initiating (2024-11-17) 19:49:12   Camera1 Connected SBIG Camera connected (Set point -25°C) 19:49:19   Plan Requested Observing Plan requested from AstroPlan (1.42.4) 19:50:00   Plan Loaded Observing Plan loaded to queue (Plan ID: 1053) 19:50:41   Telescope Connected Telescope connected (TheSky6) 19:51:05 Session Equilibration Session ready to Open Dome 19:51:51   Dome Opened Dome opened (Opening time 46s, Zigbee 41s) 19:52:21 Session Running Session running 19:52:23   Queue Started Observing Queue started (33 targets selected) 19:52:26     Target Started (NrZen) Target started (Focus Field 0, HIP 106) 19:54:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:56:36       Focusing Failed Foc1 focusing failed - star lost 19:56:38       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 19:58:39       Focusing Completed Foc2 AutoFocus Completed (Profile No 1, wide) 20:00:33       Focusing Completed Foc2 AutoFocus Completed (Profile No 1) 20:00:52     Target Completed (NrZen) Target completed (Focus Field 0, HIP 106) 20:01:21   Camera1 Connected SBIG Camera connected (Set point -25°C) 20:02:55   CCDSoft Restarting CCDSoft being restarted (user action) 20:03:02   SBIG Camera Reset SBIG Camera being power-cycled 20:03:56   Camera1 Connected SBIG Camera connected (Set point -25°C) 20:05:47     Target Started (1/33) Target started (1/33, GCVS EV Lac) 20:11:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:14:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 2, wide) 20:16:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 2) 20:19:30     Target Completed Target completed (1/33, GCVS EV Lac) 20:19:34     Target Started (2/33) Target started (2/33, AT2024aaaj) 20:39:47     Target Completed Target completed (2/33, AT2024aaaj) 20:39:51     Target Started (3/33) Target started (3/33, M31 w/Nova M31 2024-11b?) 20:42:58       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 20:44:39       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 20:45:14   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 20:45:16   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud) 20:45:18     Target Aborted (3/33) Target aborted (3/33, M31 w/Nova M31 2024-11b?) due to cloud 20:45:21   Queue Paused Queue paused for Session Suspension 20:45:23 Session Suspending Session suspending 20:46:09   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 20:46:12 Session Suspended Session suspended 20:56:06     Target Cancelled Target cancelled (3/33, M31 w/Nova M31 2024-11b?) due to cloud 21:13:21 Session Resuming Session resuming 21:14:06   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 21:14:08 Session Running Session running 21:14:10   Queue Resumed Observing Queue resumed 21:14:13     Target Started (4/33) Target started (4/33, LEDA 1762640 w/AT2024ety) 21:23:45     Target Completed Target partially completed (4/33, LEDA 1762640 w/AT2024ety) 21:23:49     Target Started (5/33) Target started (5/33, MPL 532 Herculina) 21:35:21     Target Completed Target completed (5/33, MPL 532 Herculina) 21:35:25     Target Started (6/33) Target started (6/33, WDS GRB 34) 21:38:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:40:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 21:43:08     Target Completed Target completed (6/33, WDS GRB 34) 21:43:12     Target Started (7/33) Target started (7/33, GCVS X TRI) 21:47:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:49:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 21:57:02     Target Completed Target completed (7/33, GCVS X TRI) 21:57:07     Target Started (8/33) Target started (8/33, AT2024aasb) 22:06:39       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 22:06:59   Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome) 22:07:01   HardSuspend Called Hard Suspend called due to Critical Conditions (threat of rain) 22:07:03     Target Aborted (8/33) Target aborted (8/33, AT2024aasb) due to threat of rain 22:07:05   Queue Paused Queue paused for Session Suspension 22:07:07 Session Suspending Session suspending 22:07:54   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 22:07:57 Session Suspended Session suspended 22:12:38     Target Cancelled Target cancelled (8/33, AT2024aasb) due to cloud 22:34:38     Target Cancelled Target cancelled (9/33, LEDA 1390871 w/SN2024xxq) due to cloud 22:52:32 Session Resuming Session resuming 22:53:17   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 22:53:19 Session Running Session running 22:53:21   Queue Resumed Observing Queue resumed 22:53:23     Target Started (10/33) Target started (10/33, UGC 1596 w/SN2024yhg) 23:03:58       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 23:04:08       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 23:04:10     Target Completed Target partially completed (10/33, UGC 1596 w/SN2024yhg) 23:04:13     Target Started (11/33) Target started (11/33, LEDA 2078778 w/SN2024xqe) 23:22:35       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 23:22:37   Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome) 23:22:39   HardSuspend Called Hard Suspend called due to Critical Conditions (threat of rain) 23:22:41     Target Aborted (11/33) Target aborted (11/33, LEDA 2078778 w/SN2024xqe) due to threat of rain 23:22:43   Queue Paused Queue paused for Session Suspension 23:22:45 Session Suspending Session suspending 23:23:29   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 23:23:32 Session Suspended Session suspended 23:41:18     Target Cancelled Target cancelled (12/33, UGC 4417 w/AT2023ews) due to cloud 23:49:02 Session Resuming Session resuming 23:49:47   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 23:49:49 Session Running Session running 23:49:51   Queue Resumed Observing Queue resumed 23:49:54     Target Started (13/33) Target started (13/33, AT2024zck (CV)) 00:01:43     Target Completed Target completed (13/33, AT2024zck (CV)) 00:01:47     Target Started (14/33) Target started (14/33, SN 2024vcs) 00:21:34     Target Completed Target completed (14/33, SN 2024vcs) 00:21:38     Target Started (15/33) Target started (15/33, CGCG 182-071 w/SN2023emd) 00:22:15       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 00:22:20       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 00:23:06     Dome Slew Dome slew held up at Az. 93.8, 93.7, 93.6° (Total delay 50s) 00:26:18       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:42:57     Target Completed Target completed (15/33, CGCG 182-071 w/SN2023emd) 00:43:01     Target Started (16/33) Target started (16/33, GSC 1224:29) 00:48:32       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 00:49:43       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 00:52:53       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 00:55:29     Target Completed Target completed (16/33, GSC 1224:29) 00:55:33     Target Started (17/33) Target started (17/33, IC 415 w/SN2023yzv) 00:59:37       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:06:54       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 01:07:09   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 01:07:11   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud) 01:07:13     Target Aborted (17/33) Target aborted (17/33, IC 415 w/SN2023yzv) due to cloud 01:07:15   Queue Paused Queue paused for Session Suspension 01:07:17 Session Suspending Session suspending 01:08:04   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 01:08:07 Session Suspended Session suspended 01:12:26     Target Cancelled Target cancelled (17/33, IC 415 w/SN2023yzv) due to cloud 01:28:07     Target Cancelled Target cancelled (18/33, GCVS CN Ori) due to cloud 01:48:07     Target Cancelled Target cancelled (19/33, AT2023eme) due to wind 02:00:05 Session Resuming Session resuming 02:00:50   Dome Opened Dome opened (Opening time 45s, Zigbee 42s) 02:00:52 Session Running Session running 02:00:54   Queue Resumed Observing Queue resumed 02:00:57       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (low battery) 02:00:59     Target Started (20/33) Target started (20/33, AT2022aefa) 02:01:11       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 02:18:04     Target Completed Target partially completed (20/33, AT2022aefa) 02:18:08     Target Started (21/33) Target started (21/33, 18D/Perrine-Mrkos) 02:32:31     Target Completed Target completed (21/33, 18D/Perrine-Mrkos) 02:32:35     Target Started (22/33) Target started (22/33, MRK 0628 w/SN2024aakr) 02:33:23       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 02:35:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:38:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 02:40:43       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 02:43:14       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 02:43:39   Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome) 02:43:41   HardSuspend Called Hard Suspend called due to Critical Conditions (threat of rain) 02:43:43     Target Aborted (22/33) Target aborted (22/33, MRK 0628 w/SN2024aakr) due to threat of rain 02:43:45   Queue Paused Queue paused for Session Suspension 02:43:47 Session Suspending Session suspending 02:44:34   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 02:44:36 Session Suspended Session suspended 02:50:07     Target Cancelled Target cancelled (22/33, MRK 0628 w/SN2024aakr) due to wind 03:09:31 Session Resuming Session resuming 03:10:16   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 03:10:18 Session Running Session running 03:10:20   Queue Resumed Observing Queue resumed 03:10:22     Target Started (23/33) Target started (23/33, Scholz's Star) 03:12:55     Dome Slew Dome slew held up at Az. 132.3, 132.4, 161.1, 161.2° (Total delay 100s) 03:14:47       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 03:17:55     Target Completed Target partially completed (23/33, Scholz's Star) 03:17:57   Queue Paused Queue paused for Session Suspension 03:17:59 Session Suspending Session suspending 03:18:47   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 03:18:49 Session Suspended Session suspended 03:33:39     Target Cancelled Target cancelled (24/33, AT2023csu) due to cloud 03:47:40     Target Cancelled Target cancelled (25/33, AT2023eiu (CV)) due to cloud 04:07:39     Target Cancelled Target cancelled (26/33, AT2024xvi) due to cloud 04:29:59     Target Cancelled Target cancelled (27/33, UGC 5426 w/SN2024aanq) due to threat of rain 04:30:14 Session Resuming Session resuming 04:30:59   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 04:31:01 Session Running Session running 04:31:03   Queue Resumed Observing Queue resumed 04:31:05       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (low battery) 04:31:07   Queue Paused Observing Queue pausing for Session Suspension 04:31:09 Session Suspending Session suspending 04:31:59   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 04:32:02 Session Suspended Session suspended 04:52:00     Target Cancelled Target cancelled (28/33, AT2023clj (CV)) due to cloud 05:14:19     Target Cancelled Target cancelled (29/33, NGC 5162 w/AT2024aawh) due to cloud 05:30:27     Target Cancelled Target cancelled (30/33, NGC 5235 w/SN2024grb) due to cloud 05:43:53     Target Cancelled Target cancelled (31/33, T CrB) due to threat of rain 05:54:38 Session Resuming Session resuming 05:56:23   Pulsar Dome Recovering Dome 05:56:36   Pulsar Dome Restarting Dome Controller 05:57:11   Pulsar Dome Dome Controller has been restarted 05:57:16   Pulsar Dome Dome Service has been restarted 05:57:53   Telescope Connected Telescope connected (TheSky6) 05:59:53 Session Suspended Session suspended 06:00:28   Pulsar Dome Recovering Dome 06:01:09   Pulsar Dome Restarting Dome Controller 06:01:44   Pulsar Dome Dome Controller has been restarted 06:01:48   Pulsar Dome Dome Service has been restarted 06:02:26   Telescope Connected Telescope connected (TheSky6) 06:03:43     Target Cancelled Target cancelled (32/33, AT2024aart) due to hardware 06:04:04   Dome Closed Dome closed (Closing time 50s, Zigbee 46s) 06:36:03     Target Cancelled Target cancelled (33/33, MCG -1-33-30 w/SN2024byg) due to threat of rain 06:36:07   Queue Completed Job Queue completed 06:36:11 Session Closing Session closing 06:36:17   Dome Closed Dome already closed (closed at 06:04, closing time 50s, zigbee 46s) 06:37:21   Dome Parked Dome parked (parking time 56s), Az: 90.0 deg 06:37:55   Telescope Parked Telescope parked (parking time 32s total) 06:38:25   Telescope State Handbox reads 'Scope parked Turn scope off.' 06:39:16   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 06:40:42   Services Stopped Night Services stopped 06:40:45 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 06:41:08     Dome (Find Park) Find Park started (Search Az 80.0 to 100.0°, Step 1.0°, Wide) 06:42:23     Dome Find Park found (Best Park Az 94.5°) 06:42:29     Dome (Find Park) Find Park started (Search Az 92.4 to 96.4°, Step 0.2°, Narrow) 06:43:21     Dome Find Park found (Best Park Az 94.6°) 06:43:27     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -4.6°) 06:43:29   Dome Parked Dome parked 06:44:46   Dome Charging Dome is parked and re-charging Ok (43mA) 06:44:48 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 19:49:01 Yellow Alert Disk Space Free Space on C:\ Drive (43.07 GB) is less than 50 GB 00:23:06 Yellow Alert Dome Slew Dome slew held up at Az. 93.8, 93.7, 93.6° (Total delay 50s) 03:12:55 Yellow Alert Dome Slew Dome slew held up at Az. 132.3, 132.4, 161.1, 161.2° (Total delay 100s) 06:00:28 Red Alert Dome Alert Dome hasn't reached 'Closed' state after 120s during SoftSuspend 06:00:39 Red Alarm Dome Opening Dome failed to finish opening after 140s (ShutterState=vcNull) 06:41:02 Yellow Alert Disk Space Free Space on C:\ Drive (41.53 GB) is less than 50 GB 06:44:46 Green Clear Dome Charging Dome is parked and re-charging Ok (43mA)

Back to Top

Operational Issues (2024-11-17 S1271)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (5)
• Small Defects (7)
• Continuous Improvement (3)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• A red Dome Alert was raised with message "Dome hasn't reached Closed state after 120s" (06:00).  After prior trouble with Dome not detecting that the shutter had opened at 05:54, actions were taken by the ObsManager to Restart DeviceHub/Dome Controller. At 06:00:26 a red 'Dome Alert' was raised with the message "Dome hasn't reached 'Closed' state after 120s during SoftSuspend ", with was directly following at 06:00:39 with a red Dome Opening alarm/alert with the message "Dome failed to finish opening after 140s (ShutterState=vcNull)". Report file shows the following:
   > SoftSuspend...              Alert     Dome hasn't reached 'Closed' state 120s after being requested to close
                                               (setting bDomeDataIssue)
Recover Dome                            2024-11-18 06:00  (Local, GMT)
  Open Dome                   Fail      Dome opening hasn't finished after 140s   Open Dome                   Fail      There may be a mechannical, electrical or software issue.
   Pulsar and Device Hub logs to be examined. Pulsar logs show a CloseShutter request at 06:03:14, and the ShutterState changes to 3 (Closing). ShutterState then changes to 1 (Closed)  at 06:04:02 (a closing time of 48s).
  To investigate 2024-11-18 (Session, Pulsar Dome, AstroMain)

Minor Issues

• There was a failure of CCD Imaging during Foc1 Wide Focusing Profile (19:56). After 8 focus frames, CCDSoft encountered a unhandled exception, and user invited to open CCDSoft in a debugger.  Code is not availble and the Cancel option was used. CCDSoft continued running but it was not possible to take images. CCDSoft was restarted using the 'RestartCCDSoft' backdoor facility, which resolved the problem. It isn't clear if the Job Executor or the ObsManager would have resolved the problem automatically or not.  Logs show the following
  19:56:07.57 | Check   ObsMonitor          Info    | Obs.Monitor is Pending (3s) in section 'Refresh Dome Picture/Draw Camera State' 19:56:07.57 | Check   CcdCamera           Info    | CcdCamera is Pending (3s) '  in section 'SetCameraProperties / BinX/BinY' 19:56:09.16 | Check   ObsMonitor          Info    | Obs.Monitor has resumed (cycle = 5.0s)  19:56:12.58 | Check   CcdCamera           Info    | CcdCamera is Pending (8s) '  in section 'SetCameraProperties / BinX/BinY' 19:56:17.23 | Run     SetProperty         Fail    | Exception in CCDCamera.SetProperty BinX/BinY
19:56:17.23 | Run     SetProperty         Fail    | Error: The RPC server is unavailable. (Exception from HRESULT: 0x800706BA) 1
   It is unclear what caused the  issue.  Issue was resolved in-session by user and issue is closed after review.
  (Session, AstroMain, CCDSoft)

• Dome opened with covering of snow on it - perform Observatory check (05:54 ).  Dome was reopened at xx  and 05:54 with shutter/dome having a covering of wet snow on it.  Following incident a couple of years ago when snow fell on to the front of the telescope when opening the shutter the Observatory should be checked in morning for any snow/water ingress onto the Telescope.  Should snow protection lock have been put on the Observatory operations once it was know that showers were of snow not rain ?  An Observatory visit was made in the morning which confirmed that the interior of observatory and all equipment were fine.
  (Session, Observatory,  User Awareness)

• Job Progress appeared to be waiting in vain for CCD Camera to Stabilise.  CCD Monitor/Job Executer  reported "Wait On Camera (waiting for CCD to stabilise at -25°C)" , but examing the CCD Status in CCDSoft showed that CCD was -20.4°C with cooler power of 62%.   Without a cooling power of 90-100% there was no way the CCD could bridge across to -25°C.  It would seem that setpoint temperature was still set at -20°C, and hadn't been changed to -25°C.  It isn't clear how long the job executor would have waited for stabilisation to occur and when it woud have timed out in some way.   A user interventation was made to update the set point temperature to -25°C which resolved the problem and after CCD reached/stabilised at -25°C the job execution continued. Underlying issue needs investigation.
  Resolved in-session but to investigate 2024-11-17 (AstroMain 3.72.7)

• Resume Session failed - Shutter hasn't opened after 100s (05:54). When Session was being resumed and dome was opened, the Open Dome command successfully operated to open the dome's shutter  as indicated by Zigbee Shutter Sensors, however the Dome.ShutterStatus didn't reach Closed state.  Report file shows the following:
   Open Dome                             2024-11-18 05:54  (Local, GMT)
 Open Dome...                Ok        Dome Is opening   (Clarity: 45.6, Stars: 12, Rain: -0.9, Wind: 5.0) > Observatory Shutter        Info      Shutter is opening(05:54:39, close time 1.4 hour) > Observatory Shutter        Info      Shutter is open   (05:55:21, opening time 42s)   Open Dome                  Warning   Dome opening hasn't finished after 60s   Resume Session             Fail      Shutter hasn't opened within 100s
  This is an occasional issue with the Pulsar Dome system. Pulsar and Device Hub logs to be examined. Pulsar Dome log shows 'OpenShutter' request at 05:54:38, and ShutterState changed from 1 (closed) to 2 (opening) and then staying 'stuck' on 2 (opening) till end of log at 05:56:30, even though the zigbee sensor shows shutter reaching the Open State (0) at 05:55:21.  After restarting the Dome Controller (with power off at 05:56:36) and reconnecting to the Dome at 05:57:12, the ShutterState initially showed an error / unknown value (6) , before the Shutter state quickly changed to 0 (Open) at 05:57:13, before quickly changing to 2 (opening) at 05:57:14 and then remaining as 2 (opening) until end of file at 06:01:02.  On restarting the Dome Controller and reconnecting to the Dome ShutterState was still showing 2 (opening) at 06:01:44. A CloseShutter request was made at 06:03:14, and the ShutterState changes to 1 (Closed)  at 06:04:02 (indicating a closing time of 48s).
  To investigate 2024-11-18 (Session, Pulsar Dome, AstroMain)

• Two Dome Slews were reported to have held up (00:23 & 03:12). Two yellow 'Dome Slew' alerts were raised during the session. The first at 00:23:06 with the message "Dome slew held up at Az. 93.8, 93.7, 93.6° (Total delay 50s) " and the second at 03:12:55 with the message "Dome slew held up at Az. 132.3, 132.4, 161.1, 161.2° (Total delay 100s)" .   First Case: Telescope Slew from Az 97.71 to 67.63 (or 67.80 at end)   . Logs suggest dome inactive between
  Pulsar Dome Log show only initial SlewToAzimuth request at 00:21:44.358 (the next call at 00:27:33.513 with a subsequent 1° nudge in dome position). The DomePath suggests that the dome was physically held up/slipping when trying to pass 93.8 to 93.6°.     Case 2 shows initial SlewToAzimuth request at 03:10:28.494, with no further  SlewToAzimuth before concluding the slew. DomePath suggests that dome was physically held up/slipping trying to pass 132.3-132.4° and 161.1-161.2°.   The issue is put down to the cold conditions, but should be monitored, prehaps the tightness of the Dome Rotation Wheels need adjusting ?  Problem successfullty resolved by adjustment of the dome's rotation driver tension on 2024-11-28.
  Resolved  2024-11-28 (Pulsar Dome)

Small Defects

• Reporting using "Dome Is .." instead of  "Dome is ...".  There are several places where reporting show "Dome Is .." instead of "Dome is", for example "Dome Is opening",  "Dome Is open".  Fixed in AstroMain 3.72.7.   Also fixed "Due To.." and "Waited For.."
  Fixed 2024-11-17 (AstroMain 3.72.7)

• There was a problem writing "...profile01.oid002.foc1.Focus_Field_0.wide.gif" (19:54). At the start of the Focus Profile for Near Zenith Foc 1 (Wide), an error message was reported :
    "Problem writing "..\2024-11-17 S01271\_Logs\FocusProfile.20241117.profile01.oid002.foc1.Focus_Field_0.wide.gif"
   Logs show the same message at 19:54:48.  The profile began ok and the '..Focus_Field_0.wide.gif'  file was subsequently written to ok.  It is unclear what caused the  issue.  Issue closed after review, it is put down to being an unexaplained glitch with no consequence.
  Closed after review 2024-11-18 (Session)

• There was a reporting issue whilst waiting for Pulsar Dome to be switched on (06:01).   The intended report line
      'Wait on Pulsar Dome..  Ok  Waited 20s for controller to initialise"
  was interrupted by the zigbee sensor message
     "> Dome Power                  Info      Dome Power has switched on    (06:01:24, off time 15 sec)
  Issue fixed in AstroMain 3.72.7 by allowing 2s after Dome Power has been switched on before using the AddComment ((Wait on Pulsar Dome...") statement. This provides a 2s window to allow the Zigbee message to be written on its own line, and the 'Wait On Pulsar Dome  etc." to be written in full on its own line
  Fixed 2024-11-18 (AstroMain 3.72.7)

• AllSky Camera images are showing a dark area/object in NW/WNW direction at around horizon level. Camera to be checked in daylight hours. Checking the camera show some more spiders and web in the camera, which was removed. The dark area/object was most likely a spider sitting on the camera's fisheye lens.
  Fixed 2024-11-18 (AllSky Camera)

• When Autostart (Waiting) is cancelled by setting Mode to Manual, the session state stays Autostart (Waiting).  A second press of the Manual needs to be made to show session state as 'Normal'  .  Tests show that the Mode & State are put to 'Manual' but there is quite a delay in this happening.  Tests show that around 9s or so is taken up by changing Filter to Filter 1 and moving the Focuser to the current temperature adjusted position.
  Closed after review 2024-11-18 (AstroMain)

• Slewtable shows LHA2 value of -21.68 (outside of the expected -12 to +12 range). Slewtable entry for Target 4/44 (LEDA 1762640) at Az 233/Alt 50.1  showed a LHA2 value of -21.68 . Local Hour Angle (LHA) should have values between -12.0 (east of Meridian) and +12.0 (west of Meridian).  The LHA is similarly shown as -21.70h is the pre-drill Target Check against 'Calculating Hour Angle'..   With a Lst at the time of c. 0.9333 and Target Ra of c. 22.5917, the current code produces a LHA of -21.66. The correct LHA number is 2.3416.   (= -21.66 + 24 ).   Fixed in AstroMain 3.72.7 using the correct code is
     Lha = Lst - T.Ra
  If Lha > 12 Then
    Lha = Lha - 24
  ElseIf Lha < -12 Then
    Lha = Lha + 24
  End If
  Fixed 2024-11-18 (AstroMain 3.72.7)

• Target Name in the Observing Plan in AstroPlan is different to the name in Job Queue Tab in AstroMain. It was noticed that the name for Target  3/33 on AstroPlan's Plan Form was "M31 w/Nova 2024-11b"  whilst name for same target on the Job Queue tab in AstroMain was 'M31 Spiral Galaxt w/EGN .." (rest obscured). This caused some confusion as M31 w/Nova 2024-11b was expected and the name 'M31 .. w/EGN' looked like a different target.  This is likely due to subtle difference in best name format of extragalactic nova.
  To investigate & fix 2024-11-18 (AstroMain)

Continuous Improvement

• Find room on AstroMain's Manager tab and on ObsViewer picture for showing new Weather Station fields for Rain & Light. The Observatory's planned new Ecowitt Wittboy Weather Station reads Rain via a Haptic sensor and Light (in lux) via a light sensor.  These 'Ws' fields provide alternate view on 'Cs' fields provided by the observatory's CloudSensor.     Light (Ws) and Rain (Ws) have been added to Manager Tab in AstroMain 3.72.8. Still looking for a way of adding Rain (Ws) field to ObsViewer, as well as Ch1 Temperature & Ch1 Humidity. Implemented,
  Done 2024-11-20 (AstroMain 3.72.8)

• When using Composite Slewing, only show Telescope Slewing in Mauve when the Scope is actually moving. After enabling Composite Slewing in DeviceHub it is annoying to have the Telescope Slewing Flag change to Purple when Dome makes minor 1° adjustments in azimuth.  It is proposed that a mauve flag or a mauve background to Text Boxes is only used when the Telescope is actually moving, as in a true Telescope Slew.  Ticket is on-hold pending a fix to MeadeGeneric Driver, with a possible return to disabling Composite Slewing. With successful resolution of the underlying problem causing anomalous slaved dome behaviour on 2024-12-04, the Composite Slew Reporting is no longer used. Ticket is therefor closed.
  Closed 2024-12-04 (AstroMain)

• Use Short Names to describe Sky Brightness (Darkness) and Sky Brightness Excess instead of adu/s numbers. This is to make the information more relateable and more meaningful. This idea has been possibly been proposed before (cite Session/date)
  To do 2024-11-18 (AstroMain)
