Session Aims & Highlights (2024-12-18)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 7.0.3 RC3.4694, MeadeGeneric 1.3.11.514 , UPB 1.5,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S 6.0.6
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.0.3 RC3
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.73.8,  AstroPlan 1.42.5  AstroShCap 1.3.15, AstroGuard 1.10.6   (any new items or versions in bold)
  AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.10.6,  AstroMove 1.14
  AstroWeather 1.27.1, AstroAllSky 3.22,  AstroObsCam 1.11.4 (not 1.11.5), AstroColorCam 1.1.7, AstroLaunch 1.11.12

Highlights

• Targets. 29/42 planned targets observations were completed with 5 targets partially completed.  Remaining targets failed due to cloud / session suspension.
•   Dome. There was no issues opening/closing the shutter during session. Dome closed and parked at end of session Ok

Notes

• 6 suspensions during the session due to cloud

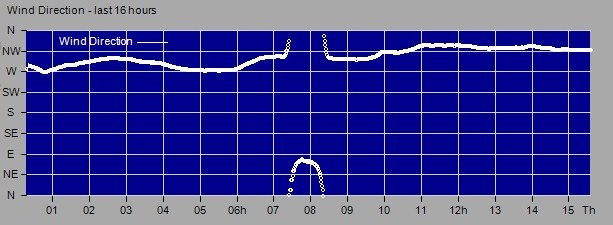

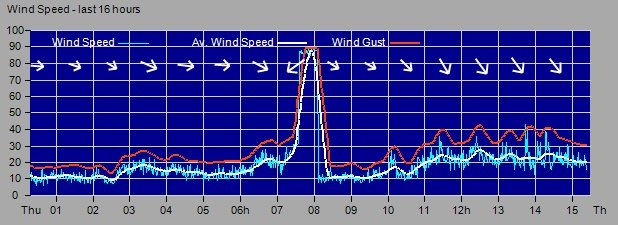

• A very strong wind squall or even a small tornado was recorded at 2024-12-19 at 07:55 (see Fig 3)


Summary Plots & Logs

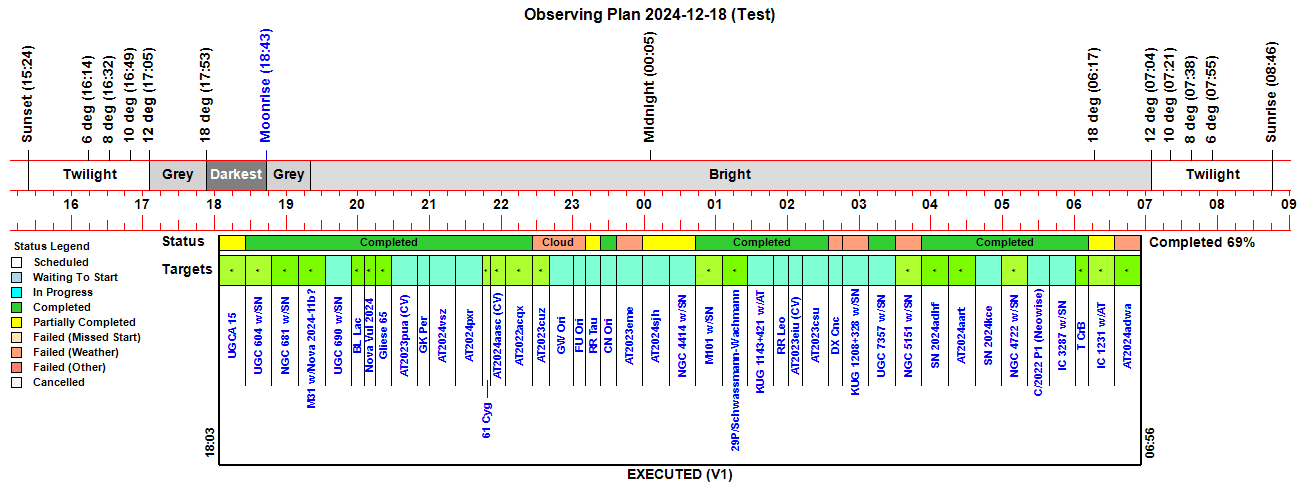

Observing Plan

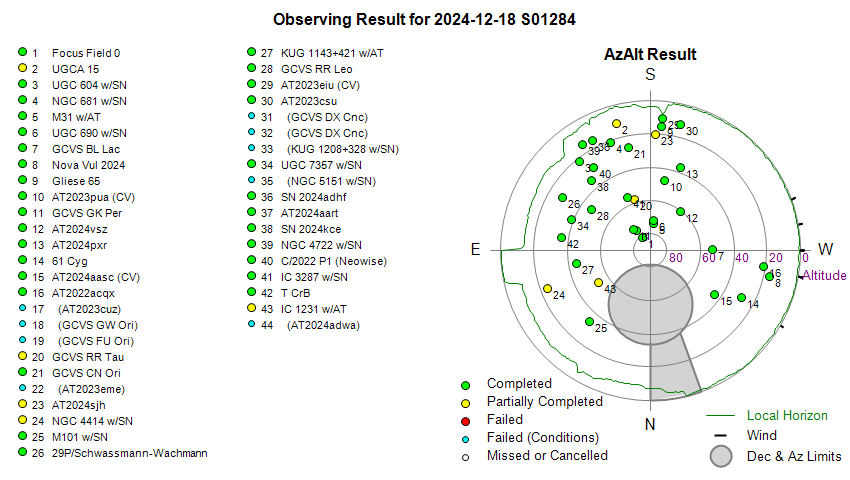

Observing Result

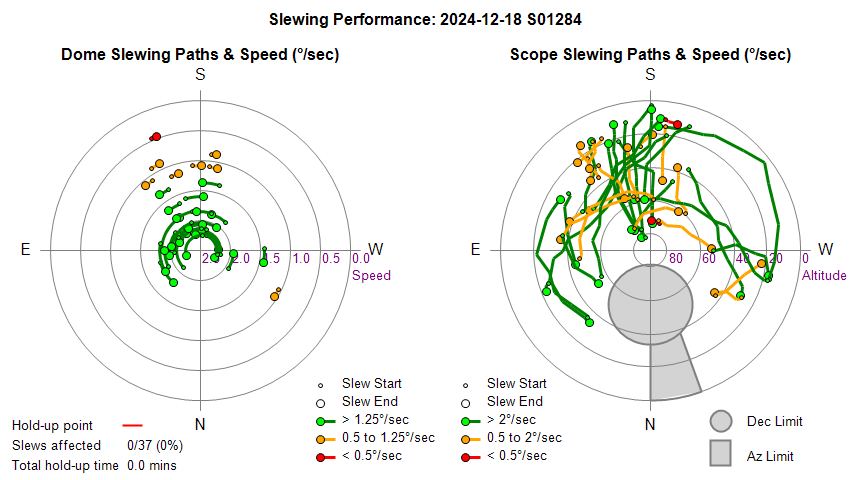

Dome & Scope Slewing Performance

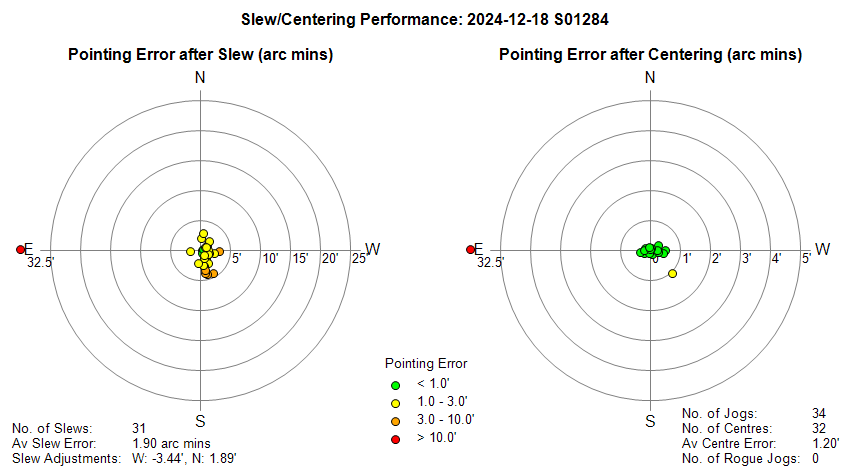

Slew/Centering Performance

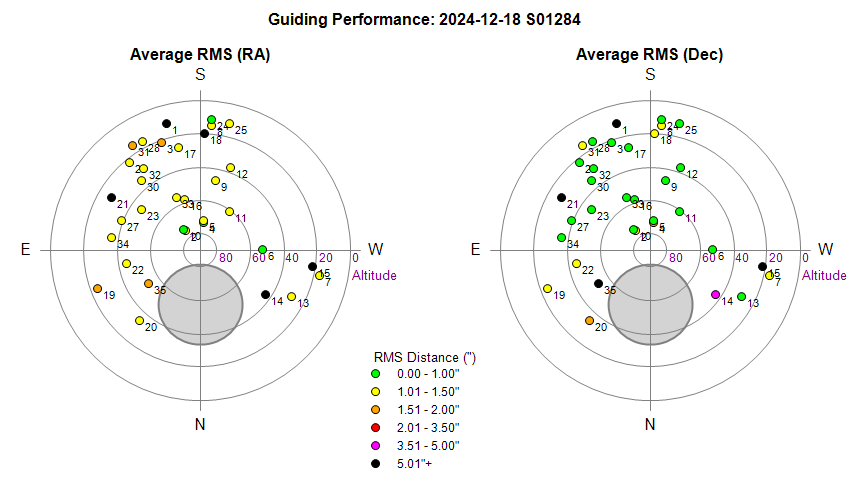

Guiding Performance

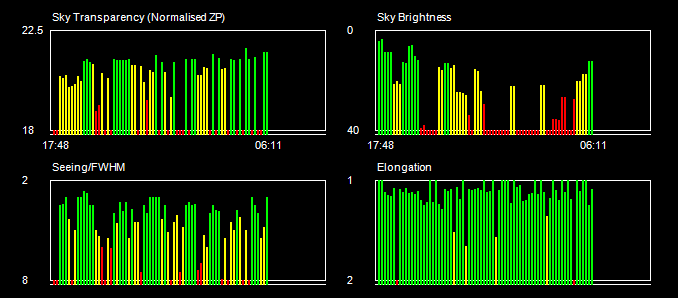

Sky Conditions (Locate Frames)

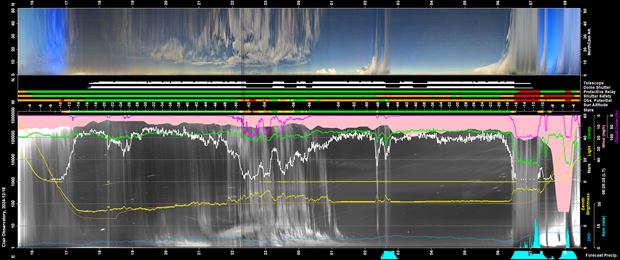

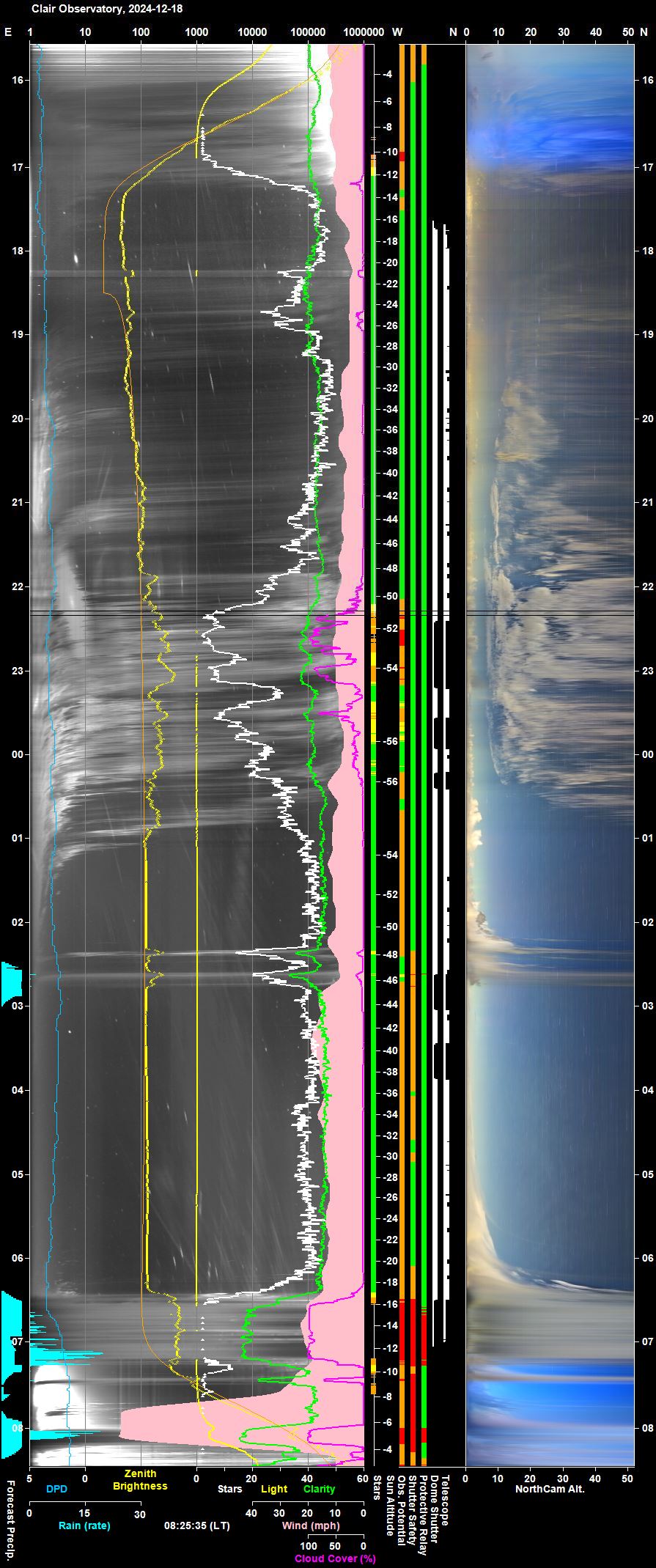

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

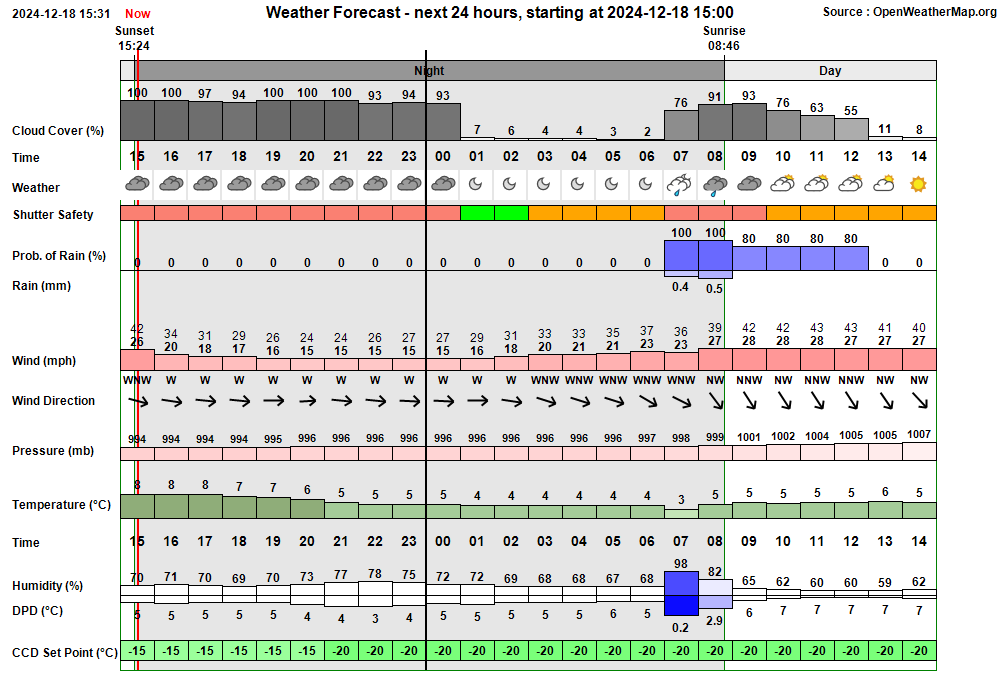

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 00:00:00   UPS System Mains Power Outage/Glitch at 00:00:00 17:38:54 Session Monitoring AutoStart monitoring for Live Session opportunity between 17:38 & 06:24 17:38:59 Session AutoStarting Session autostarting (17:38) 17:39:20   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 17:39:47   Camera1 Connected SBIG Camera connected (Set point -25°C) 17:39:49 Session Created Session Created (Live, 2024-12-18 S01284, ImageSaveNum: 1284001) 17:39:54   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 17:41:55   Services Started Observatory Services started 17:42:02 Observatory (Auto) Observatory placed in Fully-Automated Mode 17:42:05 Session Pending Session pending (2024-12-18) 17:42:07 Session Initiating Session initiating (2024-12-18) 17:42:16   Camera1 Connected SBIG Camera connected (Set point -20°C) 17:42:23   Plan Requested Observing Plan requested from AstroPlan (1.42.5) 17:43:17   Plan Loaded Observing Plan loaded to queue (Plan ID: 1067) 17:44:00   Telescope Connected Telescope connected (TheSky6) 17:44:24 Session Equilibration Session ready to Open Dome 17:45:09   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 17:45:25 Session Running Session running 17:45:28   Queue Started Observing Queue started (42 targets selected) 17:45:31     Target Started (NrZen) Target started (Focus Field 0, HIP 106) 17:45:45       Dome Unparked Dome unparked 17:49:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:51:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 17:54:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 17:54:18       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 17:56:15       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 17:57:54       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 17:58:10     Target Completed (NrZen) Target completed (Focus Field 0, HIP 106) 17:58:51     Target Started (1/42) Target started (1/42, UGCA 15) 18:05:12       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 18:21:36     Target Aborted (1/42) Target aborted (1/42, UGCA 15) due to User Intervention 18:21:40     Target Started (2/42) Target started (2/42, UGC 604 w/SN2024advj) 18:25:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:27:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 18:44:30     Target Completed Target completed (2/42, UGC 604 w/SN2024advj) 18:44:35     Target Started (3/42) Target started (3/42, NGC 681 w/SN2024abup) 18:49:38       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 19:05:49     Target Completed Target completed (3/42, NGC 681 w/SN2024abup) 19:05:53     Target Started (4/42) Target started (4/42, M31 w/Nova M31 2024-11b?) 19:09:12       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 19:25:54     Target Completed Target completed (4/42, M31 w/Nova M31 2024-11b?) 19:27:51     Target Started (5/42) Target started (5/42, UGC 690 w/SN2024vfo) 19:30:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:33:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 19:50:01     Target Completed Target completed (5/42, UGC 690 w/SN2024vfo) 19:50:05     Target Started (6/42) Target started (6/42, GCVS BL Lac) 19:53:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:55:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 19:59:59     Target Completed Target completed (6/42, GCVS BL Lac) 20:00:29     Target Started (7/42) Target started (7/42, Nova Vul 2024) 20:04:04       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:08:18     Target Completed Target completed (7/42, Nova Vul 2024) 20:09:51   UPS System UPS running on Mains Power at 20:09:51 (outage time Unknown) 20:10:19     Target Started (8/42) Target started (8/42, Gliese 65) 20:16:32       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:24:13     Target Completed Target completed (8/42, Gliese 65) 20:24:17     Target Started (9/42) Target started (9/42, AT2023pua (CV)) 20:27:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:30:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 20:46:39     Target Completed Target completed (9/42, AT2023pua (CV)) 20:46:43     Target Started (10/42) Target started (10/42, GCVS GK Per) 20:49:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:52:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 20:56:38     Target Completed Target completed (10/42, GCVS GK Per) 20:56:42     Target Started (11/42) Target started (11/42, AT2024vsz) 21:00:12       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 21:16:11     Target Completed Target completed (11/42, AT2024vsz) 21:16:58     Target Started (12/42) Target started (12/42, AT2024pxr) 21:21:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:24:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 21:40:36     Target Completed Target completed (12/42, AT2024pxr) 21:40:40     Target Started (13/42) Target started (13/42, 61 Cyg) 21:44:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:46:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 21:48:37     Target Completed Target completed (13/42, 61 Cyg) 21:48:41     Target Started (14/42) Target started (14/42, AT2024aasc (CV)) 21:52:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:54:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 22:00:55     Target Completed Target completed (14/42, AT2024aasc (CV)) 22:00:59     Target Started (15/42) Target started (15/42, AT2022acqx) 22:05:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:09:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 22:15:07       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 22:25:21     Target Completed Target completed (15/42, AT2022acqx) 22:25:23   Queue Paused Queue paused for Session Suspension 22:25:25 Session Suspending Session suspending 22:26:13   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 22:26:15 Session Suspended Session suspended 22:34:30     Target Cancelled Target cancelled (16/42, AT2023cuz) due to cloud 22:55:01     Target Cancelled Target cancelled (17/42, GCVS GW Ori) due to cloud 23:05:11     Target Cancelled Target cancelled (18/42, GCVS FU Ori) due to cloud 23:13:02 Session Resuming Session resuming 23:13:47   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 23:13:50 Session Running Session running 23:13:52   Queue Resumed Observing Queue resumed 23:13:55     Target Started (19/42) Target started (19/42, GCVS RR Tau) 23:23:25     Target Completed Target partially completed (19/42, GCVS RR Tau) 23:23:29     Target Started (20/42) Target started (20/42, GCVS CN Ori) 23:25:33       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 23:34:17     Target Completed Target completed (20/42, GCVS CN Ori) 23:34:19   Queue Paused Queue paused for Session Suspension 23:34:22 Session Suspending Session suspending 23:35:09   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 23:35:12 Session Suspended Session suspended 23:50:46     Target Cancelled Target cancelled (21/42, AT2023eme) due to cloud 23:56:12 Session Resuming Session resuming 23:56:56   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 23:56:59 Session Running Session running 23:57:01   Queue Resumed Observing Queue resumed 23:57:03     Target Started (22/42) Target started (22/42, AT2024sjh) 00:01:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:03:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 00:09:13       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 00:10:23       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 00:12:58       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 00:13:15     Target Aborted (22/42) Target aborted (22/42, AT2024sjh) due to User Intervention 00:13:17   Queue Paused Queue paused for Session Suspension 00:13:18 Session Suspending Session suspending 00:14:08   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 00:14:10 Session Suspended Session suspended 00:24:29 Session Resuming Session resuming 00:25:14   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 00:25:17 Session Running Session running 00:25:19   Queue Resumed Observing Queue resumed 00:25:20     Target Started (23/42) Target started (23/42, NGC 4414 w/SN2023hlf) 00:42:01     Target Completed Target partially completed (23/42, NGC 4414 w/SN2023hlf) 00:42:05     Target Started (24/42) Target started (24/42, M101 w/SN2023ixf) 01:03:47     Target Completed Target completed (24/42, M101 w/SN2023ixf) 01:03:51     Target Started (25/42) Target started (25/42, 29P/Schwassmann-Wachmann) 01:25:06     Target Completed Target completed (25/42, 29P/Schwassmann-Wachmann) 01:25:10     Target Started (26/42) Target started (26/42, KUG 1143+421 w/AT2024abqc) 01:28:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:31:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 01:47:00     Target Completed Target completed (26/42, KUG 1143+421 w/AT2024abqc) 01:47:04     Target Started (27/42) Target started (27/42, GCVS RR Leo) 01:50:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:52:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 01:59:03     Target Completed Target completed (27/42, GCVS RR Leo) 01:59:08     Target Started (28/42) Target started (28/42, AT2023eiu (CV)) 02:02:48       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:09:01     Target Completed Target completed (28/42, AT2023eiu (CV)) 02:09:05     Target Started (29/42) Target started (29/42, AT2023csu) 02:12:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:15:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 02:21:56       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 02:26:16       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 02:31:07     Target Completed Target completed (29/42, AT2023csu) 02:31:11     Target Started (30/42) Target started (30/42, GCVS DX Cnc) 02:35:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:37:33   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 02:37:35   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 02:37:43 Session Suspending Session suspending 02:37:45       Focusing Aborted Foc1 Focusing Aborted 02:37:47     Target Aborted (30/42) Target aborted (30/42, GCVS DX Cnc) due to rain 02:37:49   Queue Paused Queue paused for Session Suspension 02:38:33   Dome Closed Dome closed (Closing time 49s, Zigbee 43s) 02:38:34 Session Suspended Session suspended 02:40:34     Target Cancelled Target cancelled (30/42, GCVS DX Cnc) due to cloud 02:59:44     Target Cancelled Target cancelled (31/42, KUG 1208+328 w/SN2024zsr) due to wind 03:02:40 Session Resuming Session resuming 03:03:25   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 03:03:28 Session Running Session running 03:03:30   Queue Resumed Observing Queue resumed 03:03:32     Target Started (32/42) Target started (32/42, UGC 7357 w/SN2023vhb) 03:07:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:10:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 03:15:41       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (wind) 03:18:47       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 03:19:41       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (wind) 03:26:38       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 03:26:43       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (wind) 03:26:45     Target Completed Target completed (32/42, UGC 7357 w/SN2023vhb) 03:26:47   Queue Paused Queue paused for Session Suspension 03:26:50 Session Suspending Session suspending 03:27:38   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 03:27:39 Session Suspended Session suspended 03:44:24     Target Cancelled Target cancelled (33/42, NGC 5151 w/SN2024acnr) due to wind 03:52:10 Session Resuming Session resuming 03:52:55   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 03:52:58 Session Running Session running 03:53:00   Queue Resumed Observing Queue resumed 03:53:03     Target Started (34/42) Target started (34/42, SN 2024adhf) 04:13:54     Target Completed Target completed (34/42, SN 2024adhf) 04:13:58     Target Started (35/42) Target started (35/42, AT2024aart) 04:33:57     Target Completed Target completed (35/42, AT2024aart) 04:34:01     Target Started (36/42) Target started (36/42, SN 2024kce) 04:37:42       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:53:43     Target Completed Target completed (36/42, SN 2024kce) 04:54:08     Target Started (37/42) Target started (37/42, NGC 4722 w/SN2024ablh) 04:57:59       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 05:15:13     Target Completed Target completed (37/42, NGC 4722 w/SN2024ablh) 05:16:08     Target Started (38/42) Target started (38/42, C/2022 P1 (Neowise)) 05:21:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:23:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 05:35:50     Target Completed Target completed (38/42, C/2022 P1 (Neowise)) 05:35:54     Target Started (39/42) Target started (39/42, IC 3287 w/SN2024bic) 05:39:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:42:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 05:58:38     Target Completed Target completed (39/42, IC 3287 w/SN2024bic) 05:58:42     Target Started (40/42) Target started (40/42, T CrB) 06:01:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:04:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 06:09:24     Target Completed Target completed (40/42, T CrB) 06:09:28     Target Started (41/42) Target started (41/42, IC 1231 w/AT2024aeds) 06:13:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:15:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 06:22:30       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 06:29:50   Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome) 06:29:52   HardSuspend Called Hard Suspend called due to Critical Conditions (threat of rain) 06:29:54     Target Aborted (41/42) Target aborted (41/42, IC 1231 w/AT2024aeds) due to threat of rain 06:29:56   Queue Paused Queue paused for Session Suspension 06:29:58 Session Suspending Session suspending 06:30:46   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 06:30:47 Session Suspended Session suspended 06:58:22     Target Cancelled Target cancelled (42/42, AT2024adwa) due to rain 06:58:26   Queue Completed Job Queue completed 06:58:28 Session Closing Session closing 06:58:33   Dome Closed Dome already closed (closed at 06:30, closing time 50s, zigbee 43s) 06:58:59   Dome Parked Dome parked (parking time 16s), Az: 90.0 deg 06:59:50   Telescope Parked Telescope parked (parking time 44s total) 07:00:14   Telescope State Handbox reads 'Scope parked Turn scope off.' 07:00:36   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 07:02:01   Services Stopped Night Services stopped 07:02:03 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 07:02:40     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow) 07:03:23     Dome Find Park found (Best Park Az 90.5°) 07:03:29     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.5°) 07:03:31   Dome Parked Dome parked 07:03:44   Dome Charging Dome is parked and re-charging Ok (14mA) 07:03:46 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 00:00:00 Red Alert UPS System Mains Power Outage/Glitch at 00:00:00 20:09:51 Green Clear UPS System UPS running on Mains Power at 20:09:51 (outage time Unknown) 07:03:44 Green Clear Dome Charging Dome is parked and re-charging Ok (14mA)

Back to Top

Operational Issues (2024-12-18 S1284)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (1)
• Continuous Improvement (4)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

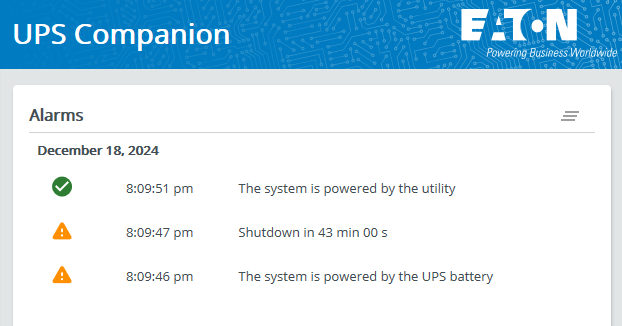

• A 'UPS System' red alert was raised during the session (20:09).  A 'UPS System' red alert was raised at unknown time but recorded at 00:00 with the message "Mains Power Outage/Glitch at 00:00:00"  this was followed by a green all-clear at 20:09:51 with the message "UPS running on Mains Power at 20:09:51 (outage time Unknown)" . To be investigated.  Neither the Observatory Computer or the AllSky/Weather Computer seems to have recorded a failure of the power supply (neither computer mentions running on laptop battery) suggesting that the outage was momentarily, and was something that the Eaton UPS reacts as per its required role.  The Eaton Companion confirmed apparent power glitch at 20:09:46 (See Fig 1) with the alert message "The system is powered by the UPS battery" .The UPS reported "The System is powered by the utility' (ie Mains Power) at 20:09:51.  This suggests that the outage was 5s, but is it suspected that the UPS system waits for around 5s before it confirms that the system is powered by mains supply again and the real outage is much less than this.  The supposed power glitch at 20:09 wasn't seen by the UPS System running in the AllSky/Weather Computer, however that system did record a power glitch the following day at 12:54:56 which the Observatory Computing Bay's UPS System didn't record (again suggesting a momentarily glitch but with a standard 5s delay before it reports that the system is powered by the utility again. The reporting of the supposed glitch as being at time 00:00 is dealt with under a separate defect ticket below.
Closed after review (Session, UPS System, AstroMain)

Small Defects

• A 'UPS Utility' outage was recorded by AstroMain's UPS Monitor without a correct date and with an Unknown Outage time (20:09).  A 'UPS System' red alert was raised at unknown time but recorded at 00:00 with the message "Mains Power Outage/Glitch at 00:00:00". The reporting of the supposed glitch as being at time 00:00 is clearly a bug and should be fixed.  The time of the outage is clearly known by AstroMain is it is given it reported messages shown below.
    > UPS Monitor   Ok     UPS running on Battery backup (20:09:46)
  > UPS Monitor   Ok     Mains Power restored (20:09:51, outage Unknown)
  The report line showing the loss of Utility Power (UPS running on battery) should be shown as 'Alert' rather than 'Ok'.   Outage is reported as 'Unknown' when PowerOutageStartTime=vcNullDate, which indicates that it wasn't set,  likely because it is set when Laptop Power Monitor changes from Mains to Battery which it didn't appear to.  'Mains Power Outage/Glitch' is reported when bLaptopBatteryOutageReported = False, which confirms that power outage wasn't detected by the computer power monitor itself. Fixed in AstroMain 3.73.9, with the following new assignment in RunUpsMonitor() routine
    PowerOutageStartTime = Ups_Record.TimeStamp
  The same issue also occurred in reporting by AstroWeather's UPS Monitor on the AllSky/Weather Computer for the power glitch at 12:54:56.
  Fixed (AstroMain 3.73.9,  AstroWeather 1.27.2)

Continuous Improvement

• Sum Rain values from CloudSensor and display last 24 hours and last 5 day in graph boxes and on 5 day Rain Cs chart. This will be based on the rain summation methodoly and graphing used for the Weather Station Rain values.  The CloudSensor rain figures are unitless, but in time in might be possible to develop an emphical conversion factor to mm/h and mm.  New box graphs should be added to Current Weather Page on the Observatory's WebSite. Implemented in AstroWeather 1.27.2, added last 24h graph box (Graph82), last 5d graph box (Graph83), modifiied 5d rain graph (Graph10, based on 66)
  Done 2024-12-19 (AstroWeather 1.27.2, Website)

• Add Right Hand Axis Labelling to AllSky Keograms. Currently AllSky Keograms (1,2,3,4) don't have any axis / labelling on the bottom (NightSummary1 & NightSummary2) or on the right hand side (NightSummary3 & NightSummary4).  The NightSummary5 keogram has a right hand axis but no labelling.   Priority should be given to NightSummary5, as it is used the most.
  Done  (AstroAllSky 3.22.1 )

• Add a X/Y Cursor position feature to AstroColorCam's image. It would be useful if AstroColorCam could show the x/y position of the cursor on the Image Picture Box with coordinate values shown a XY pixel position in the original image, rather than screen /picture box coordinates.   . Implemented in AstroColorCam 1.2.   A later development might be to use the XY coordinates to calculate & show Az , Alt position of the cursor.
  Done (AstroColorCam 1.2)

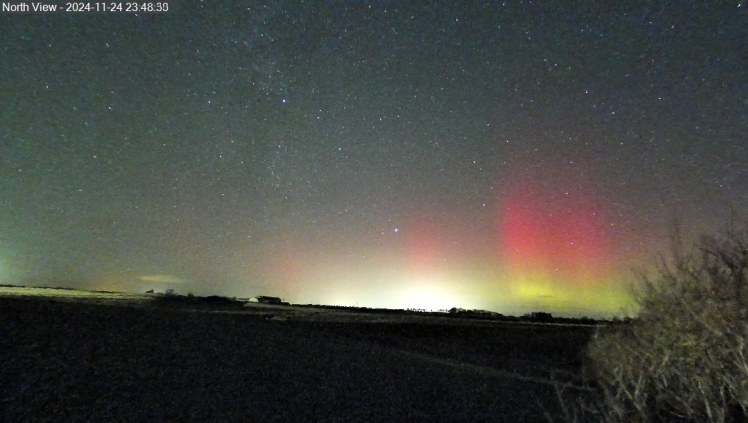

• Create an algorithim in AstroColorCam to auto-detect the presence of green & red aurora in NorthCam images. With the distinctive green & red colours in an aurora it should be feasible to auto-detect the presence and intensity and distribution of those colours in NorthCam images taken with the Observatory's new Tapo C325WB Colour Night Vision Camera. AstroColorCam already accesses images and prepares north view images, keograms and videos. It is feasible to pass on results of any image analysis and have data incorporated in NightSummmaryPlot6 as a new 'aurora' track, and as a graph created by either AstroWeather or AstroColorCam. An activity flag could also be uploaded to the Observatory Website.   In theory the presence of Aurora could be used to trigger a change in AstroColorCam's interval recording from a standard 30s to say 15s, or 10s. CoPilot was used to build some outline code that be helpful to the task.   After incorporating it into a test version of AstroColorCam and tweaking it somewhat it was shown that an algorithum was feasible. Fig 2 shows an original image from Aurora display on 2024-11-24 and below it a processed image which shows the areas in the image where the algorithum determined there was aurora was displaying, the remainder of the image is darkened.
  In Progress (AstroColorCam 1.2+)
