Session Aims & Highlights (2025-01-03)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 7.0.3 RC3.4694, MeadeGeneric 1.3.12.519 , UPB 1.5,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S 6.0.6
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.0.3 RC3
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.73.10,  AstroPlan 1.42.5  AstroShCap 1.3.15, AstroGuard 1.10.6   (any new items or versions in bold)
  AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.10.6,  AstroMove 1.14
  AstroWeather 1.27.3, AstroAllSky 3.22.2,  AstroObsCam 1.11.4 (not 1.11.5), AstroColorCam 1.2.1, AstroLaunch 1.11.14

Highlights

• Targets. 11/34 planned targets observations were completed with 2 targets partially completed.  One target (M33 w/) was initially partially completed, but successfully completed as a follow-up ToO target.  2 other ToO targets (Mars & Jupiter) were also completed. Other planned targets failed due to cloud / session suspension.
•   Dome. There was no issues opening/closing the shutter during session. Dome closed and parked at end of session Ok

Notes

• Aurora Images from New Years Day, 2025-01-01  >>



Summary Plots & Logs

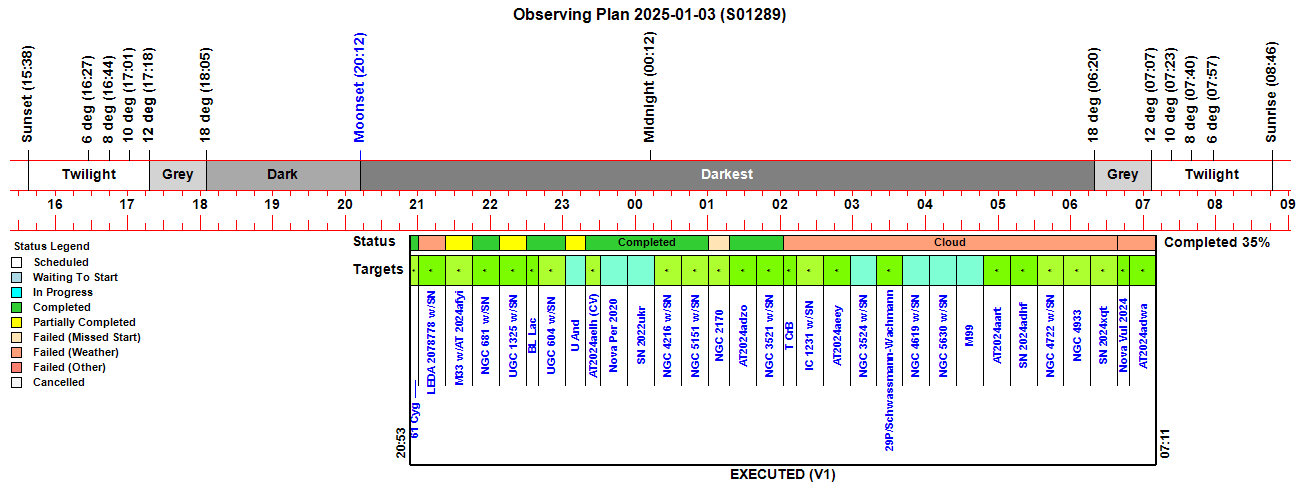

Observing Plan

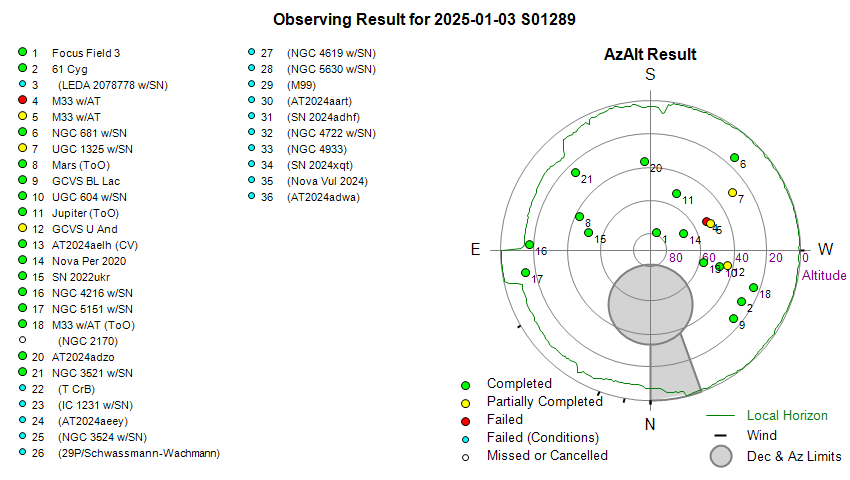

Observing Result

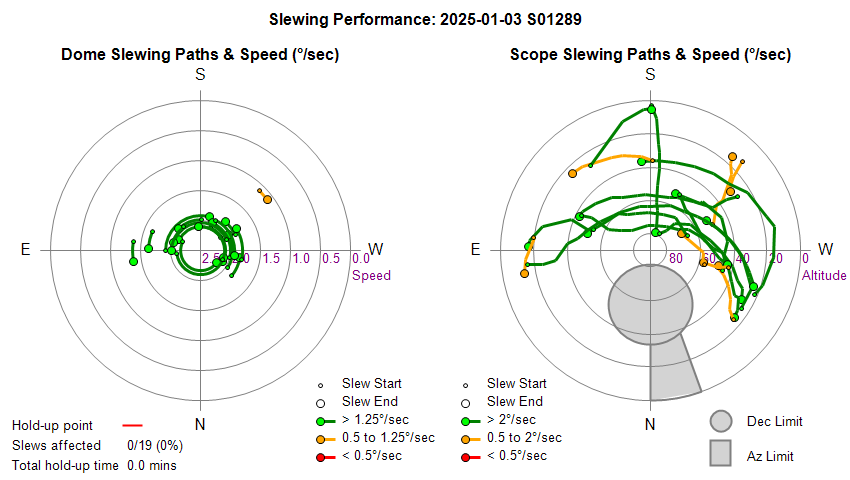

Dome & Scope Slewing Performance

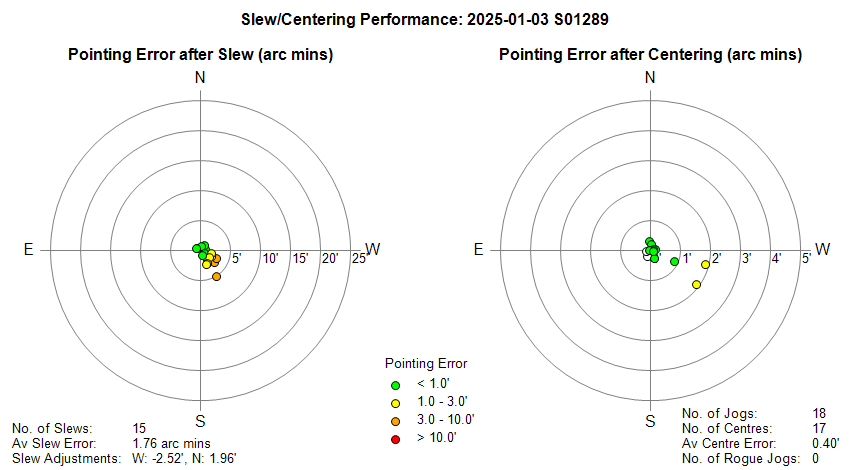

Slew/Centering Performance

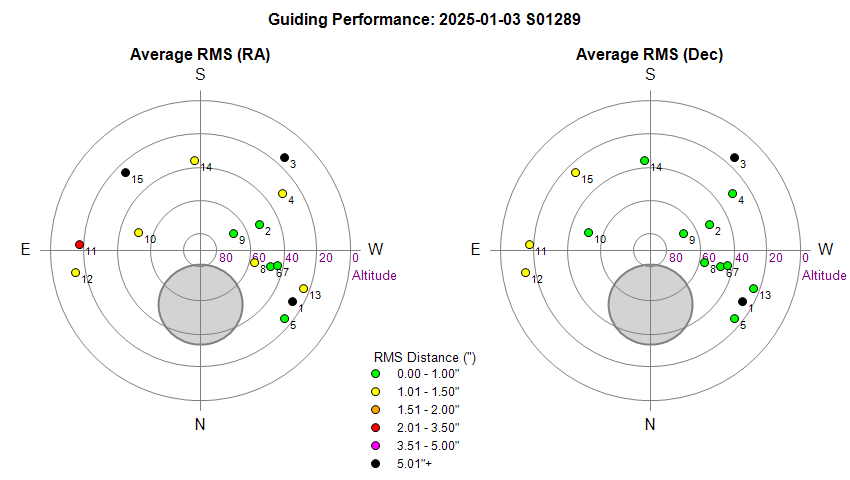

Guiding Performance

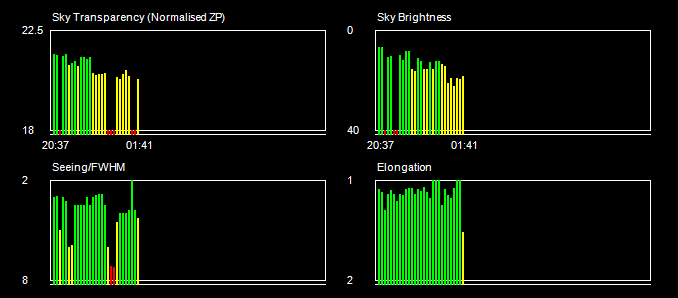

Sky Conditions (Locate Frames)

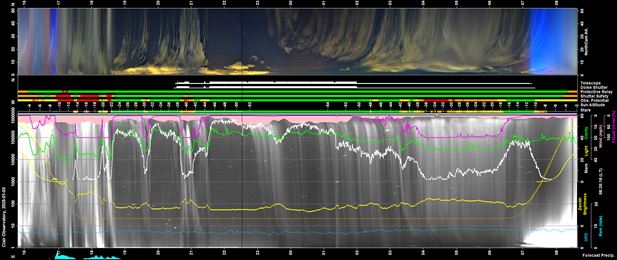

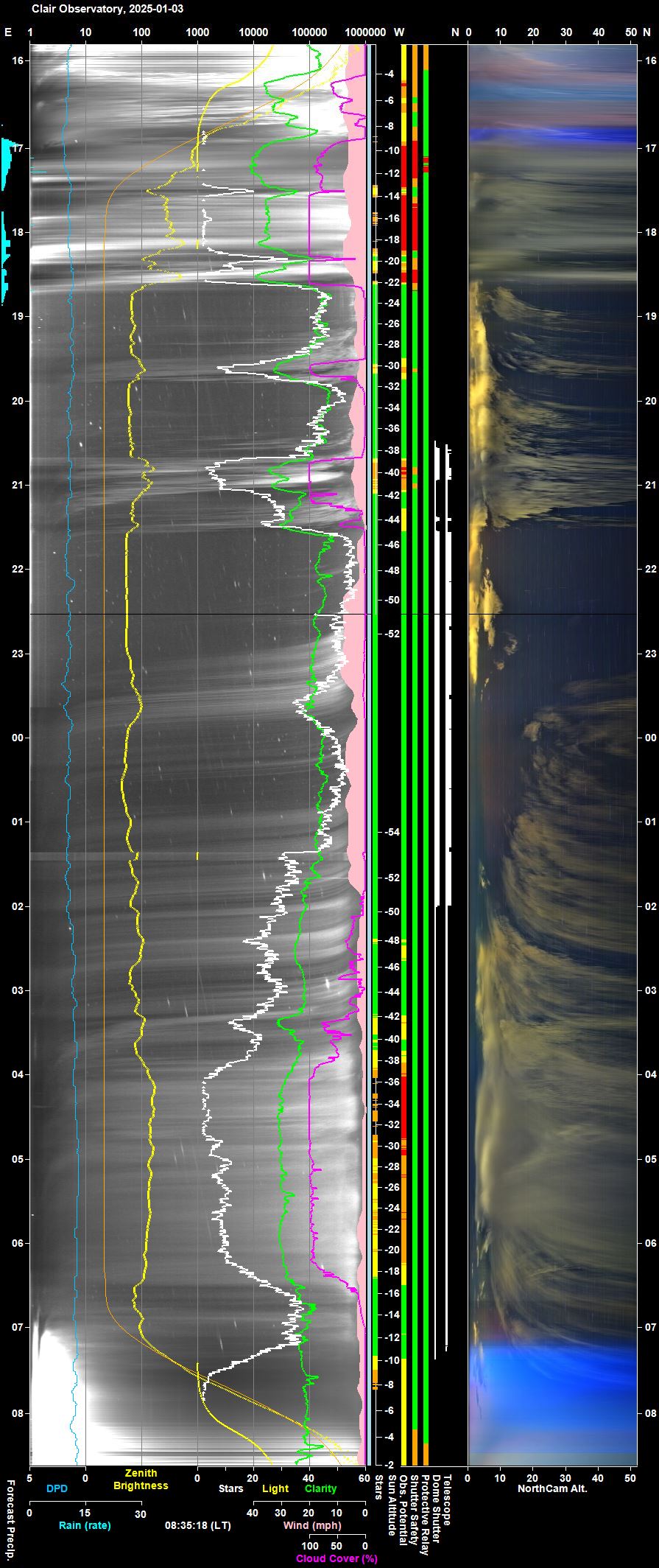

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

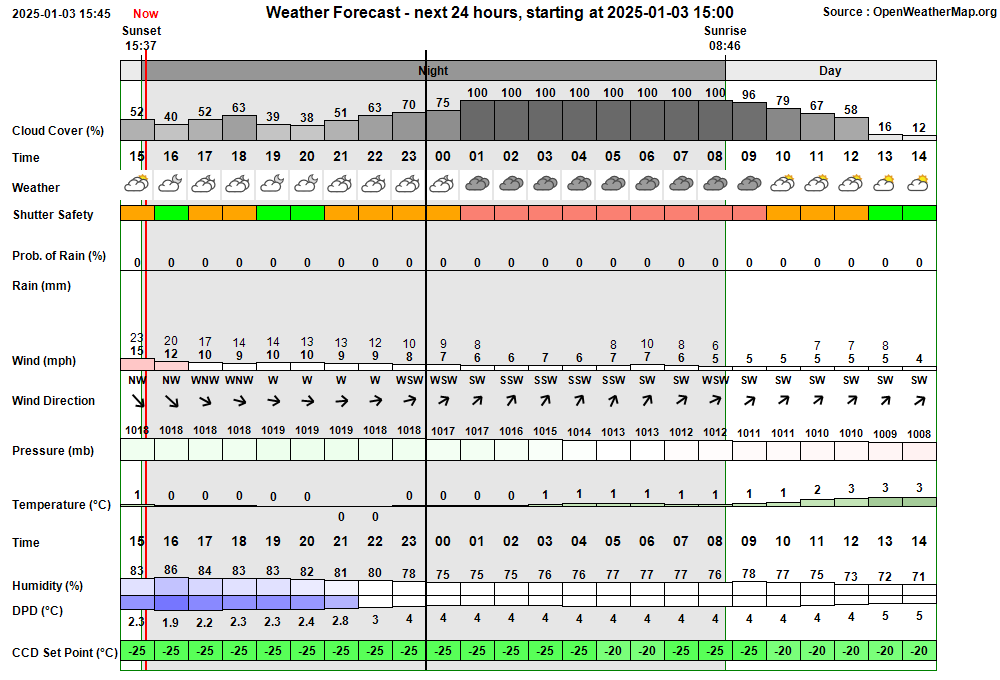

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 20:29:07 Session Monitoring AutoStart monitoring for Live Session opportunity between 20:29 & 06:27 20:29:08 Session AutoStarting Session autostarting (20:29) 20:29:29   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 20:29:56   Camera1 Connected SBIG Camera connected (Set point -20°C) 20:29:58 Session Created Session Created (Live, 2025-01-03 S01289, ImageSaveNum: 1289001) 20:30:03   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 20:31:49   Services Started Observatory Services started 20:31:57 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:31:59 Session Pending Session pending (2025-01-03) 20:32:01 Session Initiating Session initiating (2025-01-03) 20:32:10   Camera1 Connected SBIG Camera connected (Set point -30°C) 20:32:17   Plan Requested Observing Plan requested from AstroPlan (1.42.5) 20:32:55   Plan Loaded Observing Plan loaded to queue (Plan ID: 1072) 20:33:34   Telescope Connected Telescope connected (TheSky6) 20:33:59 Session Equilibration Session ready to Open Dome 20:34:44   Dome Opened Dome opened (Opening time 46s, Zigbee 41s) 20:35:19 Session Running Session running 20:35:22   Queue Started Observing Queue started (31 targets selected) 20:35:25     Target Started (NrZen) Target started (Focus Field 3, HIP 14181) 20:35:40       Dome Unparked Dome unparked 20:38:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:41:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 20:43:41       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 20:44:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 20:44:18       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 20:46:29       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 20:48:20       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 20:48:34       Focusing Failed Foc2 focusing check failed 20:48:38     Target Completed (NrZen) Target completed (Focus Field 3, HIP 14181) 20:48:42     Target Started (1/31) Target started (1/31, 61 Cyg) 20:54:37       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 20:56:42     Target Completed Target completed (1/31, 61 Cyg) 20:56:44   Queue Paused Queue paused for Session Suspension 20:56:46 Session Suspending Session suspending 20:57:32   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 20:57:33 Session Suspended Session suspended 21:15:18     Target Cancelled Target cancelled (2/31, LEDA 2078778 w/SN2024xqe) due to too few stars 21:22:55 Session Resuming Session resuming 21:23:40   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 21:23:42 Session Running Session running 21:23:44   Queue Resumed Observing Queue resumed 21:23:46     Target Started (3/31) Target started (3/31, M33 w/AT2024afyi) 21:23:50       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 21:25:53     Target Aborted (3/31) Target aborted (3/31, M33 w/AT2024afyi) due to User Intervention 21:25:55   Queue Paused Queue paused for Session Suspension 21:25:58 Session Suspending Session suspending 21:26:46   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 21:26:47 Session Suspended Session suspended 21:32:51 Session Resuming Session resuming 21:33:37   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 21:33:38 Session Running Session running 21:33:40   Queue Resumed Observing Queue resumed 21:33:43     Target Started (3/31) Target started (3/31, M33 w/AT2024afyi) 21:43:08     Target Completed Target partially completed (3/31, M33 w/AT2024afyi) 21:43:12     Target Started (4/31) Target started (4/31, NGC 681 w/SN2024abup) 22:04:41     Target Completed Target completed (4/31, NGC 681 w/SN2024abup) 22:04:45     Target Started (5/31) Target started (5/31, UGC 1325 w/SN2024aedt) 22:09:48       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:22:02     Target Aborted (5/31) Target aborted (5/31, UGC 1325 w/SN2024aedt) due to Priority 1 ToO Target 22:22:06     Target Started (6/32) Target started (6/32, Mars, ToO) 22:30:06     Target Completed Target completed (6/32, Mars, ToO) 22:30:10     Target Started (7/32) Target started (7/32, GCVS BL Lac) 22:37:57     Target Completed Target completed (7/32, GCVS BL Lac) 22:38:01     Target Started (8/32) Target started (8/32, UGC 604 w/SN2024advj) 22:41:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:43:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 22:59:58     Target Completed Target completed (8/32, UGC 604 w/SN2024advj) 23:00:02     Target Started (9/33) Target started (9/33, Jupiter, ToO) 23:10:15     Target Completed Target completed (9/33, Jupiter, ToO) 23:10:19     Target Started (10/33) Target started (10/33, GCVS U And) 23:18:37     Target Completed Target partially completed (10/33, GCVS U And) 23:18:41     Target Started (11/33) Target started (11/33, AT2024aelh (CV)) 23:27:27     Target Completed Target completed (11/33, AT2024aelh (CV)) 23:27:31     Target Started (12/33) Target started (12/33, Nova Per 2020) 23:30:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:33:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 23:49:52     Target Completed Target completed (12/33, Nova Per 2020) 23:49:56     Target Started (13/33) Target started (13/33, SN 2022ukr) 23:54:52       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:11:15     Target Completed Target completed (13/33, SN 2022ukr) 00:11:19     Target Started (14/33) Target started (14/33, NGC 4216 w/SN2024gy) 00:17:21       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:33:38     Target Completed Target completed (14/33, NGC 4216 w/SN2024gy) 00:33:42     Target Started (15/33) Target started (15/33, NGC 5151 w/SN2024acnr) 00:37:07       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:53:39     Target Completed Target completed (15/33, NGC 5151 w/SN2024acnr) 00:53:43     Target Started (16/34) Target started (16/34, M33 w/AT2024afyi, ToO) 00:57:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:14:29     Target Completed Target completed (16/34, M33 w/AT2024afyi, ToO) 01:14:31     Target Missed (17/34) Target's time slot was missed (17/34, NGC 2170) 01:14:33     Target Started (18/34) Target started (18/34, AT2024adzo) 01:19:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:21:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 01:24:49       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 01:28:29       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 01:37:48     Target Completed Target completed (18/34, AT2024adzo) 01:37:52     Target Started (19/34) Target started (19/34, NGC 3521 w/SN2024aecx) 01:38:50       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 01:39:01       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 01:46:42       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 01:59:55     Target Completed Target completed (19/34, NGC 3521 w/SN2024aecx) 01:59:57   Queue Paused Queue paused for Session Suspension 01:59:58 Session Suspending Session suspending 02:00:48   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 02:00:51 Session Suspended Session suspended 02:07:48     Target Cancelled Target cancelled (20/34, T CrB) due to cloud 02:27:18     Target Cancelled Target cancelled (21/34, IC 1231 w/SN2024aeds) due to cloud 02:49:38     Target Cancelled Target cancelled (22/34, AT2024aeey) due to cloud 03:11:38     Target Cancelled Target cancelled (23/34, NGC 3524 w/SN2024inv) due to cloud 03:34:22     Target Cancelled Target cancelled (24/34, 29P/Schwassmann-Wachmann) due to cloud 03:55:12     Target Cancelled Target cancelled (25/34, NGC 4619 w/SN2024drt) due to cloud 04:17:32     Target Cancelled Target cancelled (26/34, NGC 5630 w/SN2023zdx) due to cloud 04:39:52     Target Cancelled Target cancelled (27/34, M99) due to cloud 05:02:12     Target Cancelled Target cancelled (28/34, AT2024aart) due to cloud 05:24:32     Target Cancelled Target cancelled (29/34, SN 2024adhf) due to cloud 05:46:32     Target Cancelled Target cancelled (30/34, NGC 4722 w/SN2024ablh) due to cloud 06:08:52     Target Cancelled Target cancelled (31/34, NGC 4933) due to cloud 06:31:12     Target Cancelled Target cancelled (32/34, SN 2024xqt) due to cloud 06:43:32     Target Cancelled Target cancelled (33/34, Nova Vul 2024) due to too few stars 07:13:22     Target Cancelled Target cancelled (34/34, AT2024adwa) due to too few stars 07:13:26   Queue Completed Job Queue completed 07:13:30 Session Closing Session closing 07:13:35   Dome Closed Dome already closed (closed at 02:00, closing time 50s, zigbee 44s) 07:14:13   Dome Parked Dome parked (parking time 29s), Az: 90.1 deg 07:14:52   Telescope Parked Telescope parked (parking time 34s total) 07:16:52   Telescope State Handbox reads 'Scope parked Turn scope off.' 07:17:14   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 07:18:37   Services Stopped Night Services stopped 07:18:40 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 07:19:22     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow) 07:20:08     Dome Find Park found (Best Park Az 90.4°) 07:20:14     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.5°) 07:20:16   Dome Parked Dome parked 07:23:16   Dome Charging Dome hasn't started re-charging after 3.0 minutes 07:23:18 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 20:31:59 Yellow Alert Disk Space Free Space on C:\ Drive (49.07 GB) is less than 50 GB 07:19:19 Yellow Alert Disk Space Free Space on C:\ Drive (47.39 GB) is less than 50 GB 07:23:16 Red Alert Dome Charging Dome hasn't started re-charging after 3.0 minutes

Back to Top

Operational Issues (2025-01-03 S1289)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (1)
• Continuous Improvement (1)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• AstroMain is raising a red alert each morning with the message "AllSky Star & Synopsis data has been inactive for more than 5 mins" (08:40).  Each morning around dawn (currently around 08:41 - 08:40) a red alert is being raised with the message "AllSky Star & Synopsis data has been inactive for more than 5 mins". These are followed moments later with the messages like "AllSky Star & Synopsis data is active again (outage 5.1 mins)".  Outage time is typically in the range 5.1 to 5.4 minutes.  This is typically due to the switch over between night time and day time handling in AstroAllSky (possibly between SunAlt -2 and SunAlt 0).  The outages at this time and the alerts cause no particular problem, but ideally red alerts should only be raised for an unexpected problem/outage and not for recurring events.
  To investigate & fix 2025-01-04 (AstroAllSky 3.22.3+, AstroMain)

Continuous Improvement

• Modify AstroAllSky's NorthSky Keogram plotting to better match the width and position used by the NorthCam Keogram.   Increase the left hand margin width, and add left hand columns to match the time gap from SunAlt 0 to SunAlt Start (-2) at beginning of night and similarly add right hand columns for the time gap between SunAlt End (-2) and SunAlt 0 at end of night.  Stage 1 implemented 2024-01-04 (pm) in AstroAllSky 3.22.3,  LeftHandMargin increased from 25 to 30 pixels.
  To do 2025-01-04+ (AstroAllSky 3.22.3+)
