David's Astronomy Pages Notes - Session 1290 (2025-01-04)

Notes (S1289)

Notes Main

Home Page

Notes (S1291)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (0),  Small Defects (0),  Continuous Improvement (1)
	Images from 2025-01-04 >>

Session Aims & Highlights (2025-01-03)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 7.0.3 RC3.4694, MeadeGeneric 1.3.12.519 , UPB 1.5,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S 6.0.6
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.0.3 RC3
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.73.10,  AstroPlan 1.42.5  AstroShCap 1.3.15, AstroGuard 1.10.6   (any new items or versions in bold)
  AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.10.6,  AstroMove 1.14
  AstroWeather 1.27.3, AstroAllSky 3.22.2,  AstroObsCam 1.11.4 (not 1.11.5), AstroColorCam 1.2.2, AstroLaunch 1.11.14

Highlights

• Targets. 13/45 planned targets observations were completed with 2 targets partially completed.  Other planned targets failed due to cloud / session suspension.
•   Dome. There was no issues opening/closing the shutter during session. Dome closed and parked at end of session Ok

Notes

• Aurora Images from 2025-01-04  >>



Summary Plots & Logs

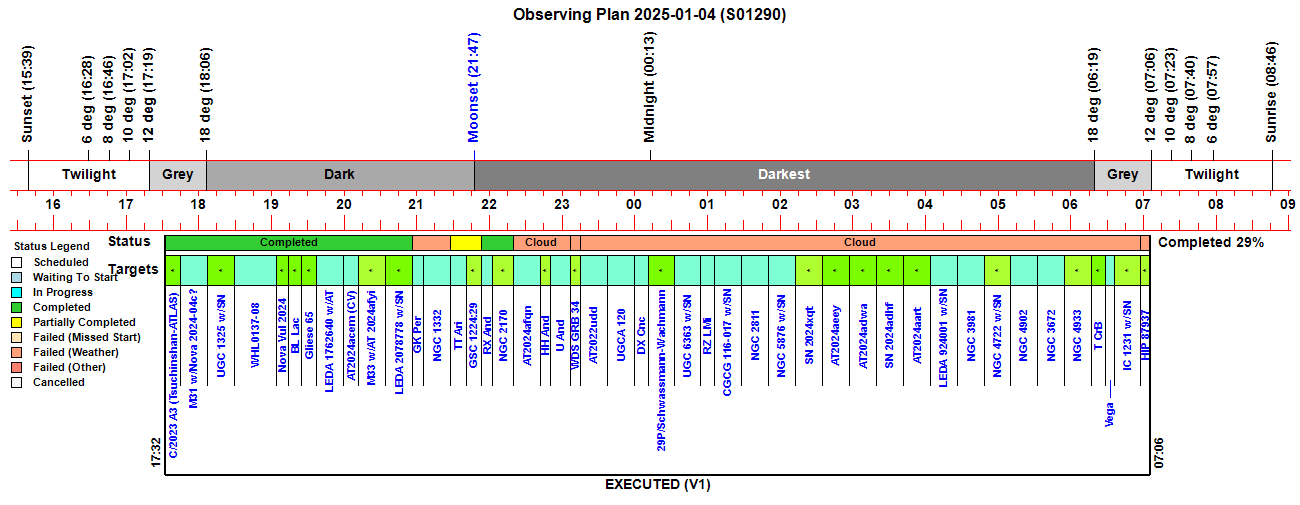

Observing Plan

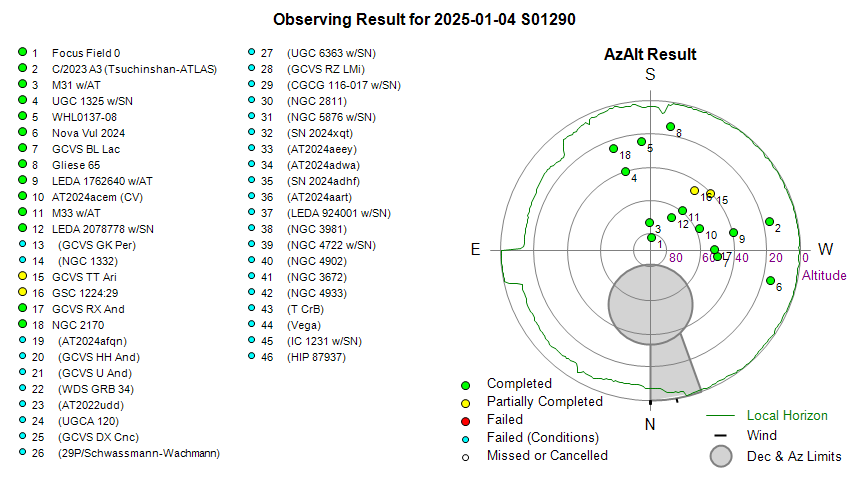

Observing Result

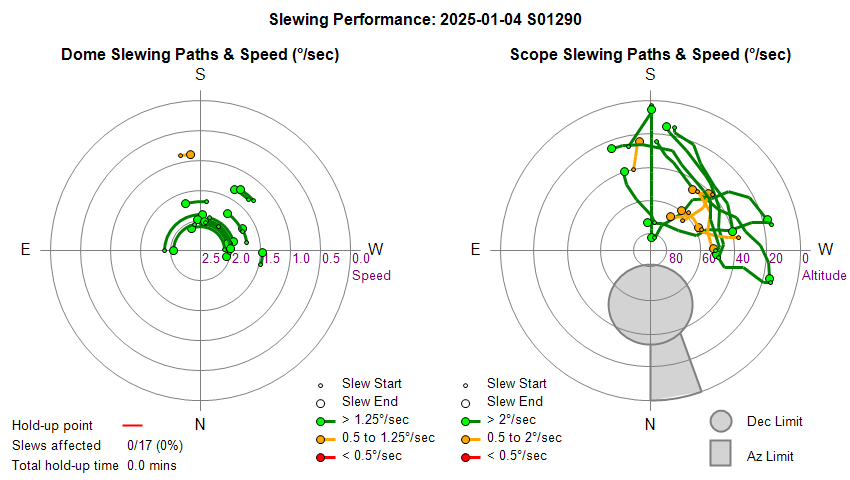

Dome & Scope Slewing Performance

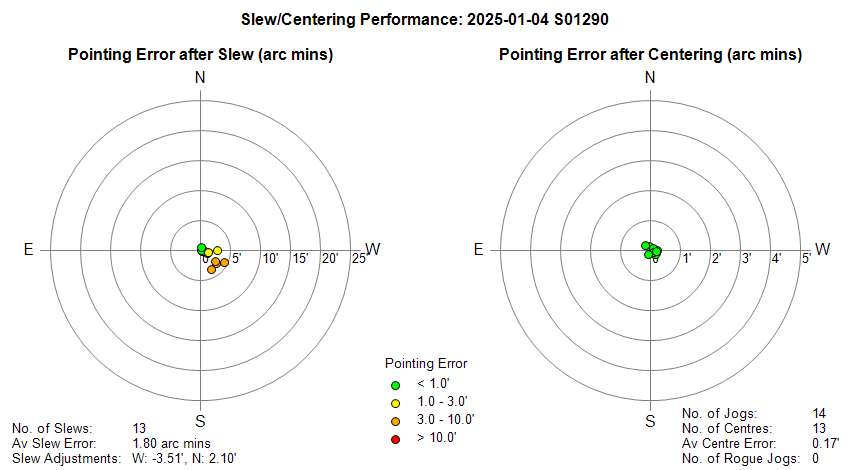

Slew/Centering Performance

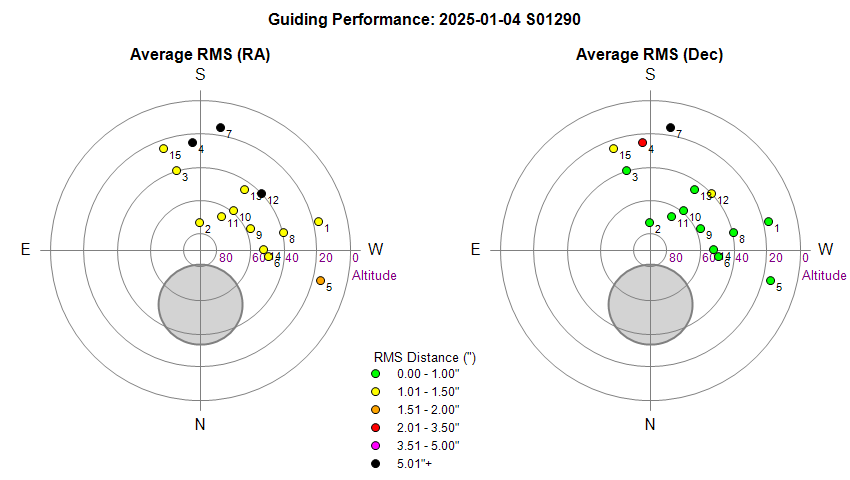

Guiding Performance

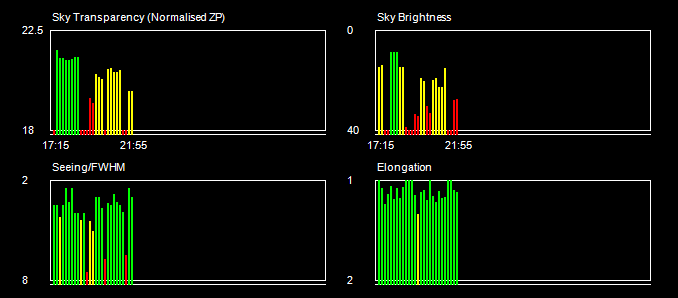

Sky Conditions (Locate Frames)

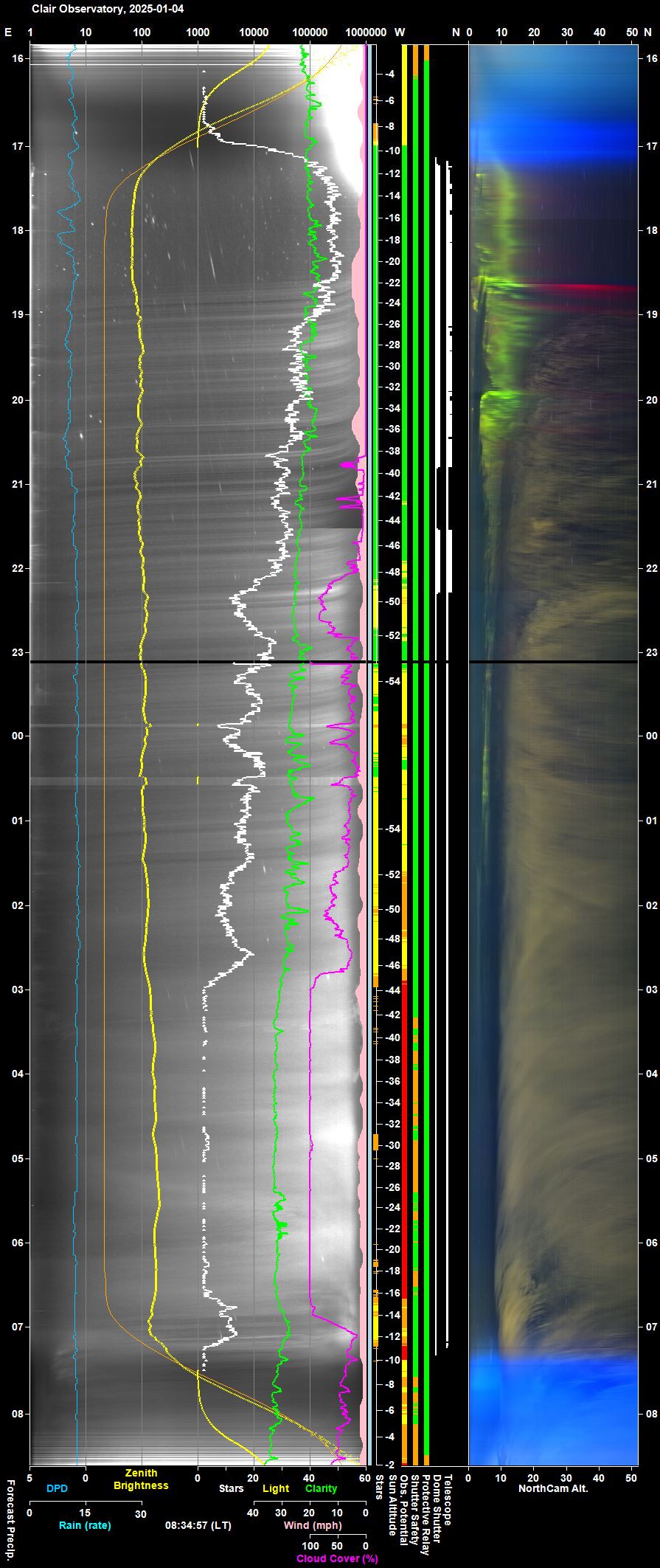

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

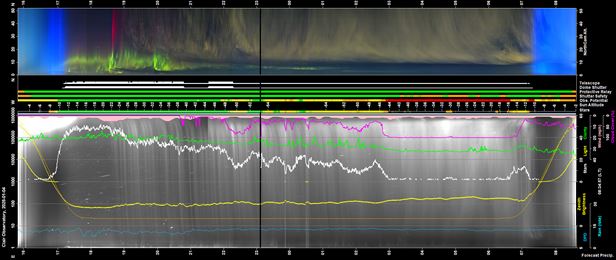

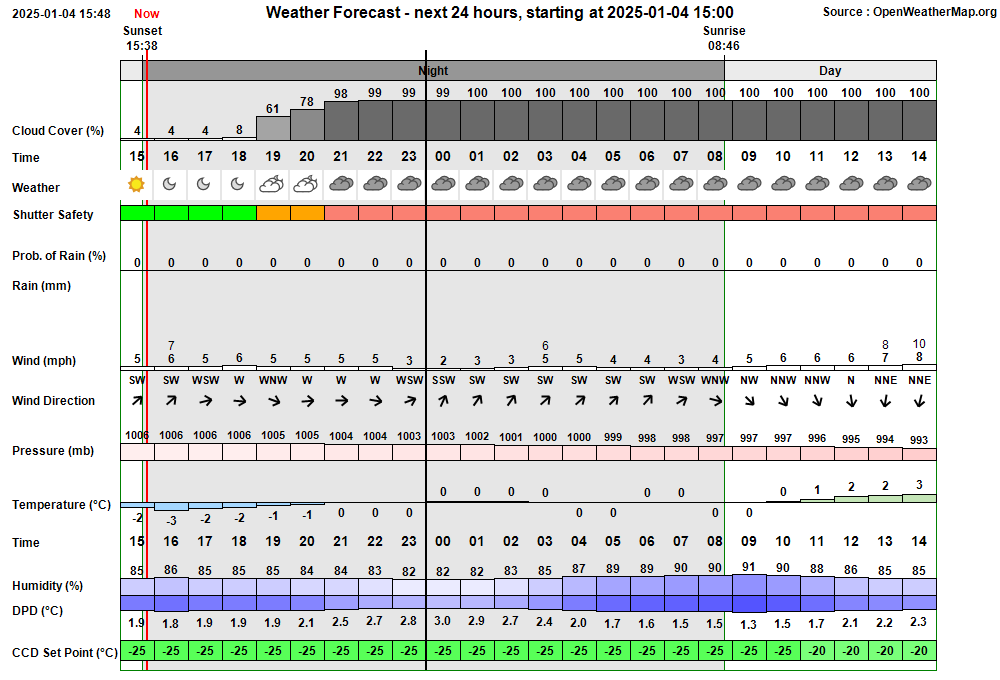

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 16:40:47 Session Monitoring AutoStart monitoring for Live Session opportunity between 16:49 & 06:26 16:40:50   AutoStart Waiting AutoStart waiting till earliest start time at 16:49 16:49:16   AutoStart Delayed Session delayed due to too few stars 17:07:53 Session AutoStarting Session autostarting (17:07) 17:08:15   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 17:08:42   Camera1 Connected SBIG Camera connected (Set point -30°C) 17:08:44 Session Created Session Created (Live, 2025-01-04 S01290, ImageSaveNum: 1290001) 17:08:49   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 17:10:32   Services Started Observatory Services started 17:10:39 Observatory (Auto) Observatory placed in Fully-Automated Mode 17:10:41   AutoStart Delayed Session delayed due to too few stars 17:10:44 Session Pending Session pending (2025-01-04) 17:10:46 Session Initiating Session initiating (2025-01-04) 17:10:55   Camera1 Connected SBIG Camera connected (Set point -30°C) 17:11:02   Plan Requested Observing Plan requested from AstroPlan (1.42.5) 17:11:46   Plan Loaded Observing Plan loaded to queue (Plan ID: 1073) 17:12:29   Telescope Connected Telescope connected (TheSky6) 17:12:53 Session Equilibration Session ready to Open Dome 17:13:39   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 17:14:04 Session Running Session running 17:14:07   Queue Started Observing Queue started (45 targets selected) 17:14:09     Target Started (NrZen) Target started (Focus Field 0, HIP 106) 17:14:24       Dome Unparked Dome unparked 17:17:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:20:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 17:22:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 17:22:43       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 17:24:52       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 17:26:48       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 17:27:09     Target Completed (NrZen) Target completed (Focus Field 0, HIP 106) 17:27:30     Target Started (1/45) Target started (1/45, C/2023 A3 (Tsuchinshan-ATLAS)) 17:31:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:34:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 17:42:03     Target Completed Target completed (1/45, C/2023 A3 (Tsuchinshan-ATLAS)) 17:42:07     Target Started (2/45) Target started (2/45, M31 w/Nova M31 2024-04c?) 17:46:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:49:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 18:05:24     Target Completed Target completed (2/45, M31 w/Nova M31 2024-04c?) 18:05:28     Target Started (3/45) Target started (3/45, UGC 1325 w/SN2024aedt) 18:09:05       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 18:25:56     Target Completed Target completed (3/45, UGC 1325 w/SN2024aedt) 18:26:00     Target Started (4/45) Target started (4/45, WHL0137-08) 18:31:47       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 19:00:37     Target Completed Target completed (4/45, WHL0137-08) 19:00:41     Target Started (5/45) Target started (5/45, Nova Vul 2024) 19:05:06       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 19:08:46     Target Completed Target completed (5/45, Nova Vul 2024) 19:09:15     Target Started (6/45) Target started (6/45, GCVS BL Lac) 19:12:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:15:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 19:19:29     Target Completed Target completed (6/45, GCVS BL Lac) 19:19:33     Target Started (7/45) Target started (7/45, Gliese 65) 19:26:08       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 19:34:08     Target Completed Target completed (7/45, Gliese 65) 19:34:12     Target Started (8/45) Target started (8/45, LEDA 1762640 w/AT2024ety) 19:38:27       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 19:54:33     Target Completed Target completed (8/45, LEDA 1762640 w/AT2024ety) 19:54:50     Target Started (9/45) Target started (9/45, AT2024acem (CV)) 19:58:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:00:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 20:06:54     Target Completed Target completed (9/45, AT2024acem (CV)) 20:06:58     Target Started (10/45) Target started (10/45, M33 w/AT2024afyi) 20:11:00       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:27:08     Target Completed Target completed (10/45, M33 w/AT2024afyi) 20:28:50     Target Started (11/45) Target started (11/45, LEDA 2078778 w/SN2024xqe) 20:31:37       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:40:04       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 20:43:18       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 20:46:49       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 20:48:38     Target Completed Target completed (11/45, LEDA 2078778 w/SN2024xqe) 20:48:40   Queue Paused Queue paused for Session Suspension 20:48:42 Session Suspending Session suspending 20:49:29   Dome Closed Dome closed (Closing time 49s, Zigbee 43s) 20:49:30 Session Suspended Session suspended 21:00:32     Target Cancelled Target cancelled (12/45, GCVS GK Per) due to too few stars 21:20:07     Target Cancelled Target cancelled (13/45, NGC 1332) due to too few stars 21:32:09 Session Resuming Session resuming 21:32:53   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 21:32:56 Session Running Session running 21:32:58   Queue Resumed Observing Queue resumed 21:33:00     Target Started (14/45) Target started (14/45, GCVS TT Ari) 21:41:12     Target Completed Target partially completed (14/45, GCVS TT Ari) 21:41:16     Target Started (15/45) Target started (15/45, GSC 1224:29) 21:53:14     Target Completed Target partially completed (15/45, GSC 1224:29) 21:53:18     Target Started (16/45) Target started (16/45, GCVS RX And) 21:57:16       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 21:58:27       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 22:00:28     Target Completed Target completed (16/45, GCVS RX And) 22:00:32     Target Started (17/45) Target started (17/45, NGC 2170) 22:00:58       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 22:02:07       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 22:04:37       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 22:17:52     Target Completed Target completed (17/45, NGC 2170) 22:17:54   Queue Paused Queue paused for Session Suspension 22:17:56 Session Suspending Session suspending 22:18:44   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 22:18:46 Session Suspended Session suspended 22:34:10     Target Cancelled Target cancelled (18/45, AT2024afqn) due to cloud 22:45:22     Target Cancelled Target cancelled (19/45, GCVS HH And) due to cloud 23:00:23     Target Cancelled Target cancelled (20/45, GCVS U And) due to cloud 23:10:16     Target Cancelled Target cancelled (21/45, WDS GRB 34) due to too few stars 23:29:41     Target Cancelled Target cancelled (22/45, AT2022udd) due to cloud 23:52:01     Target Cancelled Target cancelled (23/45, UGCA 120) due to cloud 00:06:03     Target Cancelled Target cancelled (24/45, GCVS DX Cnc) due to cloud 00:25:57     Target Cancelled Target cancelled (25/45, 29P/Schwassmann-Wachmann) due to cloud 00:46:27     Target Cancelled Target cancelled (26/45, UGC 6363 w/SN2024adix) due to cloud 00:59:35     Target Cancelled Target cancelled (27/45, GCVS RZ LMi) due to cloud 01:20:05     Target Cancelled Target cancelled (28/45, CGCG 116-017 w/SN2024aegm) due to cloud 01:42:25     Target Cancelled Target cancelled (29/45, NGC 2811) due to cloud 02:04:45     Target Cancelled Target cancelled (30/45, NGC 5876 w/SN2024igg) due to cloud 02:27:05     Target Cancelled Target cancelled (31/45, SN 2024xqt) due to cloud 02:49:25     Target Cancelled Target cancelled (32/45, AT2024aeey) due to cloud 03:11:45     Target Cancelled Target cancelled (33/45, AT2024adwa) due to cloud 03:34:05     Target Cancelled Target cancelled (34/45, SN 2024adhf) due to cloud 03:56:25     Target Cancelled Target cancelled (35/45, AT2024aart) due to cloud 04:18:45     Target Cancelled Target cancelled (36/45, LEDA 924001 w/SN2022ztk) due to cloud 04:41:17     Target Cancelled Target cancelled (37/45, NGC 3981) due to cloud 05:02:17     Target Cancelled Target cancelled (38/45, NGC 4722 w/SN2024ablh) due to cloud 05:24:37     Target Cancelled Target cancelled (39/45, NGC 4902) due to cloud 05:46:57     Target Cancelled Target cancelled (40/45, NGC 3672) due to cloud 06:09:17     Target Cancelled Target cancelled (41/45, NGC 4933) due to cloud 06:22:43     Target Cancelled Target cancelled (42/45, T CrB) due to cloud 06:30:38     Target Cancelled Target cancelled (43/45, Vega) due to cloud 06:49:39     Target Cancelled Target cancelled (44/45, IC 1231 w/SN2024aeds) due to cloud 07:11:00     Target Cancelled Target cancelled (45/45, HIP 87937) due to too few stars 07:11:04   Queue Completed Job Queue completed 07:11:06 Session Closing Session closing 07:11:10   Dome Closed Dome already closed (closed at 22:18, closing time 50s, zigbee 44s) 07:12:01   Dome Parked Dome parked (parking time 40s), Az: 90.0 deg 07:12:40   Telescope Parked Telescope parked (parking time 33s total) 07:14:09   Telescope State Handbox reads 'Scope parked Turn scope off.' 07:14:32   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 07:15:58   Services Stopped Night Services stopped 07:16:01 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 07:16:38     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow) 07:17:26     Dome Find Park found (Best Park Az 90.4°) 07:17:32     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.4°) 07:17:34   Dome Parked Dome parked 07:20:36   Dome Charging Dome hasn't started re-charging after 3.1 minutes 07:20:38 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 17:10:44 Yellow Alert Disk Space Free Space on C:\ Drive (47.34 GB) is less than 50 GB 07:16:30 Yellow Alert Disk Space Free Space on C:\ Drive (45.73 GB) is less than 50 GB 07:20:36 Red Alert Dome Charging Dome hasn't started re-charging after 3.1 minutes

Back to Top

Operational Issues (2025-01-04 S1290)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (0)
• Continuous Improvement (1)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• None

Continuous Improvement

• Modify AstroColorCam's  to create separate Day and Night Videos.   Currently AstroColorCam makes a video at Dawn to cover the previous 24 hour period. Proposal is that a video is created at Dawn covering the past Night and a video is created as Dusk covering the past daytime period.  This is likely to require saving NorthCam Images in separate Day and Night folders.
  To do 2025-01-05+ (AstroColorCam 1.2.3)

[ Prev | Next ]
