Session Aims & Highlights (2025-01-08)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.

• Deferred Aims:

  - Dome Slewing & TheSky. Test/Check for Dome Slewing Anomalies & TheSky6/CCDSoft interations when DeviceHub's Fast Polling Rate is reduced from 1.0s  to value of 0.5s  (ie return DeviceHub fast rate polling rate to that previously used in DH 6.6)
  -  Early evening session to acquire latest images of T CrB
  -  Crab Nebula - Acquire 1x1 binned, 60s test exposures of M1 / CM Tau in preparation for Pulsar Project.
  -  2024 PT5. Attempt to image minor planet/space body 2024-PT5 which is set to temporarily captured into an earth orbit  Jan 10th-Jan-14th

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 7.0.3 RC3.4694, MeadeGeneric 1.3.12.519 , UPB 1.5,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S 6.0.6
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.0.3 RC3
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.73.10,  AstroPlan 1.42.5  AstroShCap 1.3.15, AstroGuard 1.10.6   (any new items or versions in bold)
  AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.10.6,  AstroMove 1.14
  AstroWeather 1.27.3, AstroAllSky 3.22.2,  AstroObsCam 1.11.4 (not 1.11.5), AstroColorCam 1.2.2, AstroLaunch 1.11.14

Highlights

• Targets. 31/42 planned targets observations were completed with 3 targets partially completed.  Other planned targets failed due to cloud / session suspension or slightly early termination of session.
•   Dome. There was no issues opening/closing the shutter during session. Dome closed and parked at end of session Ok

Notes

Summary Plots & Logs

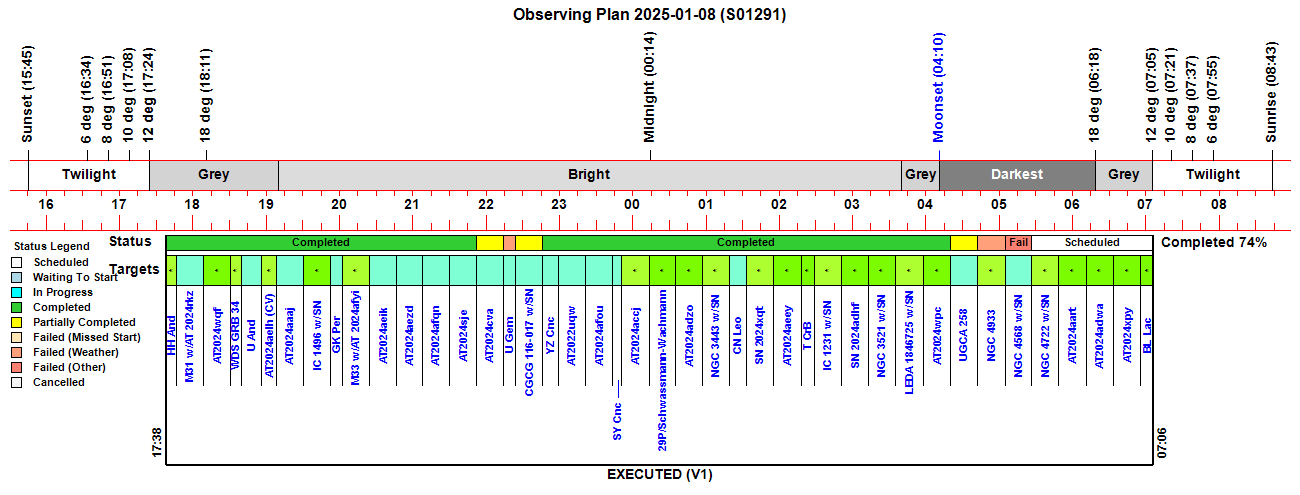

Observing Plan

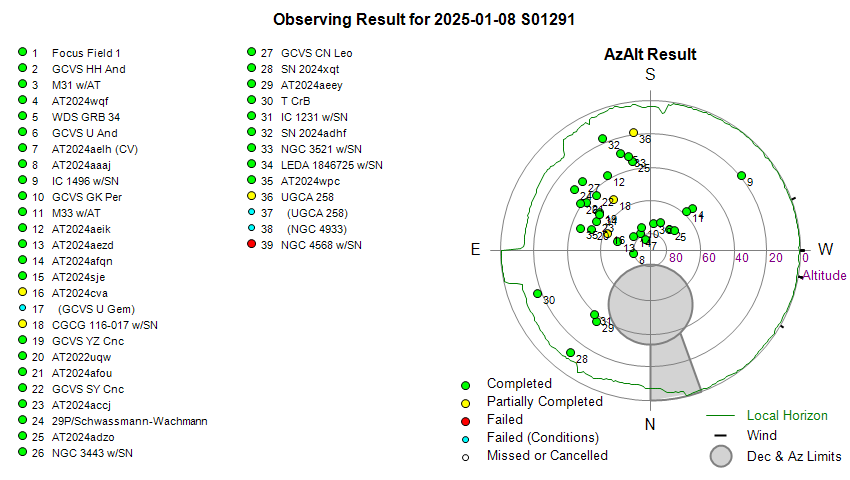

Observing Result

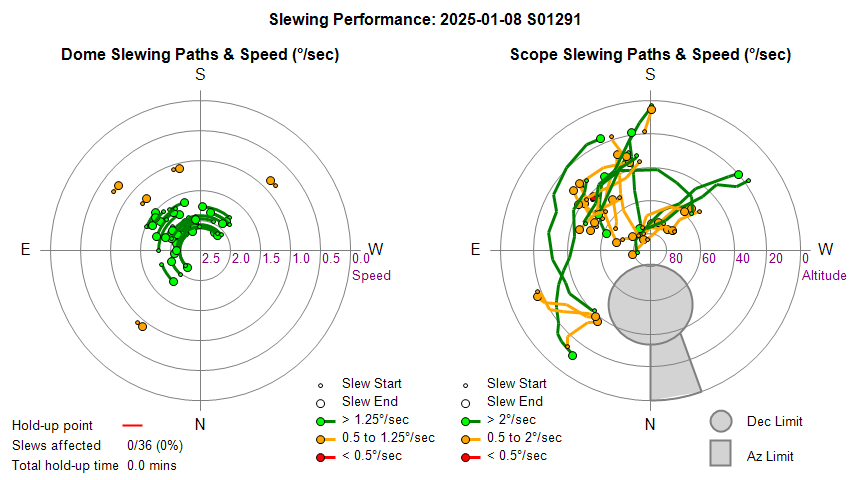

Dome & Scope Slewing Performance

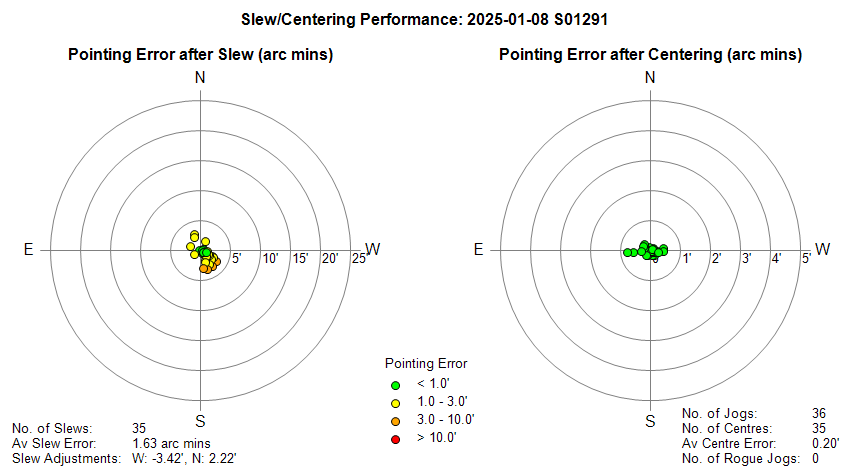

Slew/Centering Performance

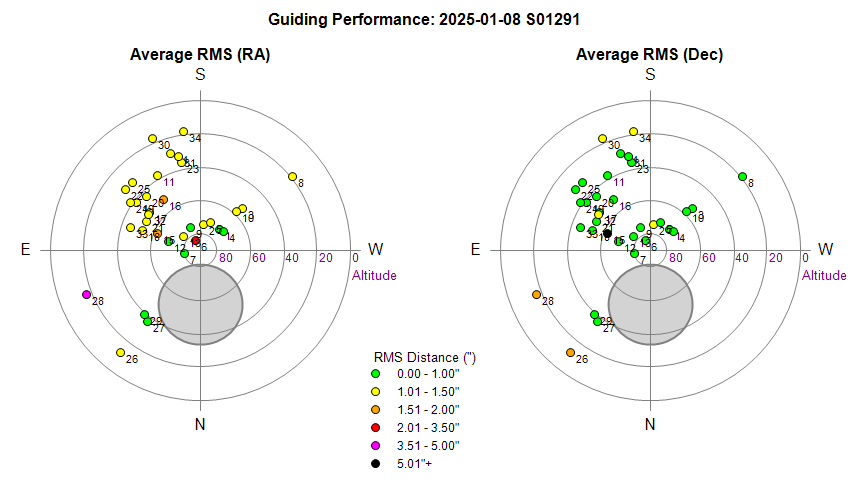

Guiding Performance

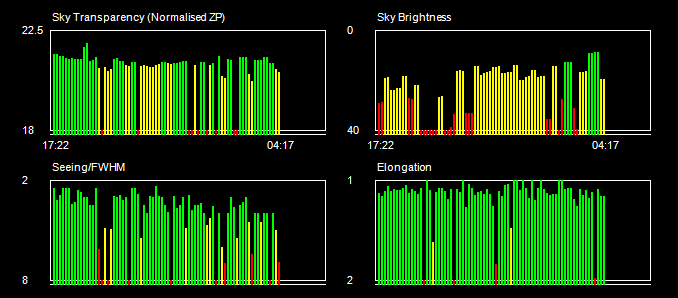

Sky Conditions (Locate Frames)

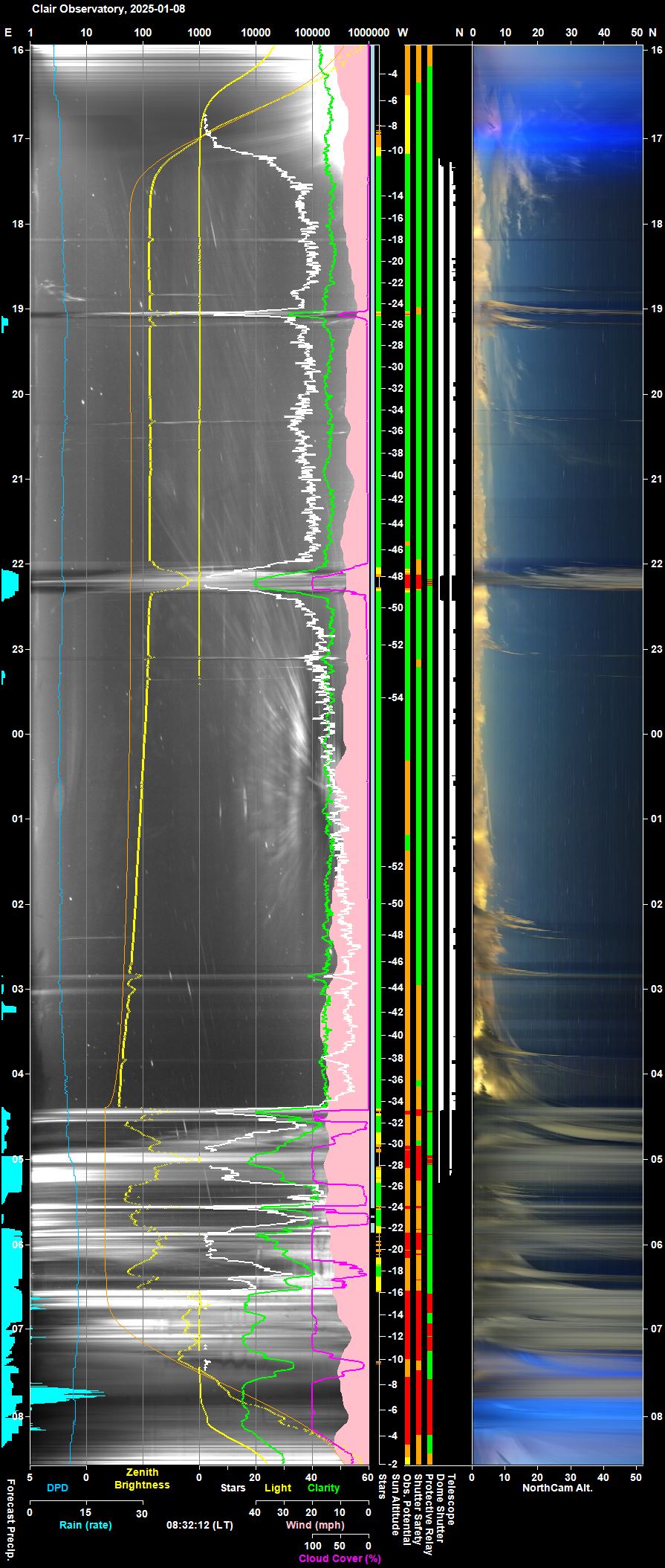

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

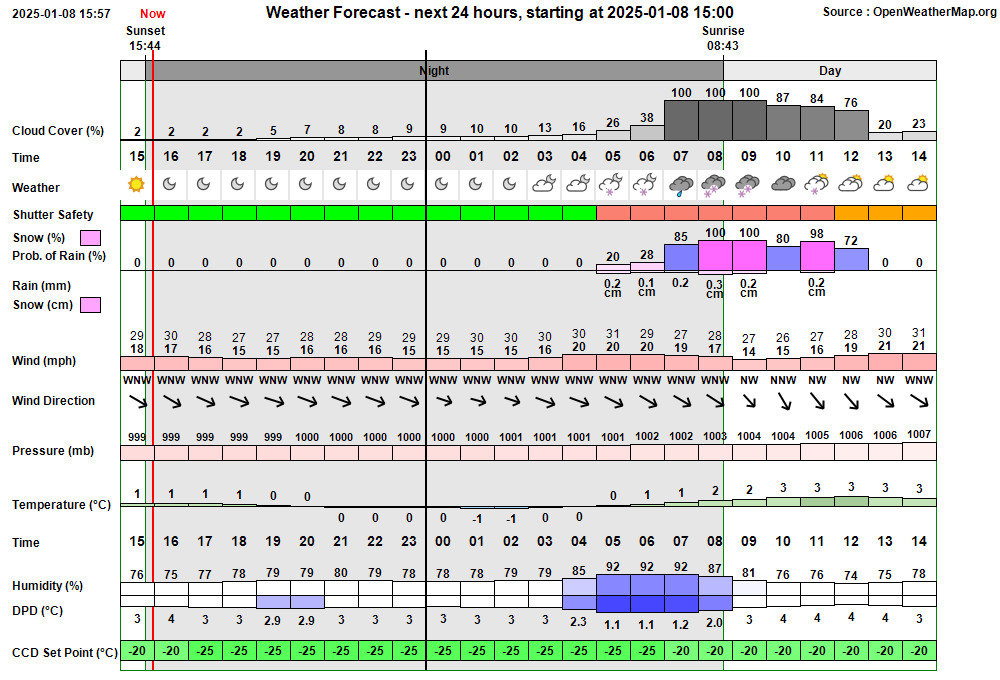

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 15:30:16 Session Monitoring AutoStart monitoring for Live Session opportunity between 16:54 & 06:25 15:30:18   AutoStart Waiting AutoStart waiting till earliest start time at 16:54 16:54:23   AutoStart Delayed Session delayed due to too few stars 17:14:01 Session AutoStarting Session autostarting (17:14) 17:14:22   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 17:14:49   Camera1 Connected SBIG Camera connected (Set point -30°C) 17:14:51 Session Created Session Created (Live, 2025-01-08 S01291, ImageSaveNum: 1291001) 17:14:56   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 17:16:42   Services Started Observatory Services started 17:16:50 Observatory (Auto) Observatory placed in Fully-Automated Mode 17:16:52   AutoStart Delayed Session delayed due to too few stars 17:16:54 Session Pending Session pending (2025-01-08) 17:16:56 Session Initiating Session initiating (2025-01-08) 17:17:02   Camera1 Connected SBIG Camera connected (Set point -25°C) 17:17:09   Plan Requested Observing Plan requested from AstroPlan (1.42.5) 17:17:56   Plan Loaded Observing Plan loaded to queue (Plan ID: 1074) 17:18:36   Telescope Connected Telescope connected (TheSky6) 17:19:00 Session Equilibration Session ready to Open Dome 17:19:46   Dome Opened Dome opened (Opening time 46s, Zigbee 41s) 17:20:11 Session Running Session running 17:20:14   Queue Started Observing Queue started (42 targets selected) 17:20:16     Target Started (NrZen) Target started (Focus Field 1, HIP 4911) 17:20:31       Dome Unparked Dome unparked 17:23:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:26:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 17:28:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 17:29:16       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 17:31:16       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 17:32:54       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 17:33:09     Target Completed (NrZen) Target completed (Focus Field 1, HIP 4911) 17:33:37     Target Started (1/42) Target started (1/42, GCVS HH And) 17:37:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:39:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 17:41:50     Target Completed Target completed (1/42, GCVS HH And) 17:41:54     Target Started (2/42) Target started (2/42, M31 w/AT2024rkz) 17:45:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:48:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 18:04:57     Target Completed Target completed (2/42, M31 w/AT2024rkz) 18:05:01     Target Started (3/42) Target started (3/42, AT2024wqf) 18:08:40       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 18:24:39     Target Completed Target completed (3/42, AT2024wqf) 18:26:14     Target Started (4/42) Target started (4/42, WDS GRB 34) 18:29:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:31:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 18:33:50     Target Completed Target completed (4/42, WDS GRB 34) 18:34:42     Target Started (5/42) Target started (5/42, GCVS U And) 18:37:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:40:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 18:51:31     Target Completed Target completed (5/42, GCVS U And) 18:51:35     Target Started (6/42) Target started (6/42, AT2024aelh (CV)) 18:54:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:57:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 19:03:12     Target Completed Target completed (6/42, AT2024aelh (CV)) 19:03:28     Target Started (7/42) Target started (7/42, AT2024aaaj) 19:04:29       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 19:06:14       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 19:07:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:10:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 19:26:29     Target Completed Target completed (7/42, AT2024aaaj) 19:26:33     Target Started (8/42) Target started (8/42, IC 1496 w/SN2025X) 19:49:14     Target Completed Target completed (8/42, IC 1496 w/SN2025X) 19:49:18     Target Started (9/42) Target started (9/42, GCVS GK Per) 19:52:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:55:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 19:58:51     Target Completed Target completed (9/42, GCVS GK Per) 19:58:55     Target Started (10/42) Target started (10/42, M33 w/AT2024afyi) 20:02:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:05:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 20:21:22     Target Completed Target completed (10/42, M33 w/AT2024afyi) 20:21:26     Target Started (11/42) Target started (11/42, AT2024aeik) 20:25:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:27:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 20:44:00     Target Completed Target completed (11/42, AT2024aeik) 20:44:04     Target Started (12/42) Target started (12/42, AT2024aezd) 20:47:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:49:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 21:06:34     Target Completed Target completed (12/42, AT2024aezd) 21:06:38     Target Started (13/42) Target started (13/42, AT2024afqn) 21:09:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:12:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 21:28:22     Target Completed Target completed (13/42, AT2024afqn) 21:28:26     Target Started (14/42) Target started (14/42, AT2024sje) 21:32:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:35:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 21:51:18     Target Completed Target completed (14/42, AT2024sje) 21:51:22     Target Started (15/42) Target started (15/42, AT2024cva) 21:54:18       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:02:55       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 22:08:40   Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome) 22:08:42   HardSuspend Called Hard Suspend called due to Critical Conditions (threat of rain) 22:08:44     Target Aborted (15/42) Target aborted (15/42, AT2024cva) due to threat of rain 22:08:46   Queue Paused Queue paused for Session Suspension 22:08:48 Session Suspending Session suspending 22:09:36   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 22:09:38 Session Suspended Session suspended 22:18:13     Target Cancelled Target cancelled (16/42, GCVS U Gem) due to cloud 22:25:52 Session Resuming Session resuming 22:26:37   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 22:26:40 Session Running Session running 22:26:42   Queue Resumed Observing Queue resumed 22:26:44     Target Started (17/42) Target started (17/42, CGCG 116-017 w/SN2024aegm) 22:43:02     Target Completed Target partially completed (17/42, CGCG 116-017 w/SN2024aegm) 22:43:06     Target Started (18/42) Target started (18/42, GCVS YZ Cnc) 22:46:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:49:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 22:56:40     Target Completed Target completed (18/42, GCVS YZ Cnc) 22:56:44     Target Started (19/42) Target started (19/42, AT2022uqw) 23:00:50       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 23:17:11     Target Completed Target completed (19/42, AT2022uqw) 23:17:15     Target Started (20/42) Target started (20/42, AT2024afou) 23:20:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:23:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 23:39:33     Target Completed Target completed (20/42, AT2024afou) 23:39:37     Target Started (21/42) Target started (21/42, GCVS SY Cnc) 23:42:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:45:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 23:47:22     Target Completed Target completed (21/42, GCVS SY Cnc) 23:47:26     Target Started (22/42) Target started (22/42, AT2024accj) 23:50:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:53:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 00:10:03     Target Completed Target completed (22/42, AT2024accj) 00:10:07     Target Started (23/42) Target started (23/42, 29P/Schwassmann-Wachmann) 00:13:36       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:29:27     Target Completed Target completed (23/42, 29P/Schwassmann-Wachmann) 00:29:48     Target Started (24/42) Target started (24/42, AT2024adzo) 00:33:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:36:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 00:52:36     Target Completed Target completed (24/42, AT2024adzo) 00:52:40     Target Started (25/42) Target started (25/42, NGC 3443 w/SN2024ehs) 00:56:58       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:13:08     Target Completed Target completed (25/42, NGC 3443 w/SN2024ehs) 01:14:28     Target Started (26/42) Target started (26/42, GCVS CN Leo) 01:19:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:22:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 01:30:55     Target Completed Target completed (26/42, GCVS CN Leo) 01:30:59     Target Started (27/42) Target started (27/42, SN 2024xqt) 01:34:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:37:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 01:54:18     Target Completed Target completed (27/42, SN 2024xqt) 01:54:22     Target Started (28/42) Target started (28/42, AT2024aeey) 02:13:49     Target Completed Target completed (28/42, AT2024aeey) 02:13:53     Target Started (29/42) Target started (29/42, T CrB) 02:17:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:20:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 02:25:35     Target Completed Target completed (29/42, T CrB) 02:25:39     Target Started (30/42) Target started (30/42, IC 1231 w/SN2024aeds) 02:29:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:32:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 02:48:47     Target Completed Target completed (30/42, IC 1231 w/SN2024aeds) 02:48:51     Target Started (31/42) Target started (31/42, SN 2024adhf) 03:09:59     Target Completed Target completed (31/42, SN 2024adhf) 03:10:03     Target Started (32/42) Target started (32/42, NGC 3521 w/SN2024aecx) 03:14:30       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:30:40     Target Completed Target completed (32/42, NGC 3521 w/SN2024aecx) 03:30:44     Target Started (33/42) Target started (33/42, LEDA 1846725 w/SN2024iss) 03:34:09       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:50:33     Target Completed Target completed (33/42, LEDA 1846725 w/SN2024iss) 03:52:47     Target Started (34/42) Target started (34/42, AT2024wpc) 03:56:39       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:13:02     Target Completed Target completed (34/42, AT2024wpc) 04:15:07     Target Started (35/42) Target started (35/42, UGCA 258) 04:19:24       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 04:25:38   Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome) 04:25:40   HardSuspend Called Hard Suspend called due to Critical Conditions (threat of rain) 04:25:42     Target Aborted (35/42) Target aborted (35/42, UGCA 258) due to threat of rain 04:25:44   Queue Paused Queue paused for Session Suspension 04:25:46 Session Suspending Session suspending 04:26:34   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 04:26:36 Session Suspended Session suspended 04:34:23     Target Cancelled Target cancelled (35/42, UGCA 258) due to wind 04:56:43     Target Cancelled Target cancelled (36/42, NGC 4933) due to wind 05:07:08 User Intervention User request to close and finish session 05:07:10   Queue Aborted Job Queue aborted 05:07:13 Session Closing Session closing 05:07:18   Dome Closed Dome already closed (closed at 04:26, closing time 50s, zigbee 44s) 05:08:10   Dome Parked Dome parked (parking time 43s), Az: 90.0 deg 05:08:42   Telescope Parked Telescope parked (parking time 26s total) 05:10:12   Telescope State Handbox reads 'Scope parked Turn scope off.' 05:10:34   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:12:00   Services Stopped Night Services stopped 05:12:03 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 05:12:46     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow) 05:13:32     Dome Find Park found (Best Park Az 90.8°) 05:13:38     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.8°) 05:13:40   Dome Parked Dome parked 05:16:39   Dome Charging Dome hasn't started re-charging after 3.0 minutes 05:16:41 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 17:16:51 Yellow Alert Disk Space Free Space on C:\ Drive (41.83 GB) is less than 50 GB 05:12:38 Yellow Alert Disk Space Free Space on C:\ Drive (39.48 GB) is less than 50 GB 05:16:39 Yellow Alert Dome Charging Dome hasn't started re-charging after 3.0 minutes

Back to Top

Operational Issues (2025-01-08 S1291)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (0)
• Continuous Improvement (1)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• None

Continuous Improvement

• Implement a second 'Too Few Stars' setting that can be used to perform a hard suspend.  During winter conditions, snow can occur with necessarily triggering the Observatory's Rain Sensor, and can occur on the wind ahead of the clouds that source the snow. The current too few stars is used to trigger a soft suspend .   Proposal is to either add a second 'Too Few Stars field that triggers a hard suspend or have add a checkbox to indicate that the Too Few Stars Threshold is used as Hard Suspend rather than just a soft suspend.
  To do 2025-01-09+ (AstroMain)
