Session Aims & Highlights (2025-01-10)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. MeadeGeneric. Test out new 1.3.12 release version of the MeadeGeneric Telescope Driver

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 7.0.3 RC3.4694, MeadeGeneric 1.3.12.522 , UPB 1.5,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S 6.0.6
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.0.3 RC3
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.73.10,  AstroPlan 1.42.5  AstroShCap 1.3.15, AstroGuard 1.10.6   (any new items or versions in bold)
  AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.10.6,  AstroMove 1.14
  AstroWeather 1.27.3, AstroAllSky 3.22.2,  AstroObsCam 1.11.4 (not 1.11.5), AstroColorCam 1.2.2, AstroLaunch 1.11.14

Highlights

• Targets. 46/47 planned targets observations were completed with 1 target partially completed.
•   MeadeGeneric. New 1.3.12 version of MeadeGeneric Telescope Driver performed fine for entire session with no problems. Telescope connection was successfull made on 1st attempt using 6000ms serial timeout (thus resolving a long standing issue).
•   Dome. There was no issues opening/closing the shutter during session. Dome closed and parked at end of session Ok

Notes

• Aurora Images from 2020-01-10  >>



Summary Plots & Logs

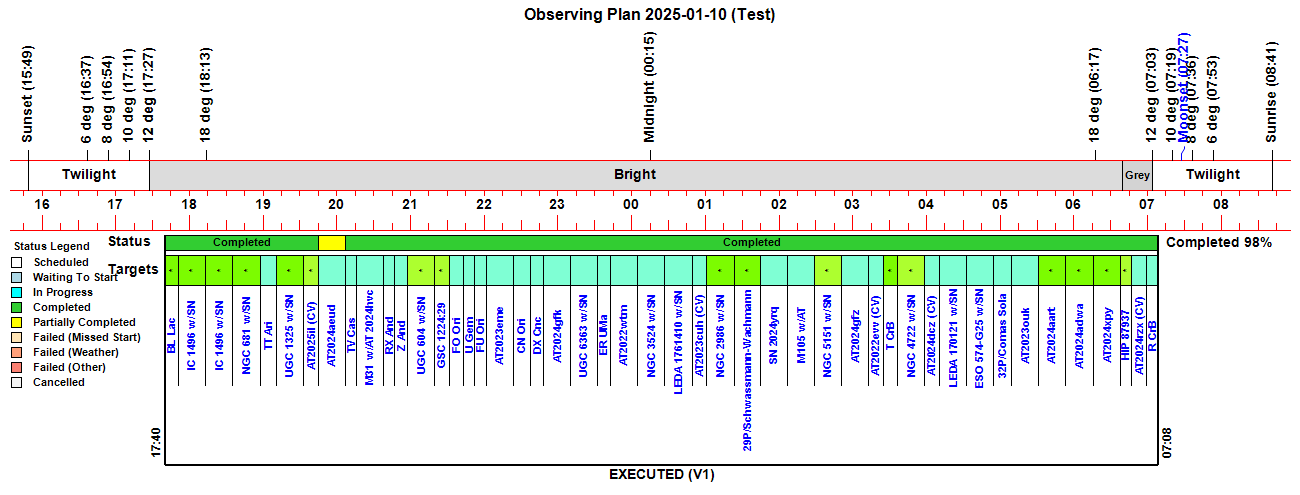

Observing Plan

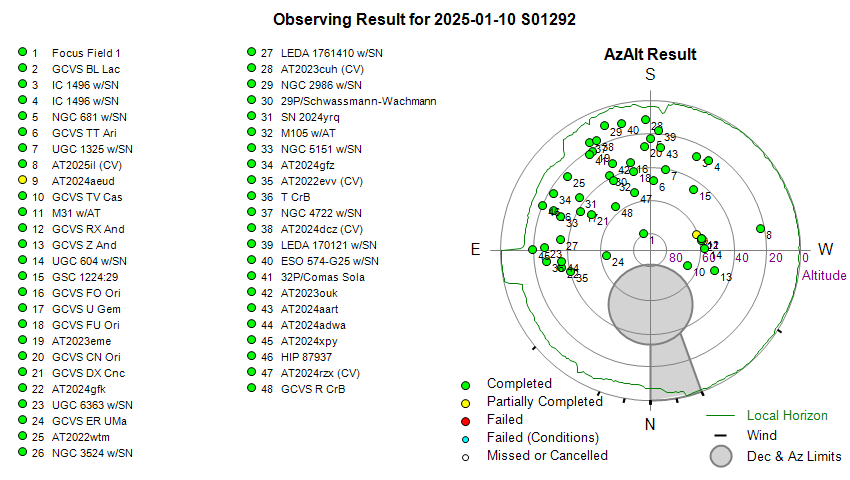

Observing Result

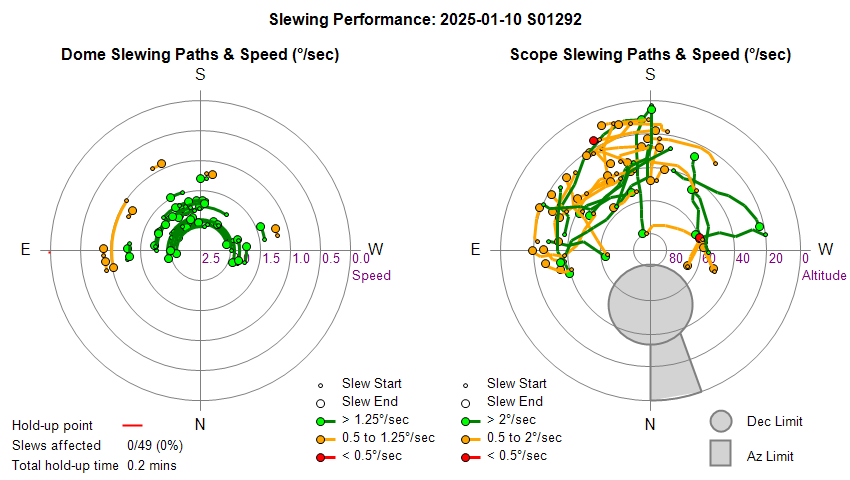

Dome & Scope Slewing Performance

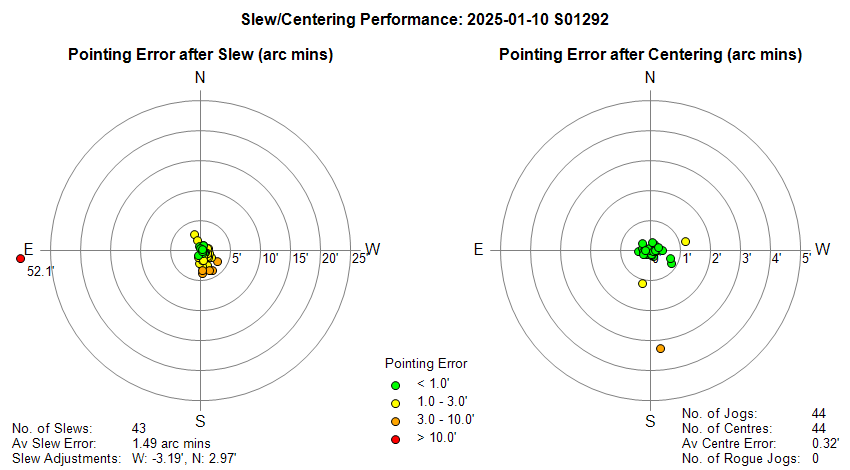

Slew/Centering Performance

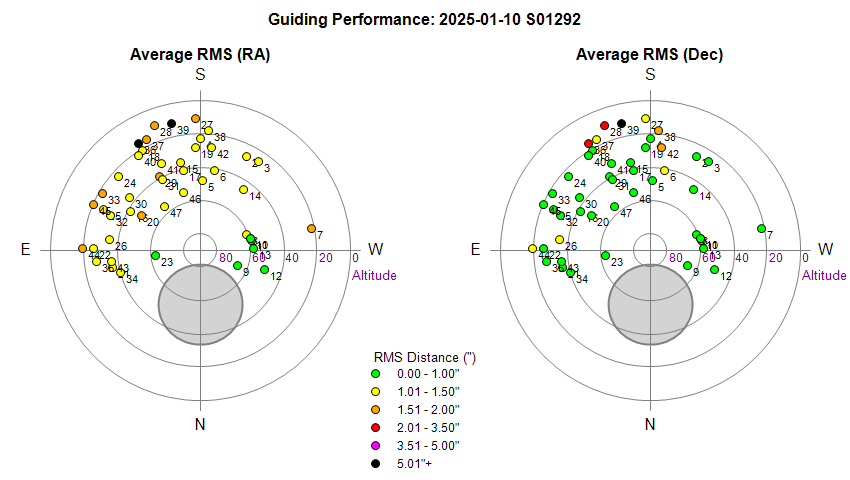

Guiding Performance

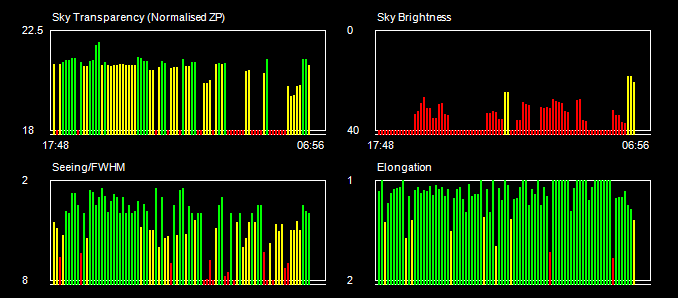

Sky Conditions (Locate Frames)

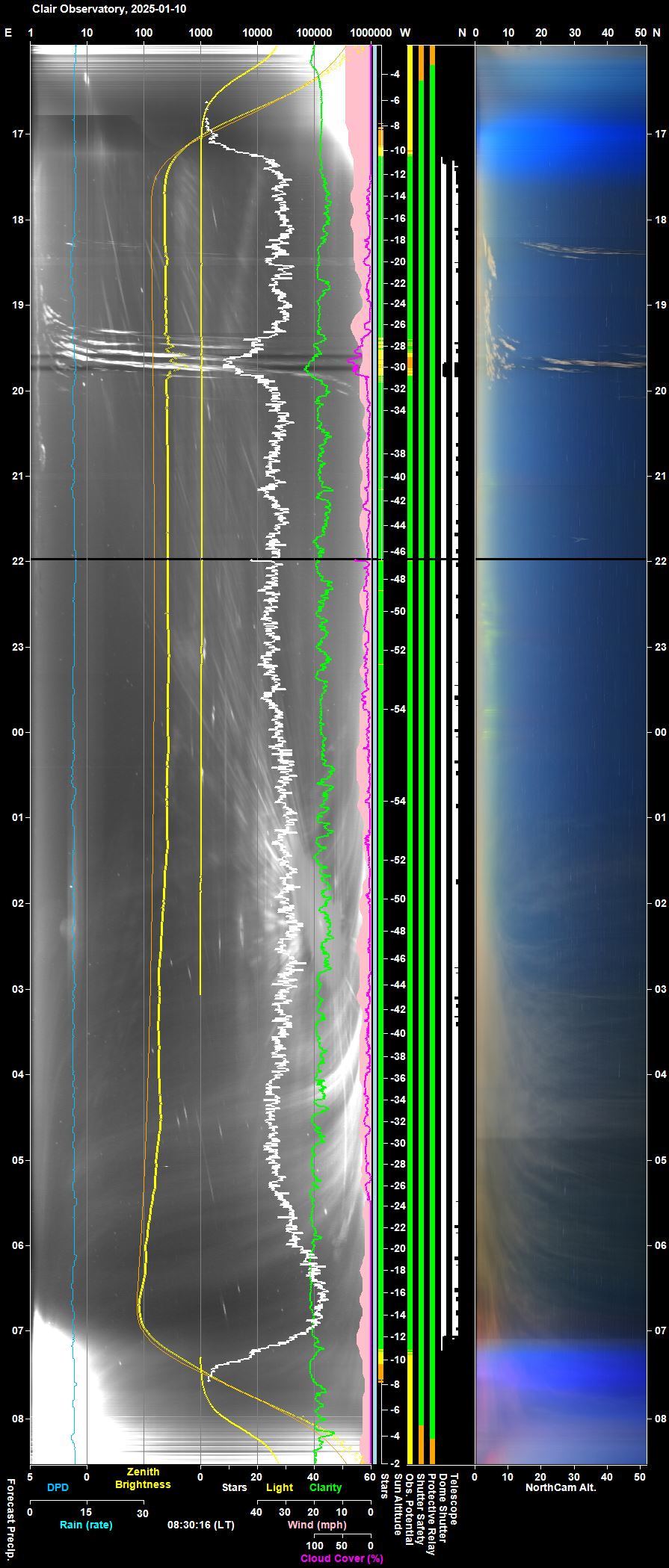

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 16:58:49 Session Monitoring AutoStart monitoring for Live Session opportunity between 16:58 & 06:23 16:58:49   AutoStart Delayed Session delayed due to too few stars 17:15:56 Session AutoStarting Session autostarting (17:15) 17:16:17   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 17:16:44   Camera1 Connected SBIG Camera connected (Set point -25°C) 17:16:46 Session Created Session Created (Live, 2025-01-10 S01292, ImageSaveNum: 1292001) 17:16:52   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 17:18:35   Services Started Observatory Services started 17:18:43 Observatory (Auto) Observatory placed in Fully-Automated Mode 17:18:45   AutoStart Delayed Session delayed due to too few stars 17:18:47 Session Pending Session pending (2025-01-10) 17:18:49 Session Initiating Session initiating (2025-01-10) 17:18:58   Camera1 Connected SBIG Camera connected (Set point -25°C) 17:19:05   Plan Requested Observing Plan requested from AstroPlan (1.42.5) 17:19:39   Plan Loaded Observing Plan loaded to queue (Plan ID: 1075) 17:20:22   Telescope Connected Telescope connected (TheSky6) 17:20:47 Session Equilibration Session ready to Open Dome 17:21:32   Dome Opened Dome opened (Opening time 46s, Zigbee 41s) 17:22:07 Session Running Session running 17:22:10   Queue Started Observing Queue started (47 targets selected) 17:22:13     Target Started (NrZen) Target started (Focus Field 1, HIP 4911) 17:22:27       Dome Unparked Dome unparked 17:26:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:29:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 17:31:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 17:31:29       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 17:33:22       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 17:35:15       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 17:35:34     Target Completed (NrZen) Target completed (Focus Field 1, HIP 4911) 17:35:38     Target Started (1/47) Target started (1/47, GCVS BL Lac) 17:39:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:41:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 17:45:45     Target Completed Target completed (1/47, GCVS BL Lac) 17:45:50     Target Started (2/47) Target started (2/47, IC 1496 w/SN2025X) 17:49:44       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 18:06:09     Target Completed Target completed (2/47, IC 1496 w/SN2025X) 18:08:11     Target Started (3/47) Target started (3/47, IC 1496 w/SN2025X) 18:11:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:14:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 18:30:13     Target Completed Target completed (3/47, IC 1496 w/SN2025X) 18:30:31     Target Started (4/47) Target started (4/47, NGC 681 w/SN2024abup) 18:34:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:37:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 18:53:55     Target Completed Target completed (4/47, NGC 681 w/SN2024abup) 18:53:59     Target Started (5/47) Target started (5/47, GCVS TT Ari) 18:57:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:00:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 19:07:11     Target Completed Target completed (5/47, GCVS TT Ari) 19:07:16     Target Started (6/47) Target started (6/47, UGC 1325 w/SN2024aedt) 19:10:30       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 19:26:36     Target Completed Target completed (6/47, UGC 1325 w/SN2024aedt) 19:28:07     Target Started (7/47) Target started (7/47, AT2025il (CV)) 19:31:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:34:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 19:38:49       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 19:40:39     Target Completed Target completed (7/47, AT2025il (CV)) 19:40:41   Queue Paused Queue paused for Session Suspension 19:40:44 Session Suspending Session suspending 19:41:34   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 19:41:36 Session Suspended Session suspended 19:50:20 Session Resuming Session resuming 19:51:05   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 19:51:06 Session Running Session running 19:51:09   Queue Resumed Observing Queue resumed 19:51:11     Target Started (8/47) Target started (8/47, AT2024aeud) 20:06:42     Target Completed Target partially completed (8/47, AT2024aeud) 20:06:46     Target Started (9/47) Target started (9/47, GCVS TV Cas) 20:12:22     Target Completed Target completed (9/47, GCVS TV Cas) 20:12:26     Target Started (10/47) Target started (10/47, M31 w/AT2024hvc) 20:15:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:18:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 20:34:24     Target Completed Target completed (10/47, M31 w/AT2024hvc) 20:34:28     Target Started (11/47) Target started (11/47, GCVS RX And) 20:37:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:40:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 20:43:49     Target Completed Target completed (11/47, GCVS RX And) 20:43:53     Target Started (12/47) Target started (12/47, GCVS Z And) 20:47:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:49:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 20:54:30     Target Completed Target completed (12/47, GCVS Z And) 20:54:34     Target Started (13/47) Target started (13/47, UGC 604 w/SN2024advj) 20:57:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:00:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 21:16:19     Target Completed Target completed (13/47, UGC 604 w/SN2024advj) 21:16:23     Target Started (14/47) Target started (14/47, GSC 1224:29) 21:20:36       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 21:27:26     Target Completed Target completed (14/47, GSC 1224:29) 21:27:30     Target Started (15/47) Target started (15/47, GCVS FO Ori) 21:31:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:34:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 21:39:05     Target Completed Target completed (15/47, GCVS FO Ori) 21:39:10     Target Started (16/47) Target started (16/47, GCVS U Gem) 21:48:22     Target Completed Target completed (16/47, GCVS U Gem) 21:48:26     Target Started (17/47) Target started (17/47, GCVS FU Ori) 21:52:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:54:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 21:58:06     Target Completed Target completed (17/47, GCVS FU Ori) 21:58:10     Target Started (18/47) Target started (18/47, AT2023eme) 22:01:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:04:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 22:20:47     Target Completed Target completed (18/47, AT2023eme) 22:20:51     Target Started (19/47) Target started (19/47, GCVS CN Ori) 22:24:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:26:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 22:34:22     Target Completed Target completed (19/47, GCVS CN Ori) 22:34:27     Target Started (20/47) Target started (20/47, GCVS DX Cnc) 22:37:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:40:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 22:45:58     Target Completed Target completed (20/47, GCVS DX Cnc) 22:46:02     Target Started (21/47) Target started (21/47, AT2024gfk) 23:07:54     Target Completed Target completed (21/47, AT2024gfk) 23:07:58     Target Started (22/47) Target started (22/47, UGC 6363 w/SN2024adix) 23:11:16       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:27:13     Target Completed Target completed (22/47, UGC 6363 w/SN2024adix) 23:27:35     Target Started (23/47) Target started (23/47, GCVS ER UMa) 23:30:59       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:35:07     Target Completed Target completed (23/47, GCVS ER UMa) 23:37:53     Target Started (24/47) Target started (24/47, AT2022wtm) 23:42:11       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:58:33     Target Completed Target completed (24/47, AT2022wtm) 00:00:13     Target Started (25/47) Target started (25/47, NGC 3524 w/SN2024inv) 00:04:09       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:20:12     Target Completed Target completed (25/47, NGC 3524 w/SN2024inv) 00:22:13     Target Started (26/47) Target started (26/47, LEDA 1761410 w/SN2023bip) 00:27:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:30:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 00:47:16     Target Completed Target completed (26/47, LEDA 1761410 w/SN2023bip) 00:47:20     Target Started (27/47) Target started (27/47, AT2023cuh (CV)) 00:51:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:53:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 00:59:56     Target Completed Target completed (27/47, AT2023cuh (CV)) 01:00:00     Target Started (28/47) Target started (28/47, NGC 2986 w/SN2025gj) 01:21:42     Target Completed Target completed (28/47, NGC 2986 w/SN2025gj) 01:21:46     Target Started (29/47) Target started (29/47, 29P/Schwassmann-Wachmann) 01:25:00       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 01:40:24     Target Completed Target completed (29/47, 29P/Schwassmann-Wachmann) 01:40:28     Target Started (30/47) Target started (30/47, SN 2024yrq) 01:43:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:47:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 02:03:17     Target Completed Target completed (30/47, SN 2024yrq) 02:03:22     Target Started (31/47) Target started (31/47, M105 w/AT2024bpy) 02:26:19     Target Completed Target completed (31/47, M105 w/AT2024bpy) 02:26:23     Target Started (32/47) Target started (32/47, NGC 5151 w/SN2024acnr) 02:29:42       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 02:45:43     Target Completed Target completed (32/47, NGC 5151 w/SN2024acnr) 02:46:07     Target Started (33/47) Target started (33/47, AT2024gfz) 02:49:48       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:06:02     Target Completed Target completed (33/47, AT2024gfz) 03:08:07     Target Started (34/47) Target started (34/47, AT2022evv (CV)) 03:11:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:13:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 03:19:37     Target Completed Target completed (34/47, AT2022evv (CV)) 03:20:27     Target Started (35/47) Target started (35/47, T CrB) 03:23:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:26:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 03:31:23     Target Completed Target completed (35/47, T CrB) 03:31:27     Target Started (36/47) Target started (36/47, NGC 4722 w/SN2024ablh) 03:56:10     Target Completed Target completed (36/47, NGC 4722 w/SN2024ablh) 03:56:14     Target Started (37/47) Target started (37/47, AT2024dcz (CV)) 04:08:25     Target Completed Target completed (37/47, AT2024dcz (CV)) 04:08:29     Target Started (38/47) Target started (38/47, LEDA 170121 w/SN2023exm) 04:30:31     Target Completed Target completed (38/47, LEDA 170121 w/SN2023exm) 04:30:35     Target Started (39/47) Target started (39/47, ESO 574-G25 w/SN2023hro) 04:52:13     Target Completed Target completed (39/47, ESO 574-G25 w/SN2023hro) 04:52:17     Target Started (40/47) Target started (40/47, 32P/Comas Sola) 05:06:02     Target Completed Target completed (40/47, 32P/Comas Sola) 05:06:06     Target Started (41/47) Target started (41/47, AT2023ouk) 05:09:56       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 05:26:10     Target Completed Target completed (41/47, AT2023ouk) 05:26:14     Target Started (42/47) Target started (42/47, AT2024aart) 05:30:11       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 05:46:27     Target Completed Target completed (42/47, AT2024aart) 05:48:33     Target Started (43/47) Target started (43/47, AT2024adwa) 05:51:53       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 06:07:58     Target Completed Target completed (43/47, AT2024adwa) 06:10:53     Target Started (44/47) Target started (44/47, AT2024xpy) 06:11:04       Dome Unparked Dome unparked 06:14:12       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 06:30:19     Target Completed Target completed (44/47, AT2024xpy) 06:33:13     Target Started (45/47) Target started (45/47, HIP 87937) 06:36:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:39:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 06:42:44     Target Completed Target completed (45/47, HIP 87937) 06:42:48     Target Started (46/47) Target started (46/47, AT2024rzx (CV)) 06:46:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:49:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 06:55:16     Target Completed Target completed (46/47, AT2024rzx (CV)) 06:55:20     Target Started (47/47) Target started (47/47, GCVS R CrB) 06:58:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 07:00:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 07:03:44     Target Completed Target completed (47/47, GCVS R CrB) 07:03:46   Queue Completed Job Queue completed 07:03:48 Session Closing Session closing 07:04:40   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 07:05:17   Dome Parked Dome parked (parking time 28s), Az: 90.0 deg 07:06:03   Telescope Parked Telescope parked (parking time 39s total) 07:06:26   Telescope State Handbox reads 'Scope parked Turn scope off.' 07:07:05   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 07:08:28   Services Stopped Night Services stopped 07:08:31 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 07:10:08     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow) 07:10:53     Dome Find Park found (Best Park Az 90.4°) 07:11:00     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.4°) 07:11:02   Dome Parked Dome parked 07:14:02   Dome Charging Dome hasn't started re-charging after 3.0 minutes 07:14:04 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 17:18:47 Yellow Alert Disk Space Free Space on C:\ Drive (35.90 GB) is less than 50 GB 07:09:58 Yellow Alert Disk Space Free Space on C:\ Drive (47.10 GB) is less than 50 GB 07:14:02 Red Alert Dome Charging Dome hasn't started re-charging after 3.0 minutes

Back to Top

Operational Issues (2025-01-10 S1292)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (1)
• Continuous Improvement (0)
• Figures (2)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

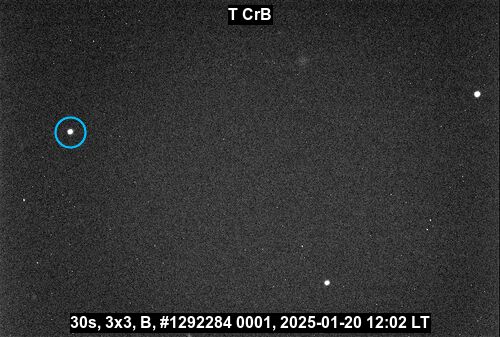

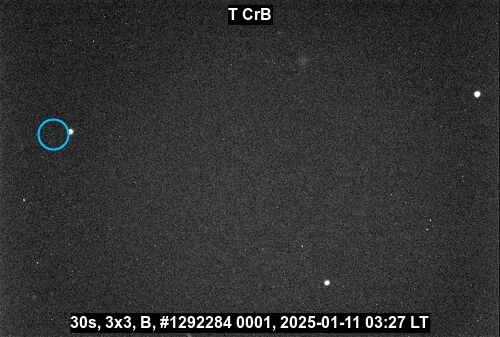

• Target Circle for T CrB is not precisely positioned on the JPG Picture. Blue target circle for T CrB isn't positioned on target object on JPG (main frames) pictures (see Fig 1). Target Circle is positioned ok on Locate Frame 1 and 2, but is positioned on the Focus Frame picture and subsequent Main Frame pictures (Target ID 3300, frames starting from #1292282). The problem isn't shown by other recent observations of T CrB.   The same problem was seen by U Mon target in the following session (S1293).  Problem is due to a slight shift in telescope pointing since the final locate frame was taken and a failure to match stars and determine the necessary image shift for correcting the target X/Y position.  Investigating shows a bug in Store BrightestStars for Locate Frame 2 (1292283),  the brightest star is not listed in the table of BrightestStars dumped to log file. and the 6th object seems to be a duplicate of the 5th object (both have the same X,Y & RawMag). Fixed in AstroMain 3.73.11 by ensuring the the 0th inventory star (brightest star) is included in the generated array of BrightestStars in Locate Frame (see Fig 2).
  Fixed 2025-01-21 (AstroMain 3.73.11)

Continuous Improvement

• None
