Session Aims & Highlights (2025-01-11)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 7.0.3 RC3.4694, MeadeGeneric 1.3.12.522 , UPB 1.5,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S 6.0.6
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.0.3 RC3
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.73.10,  AstroPlan 1.42.5  AstroShCap 1.3.15, AstroGuard 1.10.6   (any new items or versions in bold)
  AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.10.6,  AstroMove 1.14
  AstroWeather 1.27.3, AstroAllSky 3.22.2,  AstroObsCam 1.11.4 (not 1.11.5), AstroColorCam 1.2.2, AstroLaunch 1.11.14

Highlights

• Targets. 44/46 planned targets observations were completed with 1 target partially completed. Remaining target failed due to cloud/session suspension.
•   Dome. There was no issues opening/closing the shutter during session. Dome closed and parked at end of session Ok

Notes

Summary Plots & Logs

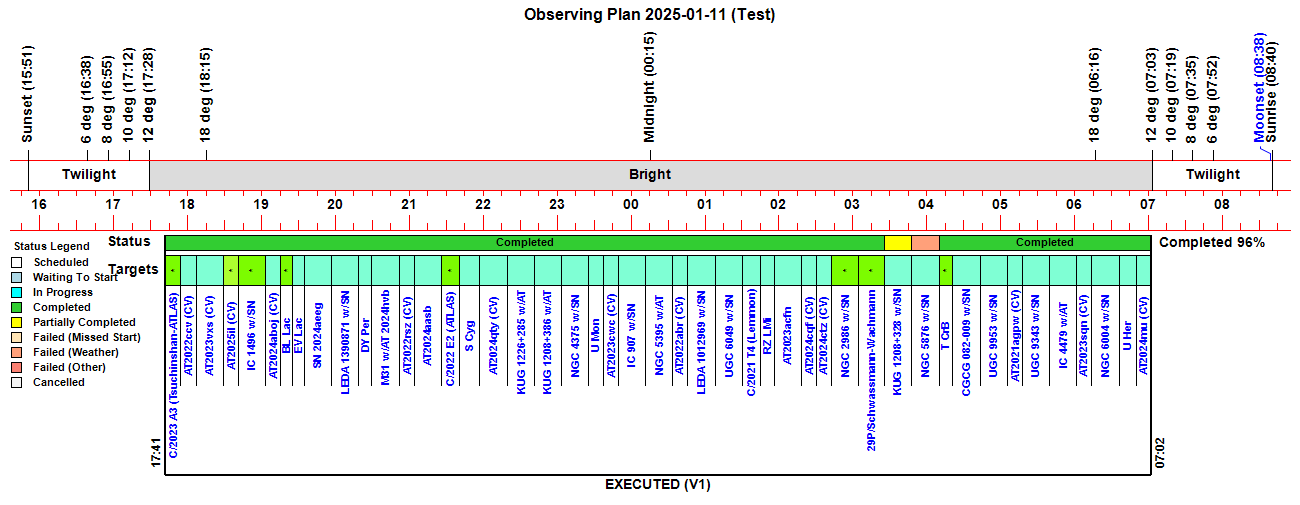

Observing Plan

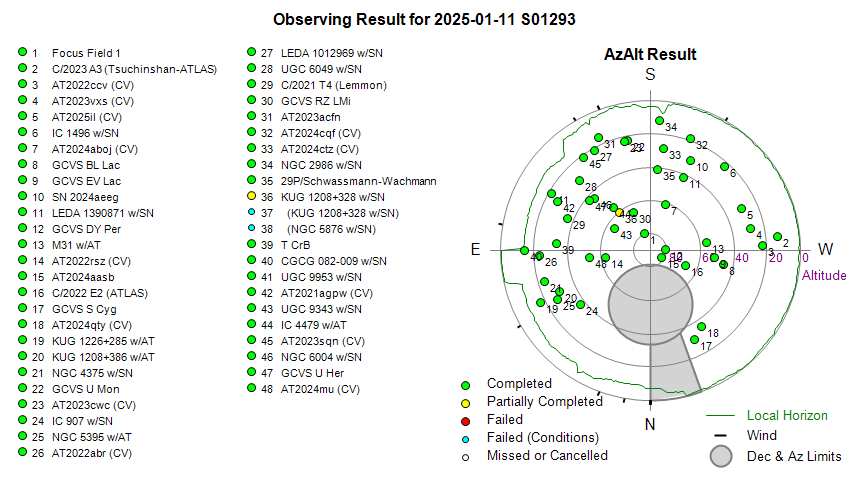

Observing Result

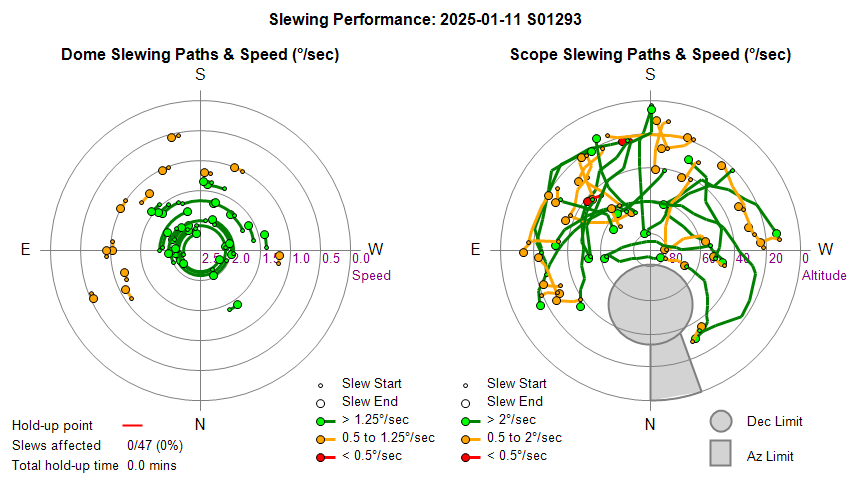

Dome & Scope Slewing Performance

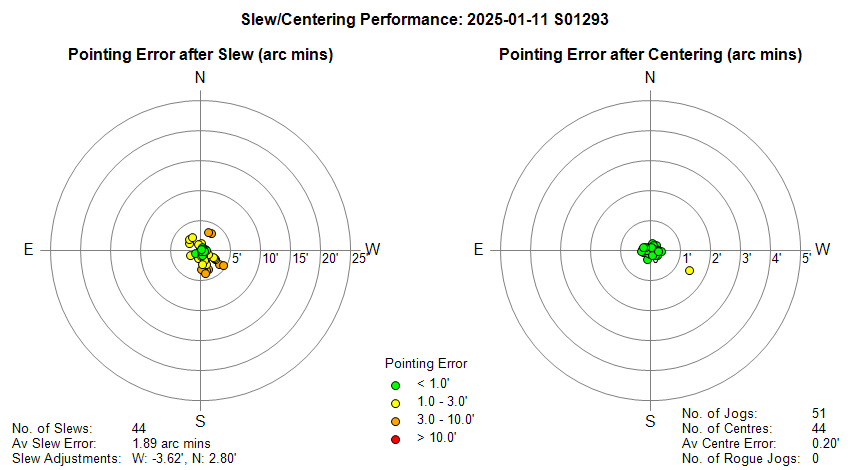

Slew/Centering Performance

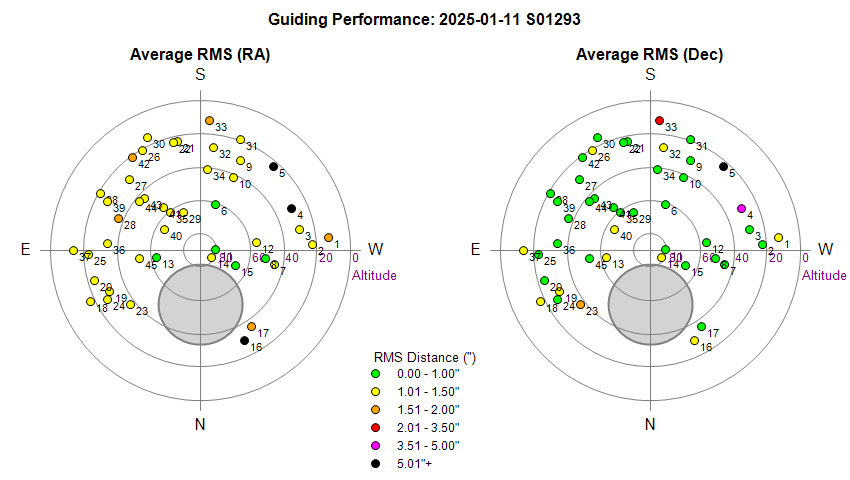

Guiding Performance

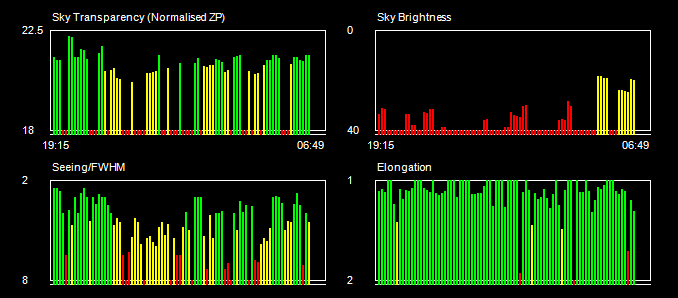

Sky Conditions (Locate Frames)

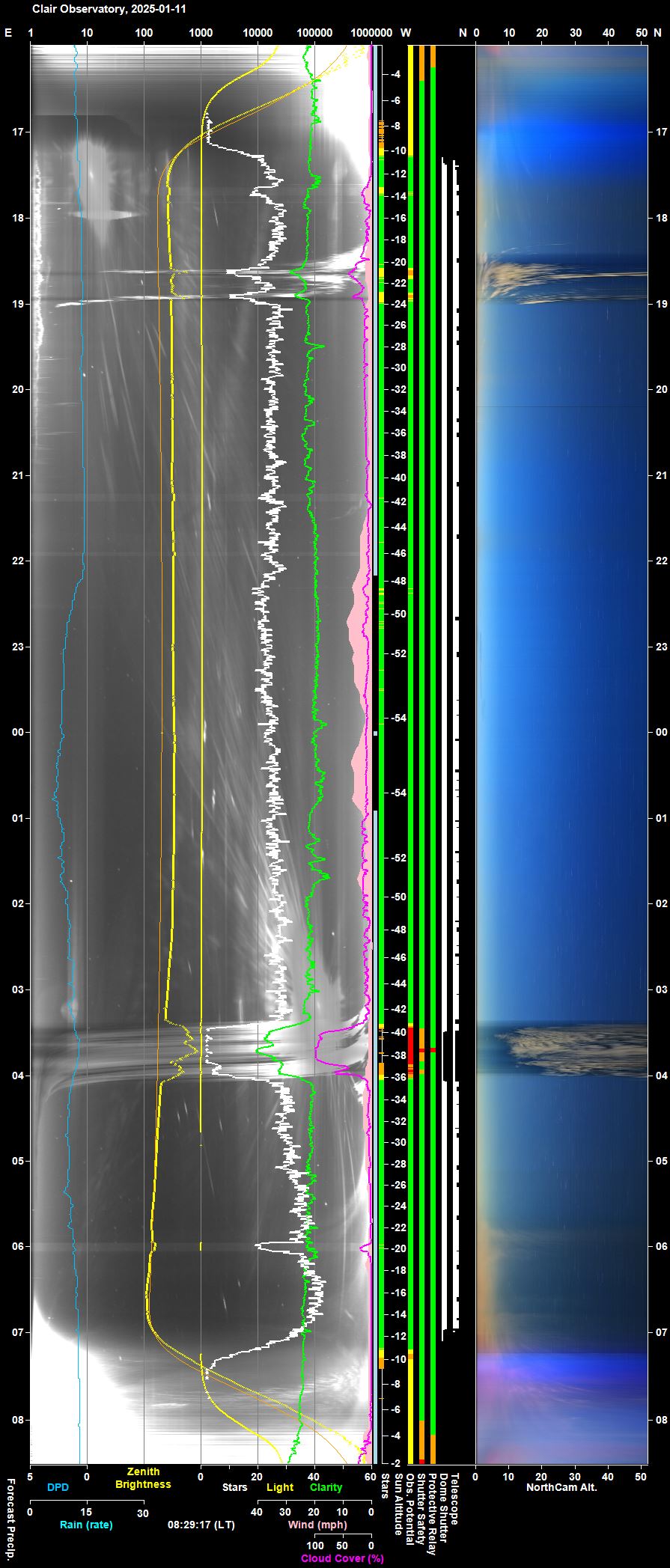

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

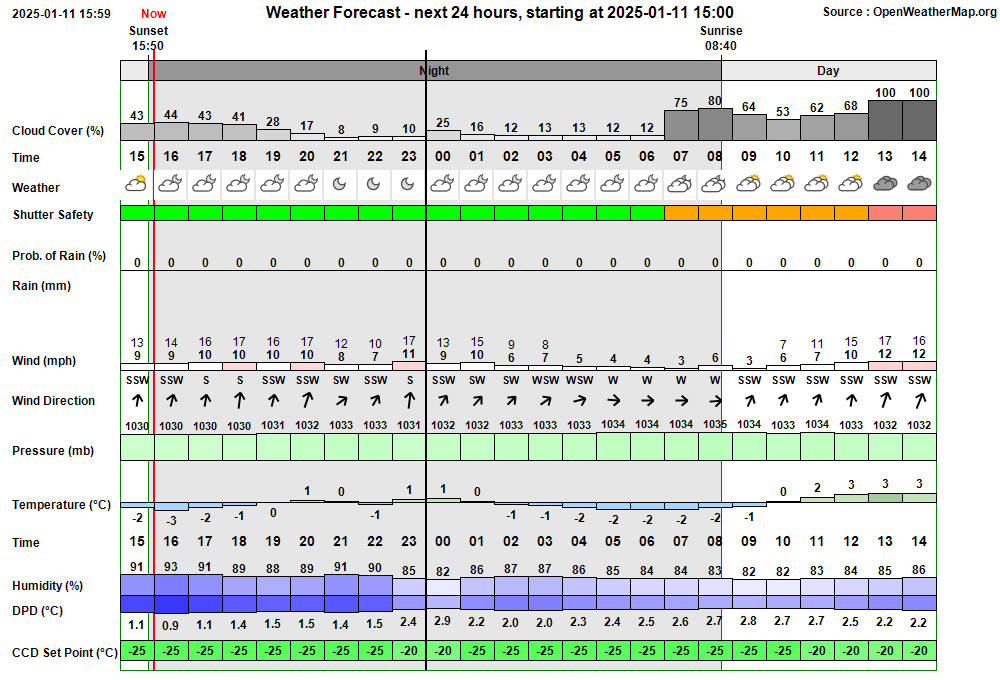

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 16:26:23 Session Monitoring AutoStart monitoring for Live Session opportunity between 16:58 & 06:23 16:26:26   AutoStart Waiting AutoStart waiting till earliest start time at 16:58 16:58:40   AutoStart Delayed Session delayed due to too few stars 17:17:08 Session AutoStarting Session autostarting (17:17) 17:17:29   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 17:17:56   Camera1 Connected SBIG Camera connected (Set point -30°C) 17:17:58 Session Created Session Created (Live, 2025-01-11 S01293, ImageSaveNum: 1293001) 17:18:04   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 17:19:47   Services Started Observatory Services started 17:19:55 Observatory (Auto) Observatory placed in Fully-Automated Mode 17:19:57   AutoStart Delayed Session delayed due to too few stars 17:19:58 Session Pending Session pending (2025-01-11) 17:20:00 Session Initiating Session initiating (2025-01-11) 17:20:10   Camera1 Connected SBIG Camera connected (Set point -30°C) 17:20:17   Plan Requested Observing Plan requested from AstroPlan (1.42.5) 17:20:53   Plan Loaded Observing Plan loaded to queue (Plan ID: 1076) 17:21:34   Telescope Connected Telescope connected (TheSky6) 17:21:58 Session Equilibration Session ready to Open Dome 17:22:44   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 17:23:18 Session Running Session running 17:23:21   Queue Started Observing Queue started (46 targets selected) 17:23:24     Target Started (NrZen) Target started (Focus Field 1, HIP 4911) 17:23:38       Dome Unparked Dome unparked 17:26:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:30:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 17:33:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 17:33:07       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 17:35:21       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 17:37:11       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 17:37:31     Target Completed (NrZen) Target completed (Focus Field 1, HIP 4911) 17:37:35     Target Started (1/46) Target started (1/46, C/2023 A3 (Tsuchinshan-ATLAS)) 17:42:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:44:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 17:52:03     Target Completed Target completed (1/46, C/2023 A3 (Tsuchinshan-ATLAS)) 17:52:07     Target Started (2/46) Target started (2/46, AT2022ccv (CV)) 17:56:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:58:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 18:04:53     Target Completed Target completed (2/46, AT2022ccv (CV)) 18:04:57     Target Started (3/46) Target started (3/46, AT2023vxs (CV)) 18:08:57       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 18:25:04     Target Completed Target completed (3/46, AT2023vxs (CV)) 18:25:08     Target Started (4/46) Target started (4/46, AT2025il (CV)) 18:28:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:31:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 18:37:47     Target Completed Target completed (4/46, AT2025il (CV)) 18:37:51     Target Started (5/46) Target started (5/46, IC 1496 w/SN2025X) 18:38:43       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 18:41:33       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 19:00:43     Target Completed Target completed (5/46, IC 1496 w/SN2025X) 19:00:48     Target Started (6/46) Target started (6/46, AT2024aboj (CV)) 19:04:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:06:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 19:13:23     Target Completed Target completed (6/46, AT2024aboj (CV)) 19:13:27     Target Started (7/46) Target started (7/46, GCVS BL Lac) 19:16:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:19:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 19:23:31     Target Completed Target completed (7/46, GCVS BL Lac) 19:23:35     Target Started (8/46) Target started (8/46, GCVS EV Lac) 19:26:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:29:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 19:32:14     Target Completed Target completed (8/46, GCVS EV Lac) 19:32:18     Target Started (9/46) Target started (9/46, SN 2024aeeg) 19:55:15     Target Completed Target completed (9/46, SN 2024aeeg) 19:55:19     Target Started (10/46) Target started (10/46, LEDA 1390871 w/SN2024xxq) 19:58:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:01:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 20:17:14     Target Completed Target completed (10/46, LEDA 1390871 w/SN2024xxq) 20:17:18     Target Started (11/46) Target started (11/46, GCVS DY Per) 20:20:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:23:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 20:28:03     Target Completed Target completed (11/46, GCVS DY Per) 20:28:08     Target Started (12/46) Target started (12/46, M31 w/AT2024hvb) 20:31:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:33:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 20:49:57     Target Completed Target completed (12/46, M31 w/AT2024hvb) 20:50:01     Target Started (13/46) Target started (13/46, AT2022rsz (CV)) 21:00:43     Target Completed Target completed (13/46, AT2022rsz (CV)) 21:00:47     Target Started (14/46) Target started (14/46, AT2024aasb) 21:05:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:08:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 21:25:19     Target Completed Target completed (14/46, AT2024aasb) 21:25:23     Target Started (15/46) Target started (15/46, C/2022 E2 (ATLAS)) 21:37:42     Target Completed Target completed (15/46, C/2022 E2 (ATLAS)) 21:37:47     Target Started (16/46) Target started (16/46, GCVS S Cyg) 21:42:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:44:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 21:56:18     Target Completed Target completed (16/46, GCVS S Cyg) 21:56:22     Target Started (17/46) Target started (17/46, AT2024qty (CV)) 22:15:54     Target Completed Target completed (17/46, AT2024qty (CV)) 22:15:58     Target Started (18/46) Target started (18/46, KUG 1226+285 w/AT2023zzt) 22:38:52     Target Completed Target completed (18/46, KUG 1226+285 w/AT2023zzt) 22:38:57     Target Started (19/46) Target started (19/46, KUG 1208+386 w/AT2024ghb) 23:00:27     Target Completed Target completed (19/46, KUG 1208+386 w/AT2024ghb) 23:00:31     Target Started (20/46) Target started (20/46, NGC 4375 w/SN2023vsr) 23:04:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:07:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 23:24:24     Target Completed Target completed (20/46, NGC 4375 w/SN2023vsr) 23:24:28     Target Started (21/46) Target started (21/46, GCVS U Mon) 23:34:46     Target Completed Target completed (21/46, GCVS U Mon) 23:34:51     Target Started (22/46) Target started (22/46, AT2023cwc (CV)) 23:38:19       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 23:44:28     Target Completed Target completed (22/46, AT2023cwc (CV)) 23:44:32     Target Started (23/46) Target started (23/46, IC 907 w/SN2023mkp) 23:48:50       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:05:20     Target Completed Target completed (23/46, IC 907 w/SN2023mkp) 00:06:38     Target Started (24/46) Target started (24/46, NGC 5395 w/AT2023ycc) 00:09:58       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:26:15     Target Completed Target completed (24/46, NGC 5395 w/AT2023ycc) 00:28:38     Target Started (25/46) Target started (25/46, AT2022abr (CV)) 00:34:14       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 00:40:39     Target Completed Target completed (25/46, AT2022abr (CV)) 00:40:58     Target Started (26/46) Target started (26/46, LEDA 1012969 w/SN2022zvu) 00:45:49       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 01:02:13     Target Completed Target completed (26/46, LEDA 1012969 w/SN2022zvu) 01:03:18     Target Started (27/46) Target started (27/46, UGC 6049 w/SN2023dff) 01:07:30       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:23:55     Target Completed Target completed (27/46, UGC 6049 w/SN2023dff) 01:25:18     Target Started (28/46) Target started (28/46, C/2021 T4 (Lemmon)) 01:31:34       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 01:40:30     Target Completed Target completed (28/46, C/2021 T4 (Lemmon)) 01:40:34     Target Started (29/46) Target started (29/46, GCVS RZ LMi) 01:43:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:46:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 01:51:53     Target Completed Target completed (29/46, GCVS RZ LMi) 01:51:58     Target Started (30/46) Target started (30/46, AT2023acfn) 01:56:06       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:12:28     Target Completed Target completed (30/46, AT2023acfn) 02:13:28     Target Started (31/46) Target started (31/46, AT2024cqf (CV)) 02:17:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:19:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 02:25:54     Target Completed Target completed (31/46, AT2024cqf (CV)) 02:25:58     Target Started (32/46) Target started (32/46, AT2024ctz (CV)) 02:29:57       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:35:55     Target Completed Target completed (32/46, AT2024ctz (CV)) 02:37:29     Target Started (33/46) Target started (33/46, NGC 2986 w/SN2025gj) 02:43:15       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 03:00:17     Target Completed Target completed (33/46, NGC 2986 w/SN2025gj) 03:00:22     Target Started (34/46) Target started (34/46, 29P/Schwassmann-Wachmann) 03:04:16       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 03:20:54     Target Completed Target completed (34/46, 29P/Schwassmann-Wachmann) 03:20:59     Target Started (35/46) Target started (35/46, KUG 1208+328 w/SN2024zsr) 03:27:44       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 03:27:54       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 03:29:34   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 03:29:36   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud) 03:29:39     Target Aborted (35/46) Target aborted (35/46, KUG 1208+328 w/SN2024zsr) due to cloud 03:29:41   Queue Paused Queue paused for Session Suspension 03:29:43 Session Suspending Session suspending 03:30:30   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 03:30:31 Session Suspended Session suspended 03:39:58     Target Cancelled Target cancelled (35/46, KUG 1208+328 w/SN2024zsr) due to cloud 04:02:18     Target Cancelled Target cancelled (36/46, NGC 5876 w/SN2024igg) due to cloud 04:04:39 Session Resuming Session resuming 04:05:24   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 04:05:26 Session Running Session running 04:05:29   Queue Resumed Observing Queue resumed 04:05:31     Target Started (37/46) Target started (37/46, T CrB) 04:09:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:11:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 04:17:09     Target Completed Target completed (37/46, T CrB) 04:17:14     Target Started (38/46) Target started (38/46, CGCG 082-009 w/SN2023ujr) 04:21:22       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:37:53     Target Completed Target completed (38/46, CGCG 082-009 w/SN2023ujr) 04:38:18     Target Started (39/46) Target started (39/46, UGC 9953 w/SN2022poy) 04:41:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:44:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 05:00:44     Target Completed Target completed (39/46, UGC 9953 w/SN2022poy) 05:00:49     Target Started (40/46) Target started (40/46, AT2021agpw (CV)) 05:04:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:06:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 05:12:52     Target Completed Target completed (40/46, AT2021agpw (CV)) 05:12:56     Target Started (41/46) Target started (41/46, UGC 9343 w/SN2024bqr) 05:16:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:18:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 05:35:53     Target Completed Target completed (41/46, UGC 9343 w/SN2024bqr) 05:35:57     Target Started (42/46) Target started (42/46, IC 4479 w/AT2024afpi) 05:39:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:42:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 05:58:47     Target Completed Target completed (42/46, IC 4479 w/AT2024afpi) 05:58:51     Target Started (43/46) Target started (43/46, AT2023sqn (CV)) 06:03:55       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 06:10:12     Target Completed Target completed (43/46, AT2023sqn (CV)) 06:10:16     Target Started (44/46) Target started (44/46, NGC 6004 w/SN2024cld) 06:13:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:16:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 06:32:56     Target Completed Target completed (44/46, NGC 6004 w/SN2024cld) 06:33:00     Target Started (45/46) Target started (45/46, GCVS U Her) 06:36:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:38:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 06:47:22     Target Completed Target completed (45/46, GCVS U Her) 06:47:27     Target Started (46/46) Target started (46/46, AT2024mu (CV)) 06:51:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:51:58       Focusing Failed Foc1 focusing failed - star lost 06:57:56     Target Completed Target completed (46/46, AT2024mu (CV)) 06:57:58   Queue Completed Job Queue completed 06:57:59 Session Closing Session closing 06:58:54   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 06:59:11   Dome Parked Dome parked (parking time 10s), Az: 90.0 deg 06:59:59   Telescope Parked Telescope parked (parking time 43s total) 07:00:23   Telescope State Handbox reads 'Scope parked Turn scope off.' 07:00:45   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 07:02:12   Services Stopped Night Services stopped 07:02:14 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 07:03:22     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow) 07:04:07     Dome Find Park found (Best Park Az 90.6°) 07:04:13     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.6°) 07:04:16   Dome Parked Dome parked 07:07:15   Dome Charging Dome hasn't started re-charging after 3.0 minutes 07:07:17 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 17:19:58 Yellow Alert Disk Space Free Space on C:\ Drive (46.25 GB) is less than 50 GB 07:03:08 Yellow Alert Disk Space Free Space on C:\ Drive (43.06 GB) is less than 50 GB 07:07:15 Red Alert Dome Charging Dome hasn't started re-charging after 3.0 minutes

Back to Top

Operational Issues (2025-01-11 S1293)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (1)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

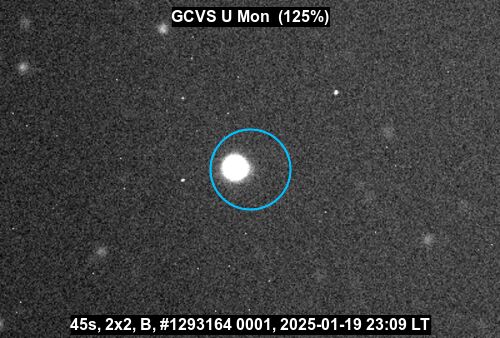

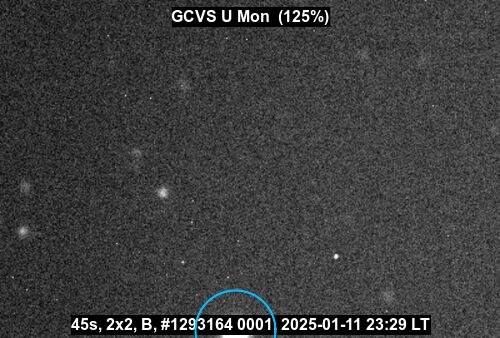

• Detailed JPG Picture for GCVS U Mon shows the target incorrectly centred. Detailed realtime JPG pictures form Main Frames for Target 21/46 (GCVS U Mon) is not centered on the target even though target is correctly identified and highlighted with blue circle (see Fig 1). The same problem has occurred during previous observations of U Mon.  The frames are recorded by Full Frame 2x2 binning rather than the more usual Full Frame 3x3 binning used for most other targets. Target picture to be re-played on Development Computer whilst runnning in Visual Studio debugger to identify the bug (Target ID 143, frames starting from #1293162). Issue investigated using Trace statements that showed that CropY (and feasibly CropX) was being incorrectly modified as BinScale wasn't being applied and needs to be applied. Issue fixed in AstroMain 3.73.11.
  Fixed 2025-01-19 (AstroMain 3.73.11)

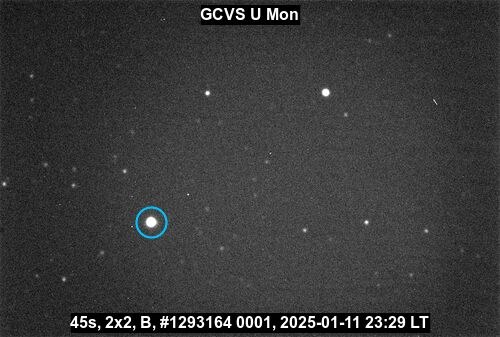

• Target Circle for U Mon is not precisely positioned on the Main Image JPG Pictures. Blue target circle for U Mon isn't positioned precisely on target object on JPG (main frames) pictures (see Fig 2). Target Circle is positioned ok on Locate Frame 1 and 2, but is positioned on the Focus Frame picture and subsequent Main Frame pictures. The same problem is recorded by T CrB  during the previous S1292 session.  Problem is due to a slight shift in telescope pointing since the final locate frame was taken and a failure to match stars and determine the necessary image shift for correcting the target X/Y position.   Potentiallly fixed in AstroMain 3.73.11 by ensuring the the 0th inventory star (brightest star) is included in the generated array of BrightestStars in Locate Frame.  This work for T CrB (issue in S1292).  Need to replay U Mon frames to check that fix also solves the issue seen for U Mon.
  To investigate & fix 2025-01-12+ (AstroMain)

Continuous Improvement

• None
