David's Astronomy Pages Notes - Session 1406 (2026-03-13)

Notes (S1405)

Notes Main

Home Page

Notes (S1407)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (1),  Small Defects (1),  Continuous Improvement (4)
	- Figures (0)
	Images from 2026-03-13  >>
	2026-03-11
	Siril 1.4.2
	ZWO ASI Camera Driver 3.27

Session Aims & Highlights (2026-03-13)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. ShCap Imaging/Processing.   Continue testing of AstroMain/AstroShCap routines and workflow including Siril scripts

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6 6.0.0.65, CCDSoft 5.00.201, DeviceHub 7.1.0.4707, MeadeGeneric 1.3.12.522, UPB 3,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus-UI 2.10, Peg-Focuser 2.10, Peg-Switch 2.10, TCF-LSI 3.3.5
• SharpCap 3.2, PHD2  2.6.13, Siril 1.4.1, deCONZ 1.18.2, ASCOM 7.1.0.4707
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.80.26,  AstroPlan 1.46.2, AstroShCap 1.3.19, AstroGuard 1.13.1  (any new items or versions in bold)
  AstroMag 1.5.12, AstroVOE 1.16,  AstroSN 1.16,  AstroProtect 1.10.6,  AstroMove 1.17.7
  AstroAllSky 3.27.6, AstroWeather 1.30.1,   AstroObsCam 1.13.1, AstroNorthCam 1.8.1, AstroLaunch 1.14.6 / 1.14.8

Highlights

• Targets. 12/31 planned targets were completed. Other targets failed due to cloud/rain/session suspension
• ShCap Imaging/Processing.   Images collected from 1 ShCap target (Berkeley 50)
•  Dome. No issues open/closing shutter. Dome was successfully parked at the end of the session.

Notes

Summary Plots & Logs

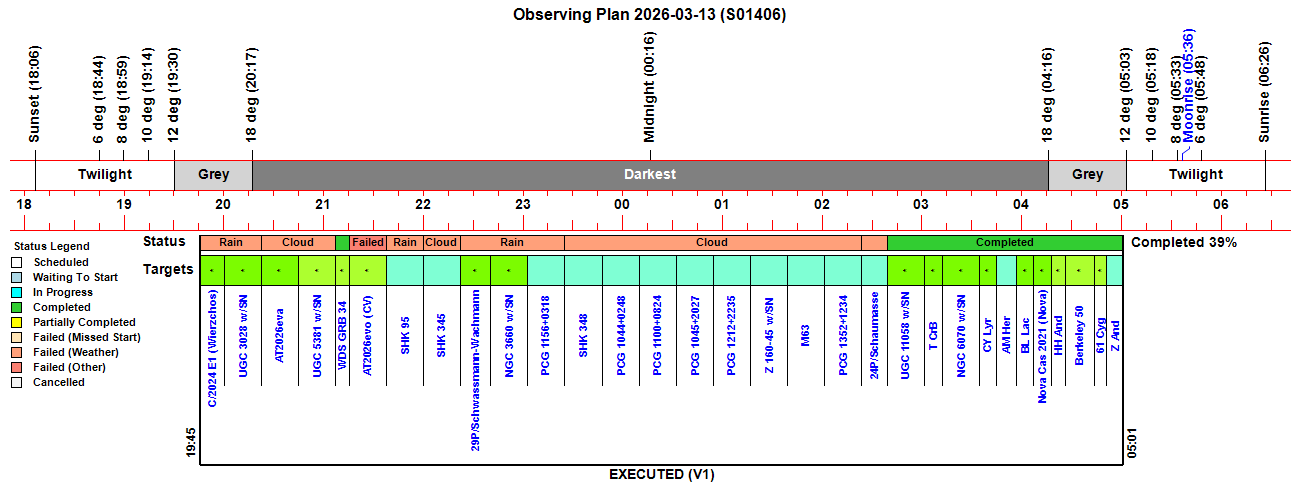

Observing Plan

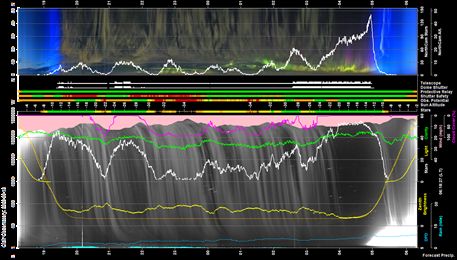

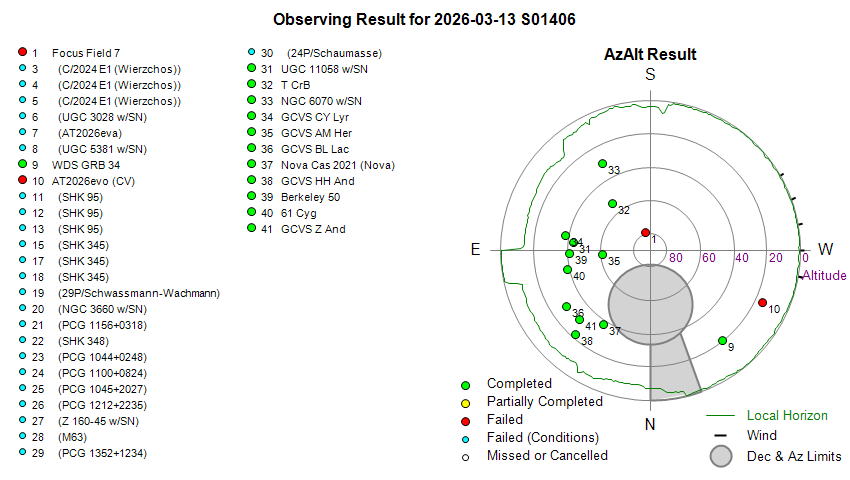

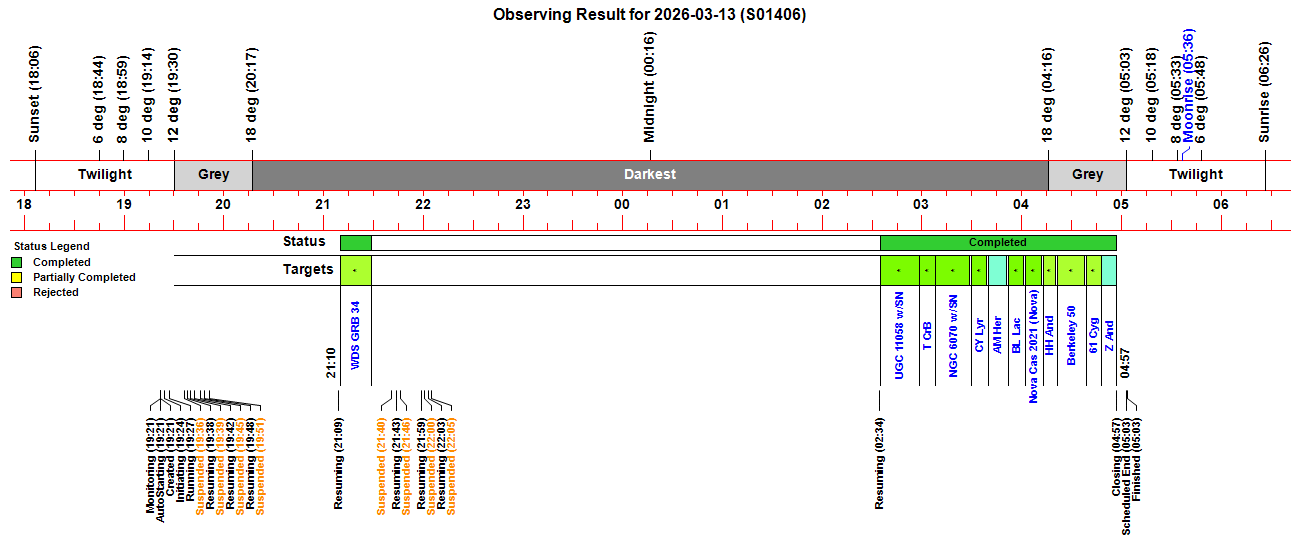

Observing Result

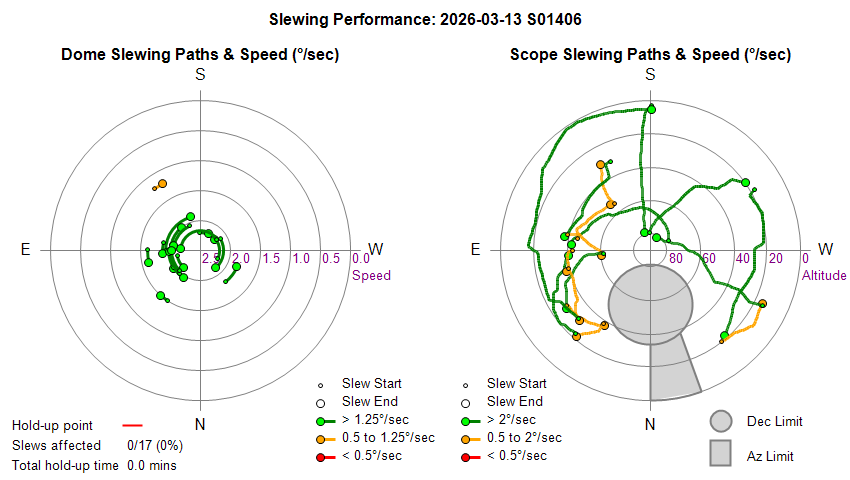

Dome & Scope Slewing Performance

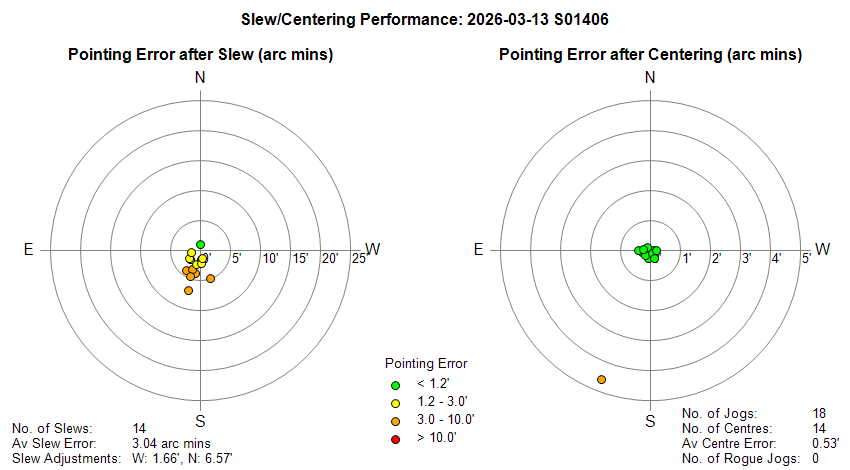

Slew/Centering Performance

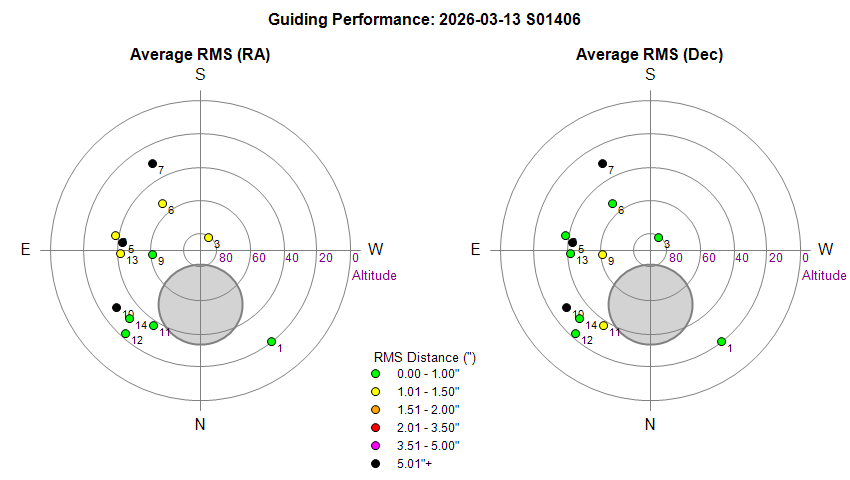

Guiding Performance

Sky Conditions (Locate Frames)

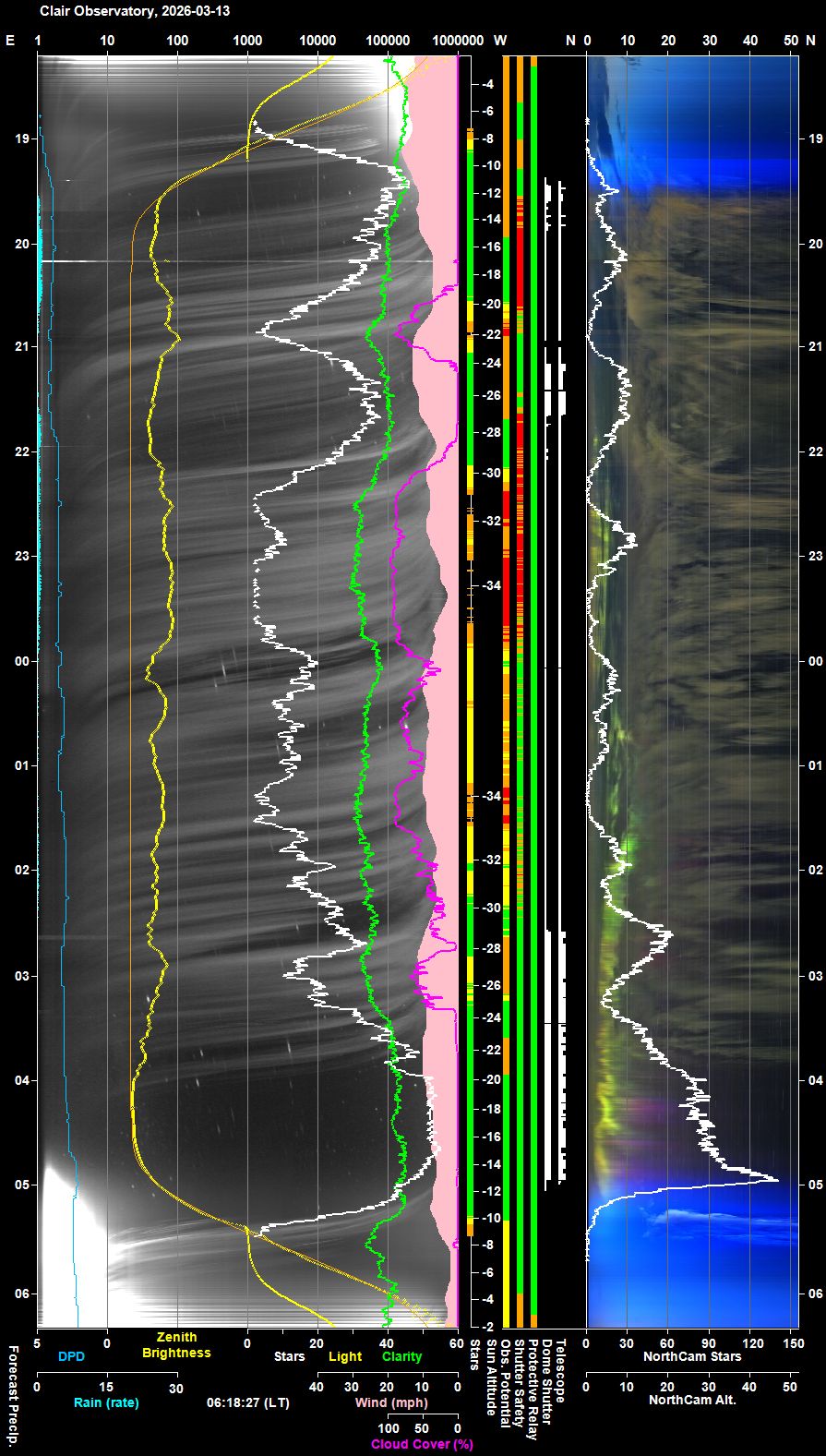

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs) Note:  The NorthCam Star Count line is unreliable and should be ignored (The AstroNorthCam 'Find' Star method is producing many false positives from clouds)

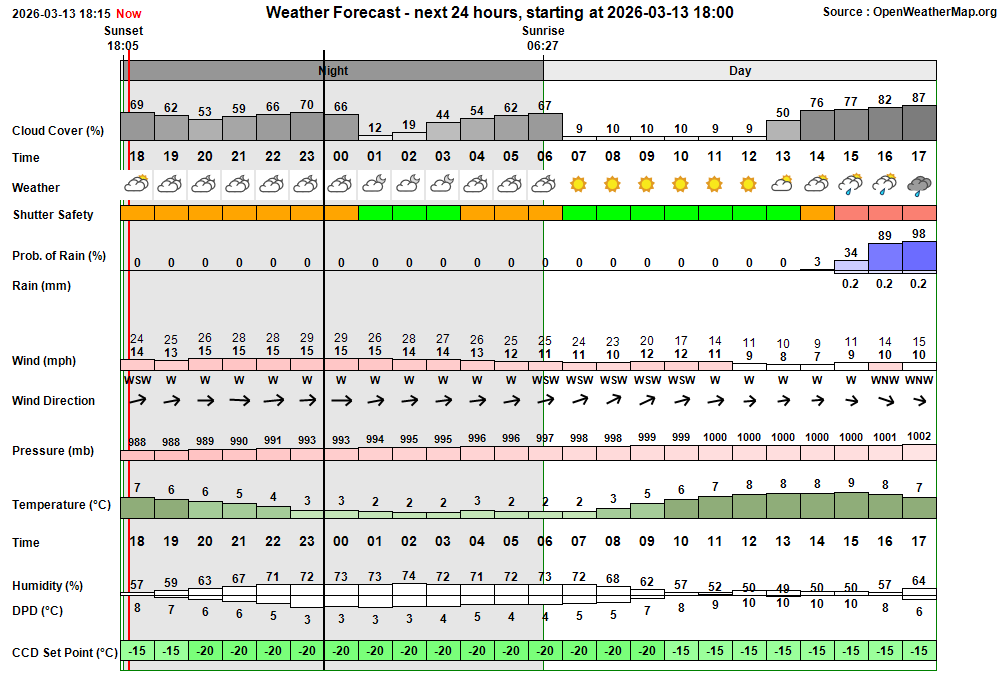

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 19:21:42 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:21 & 04:40 19:21:44 Session AutoStarting Session autostarting (19:21) 19:21:50 Session Created Session Created (Live, 2026-03-13 S01406) 19:21:52   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 19:22:12   Scope Switched On Telescope Power has been switched on via UPB Switch 19:23:49   Services Started Observatory Services started 19:23:58 Observatory (Auto) Observatory placed in Fully-Automated Mode 19:24:01 Session Pending Session pending (2026-03-13) 19:24:03 Session Initiating Session initiating (2026-03-13) 19:24:23   Camera1 Connected SBIG Camera connected (Set point -20°C) 19:24:26   Plan Requested Observing Plan requested from AstroPlan (1.46.2) 19:25:04   Plan Loaded Observing Plan loaded to queue (PlanID: 1204) 19:25:43   Telescope Connected Telescope connected (TheSky6) 19:26:08 Session Equilibration Session ready to Open Dome 19:26:53   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 19:27:28 Session Running Session running 19:27:31   Queue Started Observing Queue started (31 targets selected) 19:27:38     Target Started (NrZen) Target started (Focus Field 7, HIP 34070) 19:27:53       Dome Unparked Dome unparked 19:31:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:33:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 19:35:14   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 19:35:16   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 19:35:18       Focusing Aborted Foc1 Focusing Aborted due to HardSuspend 19:35:20     Target Aborted (NrZen) Target aborted (Focus Field 7, HIP 34070) due to rain 19:35:22   Queue Paused Observing Queue pausing for Session Suspension 19:35:24 Session Suspending Session suspending 19:36:09   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 19:36:11 Session Suspended Session suspended 19:38:09 Session Resuming Session resuming 19:38:24   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 19:38:26   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 19:38:28     Target Aborted (1/31) Target aborted (1/31, C/2024 E1 (Wierzchos)) due to rain 19:38:30   Queue Paused Queue paused for Session Suspension 19:38:54   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 19:38:57 Session Running Session running 19:38:59   Queue Resumed Observing Queue resumed 19:39:01   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 19:39:03   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 19:39:05   Queue Paused Observing Queue pausing for Session Suspension 19:39:07 Session Suspending Session suspending 19:39:49   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 19:39:52 Session Suspended Session suspended 19:42:34 Session Resuming Session resuming 19:43:20   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 19:43:22 Session Running Session running 19:43:24   Queue Resumed Observing Queue resumed 19:43:26     Target Started (1/31) Target started (1/31, C/2024 E1 (Wierzchos)) 19:44:59   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 19:45:01   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 19:45:03     Target Aborted (1/31) Target aborted (1/31, C/2024 E1 (Wierzchos)) due to rain 19:45:05   Queue Paused Queue paused for Session Suspension 19:45:07 Session Suspending Session suspending 19:45:50   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 19:45:52 Session Suspended Session suspended 19:48:10 Session Resuming Session resuming 19:48:55   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 19:48:58 Session Running Session running 19:49:00   Queue Resumed Observing Queue resumed 19:49:02     Target Started (1/31) Target started (1/31, C/2024 E1 (Wierzchos)) 19:50:15   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 19:50:17   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 19:50:19     Target Aborted (1/31) Target aborted (1/31, C/2024 E1 (Wierzchos)) due to rain 19:50:21   Queue Paused Queue paused for Session Suspension 19:50:23 Session Suspending Session suspending 19:51:05   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 19:51:08 Session Suspended Session suspended 19:54:22     Target Cancelled Target cancelled (1/31, C/2024 E1 (Wierzchos)) due to rain 20:14:42     Target Cancelled Target cancelled (2/31, UGC 3028 w/SN2026gm) due to rain 20:37:02     Target Cancelled Target cancelled (3/31, AT2026eva) due to cloud 20:59:02     Target Cancelled Target cancelled (4/31, UGC 5381 w/SN2025ahep) due to cloud 21:09:12 Session Resuming Session resuming 21:09:57   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 21:10:00 Session Running Session running 21:10:02   Queue Resumed Observing Queue resumed 21:10:04     Target Started (5/31) Target started (5/31, WDS GRB 34) 21:14:35       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 21:16:40       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 21:18:23       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 21:20:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:24:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 3, wide) 21:26:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 21:28:33     Target Completed Target completed (5/31, WDS GRB 34) 21:28:37     Target Started (6/31) Target started (6/31, AT2026evo (CV)) 21:34:46     Target Failed (6/31) Target failed due to exceeded time slot (6/31, AT2026evo (CV)) 21:34:50     Target Started (7/31) Target started (7/31, SHK 95) 21:39:29       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-LSI) 21:39:45   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 21:39:47   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 21:39:49     Target Aborted (7/31) Target aborted (7/31, SHK 95) due to rain 21:39:51   Queue Paused Queue paused for Session Suspension 21:39:53 Session Suspending Session suspending 21:40:40   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 21:40:43 Session Suspended Session suspended 21:43:56 Session Resuming Session resuming 21:44:41   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 21:44:43 Session Running Session running 21:44:45   Queue Resumed Observing Queue resumed 21:44:48     Target Started (7/31) Target started (7/31, SHK 95) 21:45:00   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 21:45:02   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 21:45:11 Session Suspending Session suspending 21:45:15     Target Aborted (7/31) Target aborted (7/31, SHK 95) due to rain 21:45:17   Queue Paused Queue paused for Session Suspension 21:46:01   Dome Closed Dome closed (Closing time 49s, Zigbee 44s) 21:46:03 Session Suspended Session suspended 21:52:10     Target Cancelled Target cancelled (7/31, SHK 95) due to rain 21:59:02 Session Resuming Session resuming 21:59:42   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 21:59:44   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 21:59:46     Target Aborted (8/31) Target aborted (8/31, SHK 345) due to rain 21:59:48   Queue Paused Queue paused for Session Suspension 21:59:50   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 21:59:52 Session Running Session running 21:59:54   Queue Resumed Observing Queue resumed 21:59:56   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 21:59:58   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 22:00:00     Target Started (8/31) Target started (8/31, SHK 345) 22:00:02     Target Aborted (8/31) Target aborted (8/31, SHK 345) due to rain 22:00:04   Queue Paused Queue paused for Session Suspension 22:00:06 Session Suspending Session suspending 22:00:47   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 22:00:49 Session Suspended Session suspended 22:03:12 Session Resuming Session resuming 22:03:57   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 22:03:59   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 22:04:01     Target Aborted (8/31) Target aborted (8/31, SHK 345) due to rain 22:04:03   Queue Paused Queue paused for Session Suspension 22:04:05   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 22:04:07 Session Running Session running 22:04:09   Queue Resumed Observing Queue resumed 22:04:11   Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome) 22:04:13   HardSuspend Called Hard Suspend called due to Critical Conditions (rain) 22:04:15     Target Started (8/31) Target started (8/31, SHK 345) 22:04:17     Target Aborted (8/31) Target aborted (8/31, SHK 345) due to rain 22:04:19   Queue Paused Queue paused for Session Suspension 22:04:21 Session Suspending Session suspending 22:04:58   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 22:05:00 Session Suspended Session suspended 22:14:30     Target Cancelled Target cancelled (8/31, SHK 345) due to cloud 22:34:02     Target Cancelled Target cancelled (9/31, 29P/Schwassmann-Wachmann) due to rain 22:54:52     Target Cancelled Target cancelled (10/31, NGC 3660 w/SN2026cff) due to rain 23:17:12     Target Cancelled Target cancelled (11/31, PCG 1156+0318) due to rain 23:39:32     Target Cancelled Target cancelled (12/31, SHK 348) due to cloud 00:01:52     Target Cancelled Target cancelled (13/31, PCG 1044+0248) due to cloud 00:24:12     Target Cancelled Target cancelled (14/31, PCG 1100+0824) due to cloud 00:46:32     Target Cancelled Target cancelled (15/31, PCG 1045+2027) due to cloud 01:08:52     Target Cancelled Target cancelled (16/31, PCG 1212+2235) due to cloud 01:30:52     Target Cancelled Target cancelled (17/31, Z 160-45 w/SN2025abwt) due to cloud 01:53:12     Target Cancelled Target cancelled (18/31, M63) due to cloud 02:15:32     Target Cancelled Target cancelled (19/31, PCG 1352+1234) due to cloud 02:33:10     Target Cancelled Target cancelled (20/31, 24P/Schaumasse) due to too few stars 02:34:22 Session Resuming Session resuming 02:35:07   Dome Opened Dome opened (Opening time 45s, Zigbee 42s) 02:35:09 Session Running Session running 02:35:11   Queue Resumed Observing Queue resumed 02:35:13     Target Started (21/31) Target started (21/31, UGC 11058 w/SN2026ewd) 02:39:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:41:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 02:58:27     Target Completed Target completed (21/31, UGC 11058 w/SN2026ewd) 02:58:31     Target Started (22/31) Target started (22/31, T CrB) 03:02:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:04:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 03:08:15     Target Completed Target completed (22/31, T CrB) 03:08:20     Target Started (23/31) Target started (23/31, NGC 6070 w/SN2026ejy) 03:12:45       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-LSI) 03:28:58     Target Completed Target completed (23/31, NGC 6070 w/SN2026ejy) 03:29:50     Target Started (24/31) Target started (24/31, GCVS CY Lyr) 03:33:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:35:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 03:39:11     Target Completed Target completed (24/31, GCVS CY Lyr) 03:40:08     Target Started (25/31) Target started (25/31, GCVS AM Her) 03:43:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:45:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 03:51:26     Target Completed Target completed (25/31, GCVS AM Her) 03:51:49     Target Started (26/31) Target started (26/31, GCVS BL Lac) 03:55:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:57:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 04:01:42     Target Completed Target completed (26/31, GCVS BL Lac) 04:02:07     Target Started (27/31) Target started (27/31, Nova Cas 2021 (Nova)) 04:05:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:07:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 04:12:46     Target Completed Target completed (27/31, Nova Cas 2021 (Nova)) 04:13:12     Target Started (28/31) Target started (28/31, GCVS HH And) 04:17:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:19:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 04:21:07     Target Completed Target completed (28/31, GCVS HH And) 04:21:29     Target Started (29/31) Target started (29/31, Berkeley 50). Using SharpCap 04:23:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:26:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 04:36:23       Dome Unparked Dome unparked 04:38:39       Camera1 Connected SBIG Camera connected (Set point -25°C) 04:38:41     Target Completed Target completed (29/31, Berkeley 50) 04:38:43     Target Started (30/31) Target started (30/31, 61 Cyg) 04:43:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:45:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 04:47:43     Target Completed Target completed (30/31, 61 Cyg) 04:47:47     Target Started (31/31) Target started (31/31, GCVS Z And) 04:51:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:53:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 04:57:03     Target Completed Target completed (31/31, GCVS Z And) 04:57:05   Queue Completed Job Queue completed 04:57:07 Session Closing Session closing 04:57:55   Dome Closed Dome closed (Closing time 48s, Zigbee 45s) 04:58:26   Dome Parked Dome parked (parking time 23s), Az: 90.0 deg 04:59:18   Telescope Parked Telescope parked (parking time 47s total) 04:59:42   Telescope State Handbox reads 'Scope parked Turn scope off.' 05:00:51   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:02:17   Services Stopped Night Services stopped 05:02:20 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 05:02:52     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow) 05:03:39     Dome Find Park found (Best Park Az 90.4°) 05:03:45     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.4°) 05:03:48   Dome Parked Dome parked 05:03:55   Dome Charging Dome is parked and re-charging Ok (25mA) 05:03:57 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 05:03:55 Green Clear Dome Charging Dome is parked and re-charging Ok (25mA)

Back to Top

Operational Issues (2026-03-13 S1406)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (1)
• Continuous Improvement (4)
• Figures (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• 178MC image of Berkeley 50 had a distinct green cast (04:28). 178MC camera images of ShCap Target 29/31 (Berkeley 50) has a distinct green cast to the realtime picture files and the base result. Individual frames had background values of
     502(R), 769(G), 500(B) giving a green excess of  268,
  whilst the stacked image had background values of
     139(R), 388(G), 147(B) giving a green excess of 245.
  AstroMain 3.80.26 was deliberately modified to force SharpCap into using a Camera White Balance of 70 (R) and 90 (B), as Camera's white balance was always being reset to 50/50 when using PHD2, and their was a perception that this was killing the colours in image/picture products created in Siril. This behaviour which resets WB to 50/50 was determined to have began in Mid Jul 2025 for some unknown reason. It was hoped that changing WB to 70/90 would improve images.  However it is evident that 70/90 causes and excess of green.  Tests need to be performed to get a WB value that gives the right amount of green, to give a neutral background. This is subject of a separate Continuous Improvement Ticket. In the meantime AstroMain is modified to use a WB of 55 / 60.  Analysis of data collected on Berkeley 71 during S1405 session showed background values for two stacked files taken of same starfield in consecutive order an stacked in identical way)
    50/50 : 292(R), 232(G), 289(B)
  70/90 : 337(R), 899(G), 355(B)
  From this it can be determined that the ballpark white balance need for achieving a neutral background (with neither deficiency or excess in green) is   52(R), 54(B).
  We interpolated along the straight line between your two tested points:
  Point A: 50/50 → ΔG ≈ −58.5
  Point B: 70/90 → ΔG ≈ + 553
We solved for the fraction t between them where ΔG ≈ 0.
That gave:
  t = 0.0957 (approx)
Then we applied that same t to both sliders:
  Red:   R neutal  =50+t*(70-50) ≈ 50 + 0.0957 * 20 ≈  51.9
  Blue:  B neutral =50+t*(90-50) ≈ 50 + 0.0957 * 40 ≈ 53.8
  AstroMain 3.80.27 modified to set these values (WB_R 52, WB_B 54) whenever the Camera is connected in SharpCap, pending any subsequent values from explicit tests.
  Closed  2026-03-14  (AstroMain 3.80.27,)

Small Defects

• CcdCamera's Set AutoSavePrefix consistently times out after starting CCD Camera in PHD2 (04:27). When acquiring ShCap Targets, the CCDCamera is released by AstroMain and given to PHD2. Shortly after the PHD2 Guide Monitor starts the log file always show a couple of records  where 'Set AutoSavePrefix' times out after 2s.  Issue has been seen in other recent sessions. During the S1406 session these pair of timeouts occurred during Target 29/31 (Berkelety 50) at 04:27:43 / 04:27:45.  Since the camera is likely already disconnected from CCDSoft it is could be expected that Set AutoSavePrefix can not be performed. Call to CcdCamera should not have occurred or message should be surpressed. To investigate  It was absolutely clear where the operations to Set AutoSavePrefix were being called from, but there are two potential candidate points in OB.ExecuteTarget() routine. Fix attempted in AstroMain 3.80.27 but putting a guard around the calls requiring the gCameraConnected=True. Extra log messages need to be written in order to develop a precise timescale.
  Fix attempted 2026-03-14 (AstroMain 3.80.27)

Continuous Improvement

• White Balance for ASI178MC Camera as defined in SharpCap is being reset when PHD2 connects to the camera.  Up until Mid July 2025 SharpCap used as White Balance of 70 (R) and 90 (B), and genreated good colour image resuls, but from that point onwards SharpCap has being using a White Balance of 50 (R), 50 (B) and in last few sessions it is evident  that SharpCap images are produced pictures which are lacking in good colour.  Daytime tests shows that after setting White Balance to 70 (R), 90 (B) in SharapCap, a swap of camera to/from PHD2 causes the White Balance to be overwritten and change to 50 (R), 50 (B). A fix has been made so that each time AstroMain assigns the Camera to SharpCap the WhiteBlance values in SharpCap ae set to 70 (R), 90 (B) using a new ShCap method 'SetWhiteBalance' with parameters WhiteBalR and WhiteBalB. Fixed in AstroMain 3.80.26 and AstroShCap 1.3.19.  Further data (Berkeley 50 in S1406 session) showed that White Bal 70/90 produced images with a dominant green color, so 70/90 is likely not optimal (70/90 produced too much green, 50/50 doesn't produced enough green)
  Fixed  2026-03-13  (AstroMain 3.80.26, AstroShCap 1.3.19)

• Modify Create Dome/Create Scope Logs to run on Observatory Computer as part of Finishing Session. AstroMain was recently extended to be able to create simplified short logs of Dome and Scope activities for a session based on the detailed/large Pulsar Observatory and MeadeGeneric ASCOM logs. Currently in AstroMain 3.20.26 these are initiated from buttons on Reduction Workflow Tab and are designed to read Observatory Computer files from the Development/Analysis Computer.  It is proposed to modify the scripts to be able to be run on the Observatory Computer and read local ASCOM logs and also to be called as part of Finishing Session activities avoiding the requirment for the user to run them from buttons. Implemented in AstroMain 3.80.28.
  Done 2026-03-16 (AstroMain 3.80.28)

• Add facility to import a png picture file from ShCap/Siril WorkFolder to Targets Store Folder and ImageBuilder. AThe workflow for being able to incorporate png images from SharpCap/Siril environment through Image Builder and onto Page Builder are still being developed / improved.  Currently after a png image has been created in SharpCap Session/Target Folder it has to be manually copied into the target's store folder and the name of the file copied into the base name field on AstroMai's ImageSet/Image tab.  It would save a lot of effort if these steps could be automated.  Implemented via new buttons (like ">> 50pc.png") placed on the  ShCap Tab in AstroMain 3.80.28
  Done 2026-03-15 (AstroMain 3.80.28)

• Add facility to save /rename png files in Siril Workfolder with final image names.  Currently the Siril scripts used  for stacking frames and creating png image files, outputs png files with the names 'result.50pc.png', 'result.asinh.50pc.png' and 'result.asinh.50pc.crop.png'. The runtime routine TakeSecondaryScopeFrames() then renames these files like "Berkeley 69.20260309.Set2.g75.30x10s.color.50pc.png" etc.   However when the scripts are later used within the Siril UI environment for post session refinement, there is currently no process to republish the final images with the final full names (like Berkeley 69.20260309.Set2.g75.30x10s.color.50pc).  To do this the user has to manually rename the files. This is tiresome. Propose to add some facility to make this easier.  This has been implemented though precise date and version are unclear. Approximately date/version given below.
    Done 2026-03-18 (AstroMain 3.80.29)
