Aurora 2022-02-09

Aurora

Notes

Pictures Videos Summary Plot Magnetometer Stack Plots (for reference) Planetary K-Index Plot (for reference) Aurora Forecast, NOAA/Ovation (for reference)

- Aurora display visible from NE Scotland in evening of 2022-02-04 - Main activity from between 18:00 (twilight) and 22:20 UT with auroral arc  up to 15 deg altitude, plus rays and some curtains. - Peak activity between 21:05 to 21:25 UT - Further aurora activity between 23:20 and 00:05 UT (2022-02-05), continuing very weak till 01:00 UT (22-02-05) - Followed weak activity the previous night << Aurora Images/Video from 2022-02-03 / 2022-02-04 am -   - Telescope Images from 2022-02-04 >>

Pictures

Panoramic View - Northern Sky

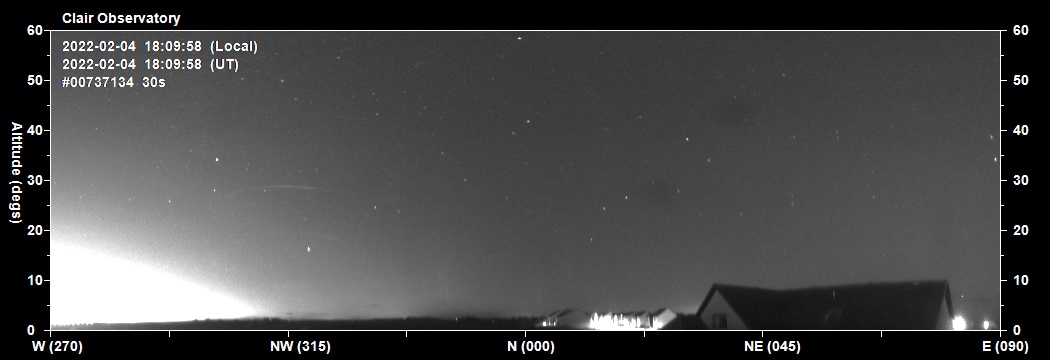

2022-02-04 18:09 UT Auroral rays faintly visible in twilight sky

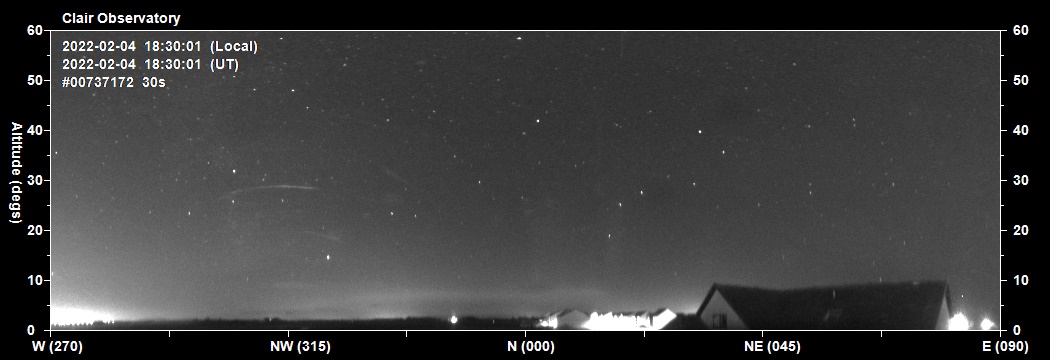

2022-02-04 18:30 UT Faint auroral arc developing with rays to 15 deg altitude

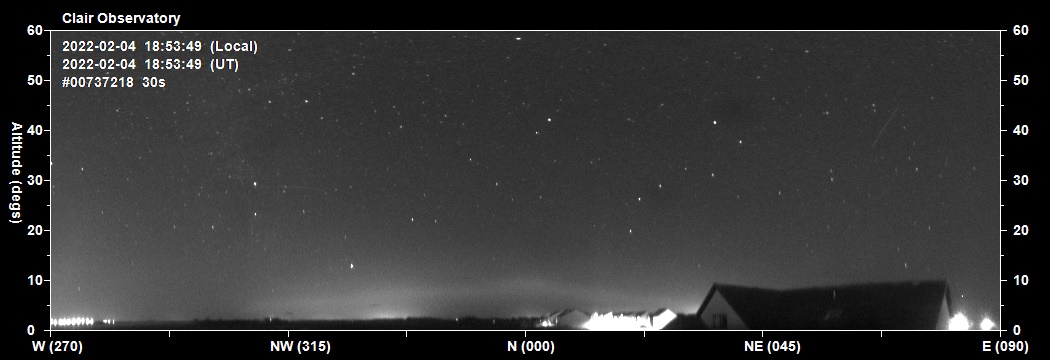

2022-02-04 18:53 UT Aurora arc with faint curtains & rays

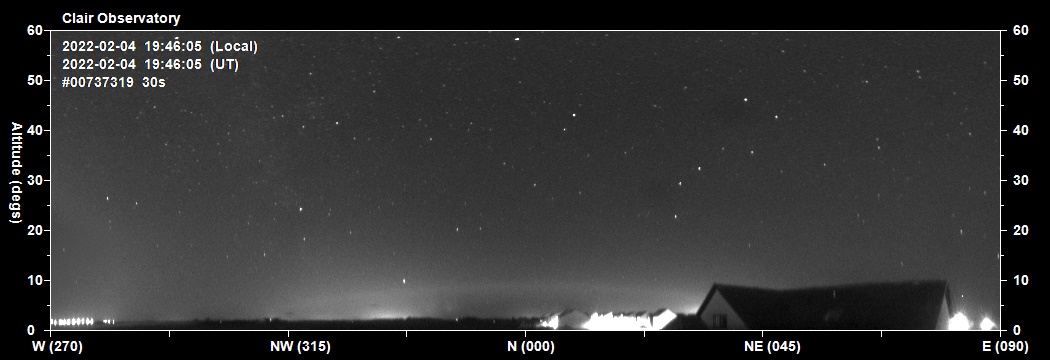

2022-02-04 19:46 UT Auroral arc with rays /moving curtain in NNW sky

2022-02-04 20:09 UT Auroral arc. Bright transient point source in NW-WNW sky at 25 deg altitude in this frame alone

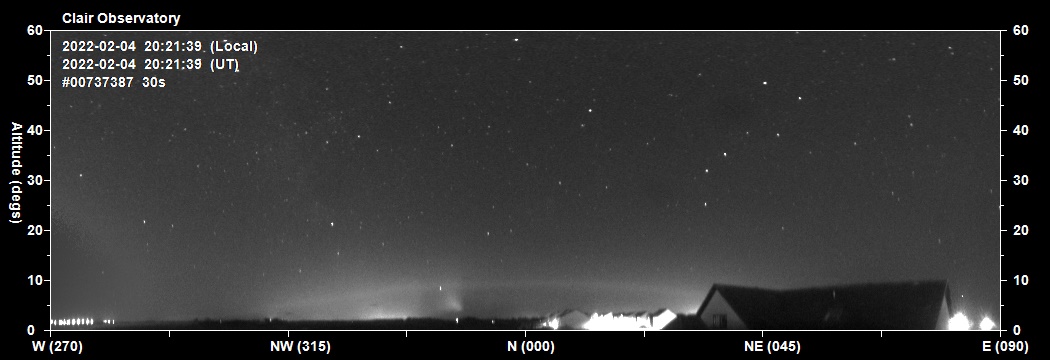

2022-02-04 20:21 UT Auroral arc to 9 deg altitude,  with moving curtain in NNW sky

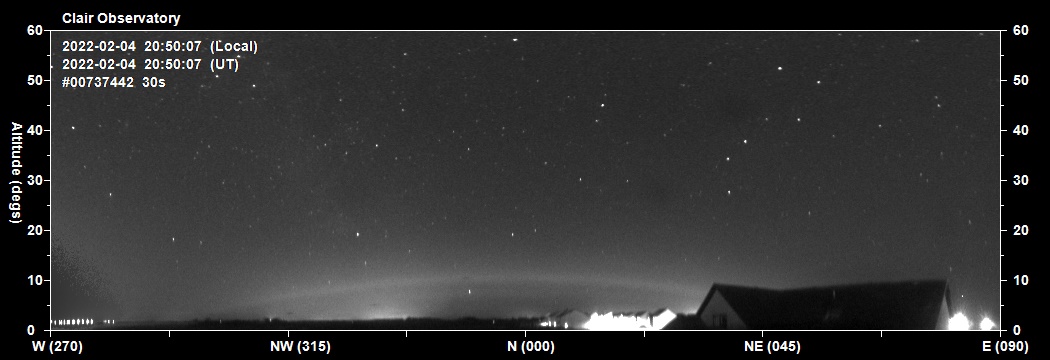

2022-02-04 20:50 UT Auroral arc to 10 deg altitude

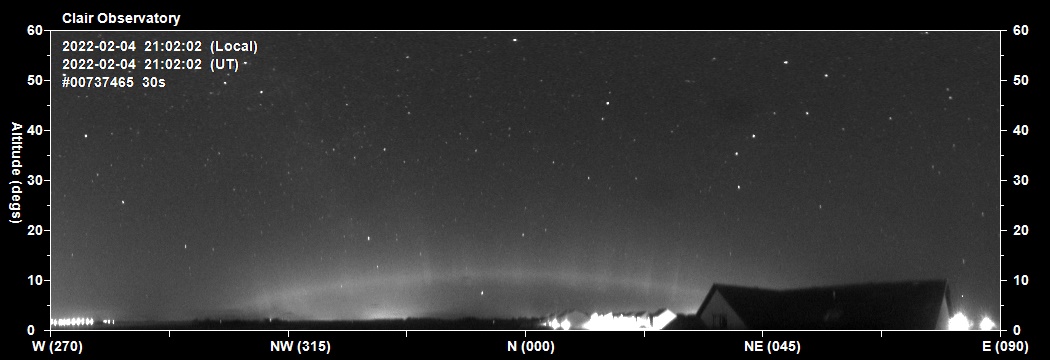

2022-02-04 21:02 UT Auroral arc to 11 deg altitude. Sudden appearance of multiple rays across entire length of arc (something brewing !)

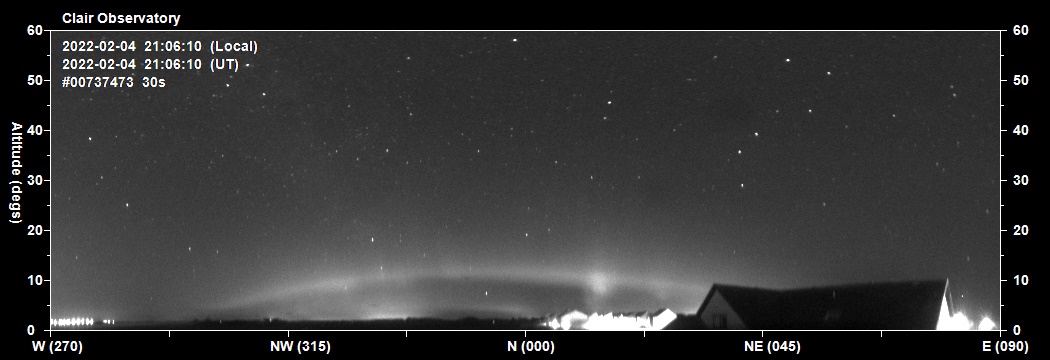

2022-02-04 21:06 UT Aurora arc to 12 deg altiude. Peak activity starting Rays in NNW sky with bright auroral activity developing in N-NNE sky.

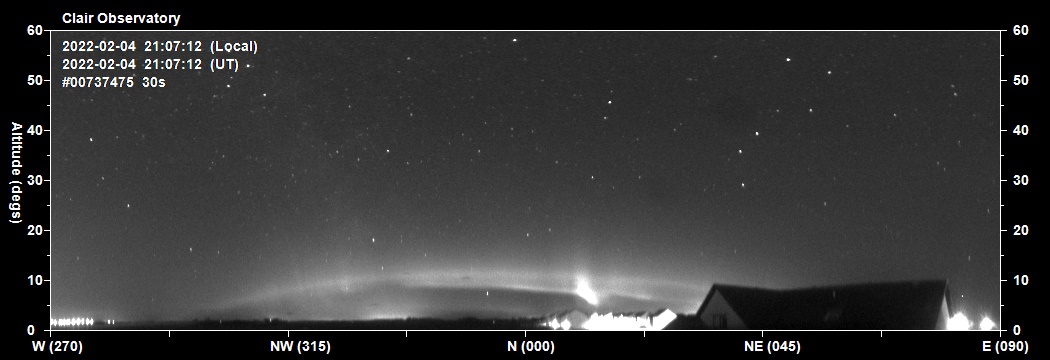

2022-02-04 21:07 UT Auroral arc with mutiple rays.High point just west of north.  Bright auroral light in N-NNE sky. Peak activity

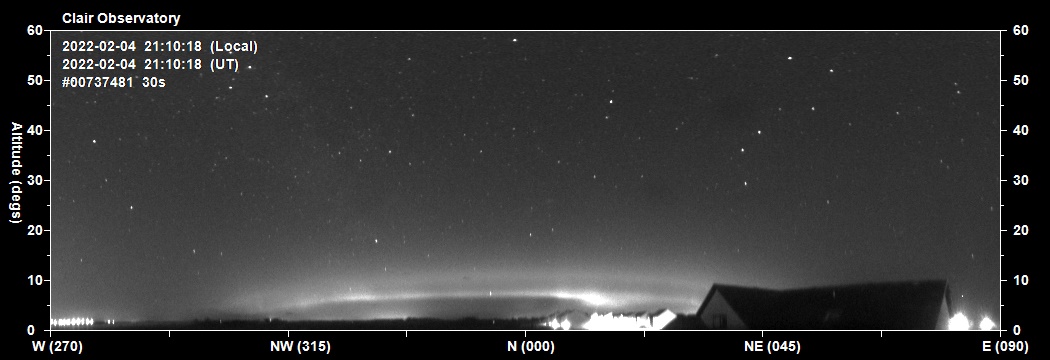

2022-02-04 21:10 UT Double auroral arc. Significant activity on lower one extending from NNE to NW

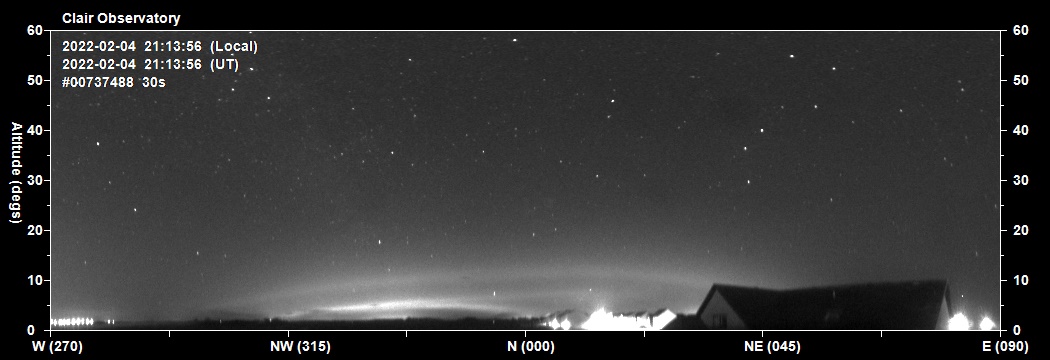

2022-02-04 21:13 UT Bright acivity in NNW Sky. Broad upper arc with its high point lying 10 deg east of north

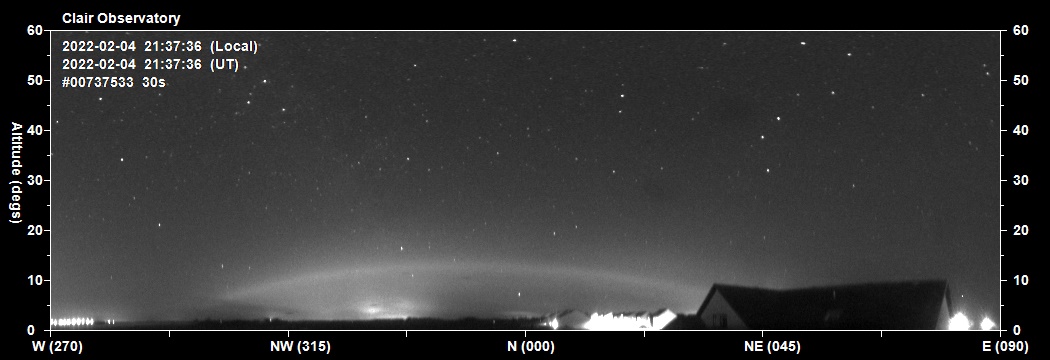

2022-02-04 21:37 UT Broad aurora arc, high point moved just west of north., fairly diffuse

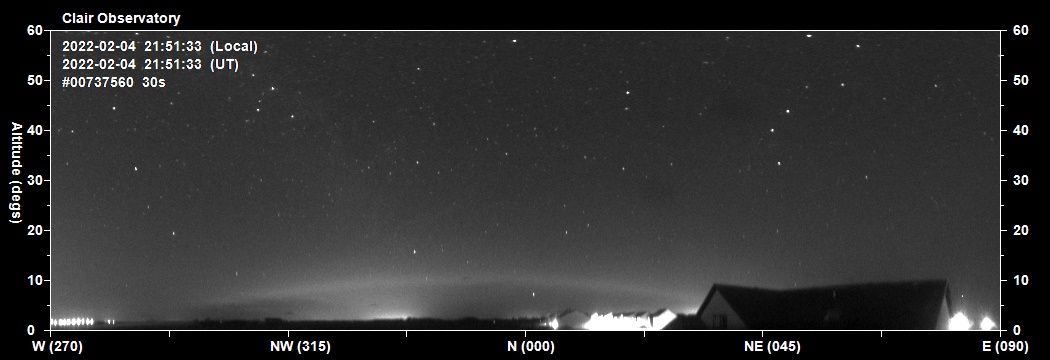

2022-02-04 21:51 UT Aurora arc gradually descending and fading

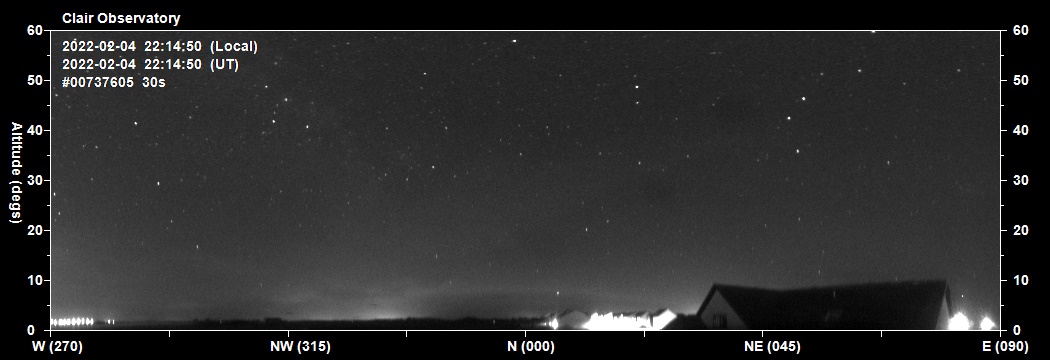

2022-02-04 22:14 UT Aurora activity fading Activity temporarily died away between 22:20 and 23:20 UT

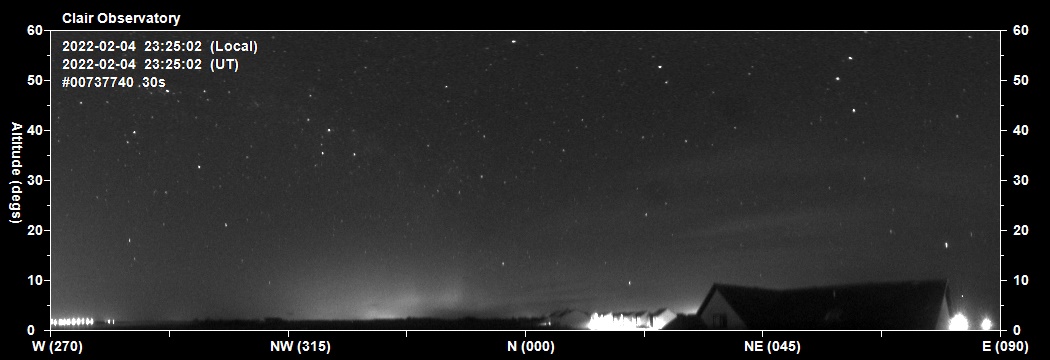

2022-02-04 23:25 UT Increase in aurora activity again in NNW sky

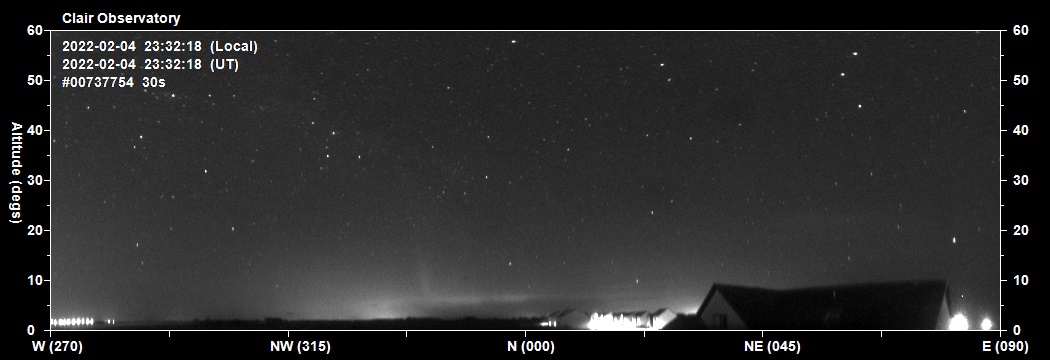

2022-02-04 23:32 UT. Auroral activity with rays to 12 deg altitude in NNW sky

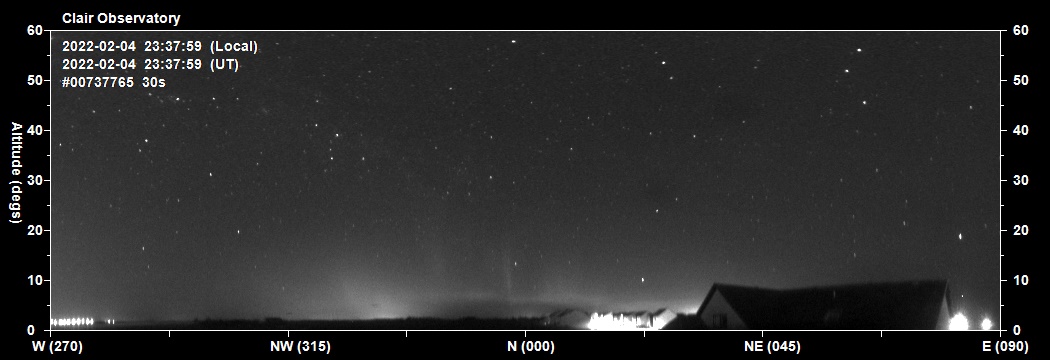

2022-02-04 23:37 UT Auroral activity with rays to 12-14 deg altitude in N sky

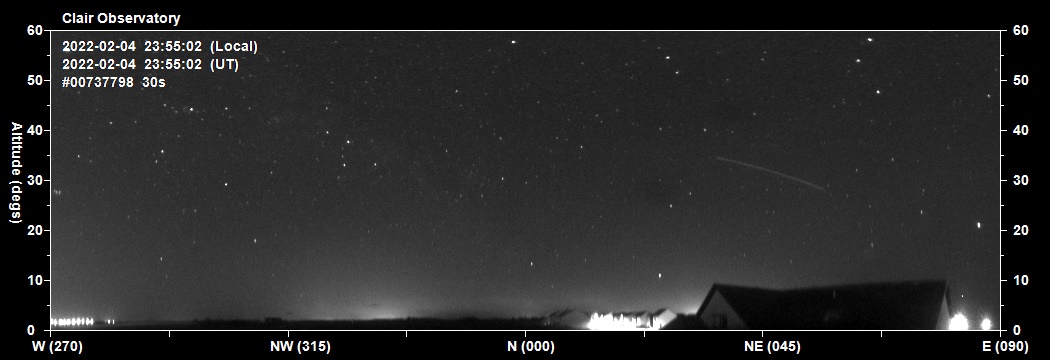

2022-02-04 23:55 UT Auroral activity declined significantly but continuing very weak and low down along NNW to NNE horizon until 01:00 UT (2022-02-05)

30s exposures taken with Oculus All Sky Camera

Back to Top

 Videos

Back to Top

Night Summary Plot

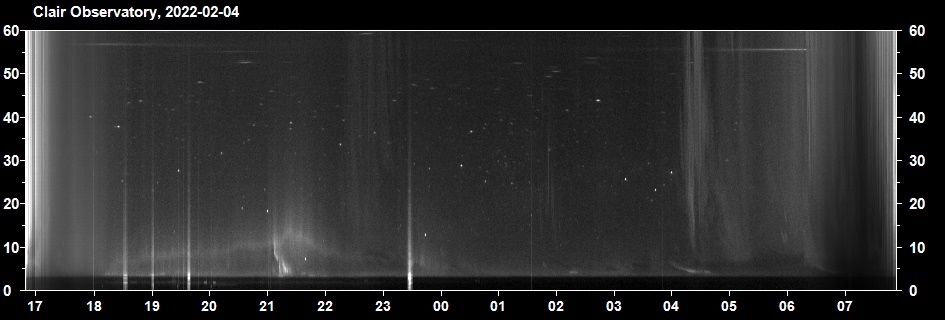

Night Summary Plot - North Sky (2022-02-04 / 2022-02-05) Times on plot are local times (GMT = UTC +00h ) Activity between 00:25 and 01:45 UT with peak activity at around 01:10 UT Further aurora activity between 02:30 and 03:20 UT.

Back to Top

Magnetometer Stack Plots (for reference)

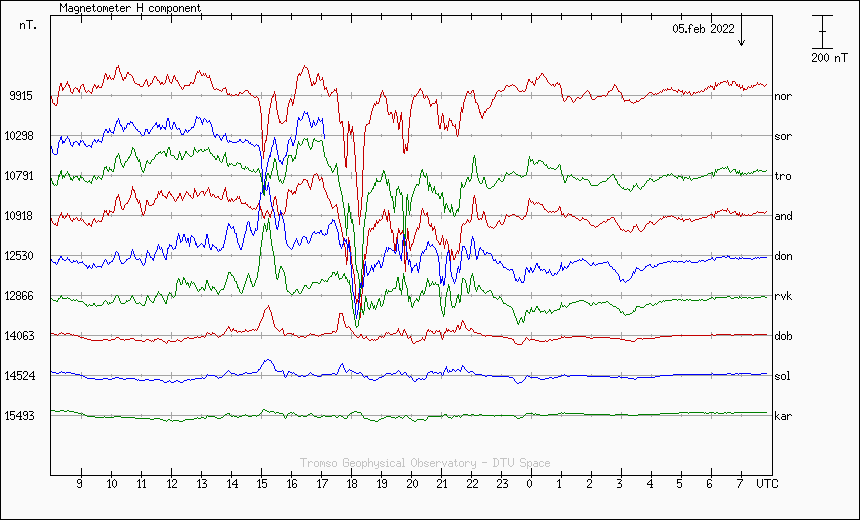

Magnetometer Stack Plots from Scandinavia (ordered by latitude) H Component - 2022-02-04 / 2022-02-05 Original data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers). Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top

Planetary K-Index Plot (for reference)

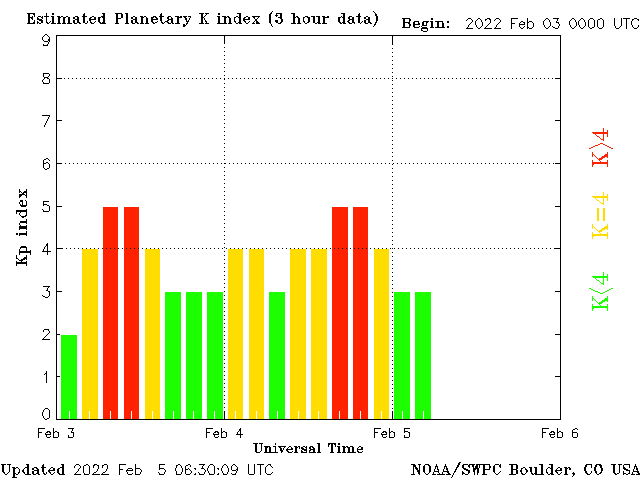

Estimated 3 hour Planetary K-Index (NOAA) (K indices of 5 or greater indicate storm-level geomagnetic activity around earth)  (from http://services.swpc.noaa.gov)

Back to Top

Aurora Forecast, NOAA/Ovation (for reference)

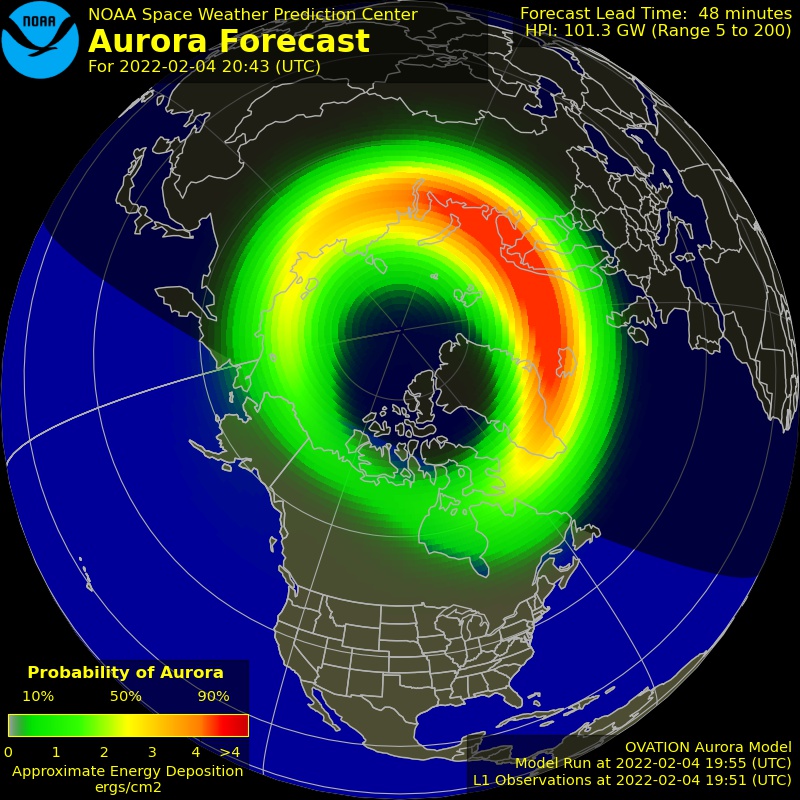

Aurora Forecast at 2022-02-04 20:00 UT for 20:43 UT (From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )

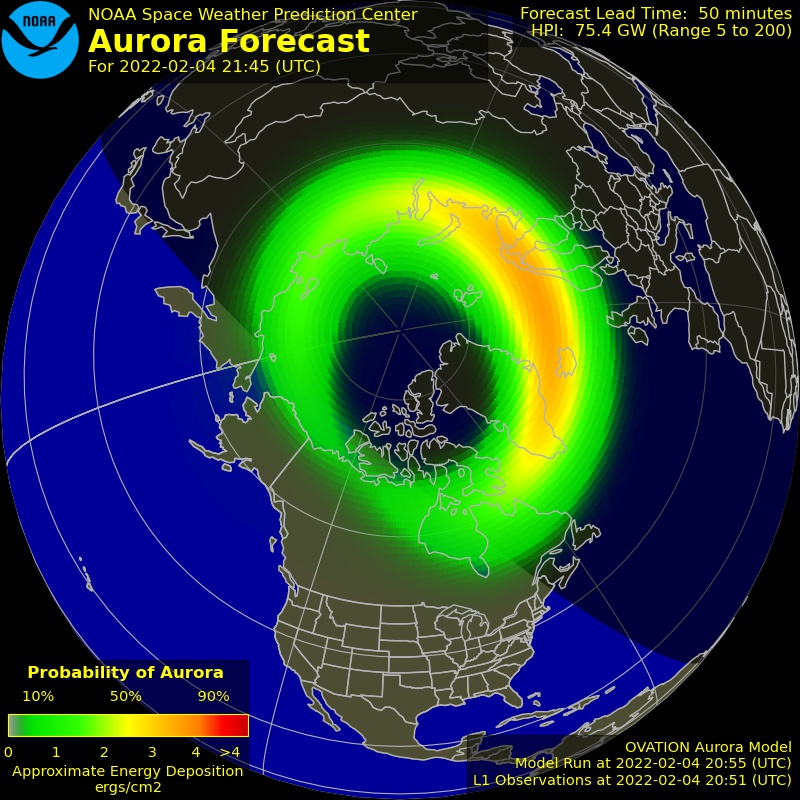

Aurora Forecast at 2022-02-04 21:00 UT for 21:45 UT (From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
