Aurora on night  2022-02-09 / 2022-02-10 am

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Aurora display partly visible from NE Scotland in early hours of 2022-02-10 that was associated with a coronal mass ejection (CME) that hit the Earth's magnetic field 2022-02-09 @ 2100 UT. The  impact didn't spark a more significant geomagnetic storm until 24 hours later.

- Activity visible after midnight between 00:35 and 01:30 UT (2022-02-10)
- Aurora arc till around 6 deg altitude only, faint rays to 10 deg.
- Display affected by bright moonlight sky

- Further activity the following night but hidden in part by cloud / snow cover on camera.
<< Aurora Images/Video from 2022-02-10

- Telescope Images from 2022-02-09 (S968) >>

Pictures

Panoramic View - Northern Sky

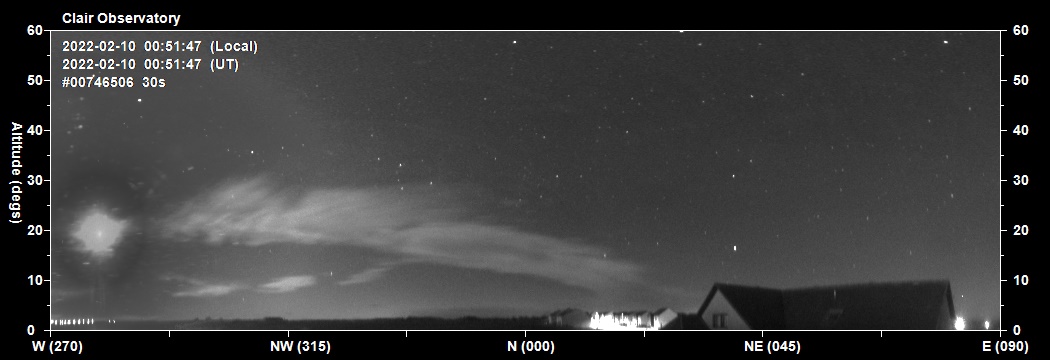

2022-02-10 00:51 UT
Weak auroral arc developing to 4 deg altitude. Moon in western sky illuminating clouds in NW & N sky

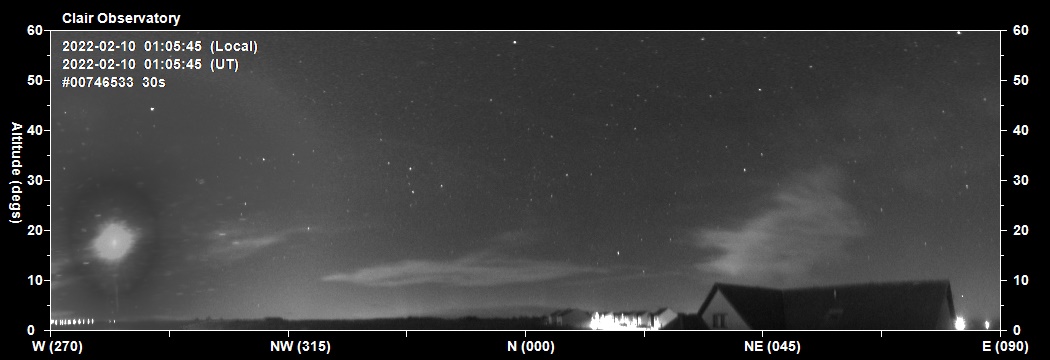

2022-02-10 01:05 UT
Auroral arc with faint rays visible to 8 deg altitude. Bright moonlit sky, with some broken cloud hanging above northern horizon.

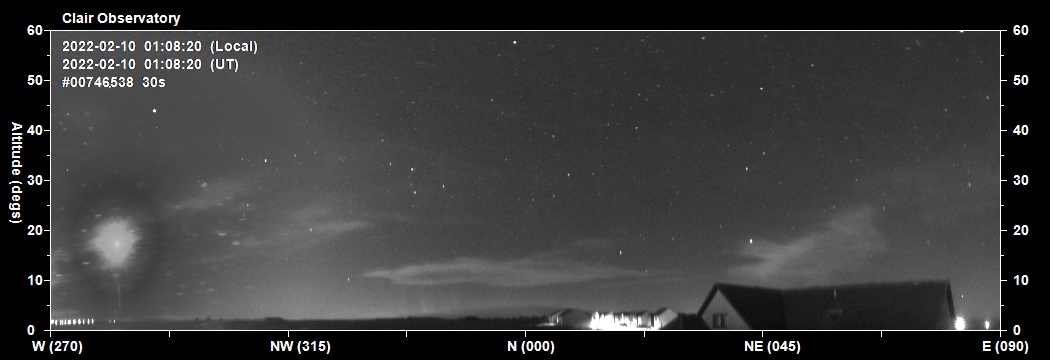

2022-02-10 01:08 UT
Aurora arc with faint curtains & rays visible to 8 deg altitude in N-NNW Sky. Bright moonlit sky.

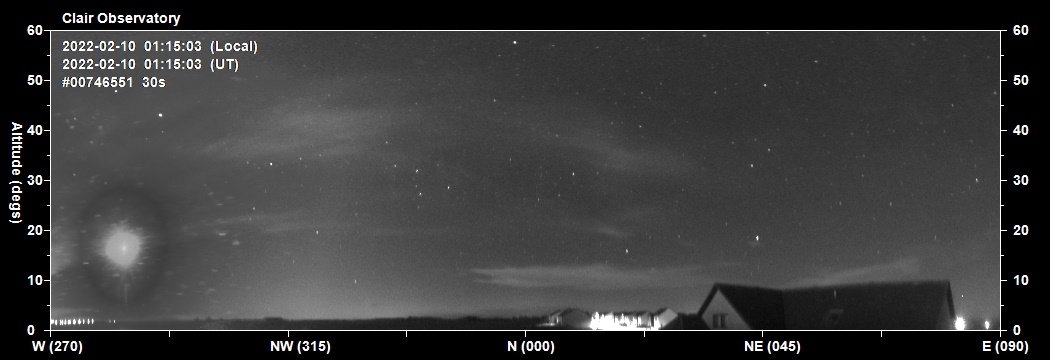

2022-02-10 01:15 UT
Auroral activity weakening, auroral arc fading and reducing in altitude. Rays moving near NNW horizon

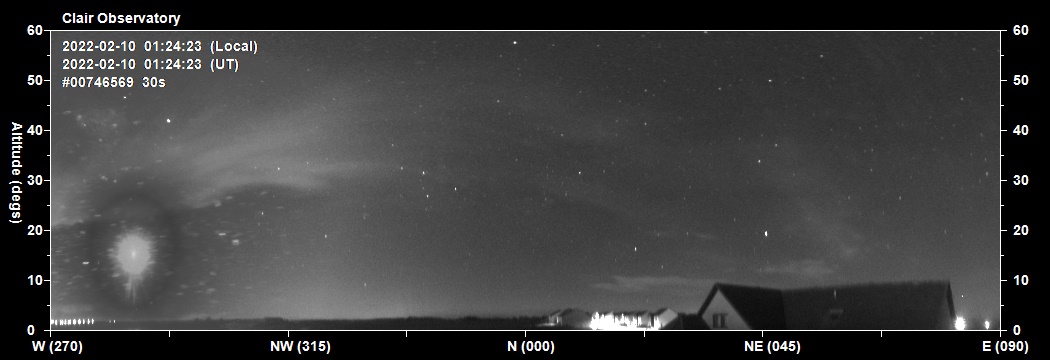

2022-02-10 01:24 UT
Aurora arc no longer visible but rays still evident in NNW sky to 6 deg altitude, just visible desite bright moonlit sky and light pollution from nearby town

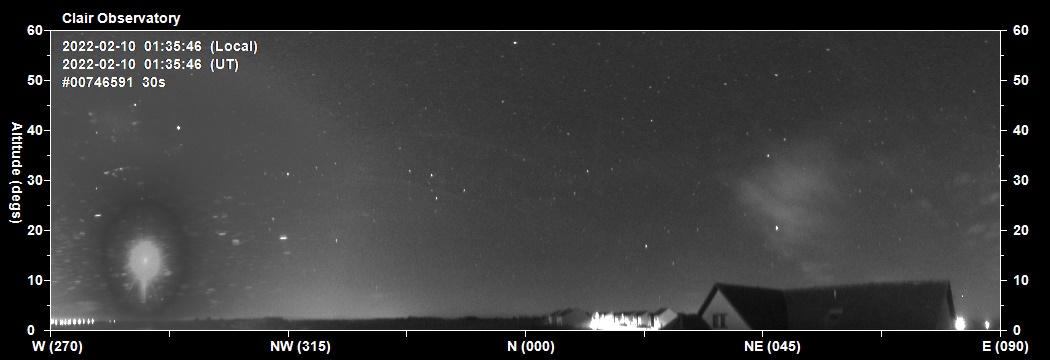

2022-02-10 01:35 UT
Auroral activity finished (last signs of activity at around 01:35, but hard to be precise because of bright moon lit sky.
Light in NW to NNW sky is from a nearby town.


30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 1.50 hour period
2022-02-10 00:30 to 02:00 UT, Frames #746464 to 746538
Link to .mp4 video file (1.2 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

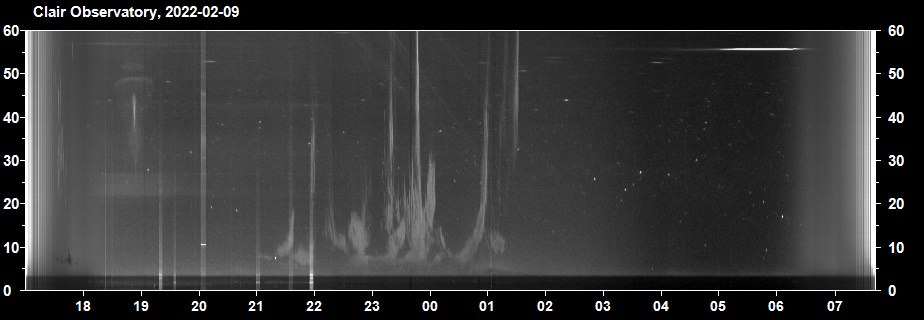

Night Summary Plot - North Sky (2022-02-09 / 2022-02-10)
Times on plot are local times (GMT = UTC +00h )
Short-lived weak activity between 00:35 and 01:30 UT
Patchy cloud in northern sky between 21:00 and 01:30

Back to Top


Magnetometer Stack Plots (for reference)

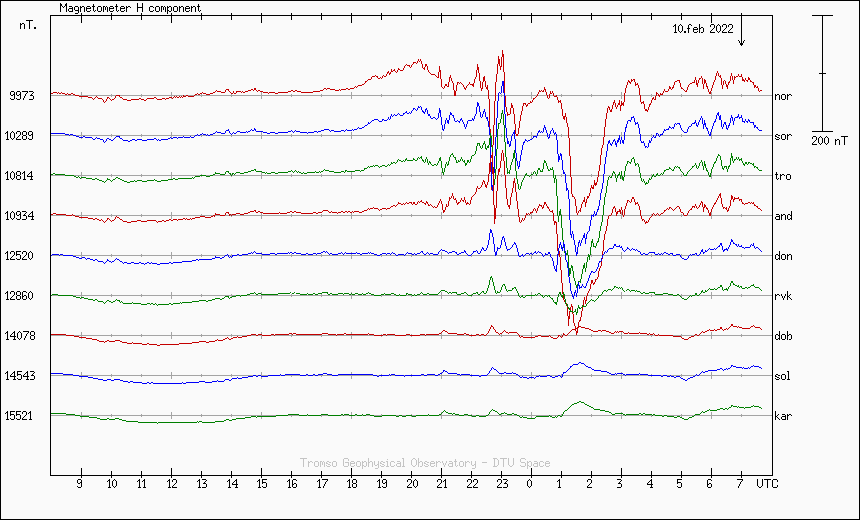

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2022-02-09 / 2022-02-10
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

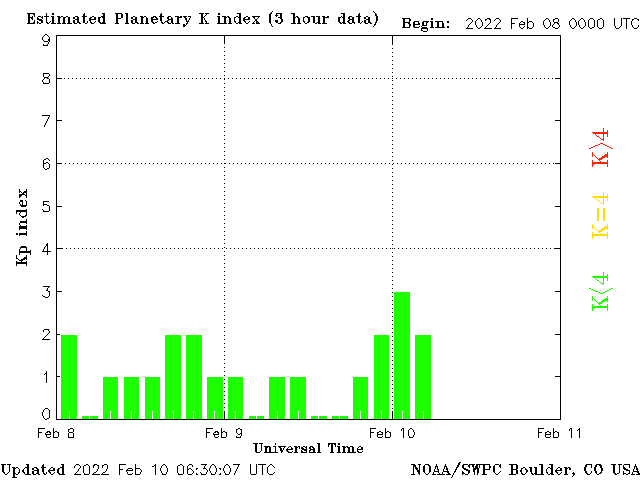

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

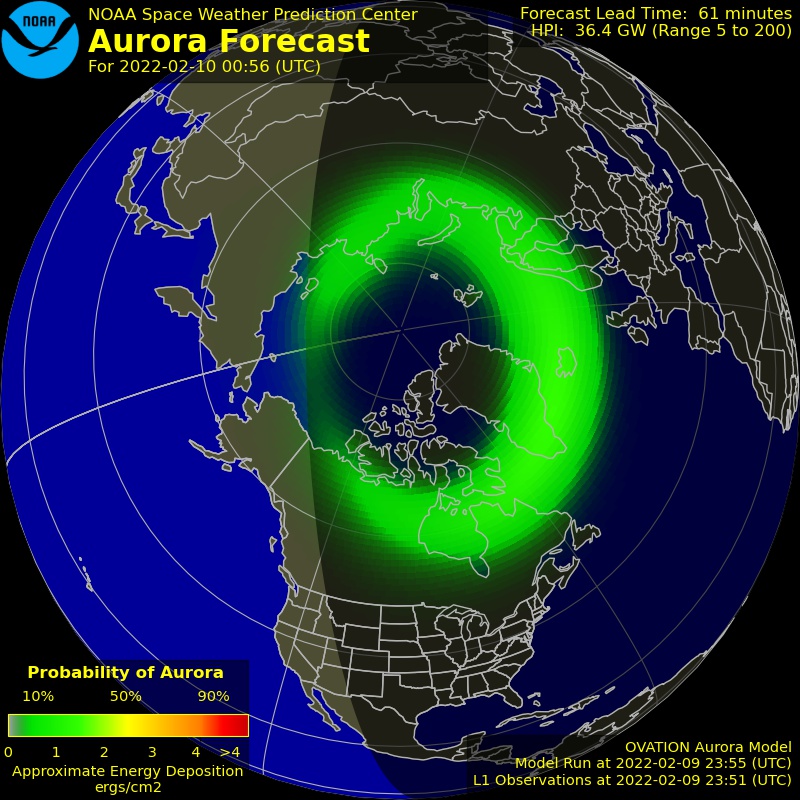

Aurora Forecast at 2022-02-10 00:00 UT for 00:56 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
