Notes (S00053)

This was my first viewing session at my new site in Aberdeenshire, and the first time I've used my ST7 CCD camera on a temporarily mounted  telescope.  My 8" SCT was set up on a tripod and roughly aligned on the Pole Star.  This was sufficient for getting unguided exposures of 20 secs, but not any longer.  My optical setup was slightly different to normal and at 2x2 binning the resulting image scale was 1.82 arc sec/pixel, compared to normal figure 1.78.

The session was also the first opportunity to use a newly purchased copy of TPoint Telescope Pointing Software (Software Bisque). This proved useful for locating a series of faint galaxies in and around Pegasus, which might have been difficult to locate with just a rough polar alignment.  (TPoint indicated that the scope's polar alignment had been out by 1.1 deg in azimuth and out by 0.6 deg in altitude).

A sky brightness survey was conducted which demonstrated that the sky at my new observing site in Aberdeenshire was definitely darker than my previous observing site in Dorset, confirming visual observations.

Goto Notes from Session S00054 (2003-11-21)

Back to Top


M76 - Planetary Nebula (Little Dumbbell)

M76 (Perseus)
CCD Image,  6 x 20s exposures (median)
2003-10-17  21:40 to 21:43h UT (#53092-97)
11.6 x 7.8 arc sec



M76 taken with increasing exposure
CCD Image,  Various Exposures
2003-10-17 (1.82 arc sec/pixel)

Back to Top


M103 - Open Cluster

M103 (Cassiopeia)
CCD Image, 10 sec exposure
2003-10-17  21:57h UT (#53112)
11.6 x 7.8 arc sec


Back to Top


NGC 281 - Cluster & Nebulosity

NGC 281 (Cassiopeia)
CCD Image, 6 x 20 sec exposure (summed)
2003-10-17  21:49 to 21:51h UT (#53104-09)
FOV 11.6 x 7.8 arc sec

Image details as above
Smoothed and Contrast Adjusted

Back to Top


M33 - Spiral Galaxy (Pinwheel Galaxy)

M33 (Triangulum)
CCD Image composite,
2 images, 5 x 20 sec exposure (median)
Smoothed and Contrast Adjusted
2003-10-17  23:02 to 23:10 h UT (#53184-88 & #53191-96)

Back to Top


NGC 708 - Galaxy Cluster (The Fath)

NGC 708 (Andromeda)
NGC 708 (catalog mag +13.7), NGC 703 (catalog mag +14.2), NGC 705 (catalog mag +14.6),
NGC 704 (catalog mag +14.1), CGCG 522-33 (catalog mag +15.5)
CCD Image, 10 x 20 sec exposure (median)
2003-10-17  21:19 to 21:25h UT (#53070-80)

Back to Top


NGC 7320 - Galaxy Cluster (Stephan's Quintet)

NGC 7320 (Andromeda)
CCD Image, 10 x 20 sec exposure (median)
2003-10-17  22:12 to 22:17h UT (#53131-40)

Back to Top


NGC 7331 - Spiral Galaxy (Deer Lick Group)

NGC 7331 (Pegasus)
Other members of Deer Lick Group : NGC 7335 (catalog mag +14.5), NGC 7337 (catalog mag +15.2)
CCD Image, 5 x 20s (median)
2003-10-17  22:08 to 22:10 h UT (#53125-29)

CCD Image, 5 x 20s (summed)
2003-10-17  22:08 to 22:10 h UT (#53125-29)

Back to Top


IC 1392 - Elliptical Galaxy

IC 1392, (catalog mag +12.5) ,
UGC 11775 (catalog mag +14.1 ) (Cygnus)
CCD Image,  5 x 20s exposures (median)
2003-10-17 22:33 to 22:35h UT (#52154-58)
11.3 x 7.5 arc sec

Back to Top


M32 - Elliptical Galaxy

M32 (Andromeda)
CCD Image,  20s exposure
2003-10-17 21:04h UT (#53048)
11.6 x 7.8 arc sec

Back to Top


NGC 206 - Emission Knot (in M31)

NGC 206, Emission Knot in M31 (Andromeda)

CCD Image, 6 x 20 sec exposure (summed)
Smoothed and Sharpened
2003-10-17  21:05 to 21:09 h UT (#53049-58)
11.6 x 7.8 arc sec

Back to Top


M15 - Globular Cluster

M15 (Pegasus)
CCD Image, 20s exposure
2003-10-17 22:40 h UT  (#53162)
cropped and sharpened

Back to Top


NGC 659 - Open Cluster

NGC 659 (Cassiopeia)
CCD Image, 5s exposure
2003-10-17  21:58h UT (#53114)

Back to Top


More Galaxies (NGC 7217, NGC 691,  NGC 7678, NGC 507, M74, NGC 1058)

NGC 7217 - Spiral Galaxy (Pegasus)
 (catalog mag +11.1)
CCD Image, 6 x 20 sec exposure (median)
2003-10-17  22:21 to 22:24h UT (#53142-47)

NGC 691 - Spiral Galaxy (Aries)
CCD Image, 6 x 20 sec exposure (median)
2003-10-17  23:14 to 23:17h UT (#53198-203)

NGC 7678 - Spiral Galaxy (Pegasus)
CCD Image composite,
2 images, 6 x 20 sec exposure (median)
2003-10-17  22:54 to 22:57 h UT (#53175-80)

NGC 507 (catalog mag +12.5), NGC 508 (catalog mag +14.1)
NGC 504 (catalog mag +14.0), PGC 05100 (catalog mag ??), (Pisces)
CCD Image, 20 sec exposure
2003-10-17  23:02h UT (#53183)
11.6 x 7.8 arc sec

M74 - Spiral Galaxy (Pegasus)
(Catalog Mag +13.1)
CCD Image,  20s exposure
2003-10-17 23:12h UT (#53197)
11.6 x 7.8 arc sec

NGC 1058 - Spiral Galaxy (Andromeda)
NGC 1058 (catalog mag +11.8)
CCD Image, 6 x 20 sec exposure (median)
2003-10-17  23:20 to 23:23h UT (#53206-11)

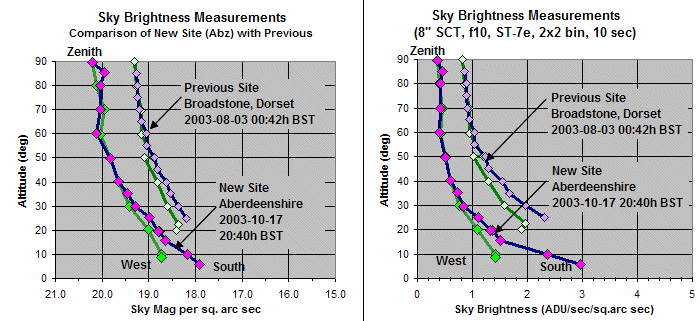

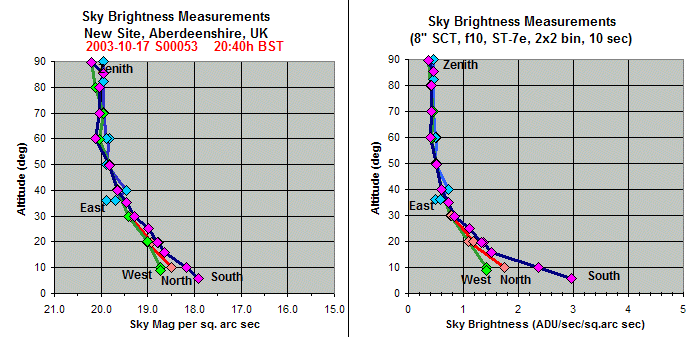

Sky Brightness Survey

A sky brightness survey was conducted which demonstrated that the sky at my new observing site in Aberdeenshire was definitely darker than my previous observing site in Dorset, confirming visual observations.   A preliminary assessment is that sky is nearly 1 mag per sq. arc sec darker at the new site.
