CCD Session S00086
Bullet Notes from CCD Session
Bullet Jupiter & moons
Bullet Moon
Bullet Comet 9/P Tempel
Bullet 3C 273 - Quasar
Bullet NGC 4045 - Spiral Galaxy
Bullet NGC 4179 - Spiral Galaxy
Bullet M61 - Spiral Galaxy
Bullet NGC 4281 - Spiral Galaxy
Bullet NGC 4273 - Spiral Galaxy & neighbours
Bullet M107 - Globular Cluster
Bullet NGC 4365 - Spiral Galaxy
Bullet NGC 4442 - Spiral Galaxy
Bullet NGC 4526 - Spiral Galaxy
Bullet Barnard's Star

Notes (S00086)

- 3.3/4 hour imaging session
- the main observing plan was to perform automated imaging of a range of galaxies in Jupiter and comet P/9 Tempel, however Image Link problems due to the small field of view of ST7 at  f/10.3 and a temporary bug with my script program prevented this plan, requiring that targets were 'manually' acquired and imaged. Notwithstanding these problems, the session was successful in acquiring an image of Barnard's Star (one of the closest stars to the Sun  at only 5.94 light years distance), and an image of the Quasar 3C 273 (one of the most distant objects visible through a small telescopes at 1.9 billion light years distance from the Sun)

- images of Jupiter and the Moon were taken whilst waiting for the sky to darken
- some of the later images were somewhat compromised by condensation/dew having formed on the front lens of telescope (Battery for dew heater became flat)
[  Image Link Success  -  reduced images  : 43 (out of 82) ,    raw images : 20 (out of 82) ]

Back to Top


Jupiter & Moons

Jupiter
CCD Colour Image (1x1 binning)
Red 5 x 0.2s, Green 5x 0.2s, Blue 5x0.3s
Stacked and combined with Registax3, Unsharp Masked, Resized
2005-05-13  21:45h UT (#86003-17)

Jupiter Moons
Annotated CCD Image Composite
Main Image : 7 x 0.11s (average combine)
Jupiter Insert :  5 x 0.2s (stacked)
8" LX200 with operating at f/10.3
2005-05-13  21:51h UT (#86028-34)

Jupiter +  Moons
Image  Image
CCD  Image (2x2 binning)
7 x 0.11s (average combine), clear filter
2005-05-13  21:51h UT (#86028-34)
(Note that Jupiter appears larger than it is true disk size
due to its extreme brightness and the
black/white range required to make the
moons visible.
CCD  Image Composite
Main Image : as left
Jupiter Image : as below

Image  Image
CCD Colour Image (1x1 binning)
Red 5 x 0.2s, Green 5x 0.2s, Blue 5x0.3s
Stacked and combined with Registax3
2005-05-13  21:45h UT (#86003-17)
CCD B&W  Image
Grey scale converted and rescaled by 50%
replicating image at 2x2 binning
(Image details as left)

Back to Top


Moon

Moon (27% phase)
CCD Image
0.2s, red filter
unsharp masked & sharpened
2005-05-13  22:06 h UT (#86060)

Mare Nectaris (The Sea of Nectar)
Image Image
CCD Image
0.11s, red filter
unsharp masked & sharpened
2005-05-13  22:09 h UT (#86072)
Annotated CCD Image
(details as left)
Moon
Image Image
CCD Image
0.11s, red filter
unsharp masked & sharpened
2005-05-13  22:09 h UT (#86069)
 CCD Colour Image
Red 0.11s, Green 0.11s, Blue 0.15s
unsharp masked & sharpened
2005-05-13  22:09 h UT (#86069,84, 99)

Back to Top


Comet 9/P Tempel

Comet 9/P Tempel (passing through Virgo)
CCD Image
3 x 60s (median combine), clear filter
2005-05-13  22:41 h UT (#86123-25)

Back to Top


3C 273 - Quasar

3C 273 (Virgo)
Quasar 1.9 billion light years distance from Solar System
CCD Image,
3 x 60s (median combine), clear filter
2005-05-13  22:49 h UT (#86127-30)

Back to Top


NGC 4045 - Spiral Galaxy

NGC 4045 (Virgo)
(NGC 4045 catalog mag +12.8,
with NGC 4045A  catalog mag +14.4,
small smudge below main galaxy)
CCD Image
5 x 1min (median combine), clear filter
2005-05-13  23:08 h UT (#86141-46)

Back to Top


NGC 4179 - Spiral Galaxy

NGC 4179 (Virgo)
CCD Image
5 x 1min (median combine), clear filter
2005-05-13  23:16 h UT (#86147-51)

Back to Top


M61 - Spiral Galaxy

M61 (Virgo)
CCD Image
10 x 2min (average combine), clear filter
2005-05-13  23:31 h UT (#86152-61)

CCD Image (negative)
details as above

Back to Top


NGC 4281 - Spiral Galaxy

NGC 4281 (Virgo)
CCD Image
2 min exposure, clear filter
2005-05-13  23:44 h UT (#86162)

Back to Top


NGC 4273 & neighbours - Spiral Galaxies

NGC 4273 & neighbours (Virgo)
NGC 4281 (catalog mag +11.4), NGC 4277 (catalog mag +13.4),
NGC 4273 (catalog mag +11.7), NGC 4268 (catalog mag +13.7)
CCD Image
5 x 2 min (average combine), clear filter
2005-05-13  23:54 h UT (#86163-67)

CCD Image (negative)
details as above

Back to Top


M107 - Globular Cluster

M107 (Ophiuchus)
CCD Image
7 x 1 min (median combine), clear filter
2005-05-13  23:31 h UT (#86169-75)

Back to Top


NGC 4365 - Spiral Galaxy

NGC 4365 (Virgo)
CCD Image
2 x 2 min exposure (average combine), clear filter
2005-05-14  00:20 h UT (#86176-77)

Back to Top


NGC 4442 - Spiral Galaxy

NGC 4442 (Virgo)
CCD Image
3 x 2 min exposure (average combine), clear filter
2005-05-14  00:31 h UT (#86180-82)

Back to Top


NGC 4526 - Spiral Galaxy

NGC 4526 (Virgo)
CCD Image
2 x 2 min exposure (average combine), clear filter
2005-05-14  00:39 h UT (#86184-85)

Back to Top


Barnard's Star

Barnard's Star, HIP 87937  (Ophiuchus)
a nearby star with large proper motion,
only 5.94 light years from Solar System
CCD Image (Mag Limit +15)
3 x 60s (median combine), clear filter
2005-05-13  22:49 h UT (#86127-30)

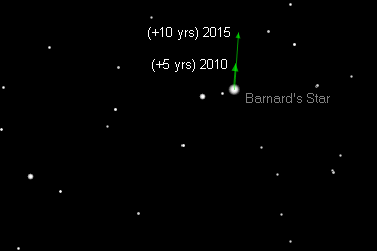

Forward predictions of Barnard's Star positions
over next 10 years
(from TheSky, Software Bisque)
Illustration based on screen capture from
TheSky (Software Bisque) for 2005-05-13
