Objects Session Notes
Bullet Lalande 21185 - Nearby star
Bullet SS Cyg - Variable Star
Bullet 61 Cygni - Star (the 'flying star')
Bullet Gliese 1245 - Nearby Star System - 14.8 ly
Bullet Ross 248 (HH And) - Variable Star
Bullet HD 5501 - Suspected Binary Eclipsing Variable
Bullet TrES-1 - Parent Star to exosolar planet
Bullet Selected SKIFF Standard Stars
Bullet NGC 7790 - Open Cluster / Standard Star Field
Bullet Groombridge 34 - Nearby double star
- 5 hr 18m session
- CCD operation of -15 degC
- main objectives was to collect images that might record the transit of exosolar planet to TrES-1
- opportunity was also taken to acquire images as part of  ongoing monitoring of dwarf nova SS Cyg & nearby star astrometry
- More Notes

Lalande 21185 - Nearby star

Astrometric measurements made, as part of a ongoing study to attempt to measure proper motion and annual parallax of Lalande 21185 / HIP 54035.
(Lalande 21185 Project )

Lalande 21185 / HIP 54035 (Ursa Major)
Star system with 9th largest proper motion
Annotated CCD Image (50% size)
7 x 30s (average combine), 1x1 binning, C filter
2006-08-08 21:47h UT (#133011-17)

Astrometry measurement of Lalande 21185  based on 7 images (#133011-17)
1x1 binning, 30s exposure, C Filter
Date/Time (UT) Star RA (epoch 2000) Dec (epoch 2000)
2006-08-08 21:47  Lalande 21185 11h 03m 19.82s +/-0.02s +34d 57m 39.18s +/-0.15s
Average Position, Errors bars at +/-1 SD

Back to Top


SS Cyg - Variable Star

Measurements made in B, V, R filters as part of ongoing study on variable behavior of this dwarf nova.

SS Cyg (Cygnus)

SS Cyg variation between 2006-05-24 and 2006-08-08

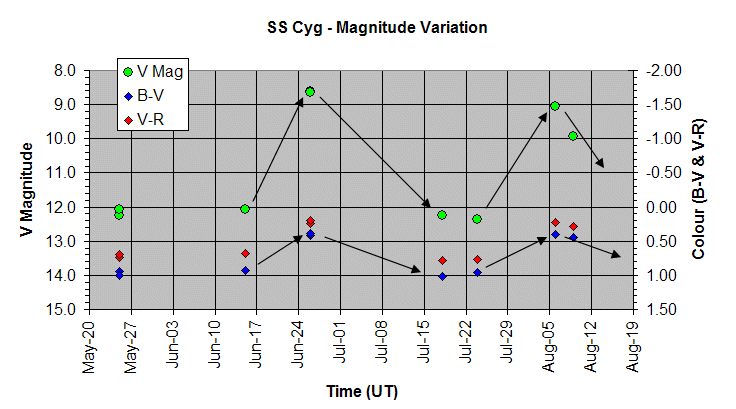

 SS Cyg - Magnitude and Colour Variation between 2006-05-24 and 2006-08-08
Colour Index shows that SS Cyg moves towards the blue end of the spectrum
as it brightens, indicating that the apparent brightening is due to an
increase in temperature, rather than an increase in star diameter.

Back to Top


61 Cygni - Star (The 'flying star')

Astrometric measurements made, as part of a ongoing study to attempt to measure proper motion and annual parallax of 61 Cygni.
( 61 Cygni Project )

Back to Top


Gliese 1245 - Nearby Star System - 14.8 ly

Astrometric measurements made, as part of a ongoing study to attempt to measure proper motion and annual parallax of Gliese 1245
(Gliese 1245 Project )

Gliese 1245 (Cygnus)
(Alt Name V1581 Cyg)
Annotated CCD Image (central portion)
7 x 60s (average combine), 1x1 binning, C filter
2006-08-08 22:11h UT (#133043-49)
(Full Size Image)





Back to Top


Ross 248 (HH And) - Nearby Star & Variable Star - 10.3 ly

Astrometric measurements made, as part of a ongoing study to attempt to measure proper motion and annual parallax of Ross 248 (And HH)
(Ross 248 Project)

Astrometry measurement of Ross 248  based on 7 images (#133053-59-17)
1x1 binning, 10s exposure, C Filter (35 - 42 UCAC stars)
Date/Time (UT) Star RA (epoch 2000) Dec (epoch 2000)
2006-08-08 22:19  Ross 248 / HH And 23h 41m 55.12s +/-0.01s +44d 10m 28.36s +/-0.05s
Average Position, Errors bars at +/-1 SD



Back to Top


HD 5501 - Suspected Binary Eclipsing Variable

Measurements made in B, V, R filters as part of ongoing study on variable behavior of this suspected eclipsing variable..

HD 5501 (Cassiopeia)


Back to Top


TrES-1 - Parent Star to Exosolar Planet

Attempt made to detect transit of exosolar planet TrES-1b across the parent star TrES-1.  Total of 197 Images acquired over  2hr 52m period.  Images are still be analysed to confirm observation of transit. See  (exosolar planet project).

TrES-1 Parent Star (Lyra)
~ 500 light years, distance
Planet orbit 3.03 days
Annotated CCD Image
3 x 20s (average combine), C filter)
2006-07-23 23:32h UT (#131124-26)

Note : Discrepancy seen with GSC 2652:1291 (V Band) mag.
Catalog +11.2,  Measured Estimate +10.3.
Recommend monitoring for variability

Back to Top


Selected SKIFF Standard Stars

Series of  images of selected SKIFF standard stars taken through B,V,R & I filters for photometric analysis.

Back to Top


NGC 7790 - Open Cluster / Standard Star Field

Set of images of NGC 7790 acquired through C, B, V, R & I filters and later analysed as part of a photometry project.

NGC 7790 (Cassiopeia)

CCD Image
3 x 30s exposure (average exposure), 2x2 binning, C Filter
2006-08-09 02:27hUT (#133398-406)

Back to Top


Groombridge 34 - Nearby Double Star - 11.7 ly

Astrometric measurements made, as part of a ongoing study to attempt to measure proper motion and annual parallax of Groombridge 34
(Groombridge 34 Project).

Back to Top
