David's Astronomy Pages
CCD Images - Session 812 (2020-09-19)

Objects Session Notes
Bullet 11P/Tempel-Swift-LINEAR - Comet
Bullet C/2019 L3 (ATLAS) - Comet

Bullet Abell 400 - Galaxy Cluster (NGC 1128 et al)

Bullet NGC 2782 - Spiral Galaxy with Type Ia Supernova 2020scc
Bullet NGC 7592 - Spiral Galaxy
Bullet NGC 7678 - Spiral Galaxy (ARP 28)
Bullet NGC 7722 - Spiral Galaxy with Type Ia Supernova 2020ssf

Bullet UGCA 42 - Irregular Galaxy (PGC 10650)
Bullet UGCA 220 - Irregular Galaxy (PGC 32385)

Bullet UGC 542 - Spiral Galaxy (PGC 3133)
Bullet UGC 695 - Dwarf Galaxy, 30 mly
Bullet UGC 711 - Spiral Galaxy (PGC 4063)
Bullet UGC 1856 - Spiral Galaxy (PGC 9134)
Bullet UGC 2082 - Spiral Galaxy (PGC 9888)
Bullet UGC 6930 - Spiral Galaxy with Type Ia Supernova 2020rcq
Bullet UGC 10528 - Spiral Galaxy (PGC 58896) with SN 2020ekk
Bullet UGC 11994 - Spiral Galaxy (PGC 68617)

Bullet Variable Stars (photometric monitoring)
- RX And, U And, TT Ari, CI Cyg, SS Cyg, U Her, BL Lac, GK Per


Bullet Nearby Stars (astrometric monitoring)
- HH And, 61 Cyg, Groombridge 34, Teegardens Star


- All night session (8.7 hours total)
- Main aims of the session were the acquisition of a selection of deep sky targets, together with some variable star, nearby starand comet targets
- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 8°C (min)
- CCD Temperature:  -10°C
- Notes from 2020-09-19 >>

-


11P/Tempel-Swift-LINEAR - Comet

11P/Tempel-Swift-LINEAR
(passing through Pegasus)
Sun Distance 1.57 AU
Earth Distance 0.63 AU (94.5 million km)
(forecast mag in TheSky6 +10.0)
No indication of a comet at expected position (circled)
Star Field to be reshot in following session.
Comet to be be reshoot at 10 x 180s in a fresh attempt to view it.
   11P/Tempel-Swift-LINEAR - 2020-09-19, Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -6.59 arcsec/hr, Dec -0.97 arcsec/hr)

Object close to comet's expected location might be the comet but at mag +18 or so it is much dimmer than the forecast mag
Image   Image
Annotated CCD Image (50% size, square root scale)
 9 x 45s exposure (average combine), 3x3 binning, C Filter
2020-09-19 21:57 UT (#812091-99)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  CCD Image (100% size, square root scale, cropped)
Image details as left

Observations at professional observatories confirm that the comet is indeed much fainter than the magnitude forecast in TheSky6, e.g.

Pan-STARRS 2 telescope recorded comet at mag +20.3 to +20.6 on 2020-09-01
Observatorio de Cantabria recorded comet at mag +18.9 on 2020-08-31

http://www.minorplanetcenter.net/db_search/show_object?object_id=11P


Images of 11P/Tempel-Swift-LINEAR on Comets 2020 Page >>


Back to Top


C/2019 L3 (ATLAS) - Comet

C/2019 L3 (ATLAS)
(passing through Cassiopeia)
Sun Distance 5.47 AU  (approaching)
Earth Distance 5.00 AU (748.3 million km)
   C/2019 L3 (ATLAS)  - 2020-09-19, Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -30.68 arcsec/hr, Dec 7.27 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
7 x 45s exposure (average combine), 3x3 binning, C Filter
2020-09-19 22:09 UT (#812102-08)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  CCD Image (100% size, square root scale, cropped)
Image details as left

Images of C/2019 L3 (ATLAS) on Comets 2020 Page >>


Back to Top


Abell 400 - Galaxy Cluster (NGC 1128 et al)

Abell 400 Galaxy Cluster (Cetus)
NGC 1128 et al

NGC 1128/ PGC 11188 (catalog mag +13.9 ?), PGC 11189 (catalog mag +16.0),
PGC 11179 (catalog +15.3), PGC 11199 (catalog mag +15.8),
PGC 11184 (catalog mag +16.0), PGC 11238 (catalog mag 16.2),
 PGC 11160 (catalog mag +16.2), PGC 11193 (catalog mag +16.4),
PGC 11168 (catalog +16.4), PGC 11196 (catalog mag +17.1),
PGC 74254 (catalog mag +17.1), PGC 11171 (catalog mag +17.3)
PGC 11164 (catalog mag 18.0), PGC 141443 (catalog mag ?),
PGC 11219 (catalog mag ?), PGC 141444  (catalog mag ?)

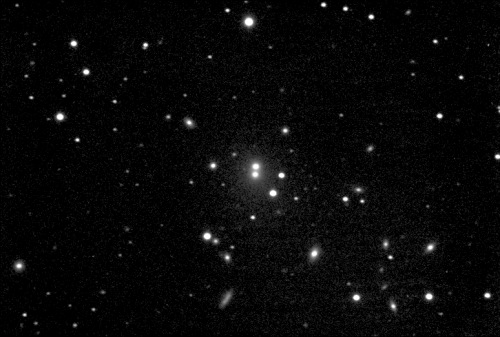

CCD Image (70% size, square root scale)
3 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-20 04:04 UT (#812263-66)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Abell 400 Galaxy Cluster - Detail


Annotated CCD Image (70% size, square root scale)
Image details as above

 Negative CCD Image (70% size, square root scale, cropped)
Image details as above


Back to Top


NGC 2782 - Spiral Galaxy (ARP 215) with Type Ia Supernova 2020scc

NGC 2782 with SN 2020scc (Lynx)
SN 2020scc (Type Ia, z=0.008483) discovered 2020/08/20.915 by Xingming Observatory Sky Survey (XOSS)
 ( Rochester Supernova site | Discovery image | )

NGC 2782 with SN 2020scc - Detail, 2020-09-20 (T+30.1d)
Image below (2020-09-20.042) was taken 30.1 days after discovery of SN 2020scc
SN is shown by white cross hairs.  Measured SN magnitude +15.3
Annotated CCD Image (100% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-20 01:00 UT (#812168-72)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2020scc (NGC 2782) on Supernovae 2020 Page >>

NGC 2782 - Earlier Image, 2020-04-13 (T-129.0d)
Image below (2020-04-13.885) was taken 129.0 days before discovery of SN 2020scc
No sign of any object at location of the later supernova.
CCD Image (100% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-04-13 21:15 UT (#767009-13)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


NGC 7592 - Spiral Galaxy

NGC 7592 (Aquarius)
Interacting Galaxy

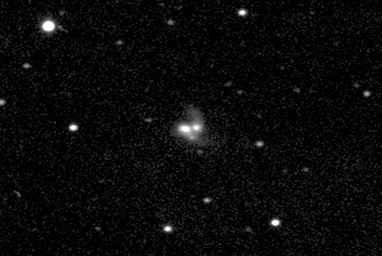

CCD Image (125% size, square root scale, cropped)
Image details as above

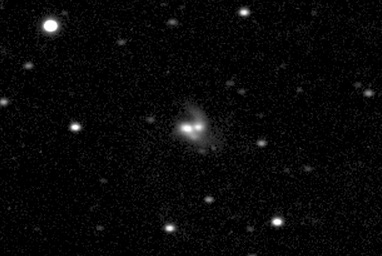

NGC 7592 - Earlier Image (2020-09-13)
CCD Image (125% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-13 22:09 UT (#808077-81)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

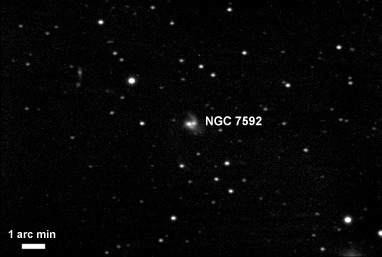

NGC 7592 - Earlier Wider View Image (2020-09-13)
Annotated CCD Image  (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-13 22:09 UT (#808077-81)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


NGC 7678 - Spiral Galaxy (ARP 28)

NGC 7678 (Pegasus)
Alias: ARP 28
Annotated CCD Image  (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-19 23:15 UT (#812130-34)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 7678 - Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

 Negative CCD Image (100% size, square root scale, cropped)
Image details as above

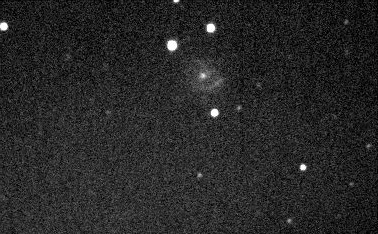

NGC 7678 - Earlier Image (2003-10-17)
CCD Image composite (linear scale)
2 images (composited), 6 x 20 sec exposure (median)
2003-10-17  22:54 to 22:57 h UT (#53175-80)
8" LX200 Classic + ST-7E

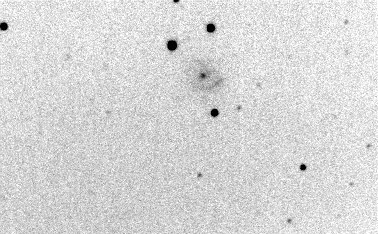

  Negative CCD Image (linear scale)
Image details as above

Back to Top


NGC 7722 - Spiral Galaxy with Type Ia Supernova 2020ssf

NGC 7722 (Pegasus)
SN 2020ssf (Type Ia , zhost=0.013350) , TNS discovered 2020/09/06.252 by Zwicky Transient Facility (ZTF)
 (Rochester Supernova site | Andre Mantero image | )

NGC 7722 with SN 2020ssf -2020-09-19 (T+13.7d)
Image below (2020-09-19.939) was taken 13.7 days after discovery of SN 2020ssf
SN is shown by white cross hairs.
CCD Image (125% size, log scale, cropped)
4 x 120s exposure (average combine), 3x3 binning, C Filter
2020-09-19 22:32 UT (#812115-19)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2020ssf (NGC 7722) on Supernovae 2020 Page >>


Back to Top


UGCA 42 - Irregular Galaxy (PGC 10650)

UGCA 42 (Cetus)
Alias:  PGC 10650


Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-20 03:15 UT (#812225-29)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGCA 42 - Detail
CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGCA 220 - Irregular Galaxy (PGC 32385)

UGCA 220 Ursa Major)
Catalog mag ?. Dec +64d
Alias : PGC 32385

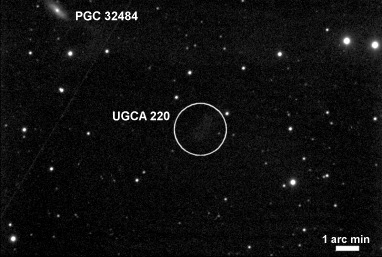

Galaxy (circled) has very low surface brightness and is almost invisible in image below
Annotated CCD Image  (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-20 01:22 UT (#812175-79)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGCA 220 - Detail
By increasing the contrast, the galaxy is just visible against the noisy background
CCD Image (100% size, square root scale, cropped)
Image details as above

 Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGC 542 - Spiral Galaxy (PGC 3133)

UGC 542 (Pisces)
Flat Galaxy Atlas
Alias:  PGC 3133

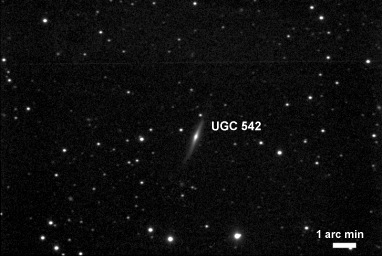

Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-20 02:09 UT (#812197-201)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

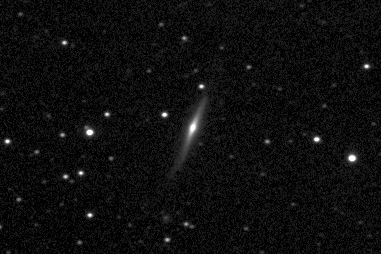

UGC 542 - Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

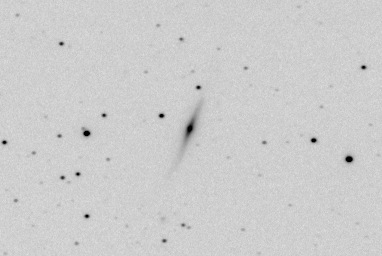

 Negative CCD Image (100% size, square root scale, cropped)
Image details as above

UGC 542 - Earlier Image (2020-09-19)
Image is quite noisy, only one frame was acquired.
Target to be rescheduled for a future session


CCD Image (100% size, square root scale, cropped)
180s exposure (single frame), 3x3 binning, C Filter
2020-09-19 01:05 UT (#811142)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Back to Top


UGC 695 - Dwarf Galaxy (PGC 4013), 30 mly

UGC 695 (Cetus)
Isolated dwarf galaxy (30 mly).   Alias:   PGC 4013,  LEDA 4013

UGC 695 is a low-surface-brightness (LSB) galaxy which make is pretty faint.
These galaxies are so faint that their brightness is less than the background brightness of Earth’s atmosphere,
which makes them tricky to observe. This low brightness is the result of the relatively small number of stars within them.

UGC 695 / PGC 4013 (catalog mag +15.3)

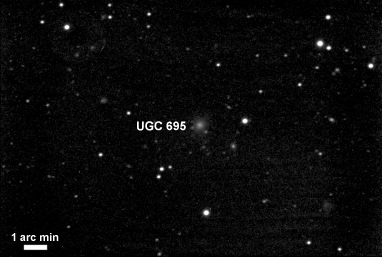

Annotated CCD Image  (50% size, square root scale)
7 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-19 23:40 UT (#812137-43)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 695 - Detail
CCD Image  (150% size, square root scale, cropped)
Image details as above

(cf.  Hubble Picture - Hubble Glimpses Faint Galaxy, Sep 2019 )

UGC 695 - Earlier Image (2020-09-17)
CCD Image  (100% size, square root scale, cropped)
6 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-17 00:09 UT (#809007-12)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 695 / PGC 4013 with adjacent faint galaxies - Earlier Wider View Image (2020-09-17)
PGC 135624 (catalog mag +17.3), PGC 1183501 (catalog mag +17.6),
PGC 1182951 (catalog mag +17.8),  PGC 212662 (catalog mag +18.2)
Annotated CCD Image  (70% size, square root scale, cropped)
6 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-17 00:09 UT (#809007-12)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

(cf.  Hubble Picture - Hubble Glimpses Faint Galaxy, Sep 2019 )


Back to Top

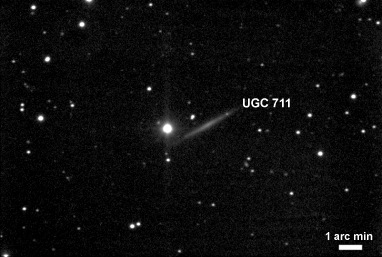

UGC 711 - Spiral Galaxy (PGC 4063)

UGC 711 (Cetus)
Flat Galaxy Atlas
Alias : PGC 4063
Bright foreground star is GSC 19:146 (magnitude +9.7)


CCD Image (100% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-20 00:09 UT (#812147-51)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



UGC 711 - Detail
CCD Image (100% size, square root scale, cropped)
Image details as above



UGC 711 - Earlier Image (2020-09-18)
CCD Image (100% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-18 23:22 UT (#811092-95)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



UGC 711 - Earlier Image (2020-09-10)
Target poorly defined in image below (single frame, moonlit sky)
and needs to be rescheduled for a darker night


CCD Image (100% size, linear scale, cropped)
180s exposure (single frame), 3x3 binning, C Filter
2020-09-10 00:32 UT (#807044)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Back to Top


UGC 1856 - Spiral Galaxy (PGC 9134)

UGC 1856 (Triangulum)
Flat Galaxy Atlas
Alias: PGC 9134
Annotated CCD Image  (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-20 00:29 UT (#812153-57)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 1856 - Detail

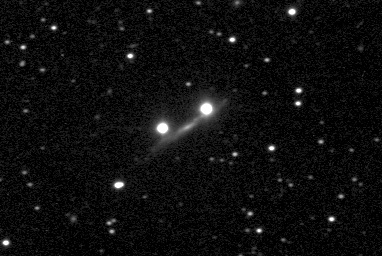

CCD Image (100% size, square root scale, cropped)
Image details as above

 Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGC 2082 - Spiral Galaxy (PGC 9888)

UGC 2082 (Aries)
Flat Galaxy Atlas
Alias:  PGC 9888

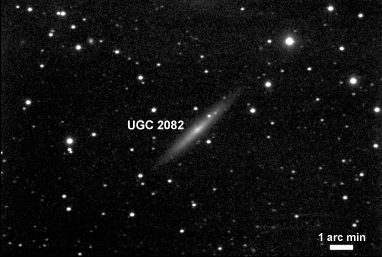

Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-20 02:52 UT (#812218-22)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 2082 - Detail

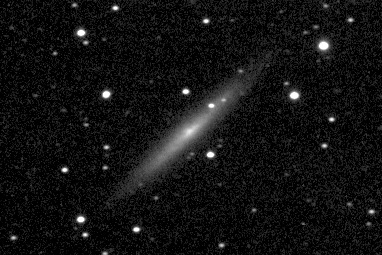

CCD Image (100% size, square root scale, cropped)
Image details as above

 Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGC 6930 - Spiral Galaxy with Type Ia Supernova 2020rcq

UGC 6930 with SN 2020rcq (Ursa Major)
SN 2020rcq (Type 1a, z=0.002597) discovered 2020/08/09.168 by Zwicky Transient Facility (ZTF)
 (Rochester Supernova site | Giancarlo Cortini image | )

UGC 6930 with SN 2020rcq - Detail, 2020-09-18 (T+41.9d)
Image below (2020-09-20.071) was taken 41.9 days after discovery of SN 2020rcq
SN is shown by white cross hairs.  Measured SN magnitude +12.7
Annotated CCD Image (100% size, square root scale, cropped)
5 x 120s exposure (average combine), 3x3 binning, C Filter
2020-09-20 01:42 UT (#812182-86)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2020rcq (UGC 6930) on Supernovae 2020 Page >>

Back to Top


UGC 10528 - Spiral Galaxy (PGC 58896) with SN 2020ekk

UGC 10528 with SN 2020ekk - Detail
SN 2020ekk (Type II) discovered 2020/03/11.779 by Koichi Itagaki
 (Rochester Supernova site |  Discovery Image (Mag +17.2) |  Marc Deldem Image )

UGC 10528 with SN 2020ekk - 2020-09-19 (T+192.0d)
Image below (2020-09-19.844) was taken 192 days after discovery of SN 2020ekk
Former position of SN is shown by white cross hairs.   SN is no longer visible (mag > 18.5)
Annotated CCD Image (100% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-19 20:15 UT (#812016-20)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 10528 with SN 2020ekk - Earlier Image 2020-03-20 (T+8.2d)
Image below (2020-03-20.004) was taken 8.23 days after discovery of SN 2020ekk
SN is shown by white cross hairs.   Estimated SN magnitude +16.2
Annotated CCD Image (100% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-03-20 00:06 UT (#763117-21)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2020ekk (UGC 10528) on Supernovae 2020 Page >>

Back to Top


UGC 11994 - Spiral Galaxy (PGC 68617)

UGC 11994 (Pegasus)
Flat Galaxy Atlas
Alias: PGC 68617
Annotated CCD Image  (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-09-19 21:40 UT (#812085-89)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 11994 - Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

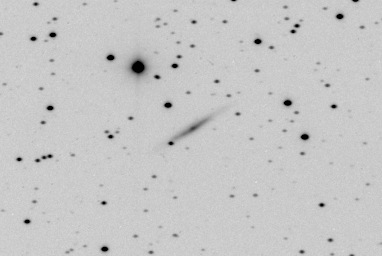

 Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top
