CCD Images - Session 841 (2020-12-21)

Objects Session Notes
Bullet 398P/Boattini - Comet

Bullet AT2020aapw - Extra Galactic Nova in M31 (Attempt)
Bullet AT2020acxk - Variable Star (CV)

Bullet ARP 58 - Spiral Galaxy with small HSB on arm (UGC 4457)

Bullet M85 - Elliptical Galaxy with SN 2020nlb

Bullet NGC 517 and NGC 515 - Spiral Galaxies
Bullet NGC 2974 - Elliptical Galaxy (UGCA 172)
Bullet NGC 4742 - Elliptical Galaxy (UGCA 303)

Bullet UGCA 154 - Galaxy (PGC 26188)
Bullet UGCA 193 - Spiral Galaxy (PGC 29086)
Bullet UGCA 205 - Irregular Galaxy (Sextans A, PGC 29653), Local Group - 4.0 mly

Bullet UGC 5173 - Spiral Galaxy (PGC 27681)
Bullet UGC 5760 - Spiral Galaxy with Type II Supernova 2020zoq
Bullet UGC 9340 - Spiral Galaxy (PGC 51864) with Type II Supernova 2020acac
Bullet UGC 9625 - Spiral Galaxy (PGC 53470) with Type Ia Supernova 2020acai (Attempt)

Bullet VV 36 - Interacting Galaxies (NGC 517 & PGC 212751)

Bullet Variable Stars (photometric monitoring)
- U And, AM CVn, SY Cnc, SS Cyg, U Mon, RR Tau

Bullet Nearby Stars (astrometric monitoring)
- Groombridge 34


- Night session (8.1 hours)
- Main aims of the session were the acquisition of a selection of variable star, nearby star and comet targets and deep sky targets as conditions allow
- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 1°C (min)
- CCD Temperature:  -20°/-25°C
- Notes from 2020-12-21 >>

-


398P/Boattini - Comet

398P/Boattini
(passing through Eridanus)
Sun Distance 1.31 AU (approaching)
Earth Distance 0.38 AU (56.2 million km)
   398P/Boattini - 2020-12-22, Detail
Alias: P/2020 P2 (Boattini)
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 30.79 arcsec/hr, Dec 73.67 arcsec/hr)
Image   Image
CCD Image (50% size, square root scale)
2 x 45s exposure (average combine), 3x3 binning, C Filter
2020-12-22 00:11 UT (#841040-41)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  CCD Image (100% size, square root scale, cropped)
8 x 45s exposure (average combine), 3x3 binning, C Filter
2020-12-22 00:14 UT (#841040-48)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of 398P/Boattini on Comets 2020 Page >>



Back to Top


AT2020aapw - Extra Galactic Nova in M31 (attempt)

M31 w/Nova AT2020aapw (Andromeda)
AT2020aapw (Type: EGN) discovered 2020-11-20.400 UT by ASAS-SN
Alias: ASASSN-20om, PNV J00401974+4049360

Magnitude at discovery +16.6 (2020-11-20) but dimmed rapidly to +19.8 (2020-11-25)
 ( Rochester Supernova site | Discovery Image |  )

M31 w/Nova AT2020aapw, 2020-12-21 (T+31.6d)
Image below (2020-12-21.979) was taken 31.6 days after discovery of AT2020aapw
Position of reported EGN is shown by white circle.
No visual indication of nova, which is presumed to have dimmed to below limiting magntitude (~19.0)
This is consistent with dimming reported on 2020-11-25 (+19.8 at T+5.0d)
Annotated CCD Image (50% size, square root scale)
3 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-21 23:17 UT (#841003-06)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M31 w/Nova AT2020aapw - Detail, 2020-12-21 (T+5.7d)
Position of the reported EGN is shown by white circle.
No visual indication of nova, which is presumed to have dimmed to below image's limiting magntitude (~19.0)
This is consistent with the dimming reported on 2020-11-25 (+19.8 at T+5.0d)
Annotated CCD Image (125% size, square root scale, cropped)
Image details as above

M31 (part)
CCD Image (50% size, square root scale)
Image details as above

Negative CCD Image (50% size, square root scale)
Image details as above


Back to Top


AT2020acxk, outburst of candiate CV (CRTS J010522.2+110253) - Variable Star (CV)

AT2020acxk (Pisces)
AT2020acxk (Type: CV) discovered 2020/12/16.316 UT by Gaia
Alias: Gaia20ftq, CRTS J010522.2+110253
Magnitude at discovery +15.1 vs normal magnitude of +20.8
 ( Rochester Supernova site )

AT2020acxk, 2020-12-21 (T+5.7d)
Image below (2020-12-21.979) was taken 5.7 days after discovery of AT2020acxk
CV is shown by white cross hairs.  Measured magnitude +15.6
Annotated CCD Image (50% size, linear scale)
5 x 60s exposure (average combine), 3x3 binning, C Filter
2020-12-21 23:30 UT (#841009-13)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT2020acxk - Detail, 2020-12-21 (T+5.7d)
Annotated CCD Image (100% size, linear scale, cropped)
Image details as above

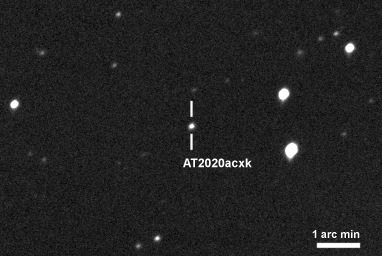

AT2020acxk - Earlier Image, 2020-12-20 (T+4.5d)
Image below (2020-12-20.821) was taken 4.5 days after discovery of AT2020acxk
CV is shown by white cross hairs.  Measured magnitude +15.6
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, C Filter
2020-12-20 19:42 UT (#840061-65)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


ARP 58 - Spiral Galaxy with small HSB on arm (UGC 4457)

ARP 58 / UGC 4457 (Cancer)
Taken through dual-band filter
ARP 58 / UGC 4457 - Earlier Image (2019-12-05)
Note: bright star to upper left of ARP 58
is 11th magnitude star GSC 1387:691
  Image Image

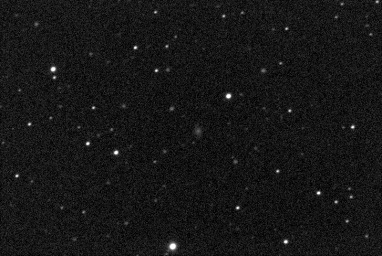

Annotated CCD Image (50% size, square root scale)
7 x 180s exposure (average combine), 3x3 binning, DB Filter
2020-12-22 01:34 UT (#841093-99)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2019-12-05 01:18 UT (#727319-23)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

ARP 58 - Detail ARP 58 - Earlier Detail  (2019-12-05)
UGC 4457 / PGC 23935 (catalog mag +15.4)
PGC 23937 (catalog mag ?)
  Image Image
CCD Image (125% size, square root scale, cropped)
Image details as above
Annotated  CCD Image (125% size, log scale, cropped)
Image details as above left

Back to Top


M85 - Elliptical Galaxy with SN 2020nlb

M85 with SN 2020nlb (Coma Berenices)
SN 2020nlb (Type Ia), discovered 2020/06/25.251 by ATLAS
 (Rochester Supernova site |  Confirmation ImageR. Spellman Image |  mag ~ 18.5 at discovery )

M85 with SN 2020nlb - 2020-12-22 (T+179.9d)
Image (2020-12-22.189) taken 179.9 days after SN discovery.
 Measured SN magnitude +16.6
Annotated CCD Image (100% size, square root scale, cropped)
7 x 45s exposure (average combine), 3x3 binning, C Filter
2020-12-22 04:32 UT (#841149-58)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M85 - Wider View Image
with NGC 4394 (H II-55)
Annotated CCD Image (50% size, square root scale)
Image details as above

Images of SN 2020nlb (M85) on Supernovae 2020 Page >>

Back to Top


NGC 517 and NGC 515 - Spiral Galaxies

NGC 517 & NGC 515 (Pisces)
NGC 517 (catalog mag +12.5),  NGC 515 (catalog mag +13.1)
IC 1691 (catalog mag +15.2),  PGC 197586 (catalog mag +17.4
Annotated CCD Image (50% size, square root scale)
3 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-21 23:49 UT (#841016-20)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 517 & NGC 515 -  Detail
CCD Image (150% size, square root scale, cropped)
Image details as above

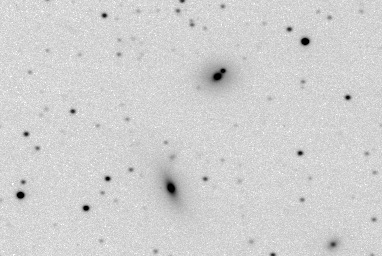

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


NGC 2974 - Elliptical Galaxy (UGCA 172)

NGC 2974 (Sextans)
Alias: UGCA 172 (catalog mag +10.9 or +11.9)
The bright foreground star in line with the galaxy is BD-03 2751
CCD Image (50% size, log scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-22 05:01 UT (#841168-72)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 2974 / UGCA 172 - Detail
CCD Image (100% size, log scale, cropped)
Image details as above

Negative CCD Image (100% size, log scale, cropped)
Image details as above


Back to Top


NGC 4742 - Elliptical Galaxy (UGCA 303)

NGC 4742 (Virgo)
Alias: UGCA 303 (Catalog mag +11.3 or +12.4)
CCD Image (50% size, square root scale)
3 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-22 06:15 UT (#841174-76)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 4742 / UGCA 303 - Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

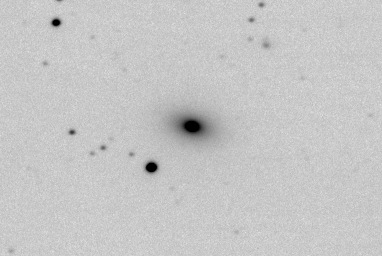

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGCA 154 - Galaxy (PGC 26188)

UGCA 154 (Ursa Major)
Alias: PGC 26188 (catalog mag +14.6)
with adjacent galaxy PGC 26174 (catalog mag +16.1)
Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-22 04:01 UT (#841139-43)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGCA 154 -  Detail
CCD Image (150% size, square root scale, cropped)
Image details as above

Negative CCD Image (150% size, square root scale, cropped)
Image details as above


Back to Top


UGCA 193 - Spiral Galaxy (PGC 29086)

UGCA 193 (Sextans)
Alias: PGC 29086 (catalog mag +14.6)
with several faint galaxies in same field of view:
PGC 182114 (catalog mag +16.2), PGC 1036972 (catalog mag +16.5),
PGC 1037398 (catalog mag +17.7) &  PGC 1037313 (catalog mag +17.8)
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-22 03:10 UT (#841122-25)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGCA 193 -  Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGCA 205 - Irregular Galaxy (Sextans A, PGC 29653), Local Group - 4.0 mly

UGCA 205 (Sextans)
Local Group Galaxy

Alias: Sextans A, PGC 29653
CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-22 03:29 UT (#841128-32)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

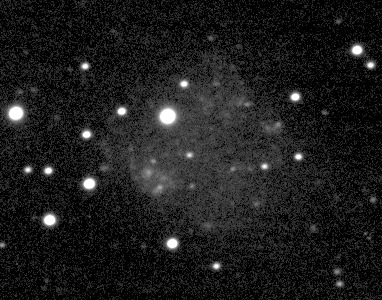

UGCA 205 -  Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

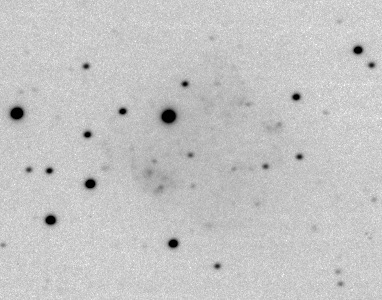

Negative CCD Image (100% size, square root scale, cropped)
Image details as above

UGCA 205 -  Earlier Image (2007)
CCD Image
5 x 180s exposure (summed combine), 2x2 binning, C filter,
Smoothed
2007-03-15  23:04h UT (#183251-55)
8" LX200 + ST-7E


Back to Top


UGC 5173 - Spiral Galaxy (PGC 27681)

UGC 5173 (Leo)
Flat Galaxy Atlas
Alias: PGC 27681 (catalog mag +14.8)
with other galaxies:
PGC 27683 (catalog mag +15.2), PGC 27701 (catalog mag +14.9),
& PGC 213624 (catalog mag +17.9)

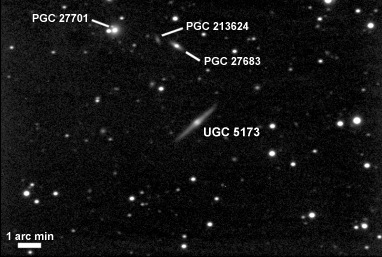

Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-22 02:45 UT (#841114-18)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

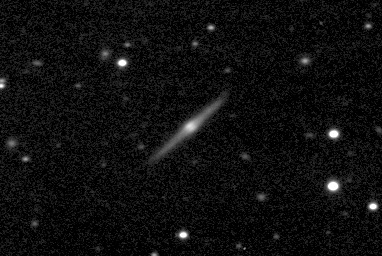

UGC 5173 -  Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGC 5760 - Spiral Galaxy with Type II Supernova 2020zoq

UGC 5760 w/SN 2020zoq (Leo)
SN 2020zoq (Type II, z=0.0, zhost=0.010040) discovered 2020/11/14.561 by ASAS-SN
 (Rochester Supernova site | Discovery Image | )

Image below (2020-12-22.083) was taken 37.5 days after discovery of SN 2020zoq
SN is shown by white cross hairs.
CCD Image  (100% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-22 02:00 UT (#841101-05)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 5760 w/SN 2020zoq - 2020-12-22 (T+37.5d)
Image below (2020-12-22.083) was taken 37.5 days after discovery of SN 2020zoq
SN is shown by white cross hairs.  Measured magnitude +16.0
CCD Image  (125% size, square root scale, cropped)
Image details as above

Images of SN 2020zoq (UGC 5760) on Supernovae 2020 Page >>


Back to Top


UGC 9340 - Spiral Galaxy (PGC 51864) with Type II Supernova 2020acac

UGC 9340 w/ SN 2020acac ? (Bootes)
SN 2020acac (Type: II, zhost=0.015137) discovered 2020-12-05.535 UT by ZTF
Alias: ZTF20acbjgoa, Gaia20fpu
UGC 9340 w/ SN 2020acac - 2020-12-22, T +16.6d)
Image below (2020-12-22.099) was taken 16.6 days after discovery of SN 2020acac
SN is too faint to see in the poor quality image below
Annotated CCD Image  (125% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-22 02:22 UT (#841108-12)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 9340 w/ SN 2020acac - Earlier Image (2020-12-21, T +15.7d)
Image below (2020-12-21.207) was taken 15.7 days after discovery of SN 2020acac
SN is assumed to be the object shown by white cross hairs.  Magnitude ?
Annotated CCD Image  (125% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-21 04:58 UT (#840234-38)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2020acac (UGC 9340) on Supernovae 2020 Page >>


Back to Top


UGC 5173 - Spiral Galaxy (PGC 27681)

UGC 5173 (Leo)
Flat Galaxy Atlas
Alias: PGC 27681 (catalog mag +14.8)
with other galaxies:
PGC 27683 (catalog mag +15.2), PGC 27701 (catalog mag +14.9),
& PGC 213624 (catalog mag +17.9)
Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-22 02:45 UT (#841114-18)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 5173 -  Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGC 9625 - Spiral Galaxy (PGC 51864) with Type Ia Supernova 2020acai (Attempt)

UGC 9625 w/ SN 2020acai (Virgo)
SN 2020acai (Type: Ia, z host=0.026892) discovered 2020-12-09.561 UT by ZTF
Alias: ZTF20acwfftd, Gaia20ftm
Mag ~ +18.0 at discovery, dimming to +18.5 (2020-12-15)

UGC 9625 w/ SN 2020acai - 2020-12-22 (T+12.7d)
Image below (2020-12-22.294) was taken 12.7 days after discovery of SN 2020acai
No indication of SN object
CCD Image  (100% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-22 07:03 UT (#841178-81)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


VV 36 - Interacting Galaxies (NGC 517 & PGC 212751)

VV 36 (Pisces)
Vorontsov-Velyaminov Catalogue
Alias: NGC 517 & PGC 212751
Annotated CCD Image (50% size, square root scale)
3 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-21 23:49 UT (#841016-20)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

VV 36 -  Detail
Annotated CCD Image (150% size, square root scale, cropped)
Image details as above

Negative CCD Image (150% size, square root scale, cropped)
Image details as above


Back to Top
