David's Astronomy Pages Stellar & Deep Sky
M31 Galaxy

Various images of M31

M31 Galaxy
Bullet M31 - Spiral Galaxy (Andromeda Galaxy) - 2.9 mly

M31 Satellite Galaxies
Bullet M32 - Galaxy - 2.9 mly
Bullet NGC 205 - Elliptical Galaxy (M110) - 2.9 mly

Transients in M31
Bullet Novae in M31
Bullet Nova 2006 14 - Extragalactic Nova in M31 (2006-11-25)
Bullet Nova 2007 6 - Extragalactic Nova in M31 (2007-03-04), Attempted Observation
Bullet Nova 2007 11d - Extragalactic Nova in M31 (2007-11-16), Attempted Observation
Bullet AT2018lcl - Extragalactic Nova in M31 (2018-12-30)
Bullet AT2020vak - Extragalactic Nova in M31 (2020-10-07)
Bullet AT2020aapw - Extragalactic Nova in M31 (2020-11-20), Attempted Observation
Bullet AT2021bfs - Transient Fe-II Star in M31 (2021-01-26)
Bullet AT 2021fbz - Extragalactic Nova in M31 (2021-03-08) (Attempt)
Bullet AT2021urk - Extragalactic Nova in M31 (2021-07-26)
Bullet AT2021aceg - Extragalactic Nova in M31 (2021-10-25)
Bullet AT 2022qzf - Extragalactic Nova in M31 (2022-08-09)

Globular Clusters in M31
Bullet Globular Clusters - 2006
Bullet Globular Clusters - 2007
Bullet Globular Clusters - 2009
Bullet Globular Clusters - 2010 (Mayall II)

M31 Galaxy

M31 - Spiral Galaxy (Andromeda Galaxy)  - 2.9 mly


M31 Mosaic (2006)

M31 (Andromeda)


CCD Image Mosaic (7x12 frames, 30% size)
3 min exposure, 2x2 binning, C Filter
2006-12-09 20:03 to 22:41h UT  (#161075-124)
2006-12-11 20:30 to 22:34h UT (#162048-81)
Linear brightness scaling,   (larger image, 50% size)
8" LX200 + ST-7E

Back to Top


M31 Colour Images (2017)

M31 (Andromeda)
Image   Image:

Total Exposure:
Subs/Exposure
Details:
Date/Time:
Image Set:

Equipment:


Software:


Other Formats:
CMOS Colour Image (16% size)
Live Stacking of 182 frames
30 mins
182 x 10s, 1x1 binning
Gain 400, Raw16, ROI 3096x2080
2017-01-18 22:56h UT
(#22_56_43Z). Non-Guided.

TS 80mm f/6 APO + ASI178MC (OSC)
Mounted on 12" LX200R

Frames acquired using SharpCap (Live Stack)
Displayed using DeepSkyStacker

Larger Image (32% size)

M31 - detail (80mm APO + ASI178MC)
Image   Image:


Total Exposure:
Subs/Exposure
Details:
Date/Time:
Image Set:

Equipment:


Software:
CMOS Colour Image (54% size, cropped)
Live Stacking of 182 frames

30 mins
182 x 10s, 1x1 binning
Gain 400, Raw16, ROI 3096x2080
2017-01-18 22:56h UT
(#22_56_43Z). Non-Guided.

TS 80mm f/6 APO + ASI178MC (OSC)
Mounted on 12" LX200R

Frames acquired using SharpCap (Live Stack)
Processed using DeepSkyStacker

M31 - detail (12" LX200 + ST-10XME)
(recorded at the same time as the above image)

Image   Image:

Total Exposure:
Subs/Exposure

Date/Time:
Image Set:

Equipment:

Software:

CCD Image (70% size)

6.5 minutes
13 x 30s, 3x3 binning, ROI Full

2017-01-18 23:16h UT
(#600109-31). Non-Guided.

12" LX200R + ST-10XME

Frames acquired and processed
using CCDSoft.
Displayed using FV


Back to Top


Satellite Galaxies


M32 - Elliptical Galaxy - 2.9 mly

M32 Galaxy (Andromeda)
CCD Image,
 2 x 5 min exposure (2x2 binning)
2002-10-03  00:44 to 00:54h UT (#28240-41)
11.4 x 7.6 arc min
8" LX200 + ST-7E

Back to Top


NGC 205 - Elliptical Galaxy (M110) - 2.9 mly

NGC 205 / M110 Galaxy (Andromeda)
CCD Image
2 x 5 min exposure (2x2 binning)
2002-10-03  01:03 to 01:14h UT
11.4 x 7.6 arc min  (#28243-44)
8" LX200 + ST-7E

Back to Top


Transients in M31 (Nova etc)


Nova 2006 14 - Extragalactic Nova in M31 (2006-11-25)

Nova 2006 14 in M31  (Andromeda)
An extragalactic nova (M31 2006 14) was discovered in M31 on 2006/11/25.468
by Koichi Itagak, with an apparent magnitude of +17.5
(Extragalactic Novae page at Rochester Supernova site | Discovery Image | )

Nova 2007 6 in M31,   2007-03-15 (T+11d)
Image taken 2006-12-05 (nova at mag +16.3 )
CCD Image (100% size, linear scale)
4 x 3 min exposure (average combine), 2x2 binning, C Filter
2006-12-05 20:11h UT (#158076-79)
8" LX200 + ST-7E

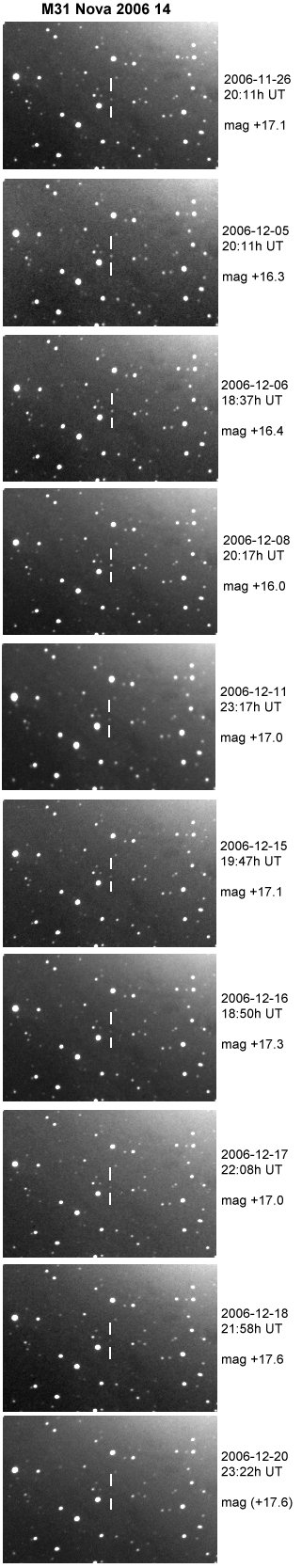

Sequence of images of Nova 2006 14 in M31
from 2006-11-26 to 2006-12-20




Back to Top


Nova 2007 6 - Extragalactic Nova in M31 (2007-03-04), Attempted Observation

Nova 2007 6 in M31  (Andromeda)
Unannounced discovery of nova on 2007/03/04.763 by Kamil Hornoch
At brightest the nova was recorded at +16.7 (+15.8 ?)
(Extragalactic Novae page at Rochester Supernova site | Discovery Image | )

Nova 2007 6 in M31,   2007-03-15 (T+11d)
Image below (2007-03-15) was taken 11 days after discovery.
Neither the original image or the enhanced image
show any indication of the nova at it's recorded position (indicated by white circle)
This suggests that at 11 days after discovery the nova has now faded to below mag +17.5
CCD Image (100% size, linear scale)
5 x 3 min exposure (average combine), 2x2 binning, C Filter
2007-03-15 19:52h UT (#183158-62)
8" LX200 + ST-7E

CCD Image (250% size, cropped)
Image details as above



Back to Top


Nova 2007 11d - Extragalactic Nova in M31 (2007-11-16), Attempted Observation

Nova 2007 11d in M31  (Andromeda)
An extragalactic nova (M31 2007 11d) was discovered in M31 on 2007/11/16.51
by Koichi Nishiyama and Fujio Kabashima, and reached an apparent magnitude of +14.9
(Extragalactic Novae page at Rochester Supernova site | Discovery Image | )

Nova 2007 11d in M31,   2007-12-18 (T+3.1d)
Image below (2007-12-18.82) was taken 33 days after discovery.
No sign of any object is evident at discovery location (shown by white circle in enlarged image)
Limiting magnitude of image +17.3
CCD Image (100% size)
5 x 2 min exposure (average combine), 2x2 binning, C Filter
2006-12-18 19:45h UT (#243034-38)
8" LX200 + ST-7E

CCD Image (250% size, cropped)
Image details as above



Back to Top


AT2018lcl - Extragalactic Nova in M31 (2018-12-30)

AT2018lcl - Nova in M31  - Earlier Image
AT2018lcl, TNS discovered 2018/12/30.855 by Emmanuel Conseil
 ( Rochester Extragalactic Novae Page |  Discovery Image )

Nova AT2018lcl in M31,   2019-01-02 (T+3.1d)
Nova is shown in the image below by white cross-hairs.
Image (2019-01-02.98) was taken 3.1 days after discovery
(Estimated Magnitude +17.0 , vs +15.9 at discovery)
Annotated CCD Image (50% size)
2 x 120 sec exposure (average combine), 3x3 binning, C Filter
2019-01-02 23:33 UT (#647246-47)
12" LX200R  (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Nova AT2018lcl in M31,   2019-01-20 (T+21.0d)
No sign of an object at the position of the earlier nova (indicated white cross-hairs)
Image (2019-01-20.89) was taken 21.0 days after discovery
Image taken under full moon conditions and doesn't have the
 magnitude reach of the earlier image
Annotated CCD Image (100% size, cropped)
4 x 120s exposure (average combine), 3x3 binning, C Filter
2019-01-20 21:21 UT (#648228-31)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Nova AT2018lcl in M31, 2019-01-22 (T22.9d)
Image (2019-01-22.79) was taken 22.9 days after discovery
No definate sign of an object at the position of the earlier nova
(marked by white cross-hairs). The nova has dimmed to > 18th magnitude.
Annotated CCD Image (100% size, cropped)
2 x 120s exposure (average combine), 3x3 binning, C Filter
2019-01-22 19:04 UT (#649058-62)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Nova AT2018lcl in M31,   2019-01-23 (T+25 to 26d)
Earlier Nova AT2018lcl has now dimmed to below the
magnitude limit of the image (+18.5)
CCD Image (50% size)
3 x 120s exposure (average combine), 3x3 binning, C Filter
2019-01-23 18:50 UT (#650002-04)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


AT2020vak - Extragalactic Nova in M31 (2020-10-07)

Nova AT2020vak in M31 (Andromeda)
AT2020vak in M31 discovered 2020/10/07.650 by Xingming Observatory Sky Survey (XOSS)
 ( Rochester Extragalactic Nova Page | Discovery images | Marc Serrau image )

Nova AT2020vak in M31 - Detail, 2020-10-23-29 (T+16.2d)
Image below (2020-10-23.861) was taken 16.2 days after discovery of AT2020vak
SN is shown by grey cross hairs.  Not possible to get a magnitude.
Annotated CCD Image (100% size, square root scale, cropped)
3 x 120s exposure (average combine), 3x3 binning, C Filter
2020-10-23 20:40 UT (#820069-72)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Nova AT2020vak in M31 - Wider View
CCD Image (50% size, square root scale)
Image details as above


Back to Top


AT2020aapw - Extragalactic Nova in M31 (2020-11-20), Attempted Observation

M31 w/Nova AT2020aapw (Andromeda)
AT2020aapw (Type: EGN) discovered 2020-11-20.400 UT by ASAS-SN
Alias: ASASSN-20om, PNV J00401974+4049360

Magnitude at discovery +16.6 (2020-11-20) but dimmed rapidly to +19.8 (2020-11-25)
 ( Rochester Supernova site | Discovery Image |  )

M31 w/Nova AT2020aapw, 2020-12-21 (T+31.6d)
Image below (2020-12-21.979) was taken 31.6 days after discovery of AT2020aapw
Position of reported EGN is shown by white circle.
No visual indication of nova, which is presumed to have dimmed to below limiting magntitude (~19.0)
This is consistent with dimming reported on 2020-11-25 (+19.8 at T+5.0d)
Annotated CCD Image (50% size, square root scale)
3 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-21 23:17 UT (#841003-06)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M31 w/Nova AT2020aapw - Detail, 2020-12-21 (T+5.7d)
Position of the reported EGN is shown by white circle.
No visual indication of nova, which is presumed to have dimmed to below image's limiting magntitude (~19.0)
This is consistent with the dimming reported on 2020-11-25 (+19.8 at T+5.0d)
Annotated CCD Image (125% size, square root scale, cropped)
Image details as above

M31 (part)
CCD Image (50% size, square root scale)
Image details as above

Negative CCD Image (50% size, square root scale)
Image details as above


Back to Top


AT2021bfs - Transient Fe-II Star in M31 (discovered 2021-01-26)

AT2021bfs in M31 (Andromeda)
AT2021bfs (Type: FeII) discovered 2021/01/26.720 UT by Italian Supernovae Search Project
Alias: PNV-OMB15, PNV J00425220+4116246

AT2021bfs in M31 - 2021-01-31 (T+5.1d)
Transient is shown by white circle.
Annotated CCD Image  (70% size, log scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2021-01-31 19:45 UT (#856019-23)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Earlier Image 2020-10-23
Image below (2020-10-23) was taken several  months before discovery of AT2021bfs
Position of later transient is shown by white circle.
No indication of any object at position of AT2021bfs
Annotated CCD Image (100% size, square root scale, cropped)
3 x 120s exposure (average combine), 3x3 binning, C Filter
2020-10-23 20:40 UT (#820069-72)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT2021bfs in M31 - 2021-01-31 (T+5.1d)
Image below (2021-01-31.816) was taken 5.1 days after discovery of 2021bfs
Transient is shown by white cross-hairs
Annotated CCD Image  (100% size, log scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2021-01-31 19:45 UT (#856019-23)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT2021bfs in M31 - 2021-02-01 (T+6.2d)
Image below (2021-02-01.883) was taken 6.2 days after discovery of 2021bfs
Transient is shown by white cross-hairs
Annotated CCD Image  (100% size, log scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2021-02-01 21:19 UT (#857105-08)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT2021bfs in M31 - 2021-02-10 (T+15.1d)
Image below (2021-02-10.854) was taken 15.1 days after discovery of 2021bfs
Transient has faded. Previous position is shown by white circle
Annotated CCD Image  (100% size, log scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2021-02-10 20:40 UT (#858020-24)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT2021bfs in M31 - 2021-02-16 (T+21.1d)
Image below (2021-02-16.803) was taken 21.1 days after discovery of 2021bfs
Transient is confirmed to have faded. Previous position is shown by white circle
Annotated CCD Image  (100% size, log scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2021-02-16 19:25 UT (#859004-08)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


AT2021fbz - Candidate Nova in M31 (discovered 2021-03-08), unconfirmed

M31 with Nova 2021fbz (Andromeda)
AT2021fbz (Type: EGN) discovered 2021/03/08.397 UT by Koichi Itagaki
Alias: PNV J00434013+4127123, XN03JR

M31 with Nova 2021fbz (unconfirmed) - 2021-03-13 (T+5.5d)
Image below (2021-03-13.857) was taken 5.5 days after discovery of 2021fbzj
Transient's reported position is shown by white circle.
No indication of any object at the reported position. Nova is unconfirmed
Annotated CCD Image  (100% size, square root scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, C Filter
2021-03-13 20:43 UT (#869011-15)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M31 with Nova 2021fbz (unconfirmed)- 2021-03-22 (T+14.4d)
Image below (2021-03-22.844) was taken 14.4 days after discovery of 2021fbzj
Transient's reported position is shown by white circle.
No indication of any object at the reported position. Nova is unconfirmed
Annotated CCD Image  (100% size, log scale cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2021-03-22 20:23 UT (#874004-07)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M31 with Nova 2021fbz(unconfirmed) - Wider View (T+14.4d)
Annotated CCD Image  (50% size, log scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2021-03-22 20:23 UT (#874004-07)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Back to Top


AT 2021fbz - Extragalactic Nova (discovered 2021-03-08) in M31 (Attempt)

M31 with Nova 2021fbz (Andromeda)
AT 2021fbz (Type: EGN) discovered 2021/03/08.397 UT by Koichi Itagaki
Alias: PNV J00434013+4127123, XN03JR
Discovery Magnitude 16.5
 (Rochester Supernova site | TNS 2021fbz  | Discovery Image )

M31 with Nova 2021fbz (T+8.5d)
Position of EGN (very faint / barely distinguishable) is shown by white cross hairs.
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2021-03-16 20:51 UT (#871017-20)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M31 with Nova 2021fbz - Negative (T+8.5d)
Position of EGN (very faint) is shown by black cross hairs.
Annotated negative CCD Image (150% size, square root scale, cropped)
Image details as above

Images of EGN 2021fbz (M31) on Transients 2021 Page >>

Back to Top


AT2021urk - Extragalactic Nova in M31 (discovered 2021-07-26)

M31 with AT2021urk (Andromeda)
AT2021urk (Type: EGN) discovered 2021/07/26.874 UT by XOSS
Alias: XM56MZ, Gaia21drr
[ Rochester Supernova site - Novae | Gaia21drr ]
Alerting Magnitude (Gaia) : +16.76

M31 with AT2021urk - 2021-08-13 (T+18.1d)
Image below (2021-08-13.938) was taken 18.1 days after discovery of 2021urk
EGN shown by white cross-hairs
Annotated CCD Image  (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2021-08-13 22:37 UT (#905004-07)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M31 with AT2021urk - 2021-08-13 (T+18.1d)
Image below (2021-08-13.938) was taken 18.1 days after discovery of 2021urk
EGN shown by white cross-hairs
Annotated CCD Image  (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2021-08-13 22:37 UT (#905004-07)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Back to Top


AT2021aceg - Extragalactic Nova in M31 (discovered 2021-10-25)

Nova 2021aceg in M31 (Andromeda)
AT2021aceg (Type: EGN) discovered 2021-10-25.570 UT by XOSS
Alias: PSP21ac, PNV J00473256+3938102
 (Rochester Supernova site )

Position of EGN shown by white circle
CCD Image  (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2021-11-04 00:06 UT (#931088-92)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

 Nova 2021aceg in M31 - 2021-10-31 (T+5.5d)
Image below (2021-10-31.102) was taken 5.5 days after discovery of 2021aceg
EGN is shown by white cross-hairs
Measured magnitude +17.15
CCD Image  (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2021-10-31 02:36 UT (#930169-73)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

 Nova 2021aceg in M31 - 2021-11-03 (T+9.4d)
Image below (2021-11-03.998) was taken 9.4 days after discovery of 2021aceg
EGN is shown by white cross-hairs
Measured magnitude +17.8
Object confirmed not to be a known foreground star using Aladin
CCD Image  (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2021-11-04 00:06 UT (#931088-92)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

 Nova 2021aceg in M31 - 2021-11-23 (T+29.2d)
Image below (2021-11-23.751) was taken 29.2 days after discovery of 2021aceg
EGN (faint) is shown by white cross-hairs
Annotated CCD Image  (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2021-11-23 18:09 UT (#936013-17)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

 Nova 2021aceg in M31 - 2021-12-05 (T+41.3d)
Image below (2021-12-05.820) was taken 41.3 days after discovery of 2021aceg
Position of earlier EGN (no longer visible) is shown by white cross-hairs
Annotated CCD Image  (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2021-12-05 19:49 UT (#939058-61)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Back to Top


AT 2022qzf - Extragalactic Nova in M31 (discovered 2022-08-09)

M31 with Nova 2022qzf (Andromeda)
AT 2022qzf (Type: EGN) discovered 2022-08-09.304 UT by Filipp Romanov
Alias: Romanov N3, PNV J00420940+4115311, M31N 2022-08c
 [ M31 Transients ]
Annotated CCD Image (50% size, log scale)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2022-08-19 01:45 UT (#1028005-09)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M31 with Nova 2022qzf - 2022-08-19 (T+9.8d)
Image below (2022-08-19.066) was taken 9.8 days after discovery of 2022qzf
Position of reported EGN (very faint) is shown by white circle
Annotated CCD Image (100% size, log scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2022-08-19 01:45 UT (#1028005-09)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Annotated CCD Image (150% size, log scale, cropped)
Image details as above


Back to Top


Globular Clusters in M31


Globular Clusters - 2006

Globular Clusters in M31 (Andromeda)
Field 1
023-078 (catalog mag +14.2), 019-072 (catalog mag +14.9),
012-064 (catalog mag +15.1), 010-062 (catalog mag +16.8),
008-060 (catalog mag + 16.9), 004-050 (catalog mag +16.9),
038-098 (catalog mag + 16.5), 032-093 (catalog mag +17.6),
016-066 (catalog mag +17.6)


CCD Image
5 x 2 min exposure, 2x2 binning (average combine), C Filter
2006-09-09 21:14 h UT (#146153-57)
8" LX200 Classic + ST-7E


Globular Clusters in M31 (Andromeda)
Field 2
311-033 (catalog mag +15.5), 315-038 (catalog mag +16.3),
318-042 (catalog mag +16.9), 319-044 (catalog mag +17.5),
325-000 (catalog mag + ???), 327-053 (catalog mag +16.6)


CCD Image
3 x 3 min exposure, 2x2 binning (average combine), C Filter
2006-09-09 21:26 h UT (#146160-62)
8" LX200 Classic + ST-7E


Globular Clusters in M31 (Andromeda)
 Field 3
16 globular clusters visible in image marked by white markers,
together with nova M31 2006-14
165-218 (catalog mag +16.5), 182-233 (catalog mag +15.4),
180-231 (catalog mag +16.0), 158-213 (catalog mag +14.7),
177-228 (catalog mag + 18.0), 155-210 (catalog mag +17.9),
160-214 (catalog mag + 18.0), 156-211 (catalog mag +16.8),
108-167 (catalog mag + 17.5), 101-164 (catalog mag +16.9),
092-152 (catalog mag + 16.9), 125-183 (catalog mag +16.5),
110-172 (catalog mag + 15.2), 095-157 (catalog mag +15.8),
VB 234 (catalog mag  ??), 082-144 (catalog mag +15.5),


Annotated CCD Image
5 x 3 min exposure (median combine), 2x2 binning, C Filter
2006-11-26 20:11h UT (#155108-12)
8" LX200 Classic + ST-7E

Back to Top


Globular Clusters - 2007

Globular Clusters in M31  (Andromeda)
5 globular clusters visible in image marked by white markers
CCD Image (100% size)
5 x 2 min exposure (average combine), 2x2 binning, C Filter
2006-12-18 19:45h UT (#243034-38)
8" LX200 + ST-7E

CCD Image - enhanced to show detail
Images details as above



Back to Top


Globular Clusters - 2009

Globular Clusters in M31  (Andromeda)
location of globular clusters shown by cross hairs


Negative CCD Image (65% size reduction)
CCD Image (65% size reduction)
7 x 60s sec exposure (average combine), 3x3 binning, C Filter
2009-07-28 00:41 h UT (#378223-29)
12" LX200R  (at f/5.7) + ST-10XME
[Full size image]


Back to Top


Globular Clusters - 2010 (Mayall II)

Globular Clusters in M31  (Andromeda)

Mayall II  (Andromeda)

Annotated CCD Image (cropped)
4 x 10s exposure (average combine), 1x1 binning, C Filter
2010-09-11 01:09hUT (#427178-81)
12" LX200R  (at f/9.7) + ST-10XME


Mayall II  - Hubble Image

HST Hubble Image (from Wikipedia, rotated)


Mayall II  - earlier image
Globular Cluster indicated by white cross hairs

Annotated CCD Image (cropped)
2 x 60s exposure (average combine), 3x3 binning, C Filter
2010-08-30 22:28hUT (#426108-09)
12" LX200R  (at f/9.7) + ST-10XME


Back to Top
