Notes - Session 691 (2019-09-07)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (6),  Continuous Improvement (16)

Bullet Investigation - Slow Schedule Building in AstroPlan

2019-09-09
Bullet Pegasus UPB - Software Update (1.4.17)

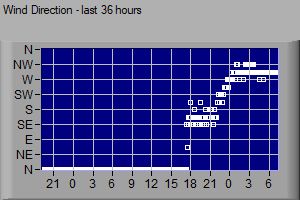

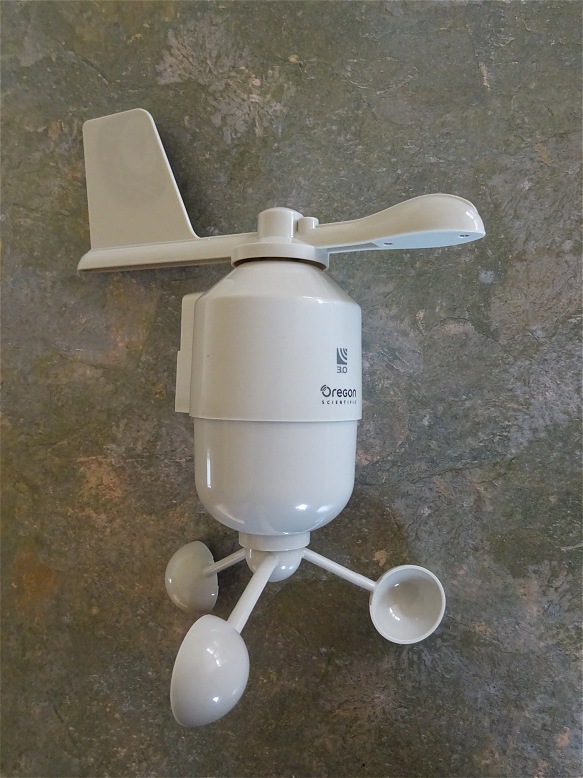

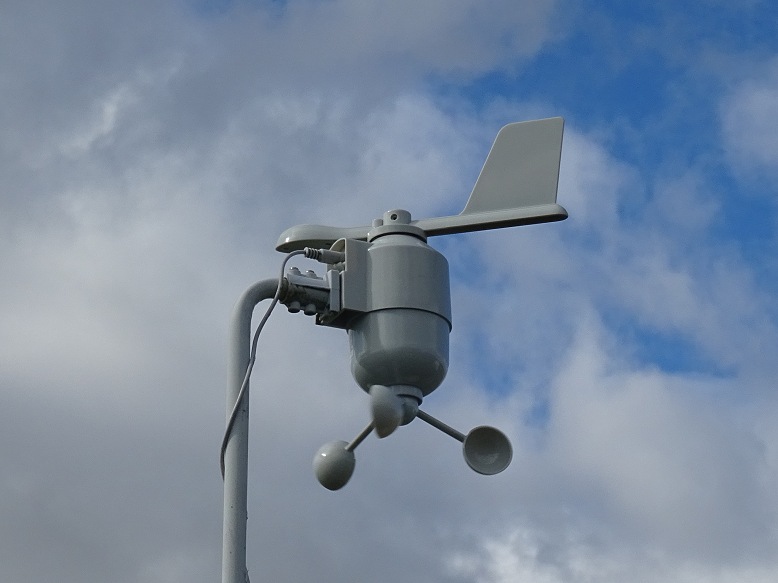

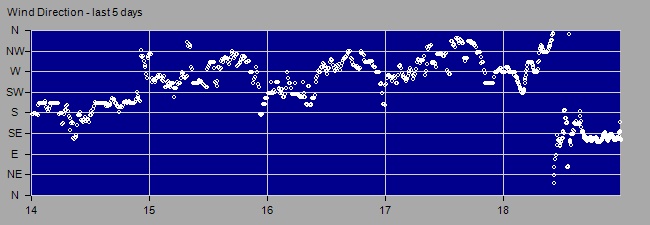

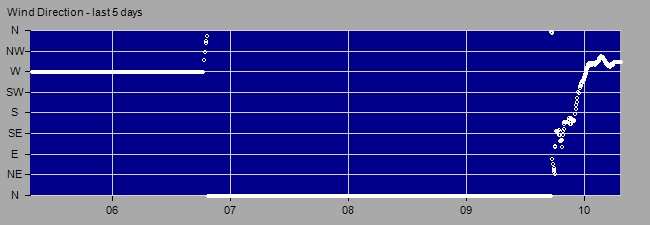

Bullet New Wind Sensor (WMR800X)

Bullet Images from 2019-09-07  >>



Session Aims & Highlights (2019-09-07)

Main aims

  1. Mixed Targets - Image selection of targets including Variable Stars, Comets and Deep Sky Targets
  2. Software & Systems  - Check stability of software and presence of any side effects following ongoing enhancements to AstroMain and associated support programs.

Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

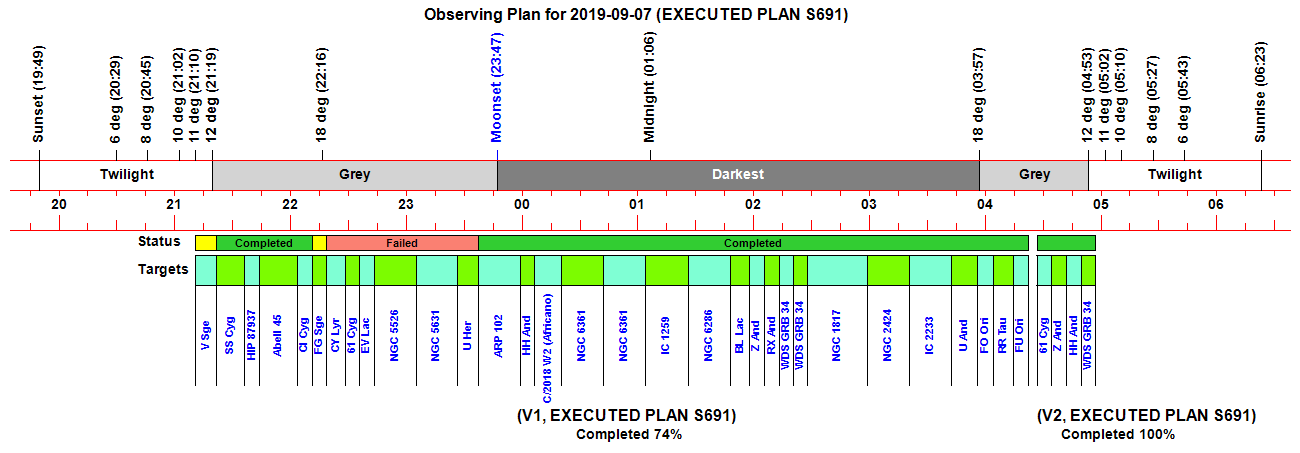

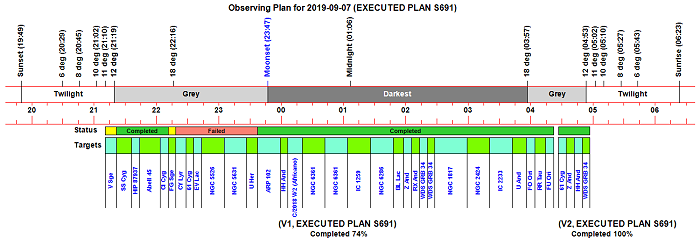

Observing Plan

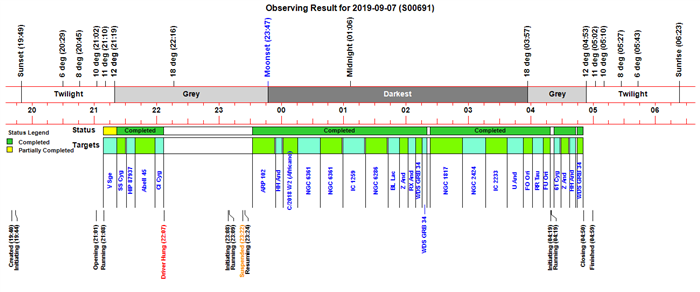

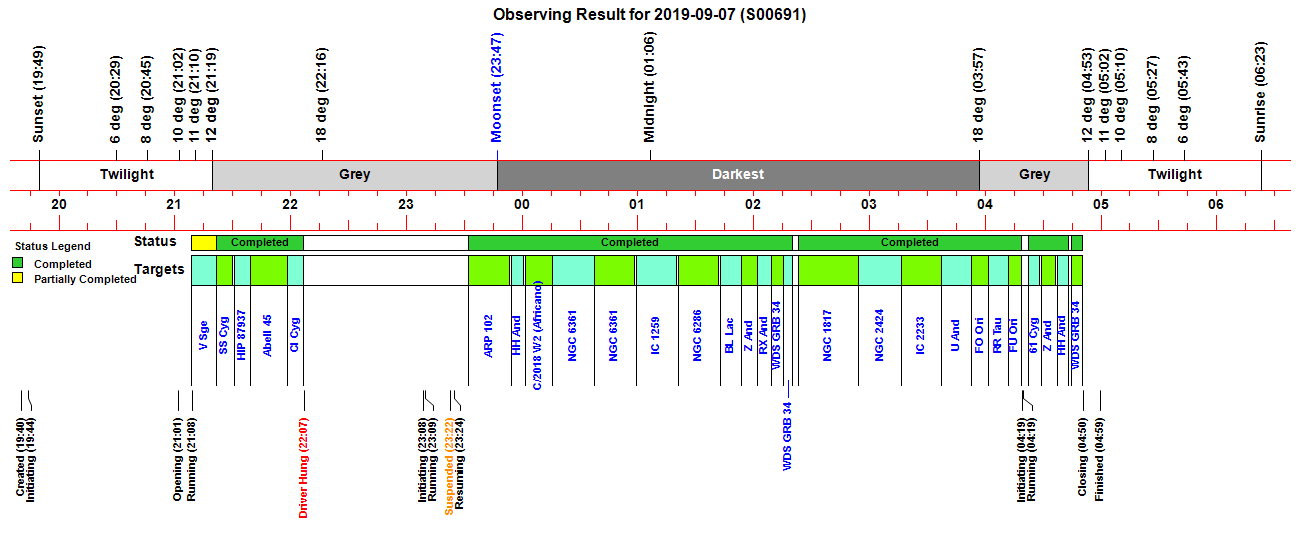

Observing Result

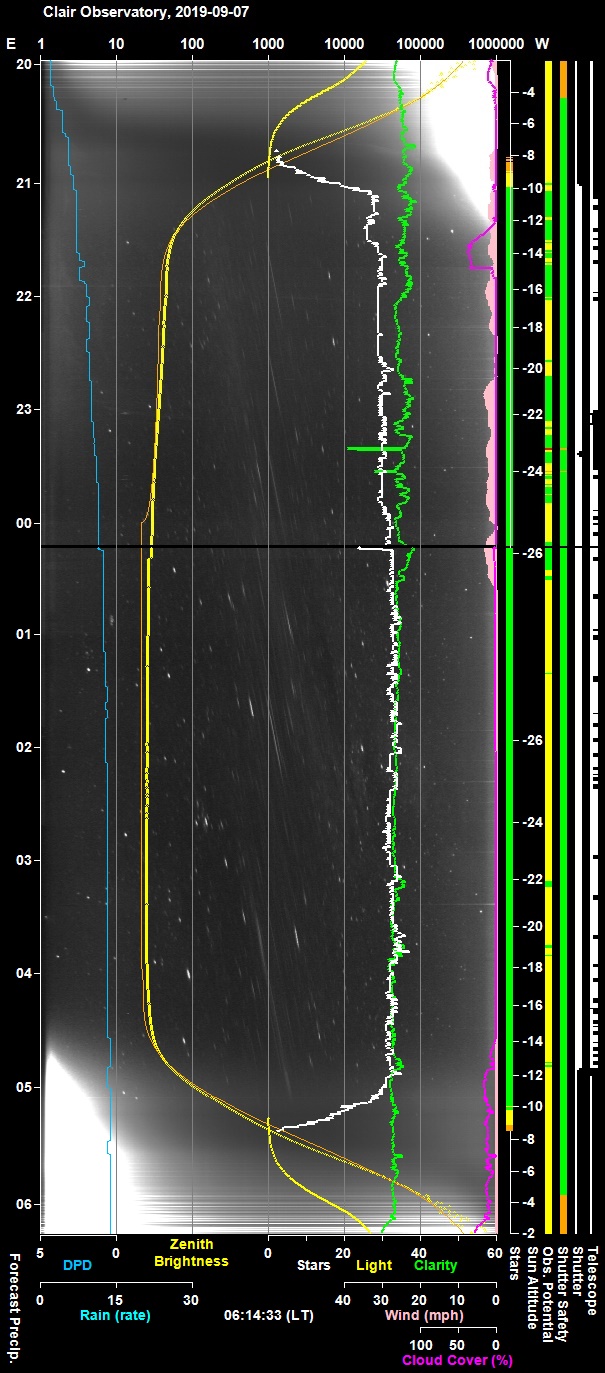

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

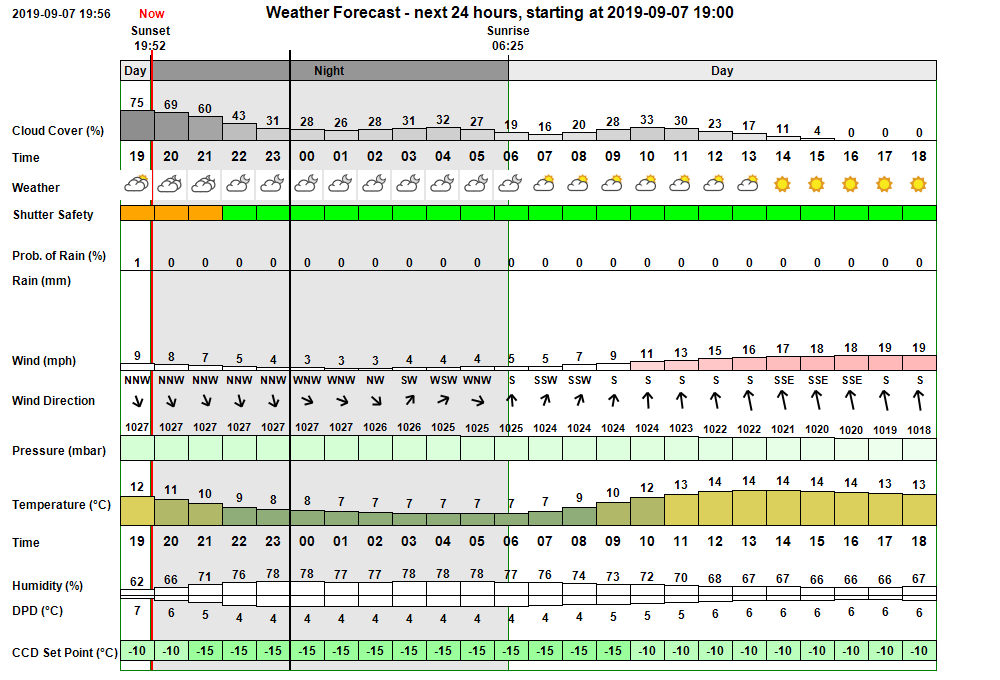

Pre-Session Weather Forecast (AstroWeather 1.7.6)
Cloudy for most of night with skies potentially clearing at 03:00,  low probability of any significant rain
(As it turned out the evolving forecast through the late evening extended the cloud further and further through the night,
and indeed it was cloudy for the the whole night, only clearing at around 06:30 after the sun has risen.
A few spots of rain occurred at around 00:45 and 02:40)

Session Event Log
Time     Event Detail
19:40:42 Session Created Live Session Created (2019-09-07 S00691, ImageSaveNum: 691001)
19:41:51   Obs.Manager Started Obs.Manager started
19:41:58   Services Started Observatory Services started
19:42:56   Camera1 Connected SBIG Camera Connected (set point -15°C)
19:44:07 Observatory (Auto) Observatory placed in Fully-Automated Mode
19:44:13 Session Pending Session pending (2019-09-07)
19:44:15 Session Initiating Session initiating (2019-09-07)
19:44:17   Plan Requested Observing Plan requested from AstroPlan ()
19:49:52   Plan Loaded Observing Plan loaded to queue (2019-09-07 V1 BEST PLAN, Plan ID: 331)
19:50:00   Camera1 Connected SBIG Camera Connected (set point -15°C)
19:50:03   Telescope Connected Telescope Connected (TheSky6)
19:50:10 Session Equilibration Session ready for dome & camera equilibration
21:01:41   Shutter Opened Shutter opened (opening time 45s)
21:01:44   Equilibration Started Dome Equilibration started
21:08:52   Equilibration Ended Dome Equilibration ended (7.2 mins total)
21:08:54 Session Running Session running
21:08:56   Queue Started Observing Queue started (31 targets selected)
21:08:58     Target Started (1/31) Target started (1/31, GCVS V Sge)
21:11:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:14:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
21:21:27     Target Completed Target partially completed (1/31, GCVS V Sge)
21:21:29     Target Started (2/31) Target started (2/31, GCVS SS Cyg)
21:24:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:26:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
21:29:54     Target Completed Target completed (2/31, GCVS SS Cyg)
21:31:06     Target Started (3/31) Target started (3/31, HIP 87937)
21:33:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:36:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
21:39:01     Target Completed Target completed (3/31, HIP 87937)
21:39:03     Target Started (4/31) Target started (4/31, Abell 45)
21:41:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:43:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
21:58:22     Target Completed Target completed (4/31, Abell 45)
21:58:32     Target Started (5/31) Target started (5/31, GCVS CI Cyg)
22:00:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:03:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
22:06:54     Target Completed Target completed (5/31, GCVS CI Cyg)
22:06:56     Target Started (6/31) Target started (6/31, GCVS FG Sge)
22:59:02   Telescope Connected Telescope Connected (TheSky6)
23:00:55     Target Completed Target partially completed (6/31, GCVS FG Sge)
23:00:57     Target Missed (7/31) Target's time slot was missed (7/31, GCVS CY Lyr)
23:00:59     Target Missed (8/31) Target's time slot was missed (8/31, 61 Cyg)
23:01:01     Target Missed (9/31) Target's time slot was missed (9/31, GCVS EV Lac)
23:01:03     Target Missed (10/31) Target's time slot was missed (10/31, NGC 5526)
23:01:05     Target Started (11/31) Target started (11/31, NGC 5631)
23:02:18 Observatory (Manual) Observatory placed in Manual Mode
23:02:24   Queue Aborted Job Queue aborted
23:04:26   Services Stopped Observatory Services stopped
23:04:32 Program Closed Program closed by User
23:07:11 Session Resumed Live Session Resumed (2019-09-07 S00691, ImageSaveNum: 691077)
23:07:46   Obs.Manager Started Obs.Manager started
23:07:53   Services Started Observatory Services started
23:08:42   Camera1 Connected SBIG Camera Connected (set point -20°C)
23:08:55 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:08:57 Session Pending Session pending (2019-09-07)
23:08:59 Session Initiating Session initiating (2019-09-07)
23:09:01   Plan Loaded Observing Plan loaded to queue (2019-09-07 V1 ACTIVE PLAN S691, Plan ID: 331)
23:09:03   Camera1 Connected SBIG Camera Connected (set point -20°C)
23:09:06   Telescope Connected Telescope Connected (TheSky6)
23:09:12 Session Equilibration Session ready for dome & camera equilibration
23:09:15   Equilibration Started Dome Equilibration started
23:09:43   Equilibration Skipped Dome Equilibration skipped by user
23:09:45 Session Running Session running
23:09:47   Queue Started Observing Queue started (19 targets selected)
23:20:35 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
23:20:37   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
23:20:39   Queue Paused Queue pausing for HardSuspend
23:22:42 Session Suspended Session suspended
23:23:30   Shutter Closed Shutter closed (closing time 47s)
23:23:32   Queue Resumed Queue resumed after HardSuspend (175s)
23:24:45 Session Resuming Session resuming
23:25:30   Shutter Opened Shutter opened (opening time 45s)
23:25:32   Queue Resumed Observing Queue resumed
23:32:22     Target Started (13/31) Target started (13/31, ARP 102)
23:35:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:37:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
23:53:52     Target Completed Target completed (13/31, ARP 102)
23:54:15     Target Started (14/31) Target started (14/31, GCVS HH And)
23:56:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:58:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
00:00:47     Target Completed Target completed (14/31, GCVS HH And)
00:01:39     Target Started (15/31) Target started (15/31, C/2018 W2 (Africano))
00:05:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:07:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
00:15:50     Target Completed Target completed (15/31, C/2018 W2 (Africano))
00:15:52     Target Started (16/31) Target started (16/31, NGC 6361)
00:19:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:21:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
00:37:44     Target Completed Target completed (16/31, NGC 6361)
00:37:46     Target Started (17/31) Target started (17/31, NGC 6361)
00:39:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:41:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
00:58:20     Target Completed Target completed (17/31, NGC 6361)
00:59:08     Target Started (18/31) Target started (18/31, IC 1259)
01:01:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:04:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
01:20:43     Target Completed Target completed (18/31, IC 1259)
01:21:00     Target Started (19/31) Target started (19/31, NGC 6286)
01:23:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:26:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
01:42:13     Target Completed Target completed (19/31, NGC 6286)
01:42:52     Target Started (20/31) Target started (20/31, GCVS BL Lac)
01:47:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:49:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
01:53:34     Target Completed Target completed (20/31, GCVS BL Lac)
01:53:36     Target Started (21/31) Target started (21/31, GCVS Z And)
01:55:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:58:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
02:01:47     Target Completed Target completed (21/31, GCVS Z And)
02:01:49     Target Started (22/31) Target started (22/31, GCVS RX And)
02:04:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:06:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
02:09:09     Target Completed Target completed (22/31, GCVS RX And)
02:09:11     Target Started (23/31) Target started (23/31, WDS GRB 34)
02:11:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:13:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
02:15:15     Target Completed Target completed (23/31, WDS GRB 34)
02:15:34     Target Started (24/31) Target started (24/31, WDS GRB 34)
02:16:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:18:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
02:20:22     Target Completed Target completed (24/31, WDS GRB 34)
02:22:59     Target Started (25/31) Target started (25/31, NGC 1817)
02:54:33     Target Completed Target completed (25/31, NGC 1817)
02:54:35     Target Started (26/31) Target started (26/31, NGC 2424)
02:57:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:00:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
03:16:27     Target Completed Target completed (26/31, NGC 2424)
03:16:29     Target Started (27/31) Target started (27/31, IC 2233)
03:19:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:21:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
03:37:25     Target Completed Target completed (27/31, IC 2233)
03:37:35     Target Started (28/31) Target started (28/31, GCVS U And)
03:40:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:42:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
03:52:54     Target Completed Target completed (28/31, GCVS U And)
03:52:56     Target Started (29/31) Target started (29/31, GCVS FO Ori)
03:55:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:57:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
04:01:30     Target Completed Target completed (29/31, GCVS FO Ori)
04:01:32     Target Started (30/31) Target started (30/31, GCVS RR Tau)
04:03:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:05:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
04:11:52     Target Completed Target completed (30/31, GCVS RR Tau)
04:11:54     Target Started (31/31) Target started (31/31, GCVS FU Ori)
04:13:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:16:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
04:19:01     Target Completed Target completed (31/31, GCVS FU Ori)
04:19:04   Queue Completed Job Queue completed
04:19:06 Session Initiating Session initiating (2019-09-07)
04:19:11   Plan Requested Observing Plan requested from AstroPlan ()
04:19:26   Plan Loaded Observing Plan loaded to queue (2019-09-07 V2 BEST PLAN, Plan ID: 332)
04:19:34   Camera1 Connected SBIG Camera Connected (set point -20°C)
04:19:36   Telescope Connected Telescope Connected (TheSky6)
04:19:43 Session Equilibration Session ready for dome & camera equilibration
04:19:46   Equilibration Started Dome Equilibration started
04:19:48   Equilibration Skipped Dome Equilibration skipped by user
04:19:50 Session Running Session running
04:19:52   Queue Started Observing Queue started (4 targets selected)
04:22:11     Target Started (1/4) Target started (1/4, 61 Cyg)
04:25:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:27:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 24)
04:28:40     Target Completed Target completed (1/4, 61 Cyg)
04:29:15     Target Started (2/4) Target started (2/4, GCVS Z And)
04:31:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:33:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 25)
04:37:07     Target Completed Target completed (2/4, GCVS Z And)
04:37:14     Target Started (3/4) Target started (3/4, GCVS HH And)
04:39:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:41:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 26)
04:43:15     Target Completed Target completed (3/4, GCVS HH And)
04:44:39     Target Started (4/4) Target started (4/4, WDS GRB 34)
04:46:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:48:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 27)
04:50:36     Target Completed Target completed (4/4, WDS GRB 34)
04:50:37   Queue Completed Job Queue completed
04:50:42 Session Closing Session closing
04:51:37   Shutter Closed Shutter closed (closing time 50s)
04:54:10   Dome Parked Dome parked (parking time 153s)
04:54:54   Telescope Parked Telescope parked (parking time 44s)
04:55:44 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
04:59:41 Session Finished Session Finished


Back to Top


Operational Issues (2019-09-07, S691)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


Investigation - Slow Schedule Building in AstroPlan

Timings on Observatory Computer

235 targets,   N=200, G=40

  Genetic Modelling Loop
    Create Initial Population     00:04:18         1    258.45         -         -
    Run Generation                00:00:49        39      1.27      0.20      3.03

  Total Time
    Create Schedule (Total)       00:05:35         1    335.67         -         -

  Specific Activites
    CreatePlan                    00:04:18       200      1.29      0.98      3.45
    Choose Target                 00:00:16  18764292    < 0.01      0.00      0.02
    Calc. Fitness                 00:03:58  12393047    < 0.01      0.00      0.08

Nearby 4 minutes is taken up in calculating fitness (Cal Fitness) during initial population build.

Series of tests on the Development Computer
This has a faster CPU and the times taken on different activites are accordingly lower.
'Choose Target'  called over 17.3 million times, Calc Fitness called 11.5 million times.


Test 1:  236 targets,   N=200, G=40

  Genetic Modelling Loop
    Create Initial Population     00:02:55         1    175.03         -         -
    Run Generation                00:01:22        39      2.12      1.08      2.61

  Total Time
    Create Schedule (Total)       00:04:28         1    268.19         -         -

  Specific Activites
    CreatePlan                    00:02:52       200      0.86      0.83      1.04
    Choose Target                 00:00:10  17296065    < 0.01      0.00      0.00
    Calc. Fitness                 00:02:20  11527680    < 0.01      0.00      0.02

Test 2:  236 targets,   N=200, G=40,  with WriteLogFile routine deactivated

  Genetic Modelling Loop
    Create Initial Population     00:01:04         1     64.77         -         -
    Run Generation                00:01:20        39      2.06      1.69      2.29

  Total Time
    Create Schedule (Total)       00:02:35         1    155.82         -         -

  Specific Activites
    CreatePlan                    00:01:02       200      0.31      0.30      0.35
    Choose Target                 00:00:10  17333562    < 0.01      0.00      0.00
    Calc. Fitness                 00:00:32  11543797    < 0.01      0.00      0.01

The second test saw a 2 minutes saving in total time required to create the Schedule.
Most of this saving saving was in Calc.Fitness calls during the creation of the initial populations.

2019-09-17,  V.1.10.2   Check
Test 3:  222 targets,   N=200, G=40,  with WriteLogFile routine deactivated during GA fitness
108 targets disabled

  Genetic Modelling Loop
    Create Initial Population     00:01:04         1     64.74         -         -
    Run Generation                00:01:12        39      1.85      0.61      2.09

  Total Time
    Create Schedule (Total)       00:02:25         1    145.64         -         -

  Specific Activites
    CreatePlan                    00:01:02       200      0.31      0.30      0.35
    Choose Target                 00:00:12  18968330    < 0.01      0.00      0.00
    Calc. Fitness                 00:00:31  12002536    < 0.01      0.00      0.01

2019-09-17,  V.1.10.2   Check
Test 4:  222 targets,   N=200, G=40,  with WriteLogFile routine deactivated during GA fitness.  Modified GetPlan (optimised)
197 targets disabled



  Genetic Modelling Loop
    Create Initial Population     00:00:07         1      7.94         -         -
    Run Generation                00:00:44        39      1.14      0.34      1.53

  Total Time
    Create Schedule (Total)       00:01:01         1     61.39         -         -

  Specific Activites
    CreatePlan                    00:00:00       200    < 0.01      0.00      0.01
    Choose Target                 00:00:00    160959    < 0.01      0.00      0.00
    Calc. Fitness                 00:00:00     36443    < 0.01      0.00      0.02

Back to Top


2019-09-09


Pegasus UPB - Software Update (1.4.17)

UPB Software on Observatory and Development Computer was updated to the latest version (1.4.17, Sep/19) today, 2019-09-09.

Again it had been hoped that the 1.4.17 update would include a fix to the problem that UPB Env Humidity values fall to a constant 90% when the real humidity exceeds 97%, but it doesn't.

A fix to allow the UPB Software & ASCOM UPB Switch Drivers to work together (promised for End August) is also still awaited.

[ Pegasus Astro Support Page:  https://pegasusastro.com/support/ ]

[ The long awaited fix to allow proper workable access and operation of UPB Switches via ASCOM was eventually delievered in Oct 2019
(See
Pegasus UPB - ASCOM Switch Driver Update (2.0), 2019-10-01 ) ]

Back to Top


New Wind Sensor (WMR800X)

A replacement Wind Sensor for the WMR80 Oregon Scientific Weather Station was installed today, 2019-09-09.

The old unit had been having increased problems with sensing wind direction. Originally it could detect 8 directions, then 6-7 directions and recently it seems that only 1 or 2 directions are being reported, mostly N (000°).

The new anemonmeter unit (WGR800X) was purchased from Weather Spares (https://www.weatherspares.co.uk/) .  The new unit detects 16 directions and after a moment of hestitation about whether it would work ok with my older base station, eventually I got signals through and confirmed that its reading ok.

New Wind Sensor (assembled)   New Wind Sensor (in Position)
  Image   Image

Direction Data from new Wind Sensor Unit
 36 Hour Plot shows the raw data
(detecting 16 directions, with 22.5 deg resolution)

5 day plot shows the data as rolling average
(Compare new data with data from old sensor,
which has recently been ouputing only N and W)

Later 5 day plot showing subtle wind direction changes & trends


See Current Weather Data from Observatory

Back to Top
