CCD Images - Session 131 (2006-07-23)

Previous Imaging Session
Images
(S130)
  Home
Images
Sessions
  Home
Home
Page
  Next Imaging Session
Images (S132)

Objects Session Notes
Bullet XO-1 - Parent Star to exosolar planet
Bullet U Her - Mira variable
Bullet HD 149026 - Parent Star to exosolar planet
Bullet SS Cyg - Variable Star
Bullet TrES-1 - Parent Star to exosolar planet
Bullet 61 Cygni - Star (the 'flying star')
Bullet Gliese 1245 - Nearby Star System - 14.8 ly
Bullet Groombridge 34 - Nearby double star
Bullet Ross 248 (HH And) - Variable Star
- 2 hr 35m session
- main aim was to acquire baseline images of of HD 149026 and TrES-1 (exosolar planet parent star project) , Gliese 1245 (nearby star project),
- also acquired were images of SS Cyg (variable star project),  61 Cygni, Ross 248 and Groombridge 34 (nearby stars project) and the mira variable (U Her)
- developing cloud prevented acquisition of planned infrared imaging of Maffei 1, Maffei 2 (galaxies largely obscured by Milky Way dust)
- More Notes

XO-1 - Parent Star to Exosolar Planet

Further baseline images of XO-1 were acquired as part of a project to detect the transit of an exosolar planet, that is known to orbit this star
(exosolar planet project).

XO-1 (Corona Borealis)
XO-1 : GSC 2041:1657
1 : GSC 2041:186,   2 : GSC 2041:976

Annotated CCD Image
60s exposure, 2x2 binning, R Filter
2006-07-23 22:31 hUT (#131021)



Back to Top


U Her - Mira variable

U Her (Hercules)

U Her is a mira variable with catalog period of 406.1 days and magnitude range of +6.4 to +13.4.
Images were acquired in C, B, V, R & I filters
A magnitude of +7.5 (V band) is estimated fro U Her using the comparison star technique,
suggesting that the variable is near peak brightness.
(V) :  U Her (SAO 102160)
(C) :  SAO 102156  (B: 11.44, V 9.53)
(K) :  GSC 1514:1226



Annotated CCD Image
3 x 20s exposure, 2x2 binning, C Filter
2006-07-23 22:36 hUT (#131027-29)

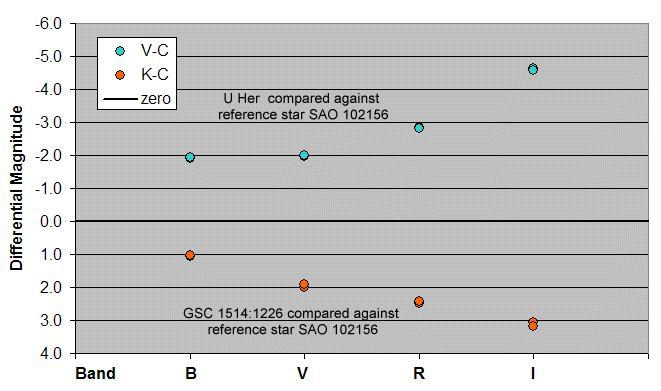

 The comparative brightness of U Her in Infrared band is
shown in the following series of images (2006-07-23)


CCD Images (cropped)
5s sec exp, 2x2 binning,
2006-07-23
B: #131030, V: #131045, R: #131039, I: # 13143



Colour analysis of U Her
Although U Her (1.98) and SAO 102156 (1.91) have similar B-V values,
U Her is relatively much brighter in red and infrared than the B-V value would suggest
(put another way, U Her is brighter in blue than might be expected, given its redness)
 [ U Her spectral type : M6.5e-M9.5e ]


Back to Top


HD 149026 - Parent Star to Exosolar Planet

Baseline images of HD 149026 were acquired as part of a project to detect the transit of an exosolar planet, that is known to orbit this star
(exosolar planet project).

HD 149026 (Hercules)
Annotated CCD Image
3 x 30s (average combine), C filter)
2006-07-23 22:50h UT (#131053-55)

Monitoring HD 149026 for small magnitude changes during exosolar
planet transits will be difficult due to the lack of a suitable
reference star of similar brightness within the same field of view.

Less accurate method of monitoring will be to alternate frames of
HD 149026 with frames from offset reference star.
 Possible offset stars :

HIP 80885  (Hercules)
HIP 80885 is actually a double star (Struve 2059)
with 1 arc sec separation (too small to be
seen at resolution of image)
CCD Image
3 x 15s (average combine), C filter)
2006-07-23 23:14h UT (#131092-94)

Back to Top


SS Cyg - Variable Star

Measurements made in B, V, R filters as part of ongoing study.

SS Cyg (Cygnus)

SS Cyg variation between 2006-05-24 and 2006-07-23

Back to Top


TrES-1 - Parent Star to Exosolar Planet

Baseline images of TrES-1 parent star were acquired as part of a project to detect the transit of an exosolar planet, that is known to orbit this star
(exosolar planet project).

TrES-1 Parent Star (Lyra)
~ 500 light years, distance
Planet orbit 3.03 days
Annotated CCD Image
3 x 20s (average combine), C filter)
2006-07-23 23:32h UT (#131124-26)

Note : Discrepancy seen with GSC 2652:1291 (V Band) mag.
Catalog +11.2,  Measured Estimate +10.3.
Recommend monitoring for variability

Back to Top


61 Cygni - Star (The 'flying star')

Astrometric measurements made, as part of a ongoing study to attempt to measure proper motion and annual parallax of 61 Cygni.
( 61 Cygni Project )

Back to Top


Gliese 1245 - Nearby Star System - 14.8 ly

Gliese 1245 (Cygnus)
(Alt Name V1581 Cyg)
Annotated CCD Image (50% size)
7 x 60s (average median combine), 1x1 binning, C filter
2006-07-23 23:49h UT (#131146-52)

Gliese 1245 - detail
A, B, C : can't be resolved)
Annotated CCD Image (200% size)
Images details as above

Back to Top


Groombridge 34 - Nearby Double Star - 11.7 ly

Astrometric measurements made, as part of a ongoing study to attempt to measure proper motion and annual parallax of Groombridge 34
(Groombridge 34 Project).

Groombridge 34 (Andromeda)
A - GX And, HD 1326
B - GQ And
Annotated CCD Image (50% size)
7 x 20s (average combine), 1x1 binning, C filter
2006-07-24 00:09h UT (#131156-62)

Back to Top


Ross 248 (HH And) - Nearby Star & Variable Star - 10.3 ly

Astrometric measurements made, as part of a ongoing study to attempt to measure proper motion and annual parallax of Ross 248 (And HH)
(Ross 248 Project)

Ross 248 (Andromeda)
Also known as HH And
CCD Image
3 x 30s (average combine), 1x1 binning, C filter
2006-07-24 00:17h UT (#131169-71)

Back to Top
